Test G

PINPOINT TEST G: OUTPUT SHAFT SPEED (OSS) SENSOR

G1-G2 Continued:

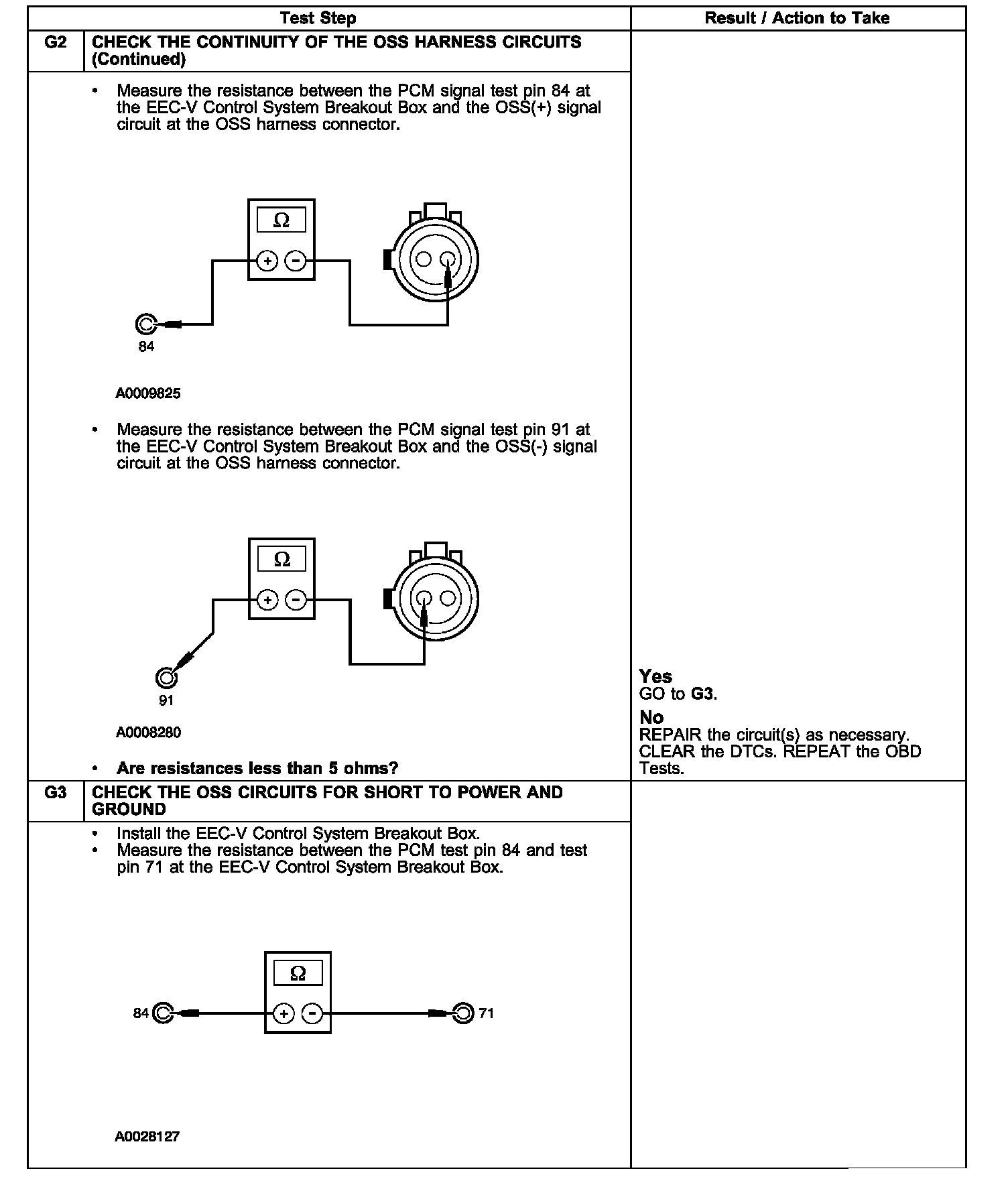

G2-G3 Continued:

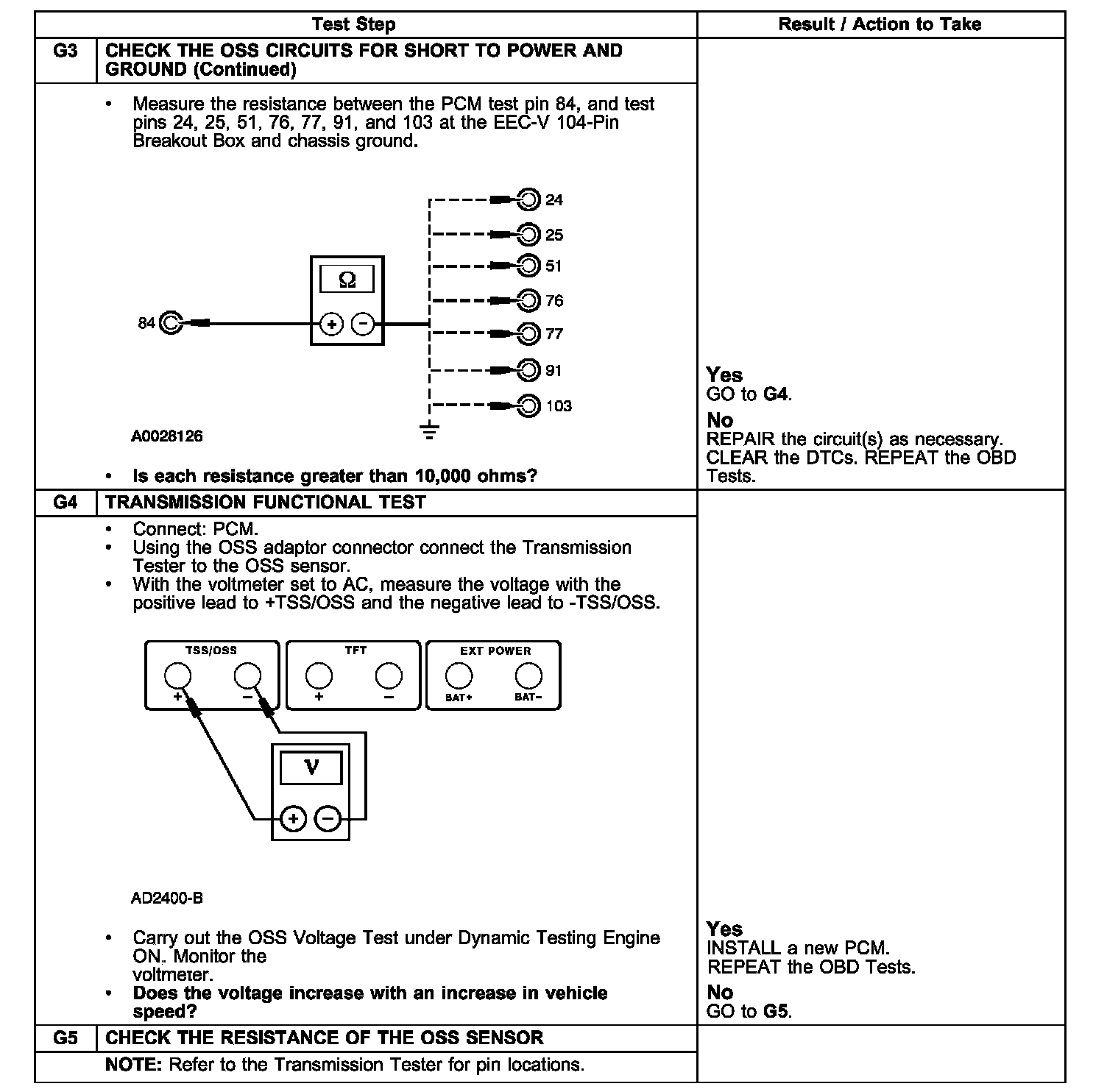

G3-G5 Continued:

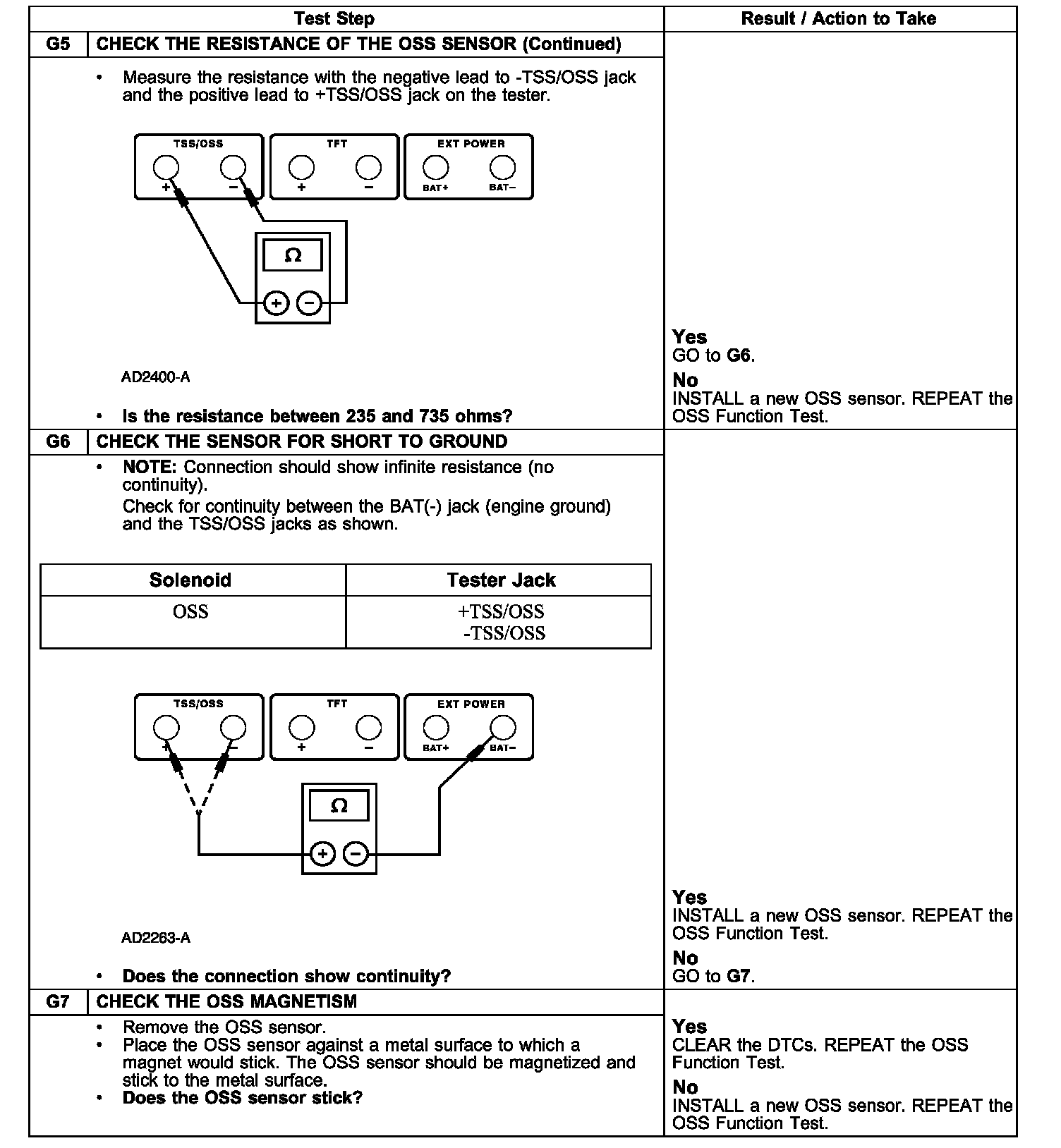

G5-G7:

NOTE: Refer to the Output Shaft Speed Sensor Harness Connector Illustration preceding these pinpoint tests.
