Test C

PINPOINT TEST C: TORQUE CONVERTER CLUTCH (TCC) SOLENOID

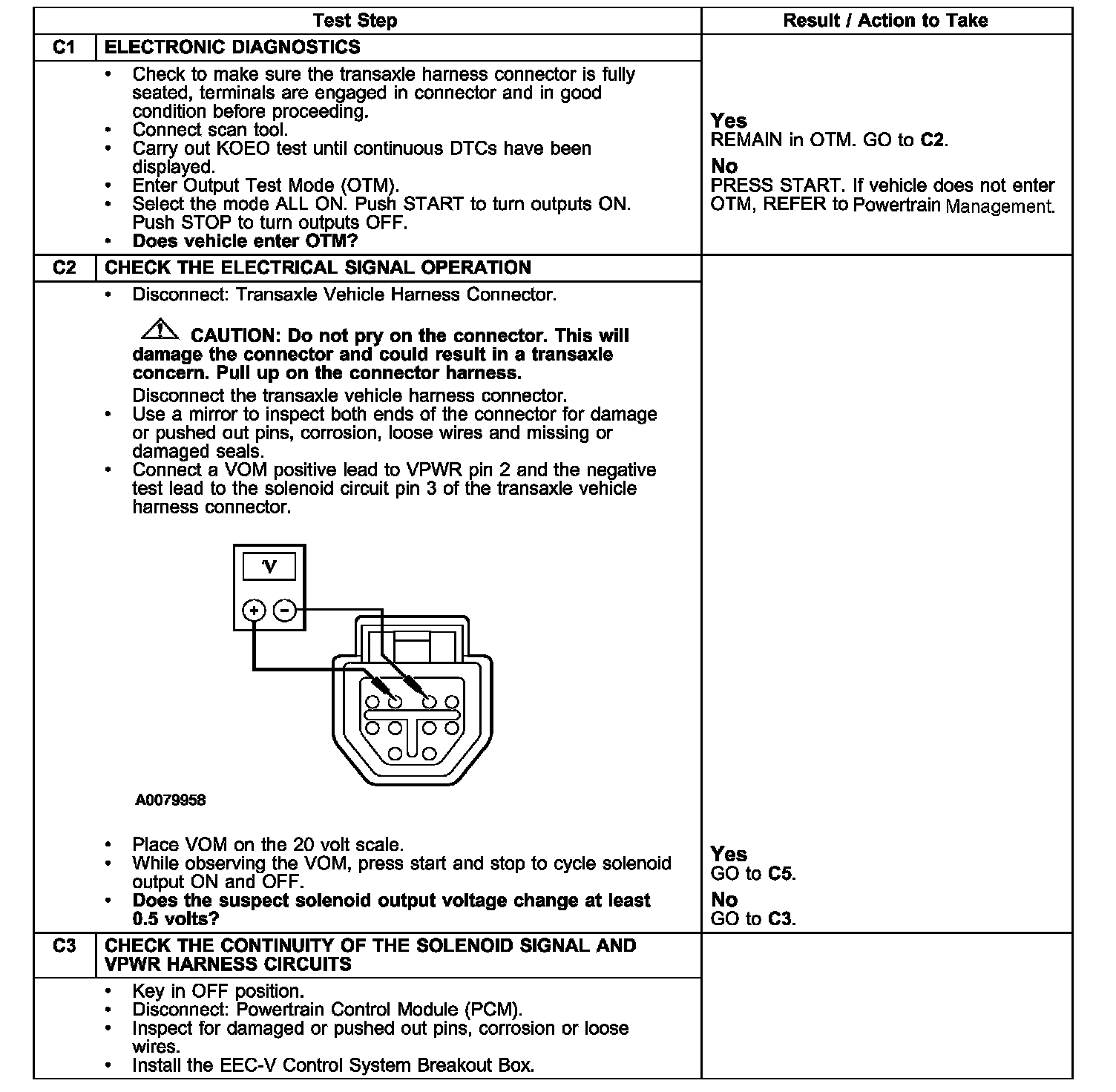

C1-C3 Continued:

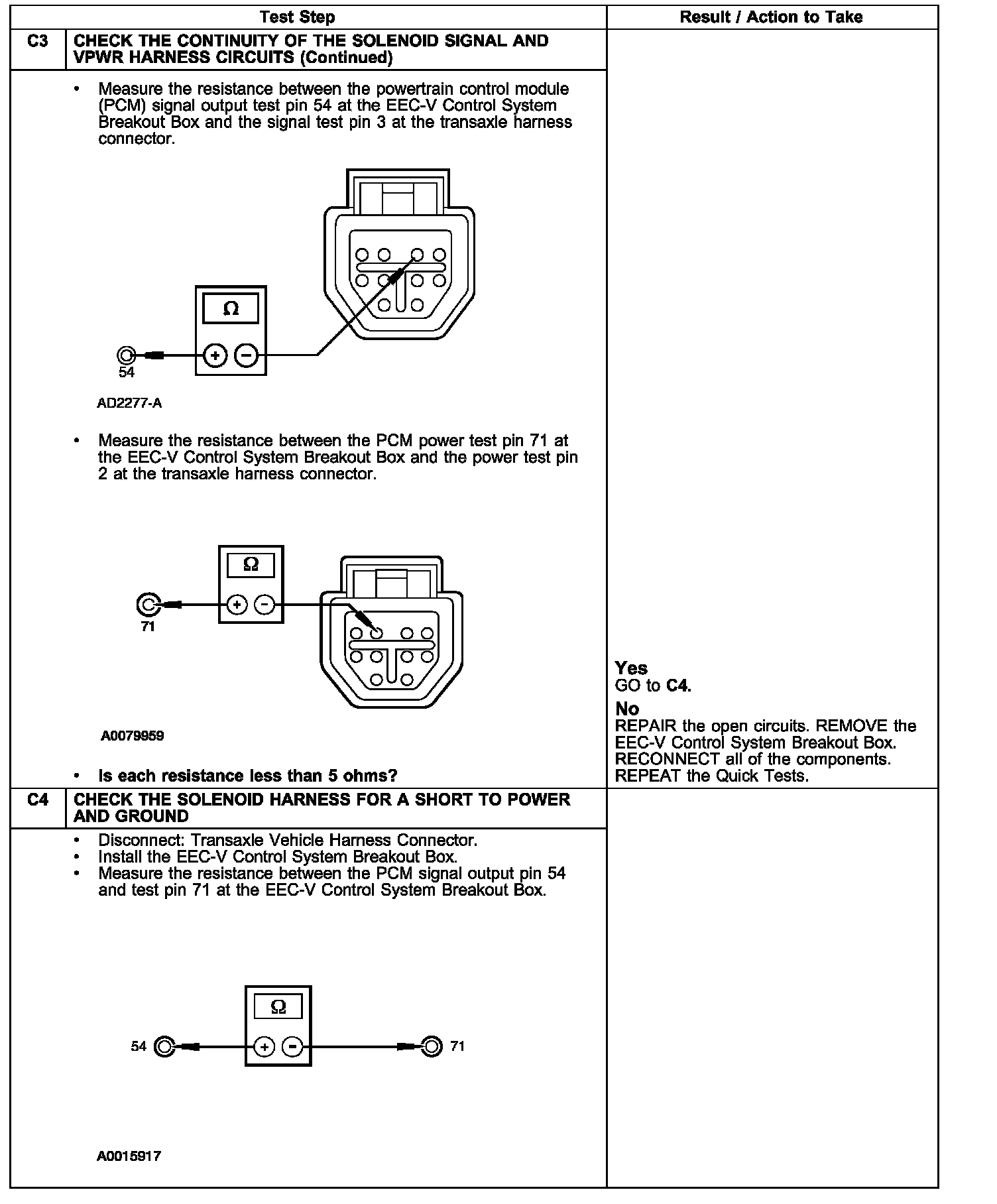

C3-C4 Continued:

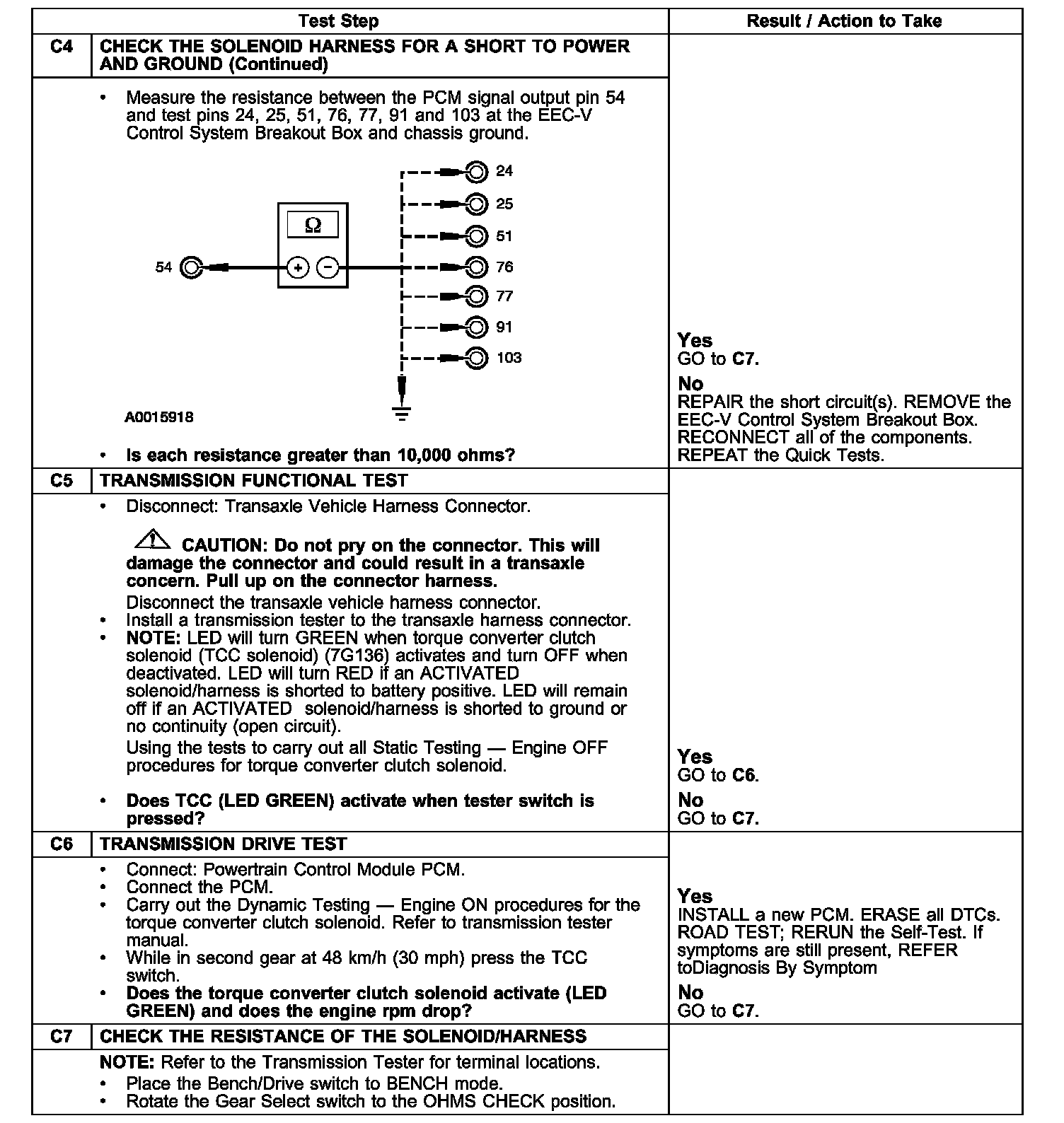

C4-C7 Continued:

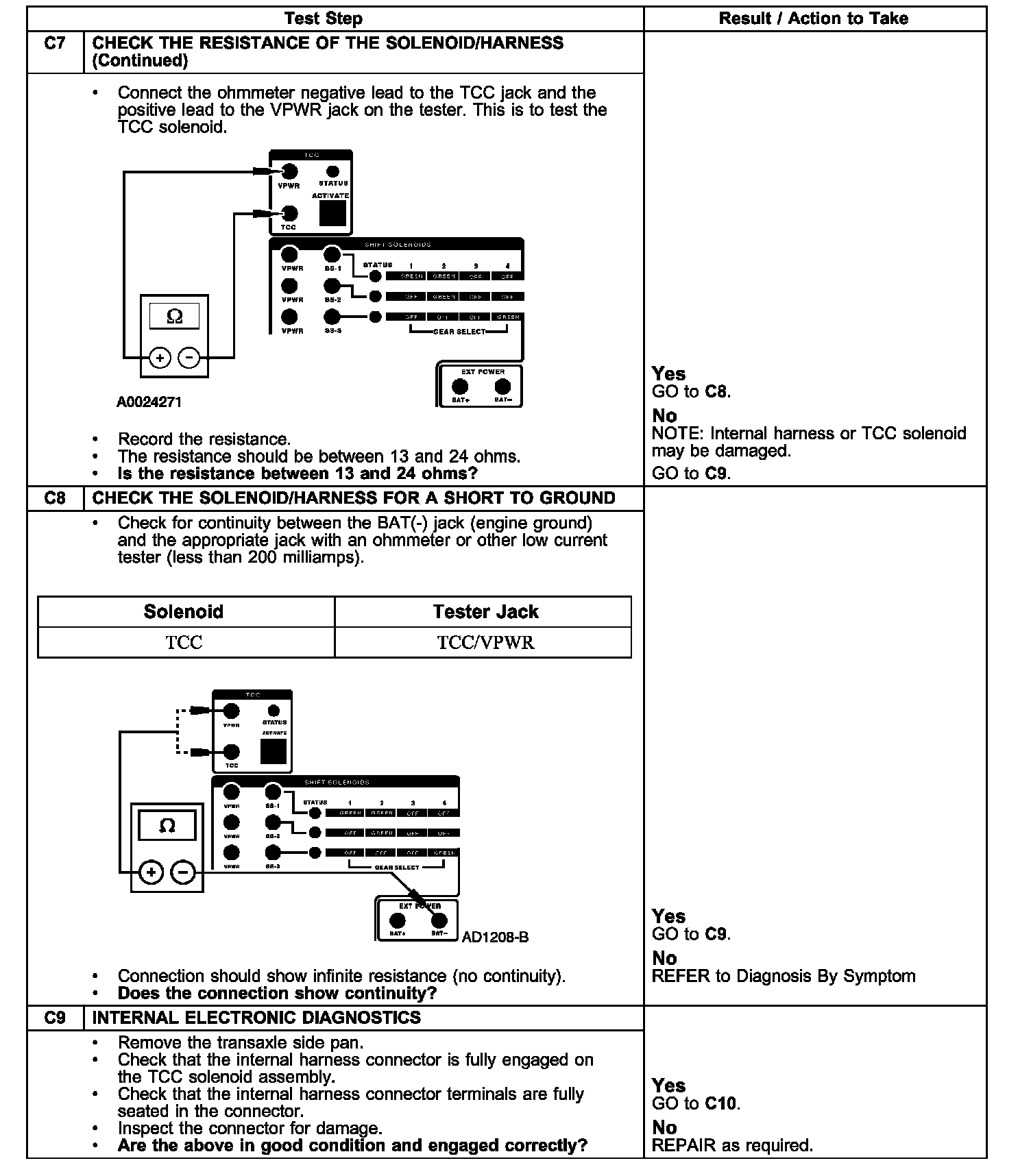

C7-C9:

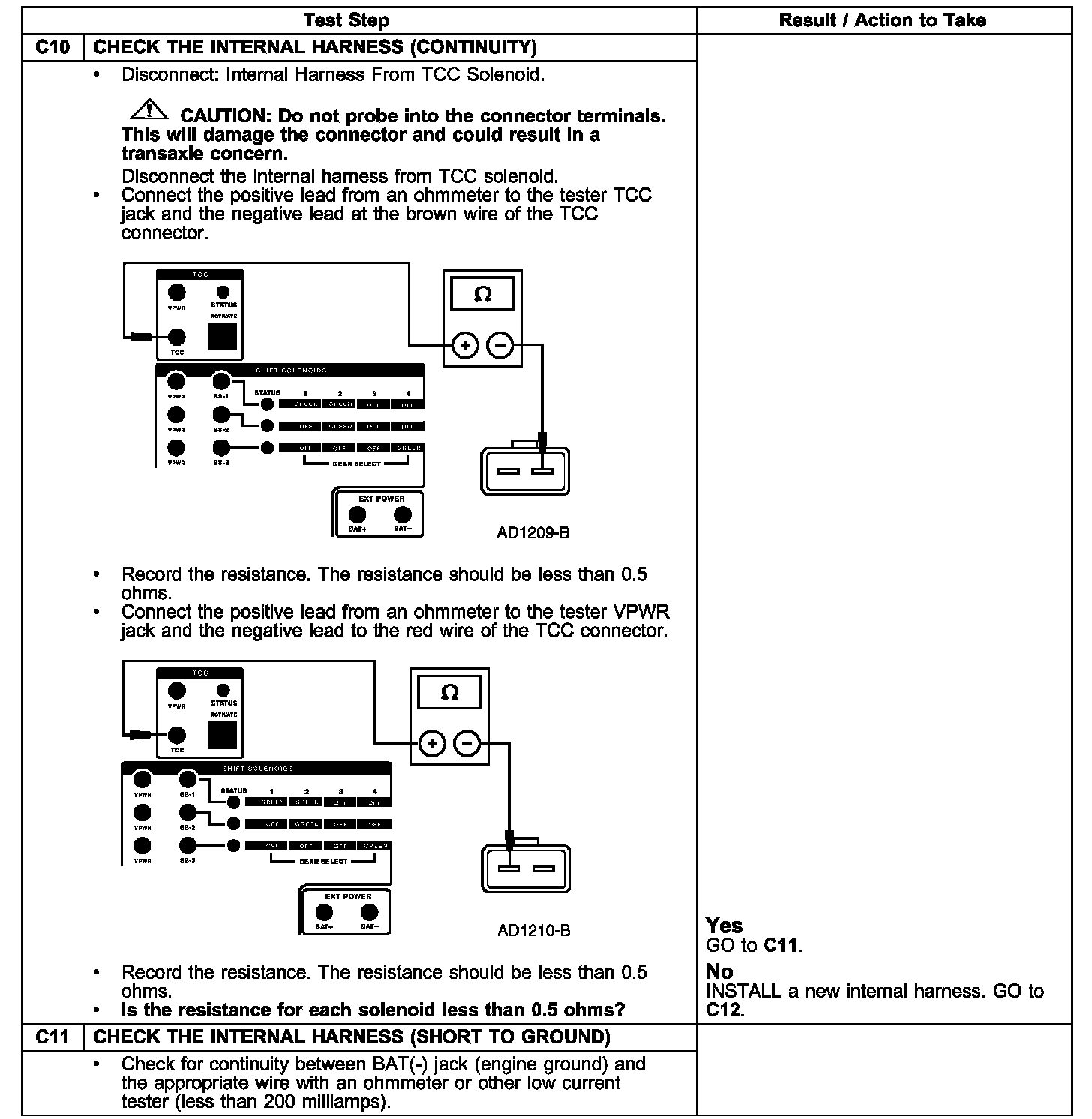

C10-C11 Continued:

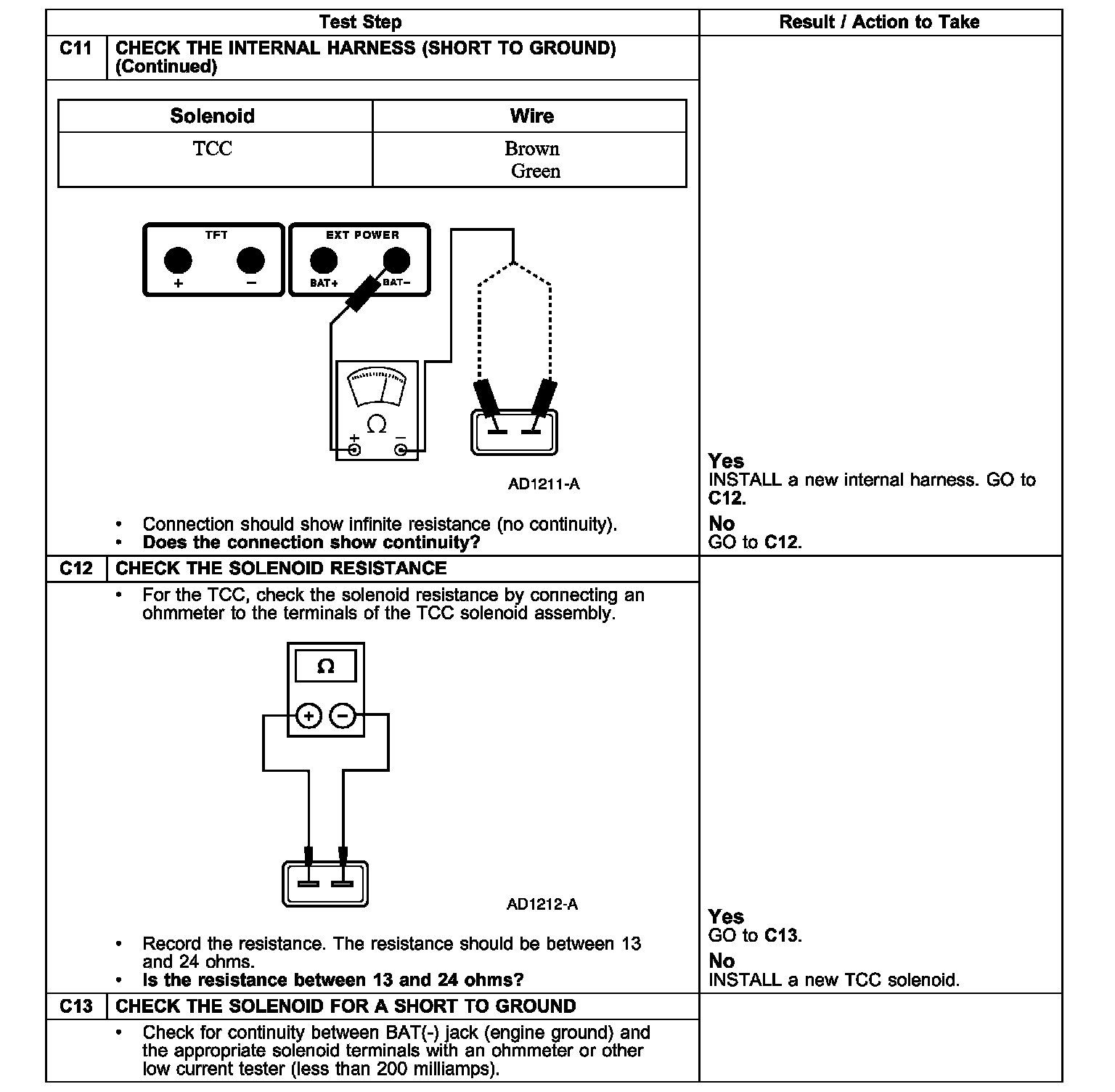

C11-C13 Continued:

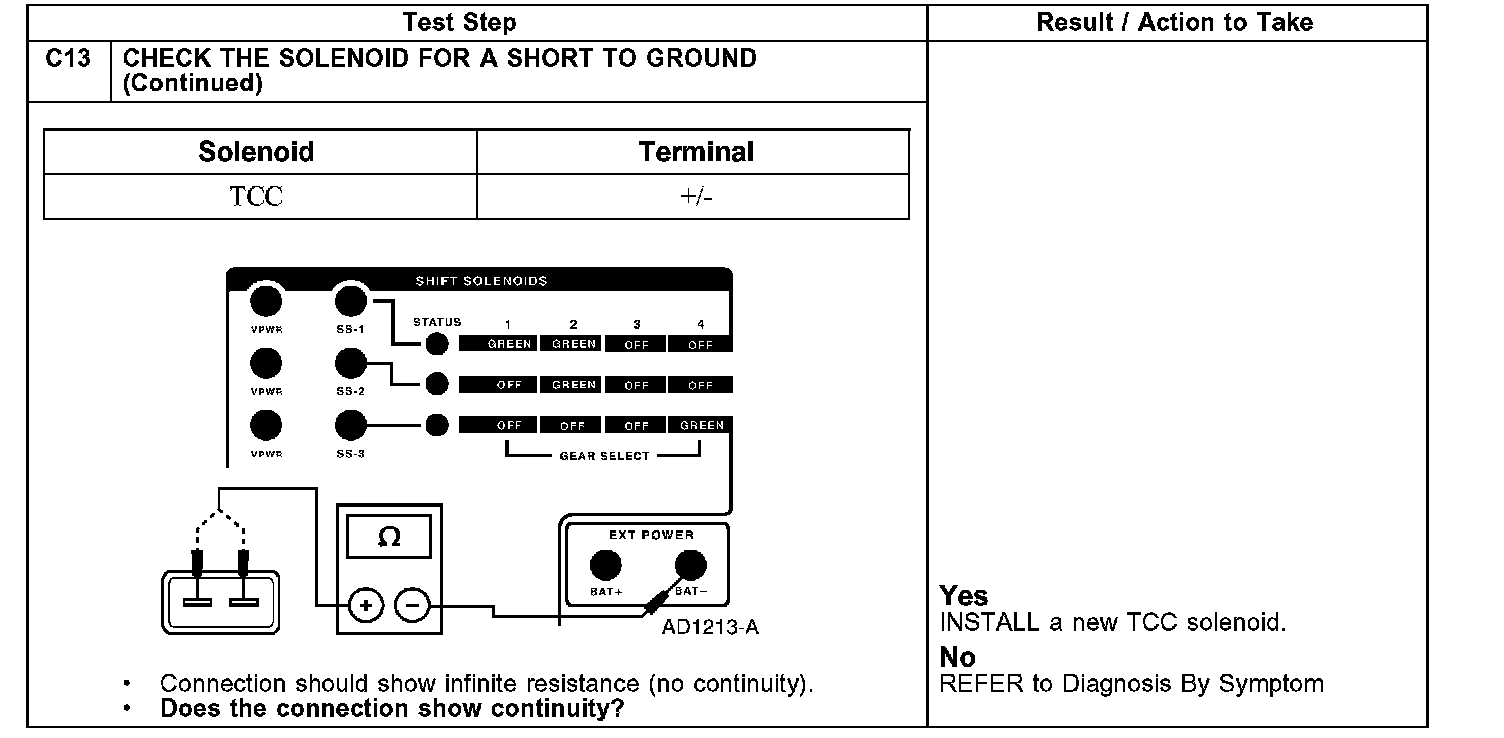

C13:

NOTE: Refer to the Transaxle Vehicle Harness Connector illustration preceding these pinpoint tests.

NOTE: Refer to the Transaxle Internal Harness Diagram illustration preceding these pinpoint tests.
