Drive Sprocket/Turbine Shaft

Drive Sprocket/Turbine Shaft

Disassembly

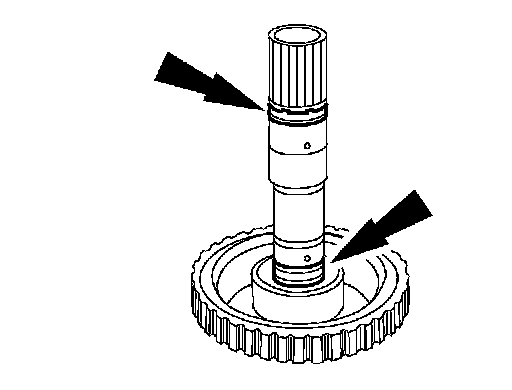

1. Remove the drive sprocket/turbine shaft seal and O-ring.

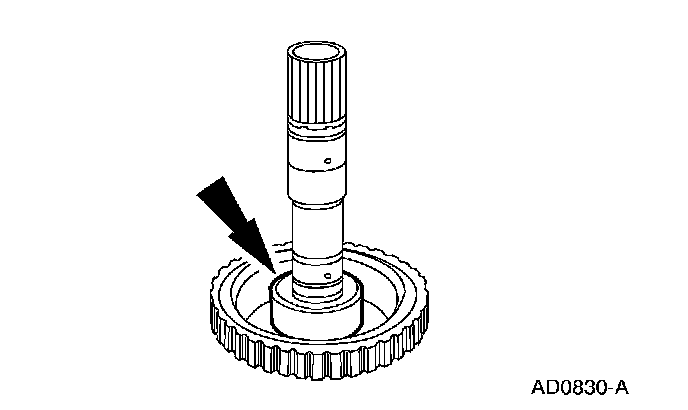

^ Remove the drive sprocket/turbine shaft O-ring.
^ Remove the drive sprocket/turbine shaft seal.





2. Inspect the bearing race for wear. If the bearing is worn a new drive sprocket/turbine shaft will need to be installed.

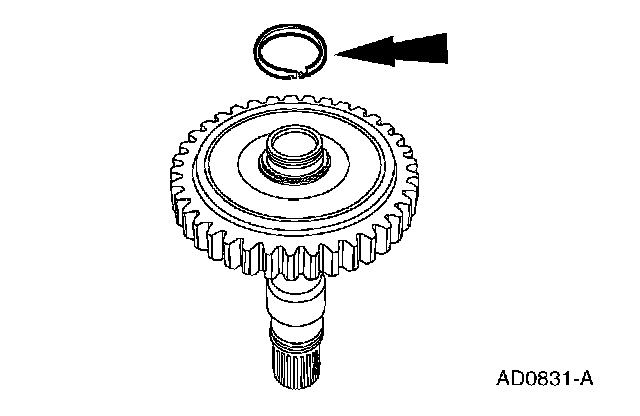

3. Remove the turbine shaft front seal.

Assembly

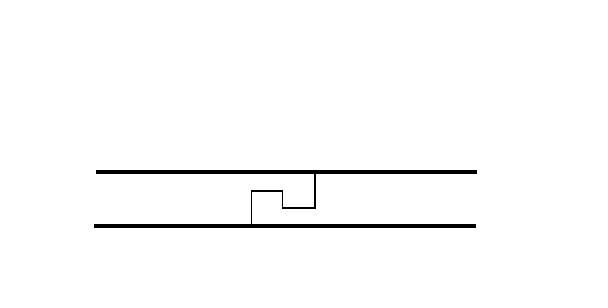

1. Make sure that the seals are mated correctly.





2. Install the drive sprocket/turbine shaft seal and O-ring.

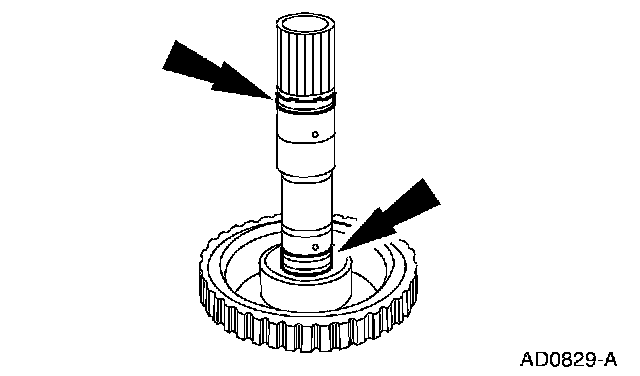

^ Install the drive sprocket/turbine shaft O-ring.
^ Install the drive sprocket/turbine shaft seal.





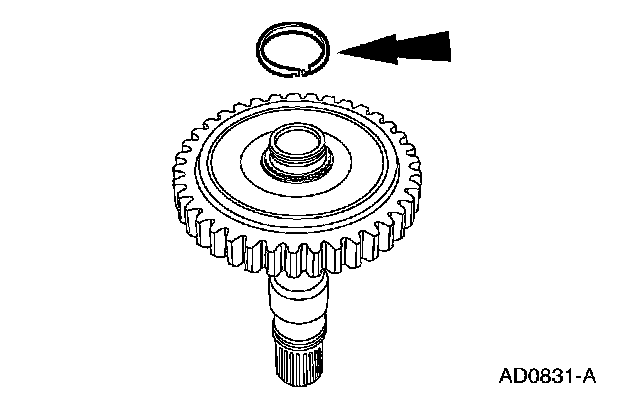

3. Install the turbine shaft front seal.





4. Make sure that the seal is locked correctly.
