Home >> Mercury >> 2004 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A

PINPOINT TEST A: STEERING SYSTEM NOISE

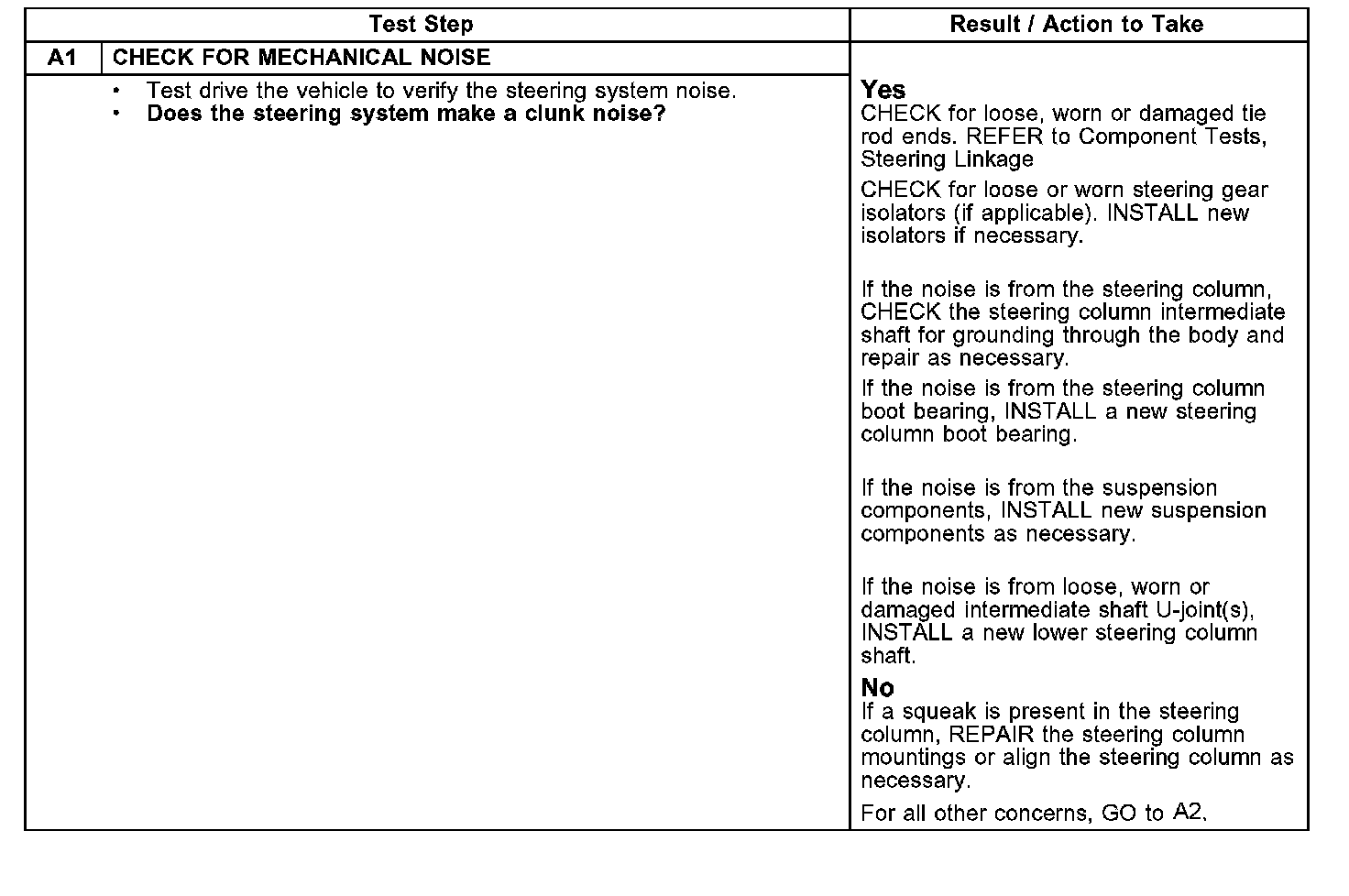

Test A1:

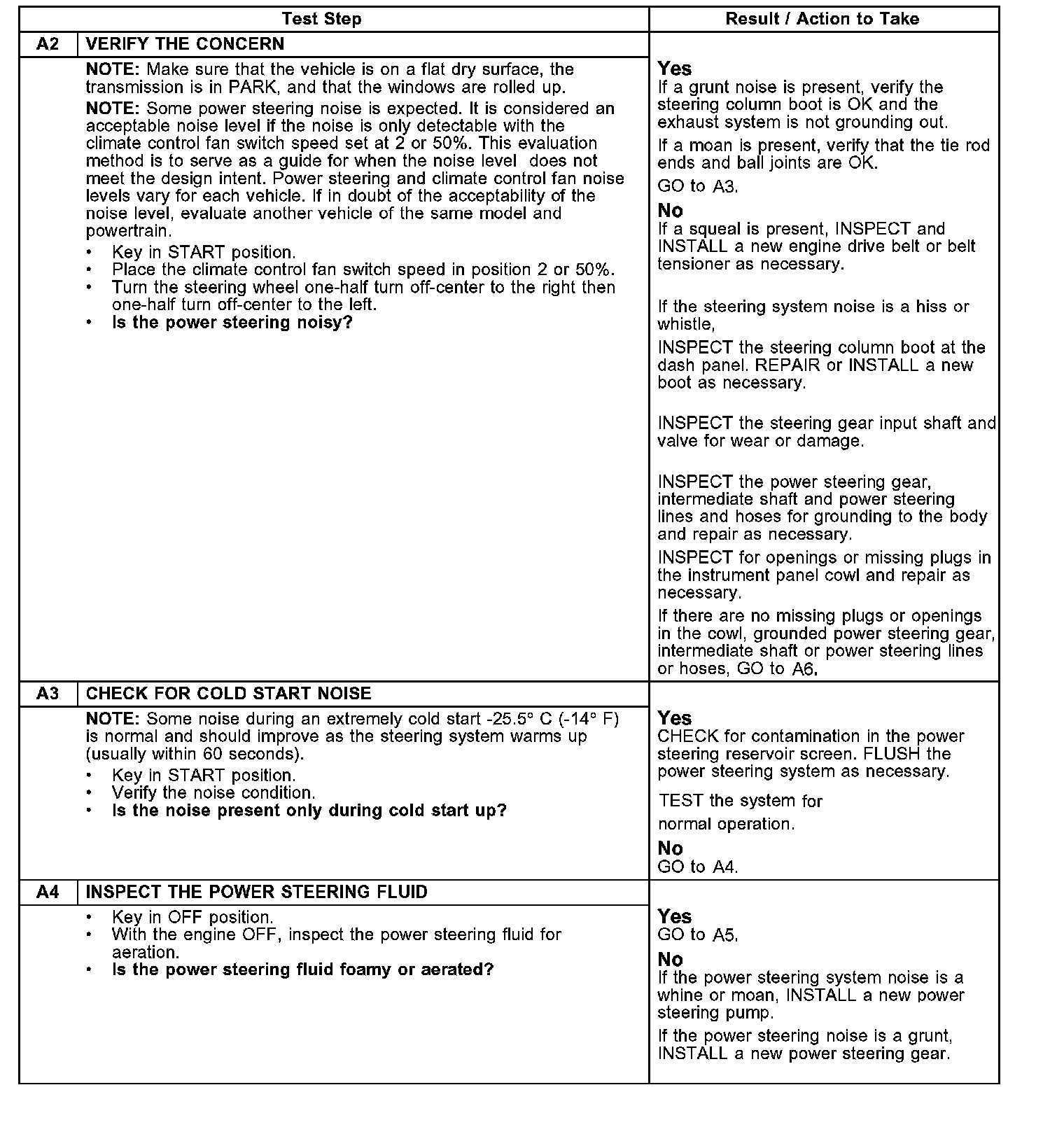

Test A2 - A4:

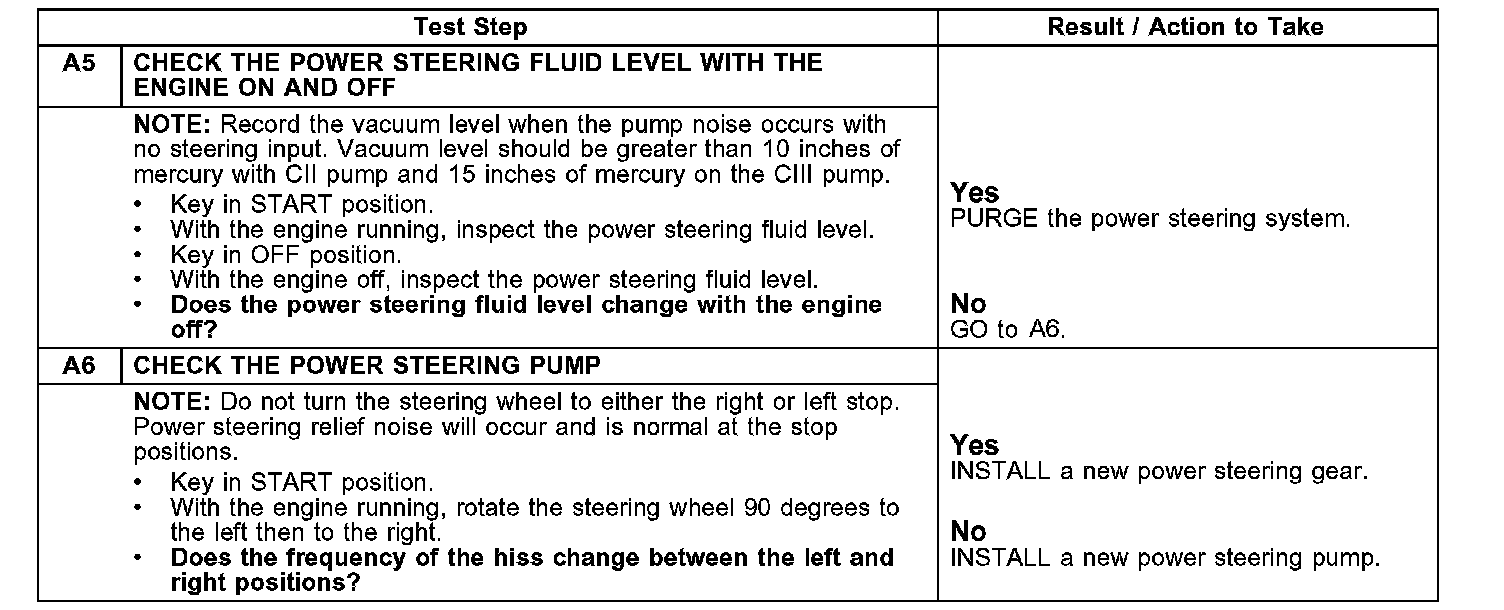

Test A5 - A6:
