Test B

PINPOINT TEST B: THE CHARGING SYSTEM WARNING INDICATOR IS ON WITH THE ENGINE RUNNING (THE CHARGING SYSTEM VOLTAGE DOES NOT INCREASE)

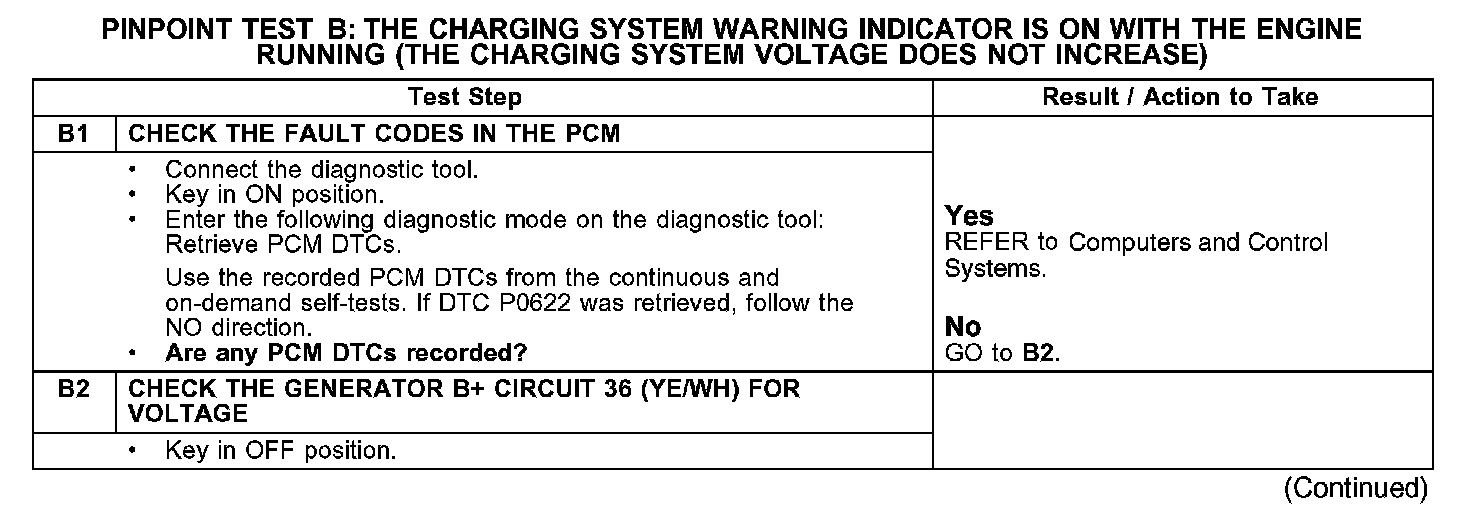

Test B1-B2:

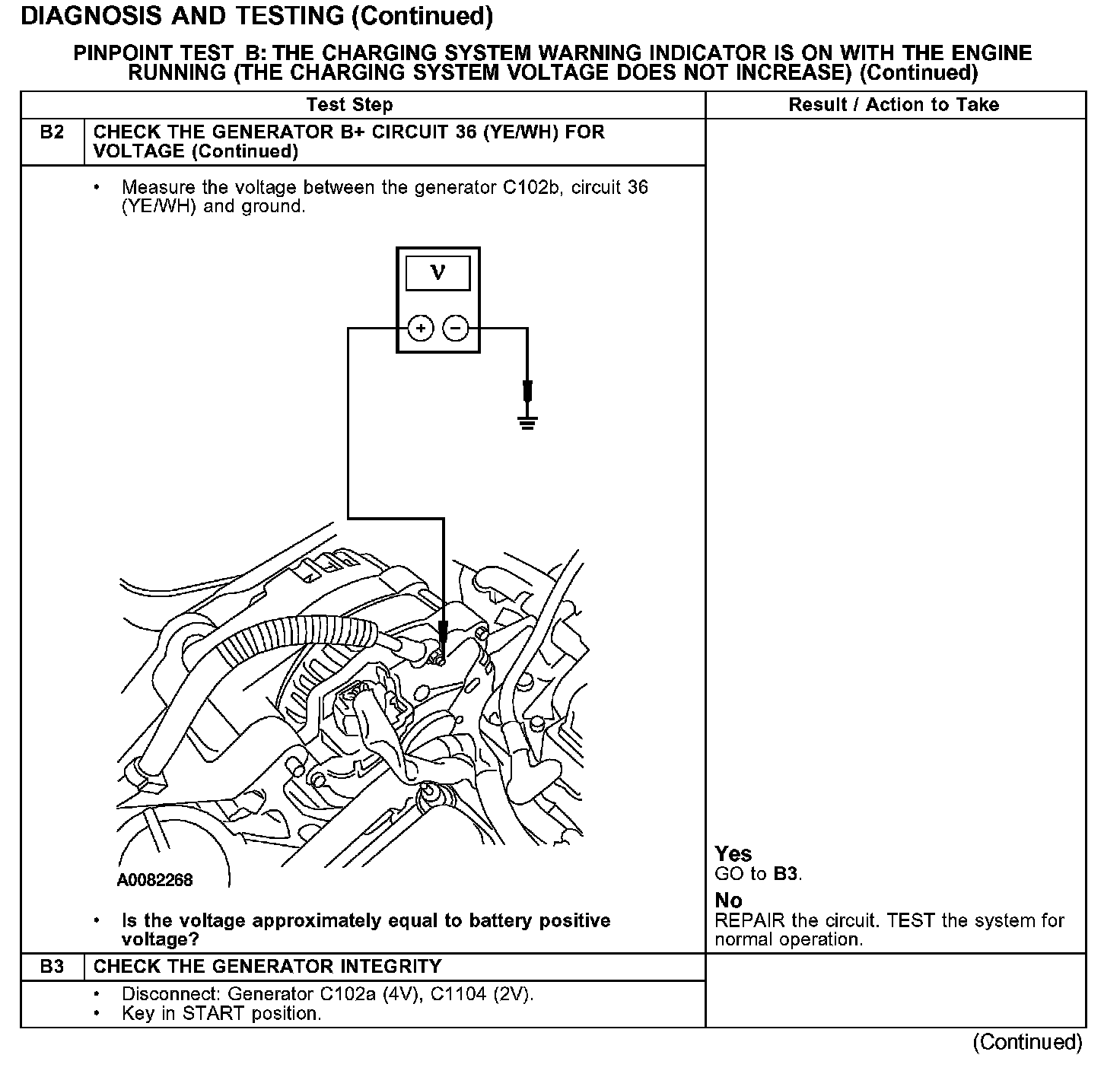

Test B2-B3:

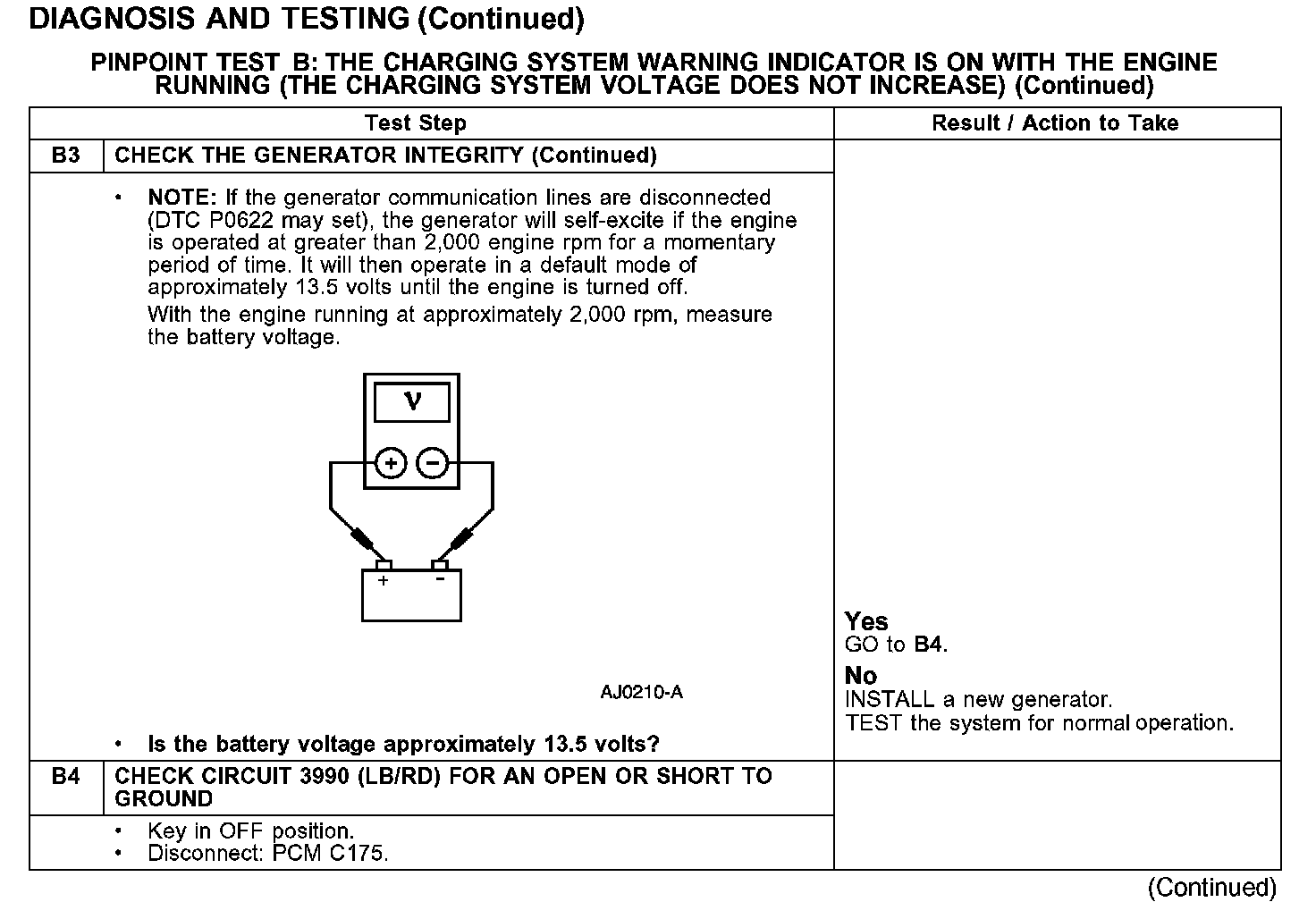

Test B3-B4:

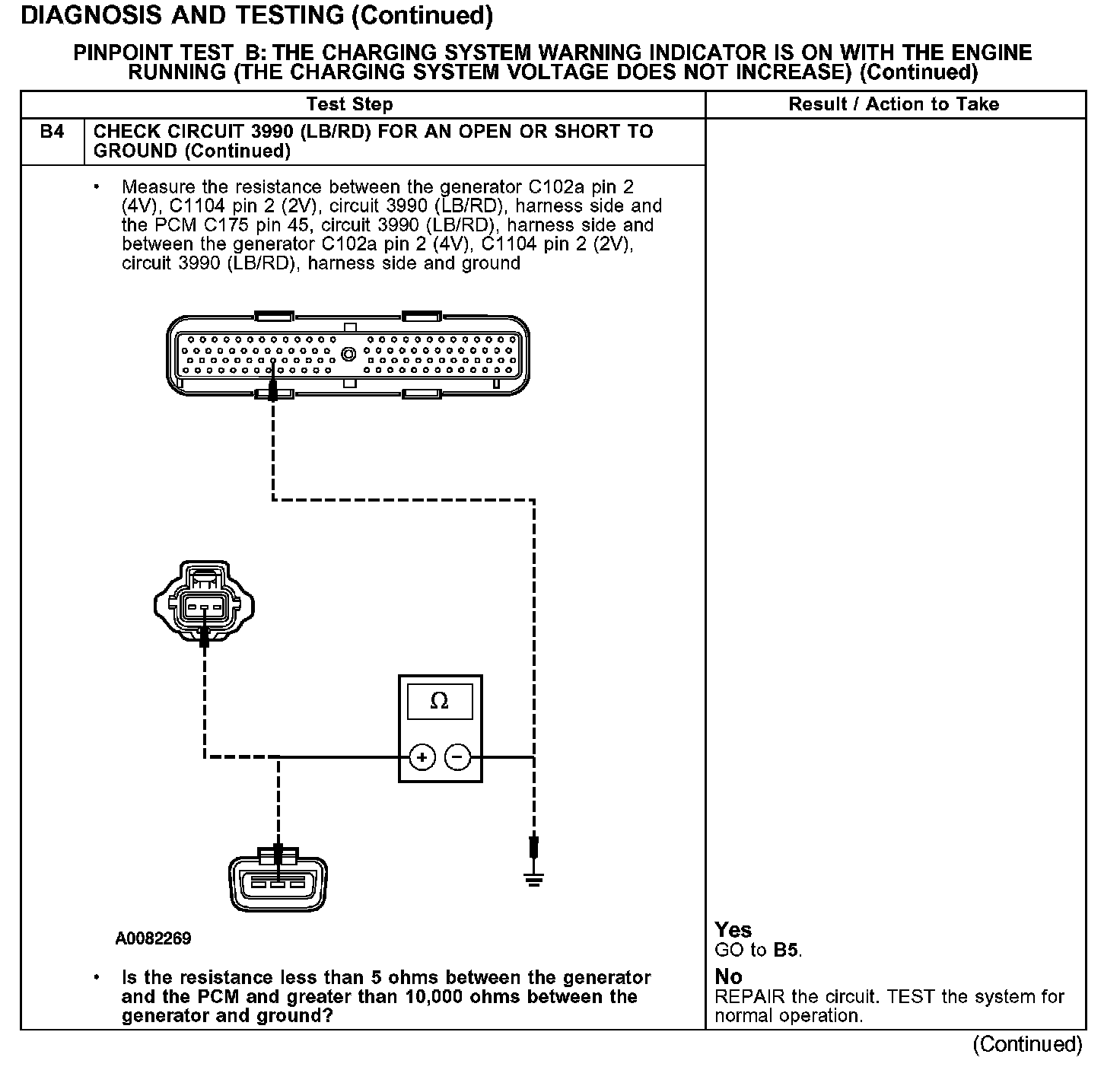

Test B4 Continued:

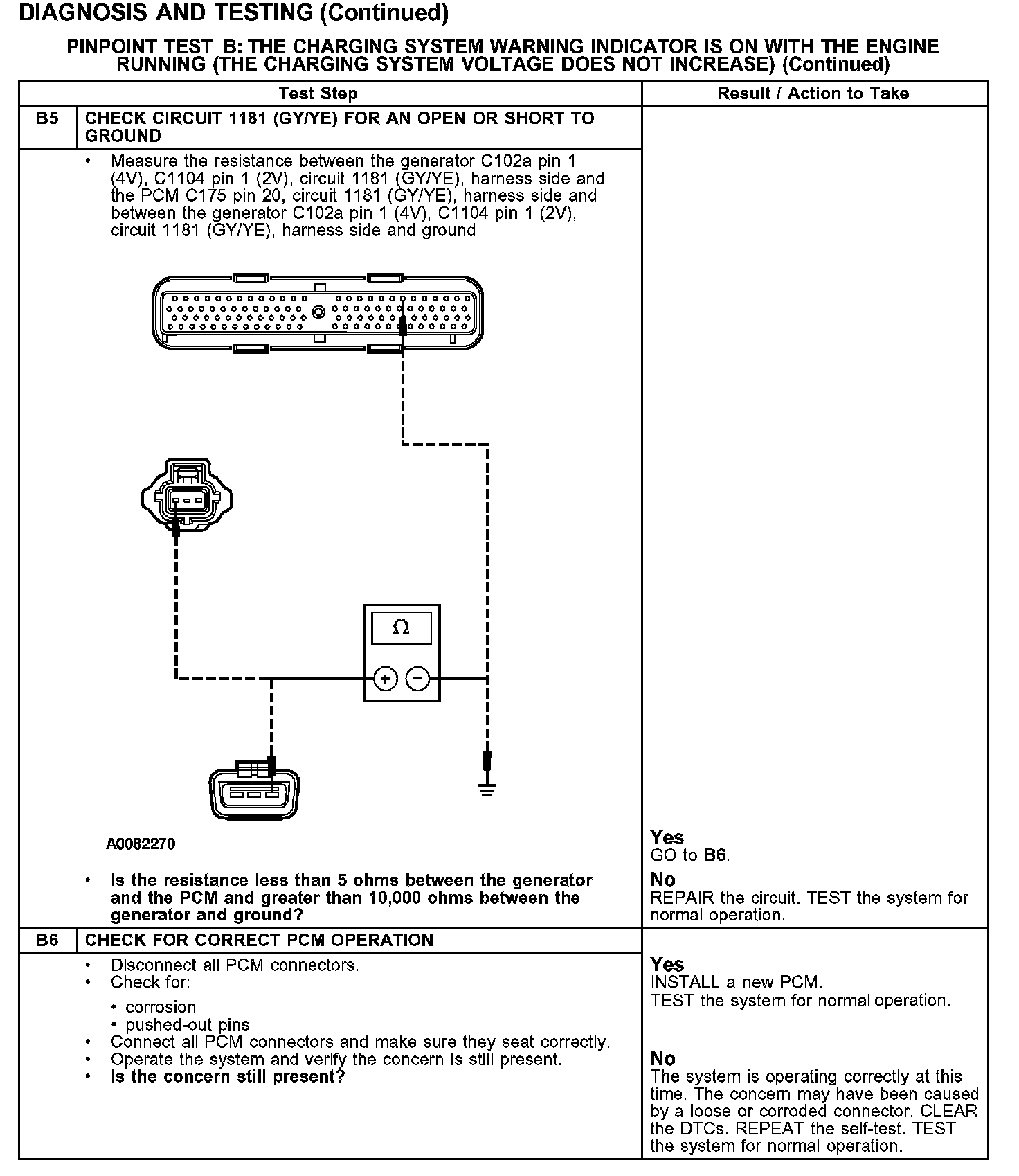

Test B5-B6:
