Home >> Mercury >> 2004 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Impact Sensor >> Locations

Impact Sensor: Locations

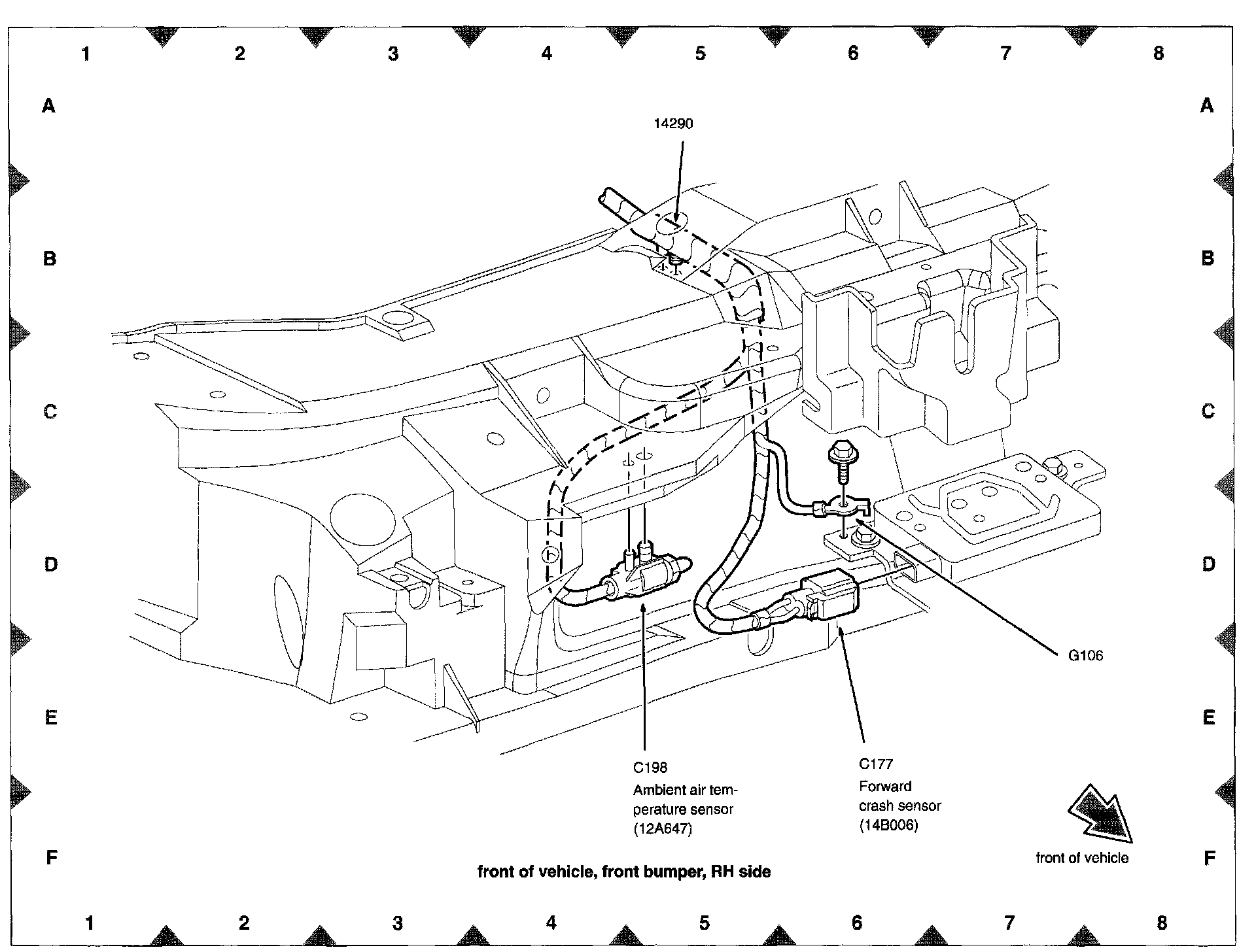

View 151-1:

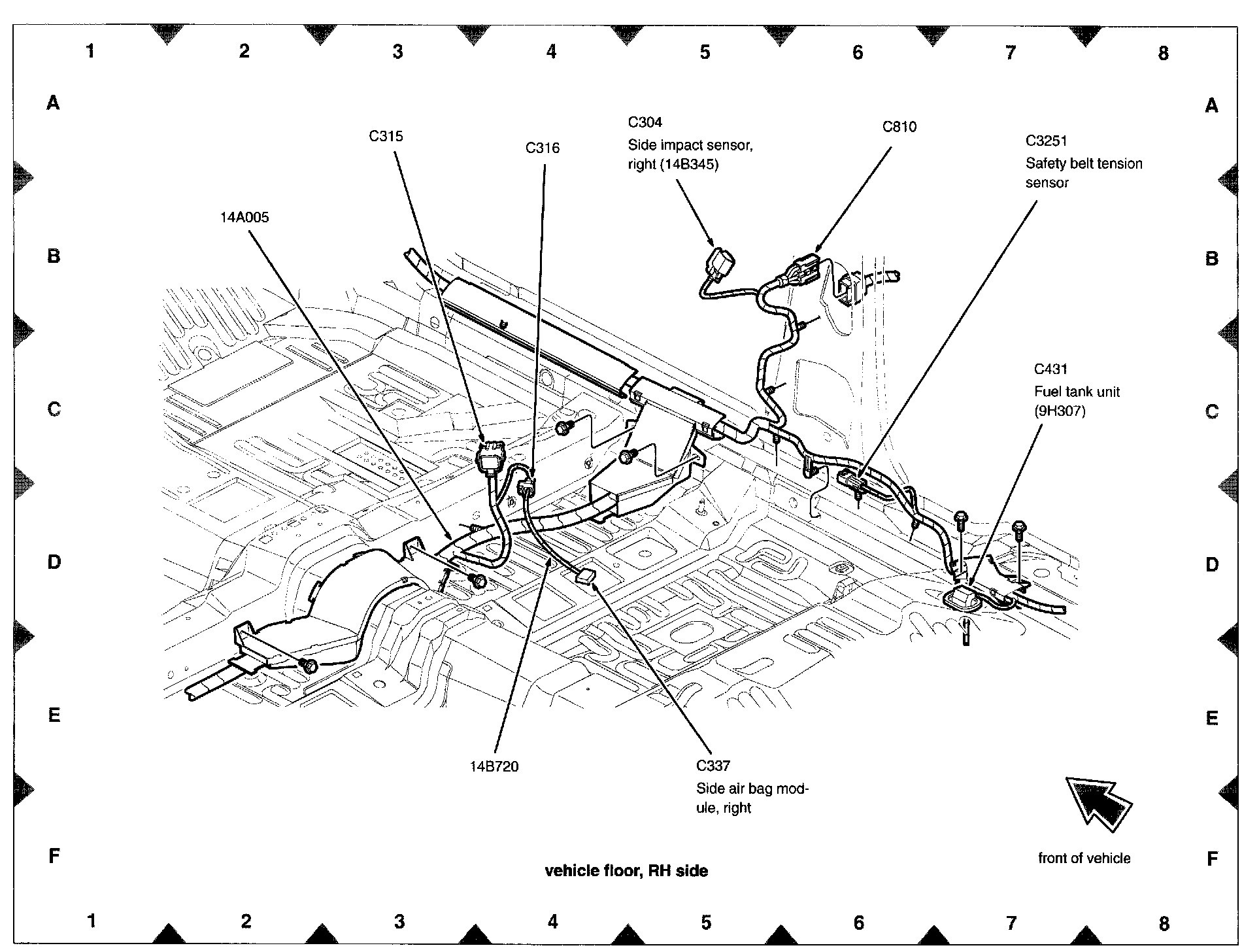

View 151-26:

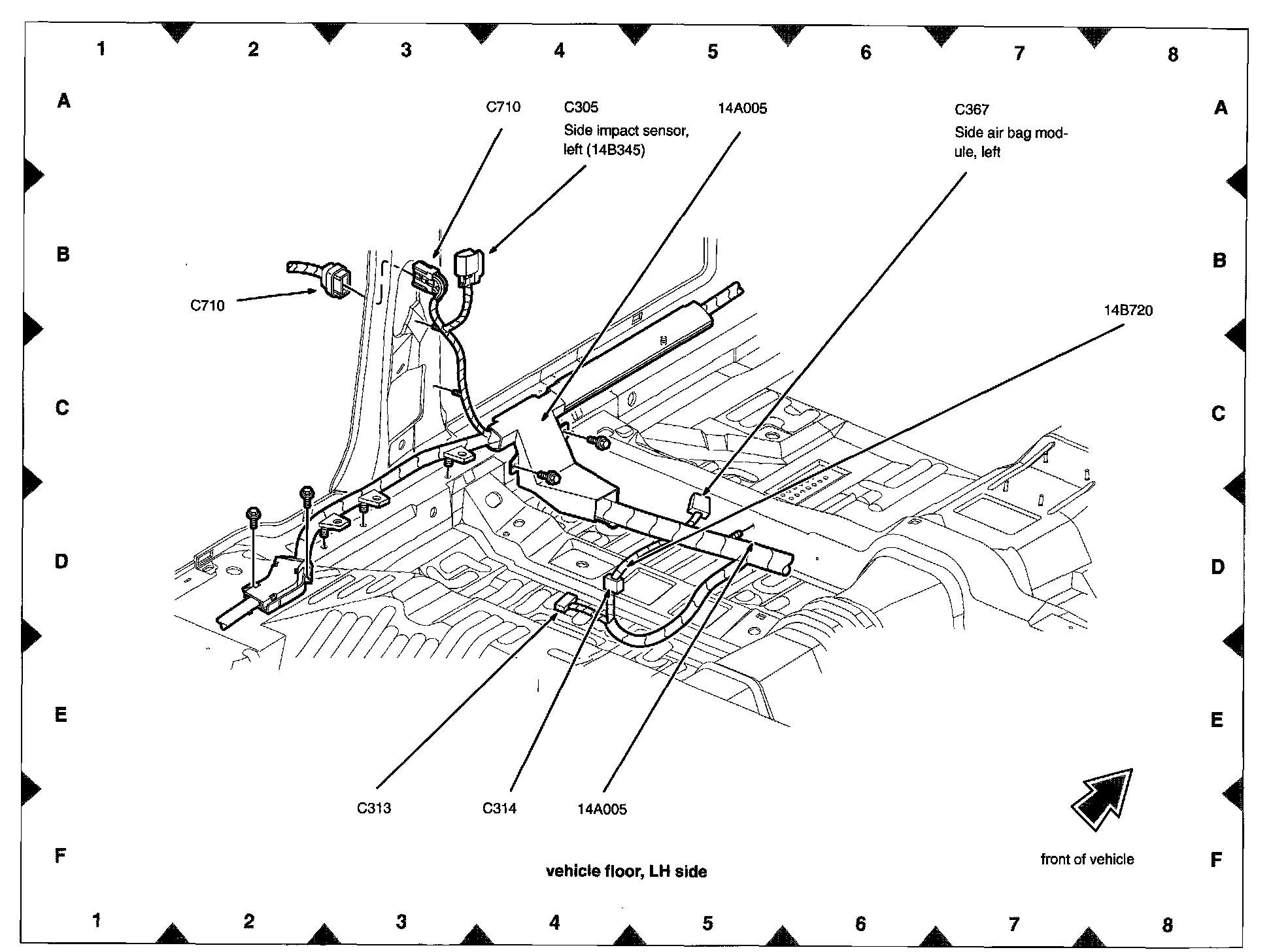

View 151-27:
