Ambient Light Sensor: Service and Repair

PHOTOCELL

REMOVAL

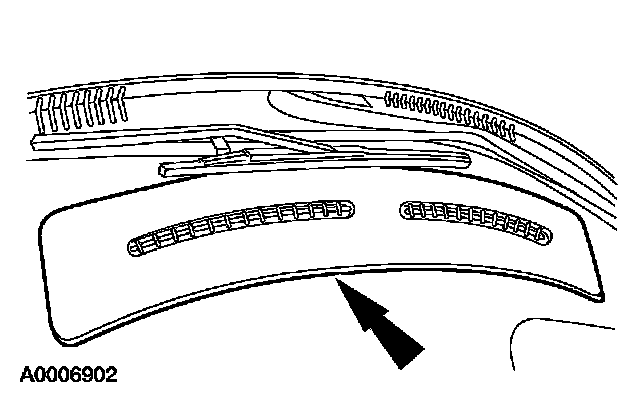

1. NOTE: Lift upwards on the rear edge of the defroster grille then slide rearward to remove.


Remove the defroster grille.
- Disconnect the photocell sensor electrical connector.

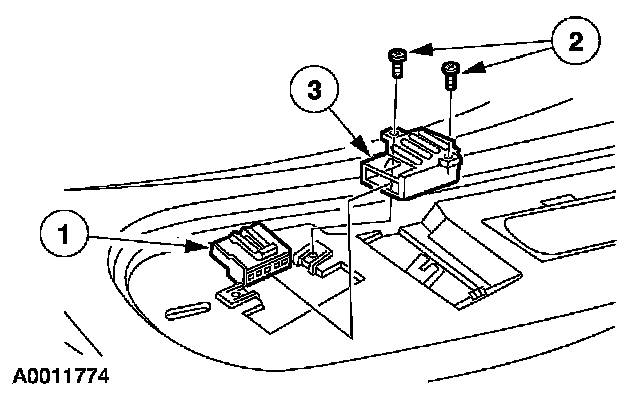

2. Remove the screws and the photocell sensor.
1 Disconnect the photocell sensor electrical connector.
2 Remove the screws.
3 Remove the photocell sensor.

INSTALLATION
1. To install, reverse the removal procedure.
