Discharge Air Temperature Sensor / Switch: Service and Repair

AIR DISCHARGE TEMPERATURE SENSOR

REMOVAL
1. Lower the glove compartment door.

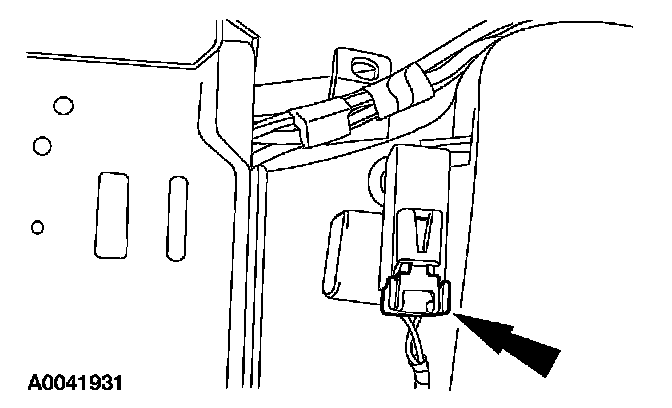

2. Disconnect the evaporator air discharge temperature sensor electrical connector.

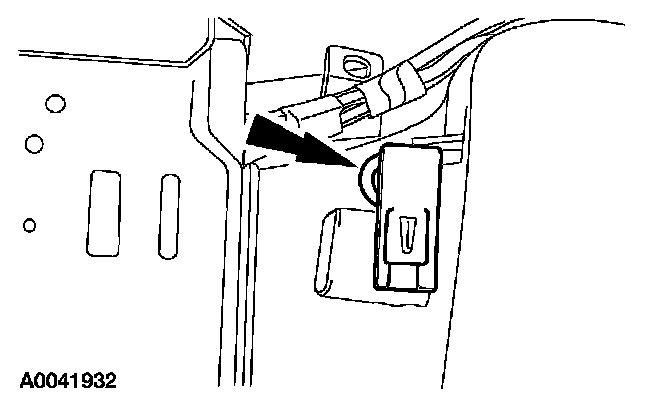

3. Carefully pry the evaporator air discharge temperature sensor to disengage the clips and remove the evaporator air discharge temperature sensor.

INSTALLATION
1. To install, reverse the removal procedure.
