Ambient Temperature Sensor / Switch HVAC: Service and Repair

AMBIENT AIR TEMPERATURE SENSOR

REMOVAL

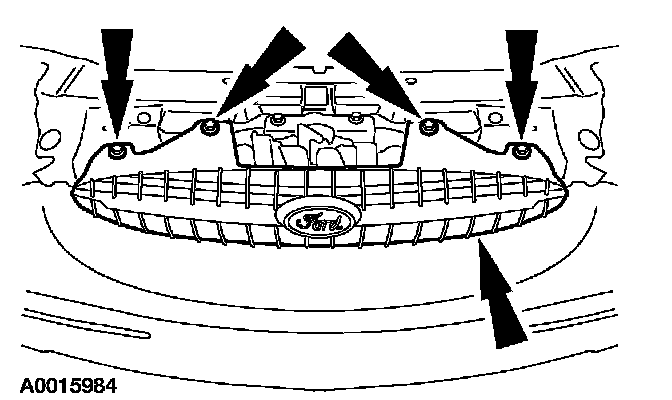

1. Remove the four scrivets and the grille.

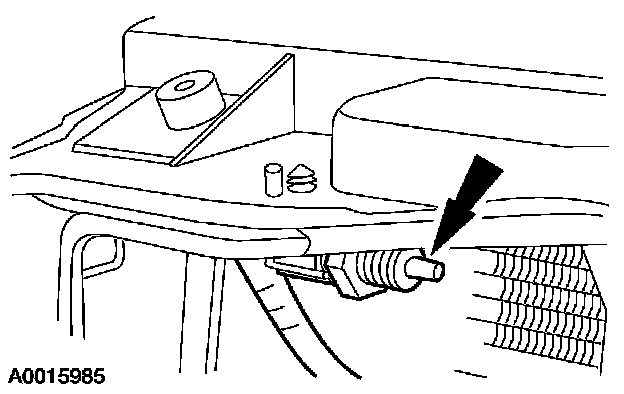

2. Detach the ambient air temperature sensor.

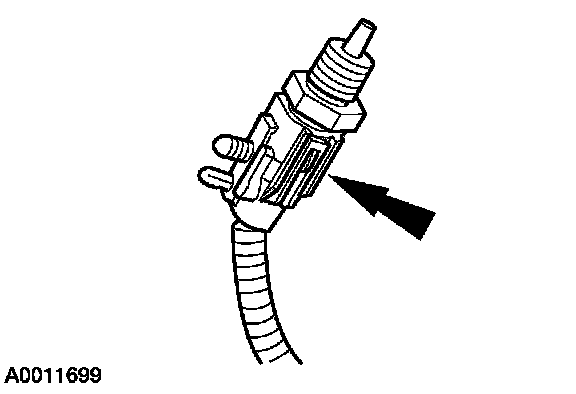

3. Disconnect the ambient air temperature sensor.

INSTALLATION
1. To install, reverse the removal procedure.
