Home >> Mercury >> 2004 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Tools and Equipment >> Special Tools Used While Performing Tests

Special Tools Used While Performing Tests

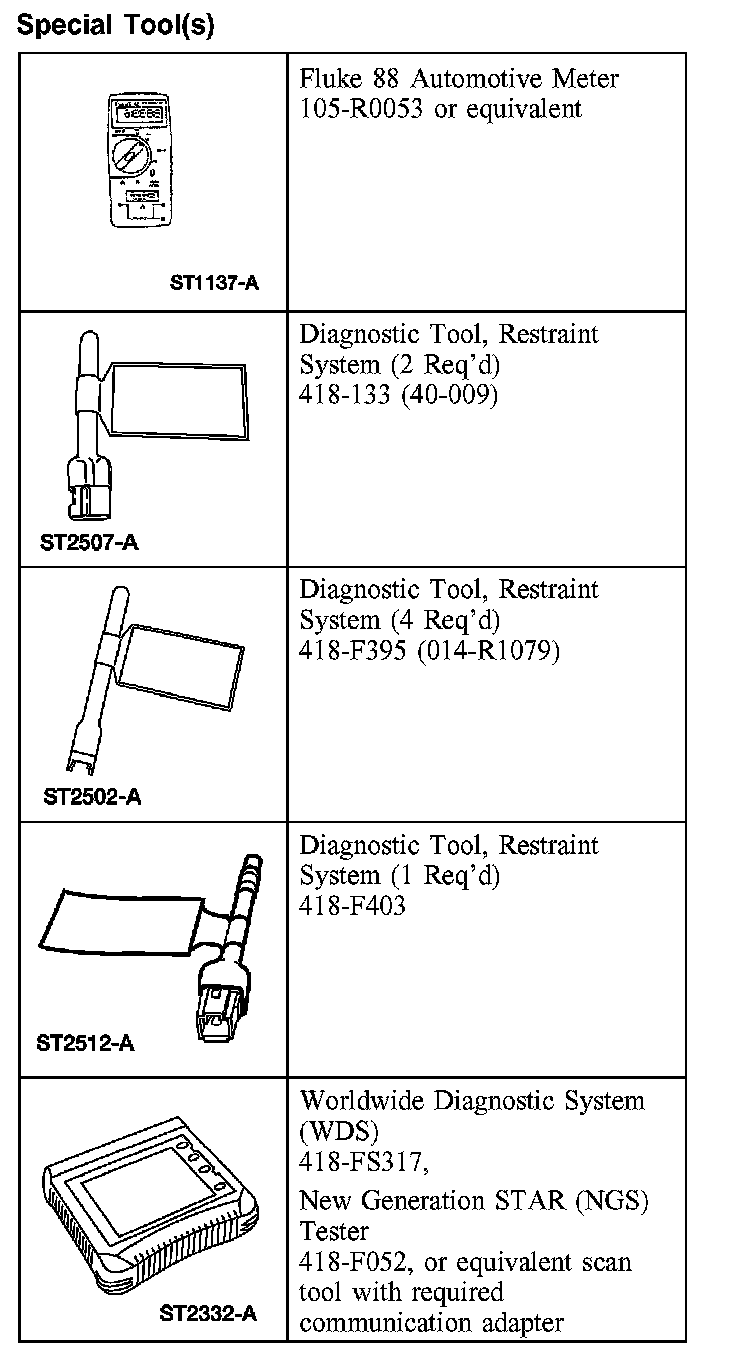

SPECIAL TOOL(S)


Special Tool(s):






RESTRAINT SYSTEM DIAGNOSTIC TOOL WARNING

WARNING: Restraint system diagnostic tools are for service only. Tools must be removed prior to operating the vehicle over the road. Failure to remove diagnostic tools could result in injury and possible violation of vehicle safety standards.
