Test U

PINPOINT TEST U: LFC 15/DTC C1414 - INCORRECT MODULE DESIGN LEVEL

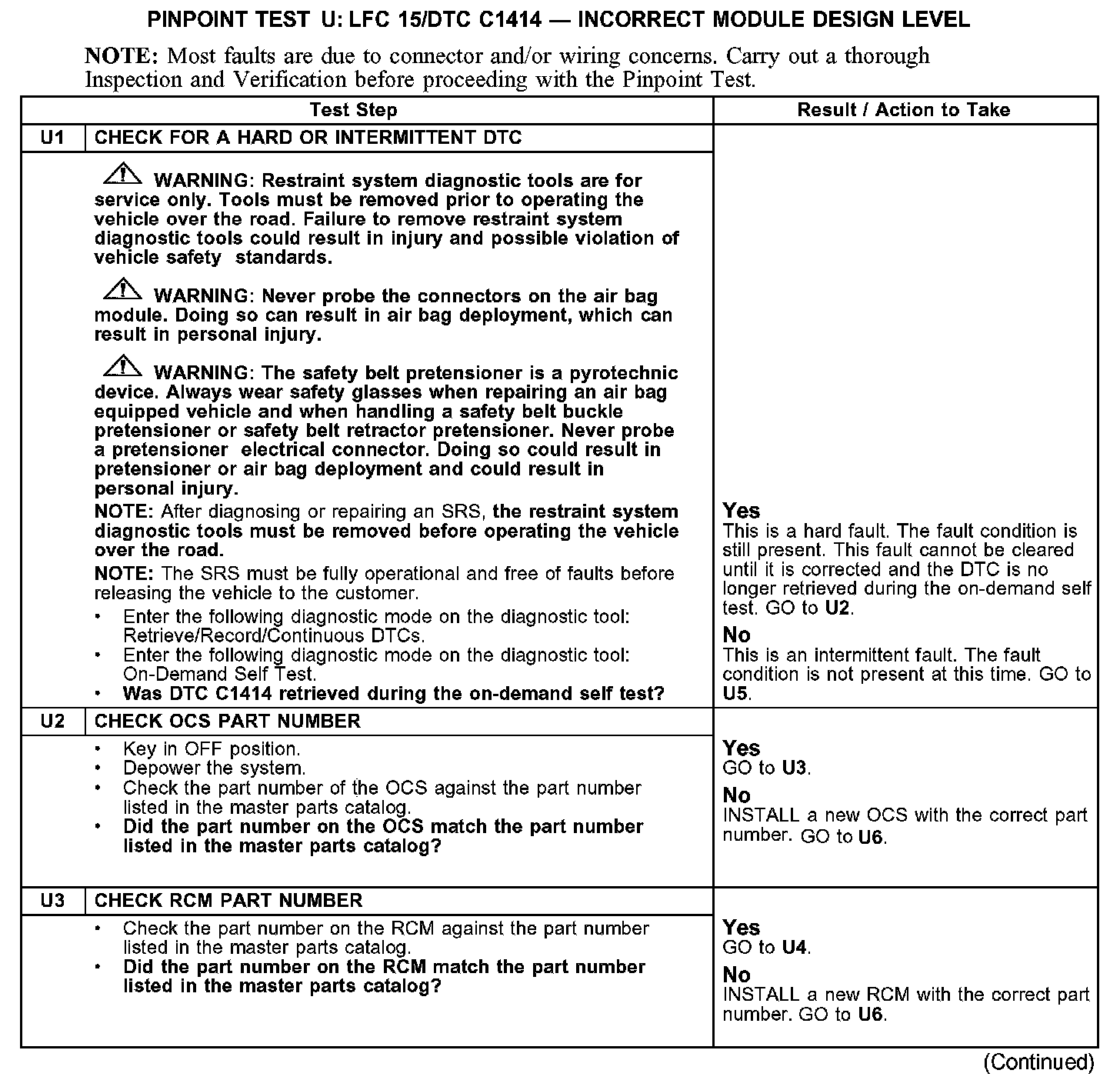

Test U1-U3:

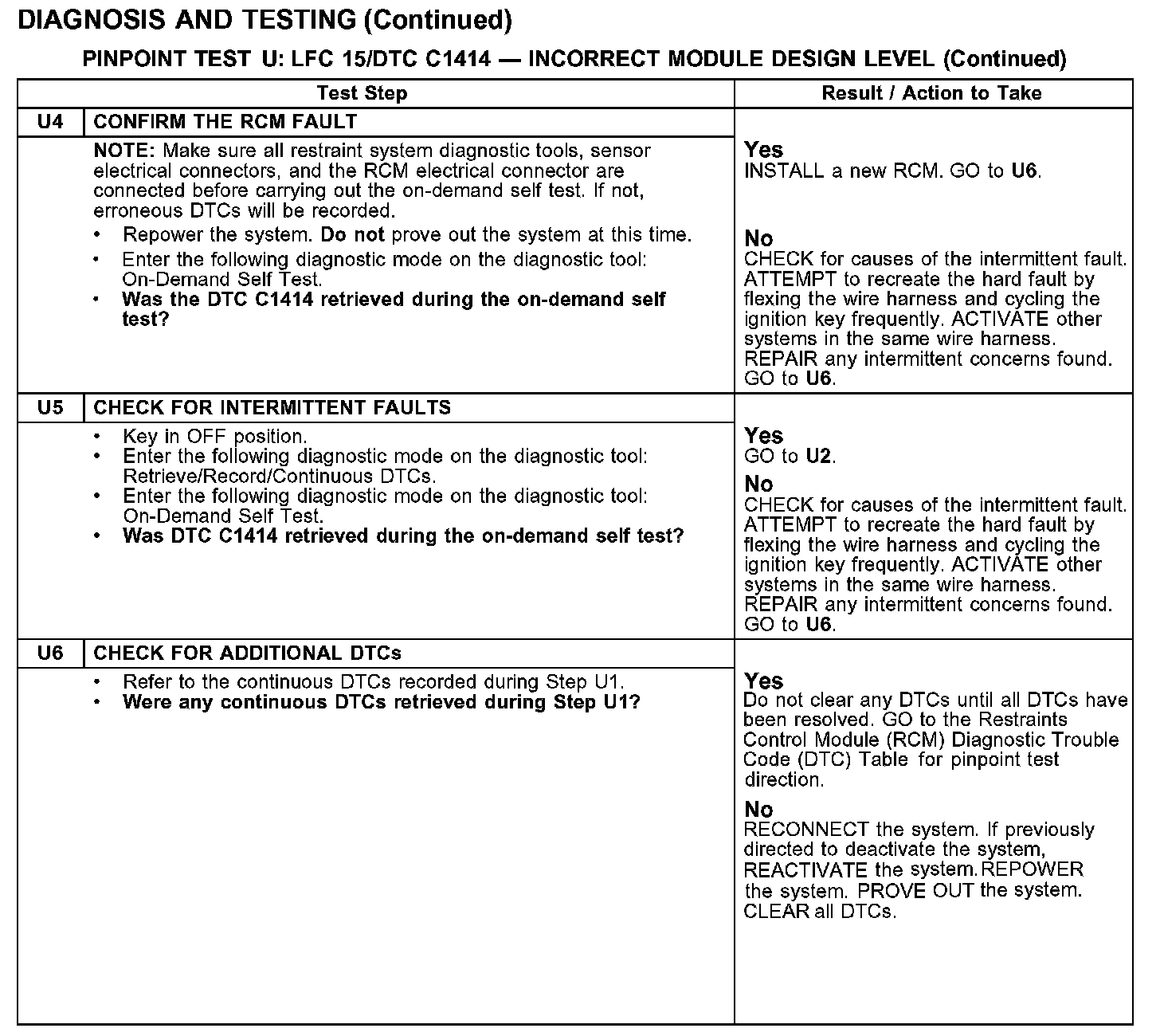

Test U4-U6:

Normal Operation
The RCM monitors the communication condition and circuits of the OCS sensor for an embedded vehicle I.D. If the RCM detects an unexpected condition or code from the OCS system, it will store diagnostic trouble code (DTC) C1414 in memory and flash lamp fault code (LFC) 15 (or higher priority code if one exists) on the air bag indicator.

Possible Causes
An incorrect vehicle identification code can be caused by:
- incorrect RCM for vehicle.
- incorrect OCS system for vehicle.
