Air Bag Systems: Locations

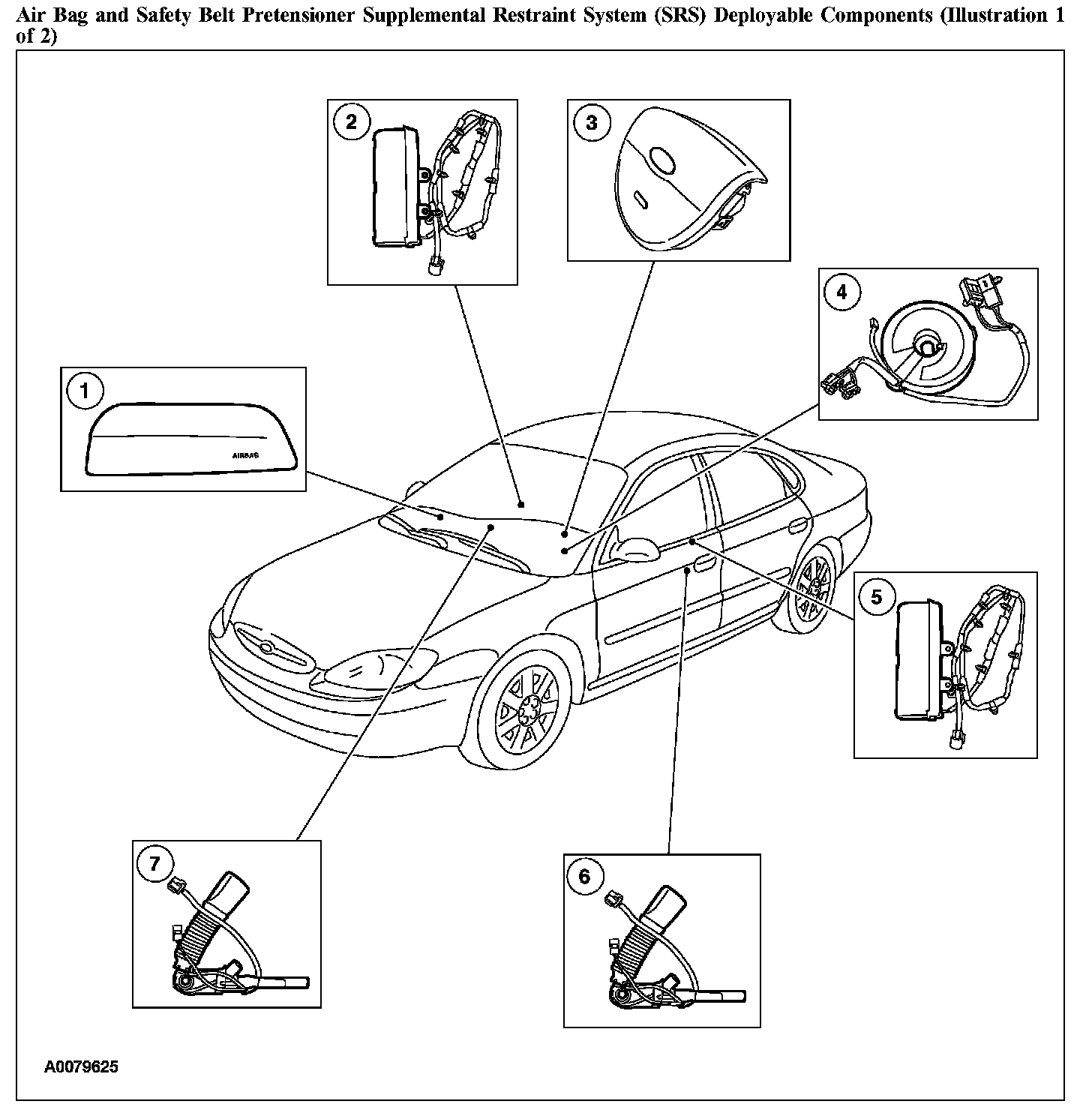

Air Bag And Safety Belt Pretensioner Supplemental Restraint System (SRS) Deployable Components (Illustration 1 Of 2), Part 1:

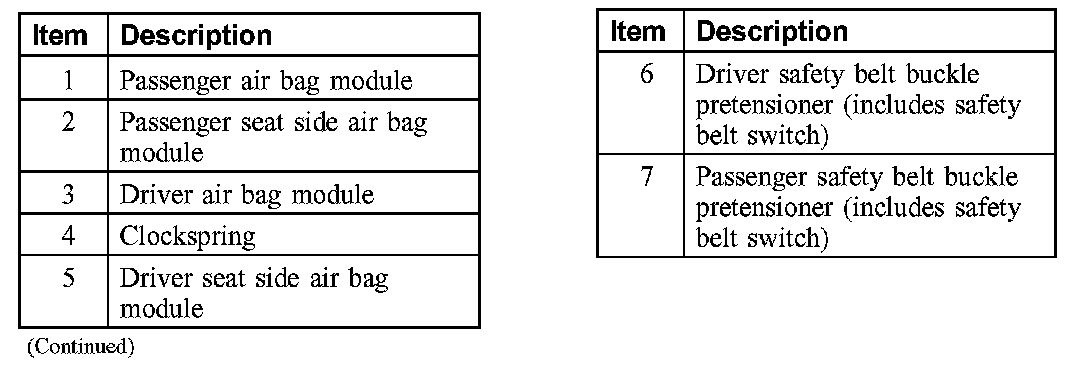

Air Bag And Safety Belt Pretensioner Supplemental Restraint System (SRS) Deployable Components (Illustration 1 Of 2), Part 2:

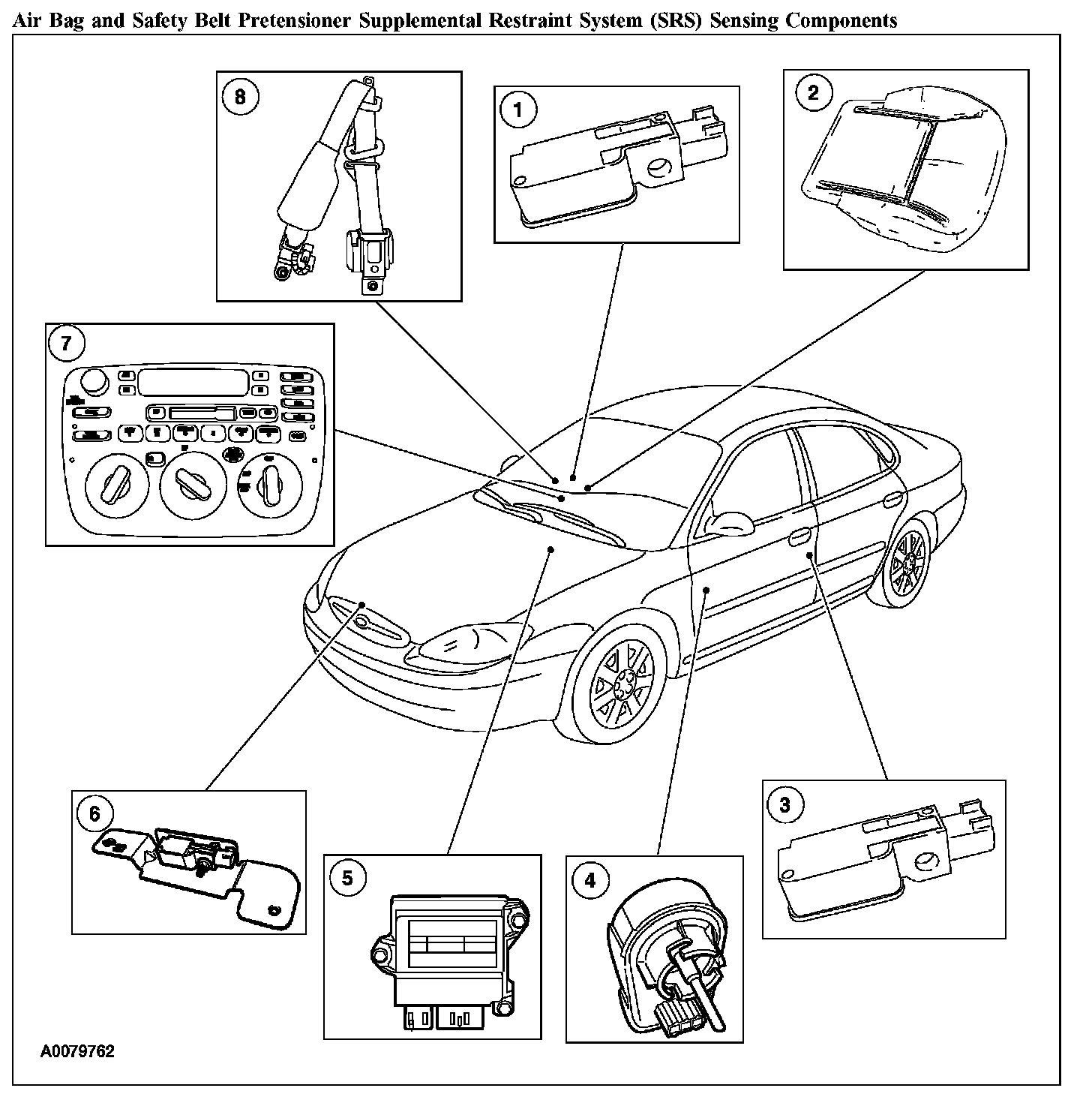

Air Bag And Safety Belt Pretensioner Supplemental Restraint System (SRS) Sensing Components, Part 1:

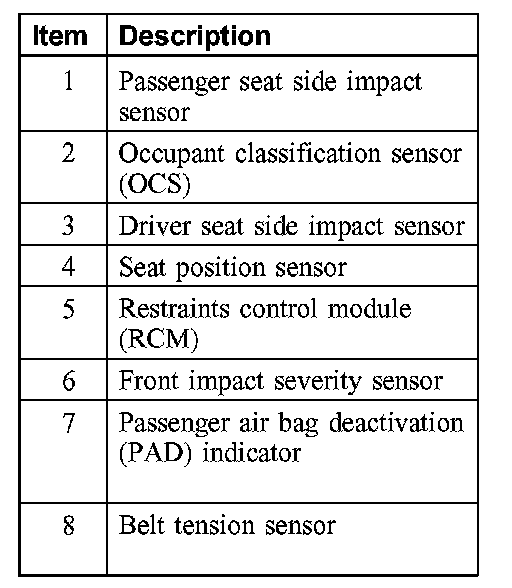

Air Bag And Safety Belt Pretensioner Supplemental Restraint System (SRS) Sensing Components, Part 2:
