Accelerator Cable Bracket

ACCELERATOR CABLE BRACKET

REMOVAL

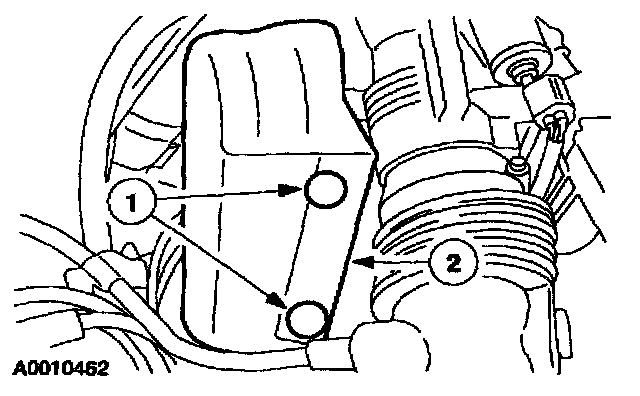

1. Remove the accelerator splash shield.
1 Remove the pin-type retainers.
2 Remove the splash shield.

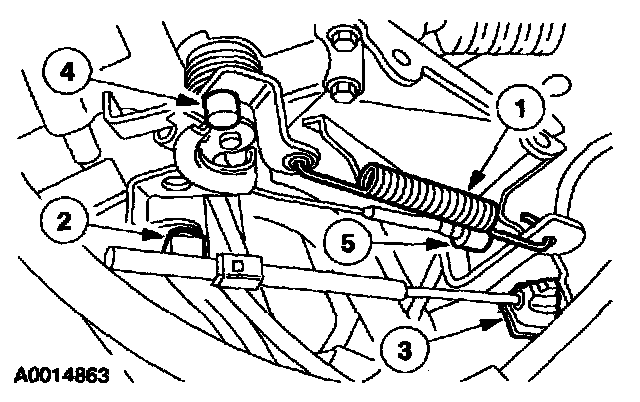

2. Disconnect the throttle control linkage.
1 Remove the throttle return spring.
2 Disconnect the speed control cable from the throttle cam.
3 Depress the speed control cable tabs and remove the cable from the cable bracket.
4 Disconnect the accelerator cable from the throttle cam.
5 Depress the tabs and remove the accelerator cable from the cable bracket.

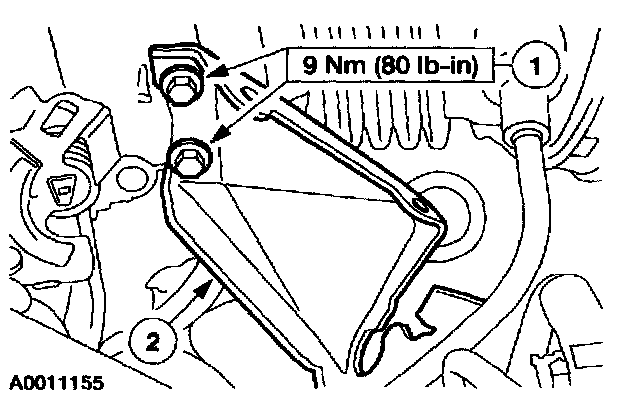

3. Remove the accelerator cable bracket.
1 Remove the bolts.
2 Remove the bracket.

INSTALLATION
1. To install, reverse the removal procedure.
