Intake Air Duct: Service and Repair

AIR CLEANER OUTLET PIPE

REMOVAL

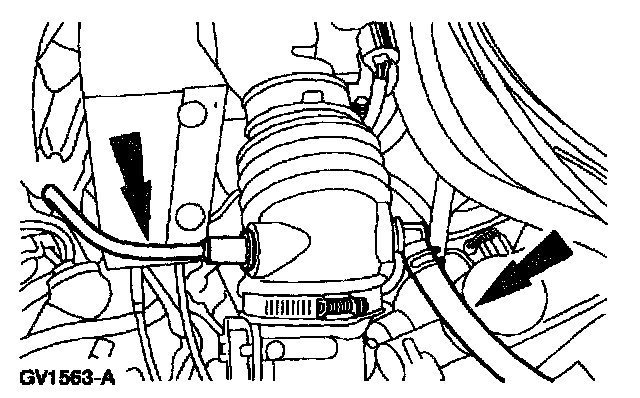

1. Disconnect the crankcase ventilation hoses from the air cleaner outlet tube.







2. Disconnect the air cleaner tube.

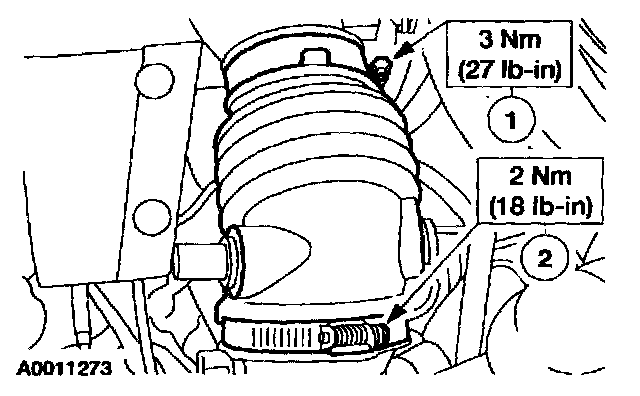

1 Disconnect the outlet tube from the throttle body.
2 Disconnect the outlet tube from the air cleaner (ACL).

INSTALLATION
1. To install, reverse the removal procedure.
