EGR Electronic Vacuum Regulator Solenoid: Service and Repair

EXHAUST GAS RECIRCULATION (EGR) VACUUM REGULATOR VALVE

REMOVAL
1. Disconnect the battery ground cable.

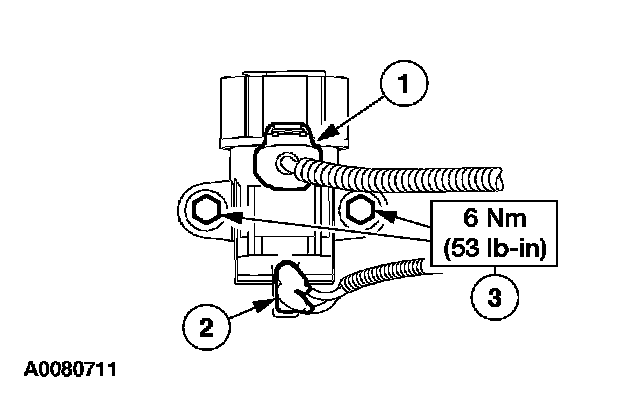

2. Disconnect and remove the exhaust gas recirculation (EGR) vacuum regulator solenoid.
1 Disconnect the electrical connector.
2 Disconnect the vacuum hoses.
3 Remove the retaining screws and EGR vacuum regulator solenoid.

INSTALLATION
1. To install, reverse the removal procedure.
