Mercury
>>
2004
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test B
Test B
PINPOINT TEST B: DTC P0455 MAJOR LEAK OR NO FLOW DETECTED OR DTC P1443 VERY SMALL OR NO PURGE FLOW DETECTED IN SYSTEM

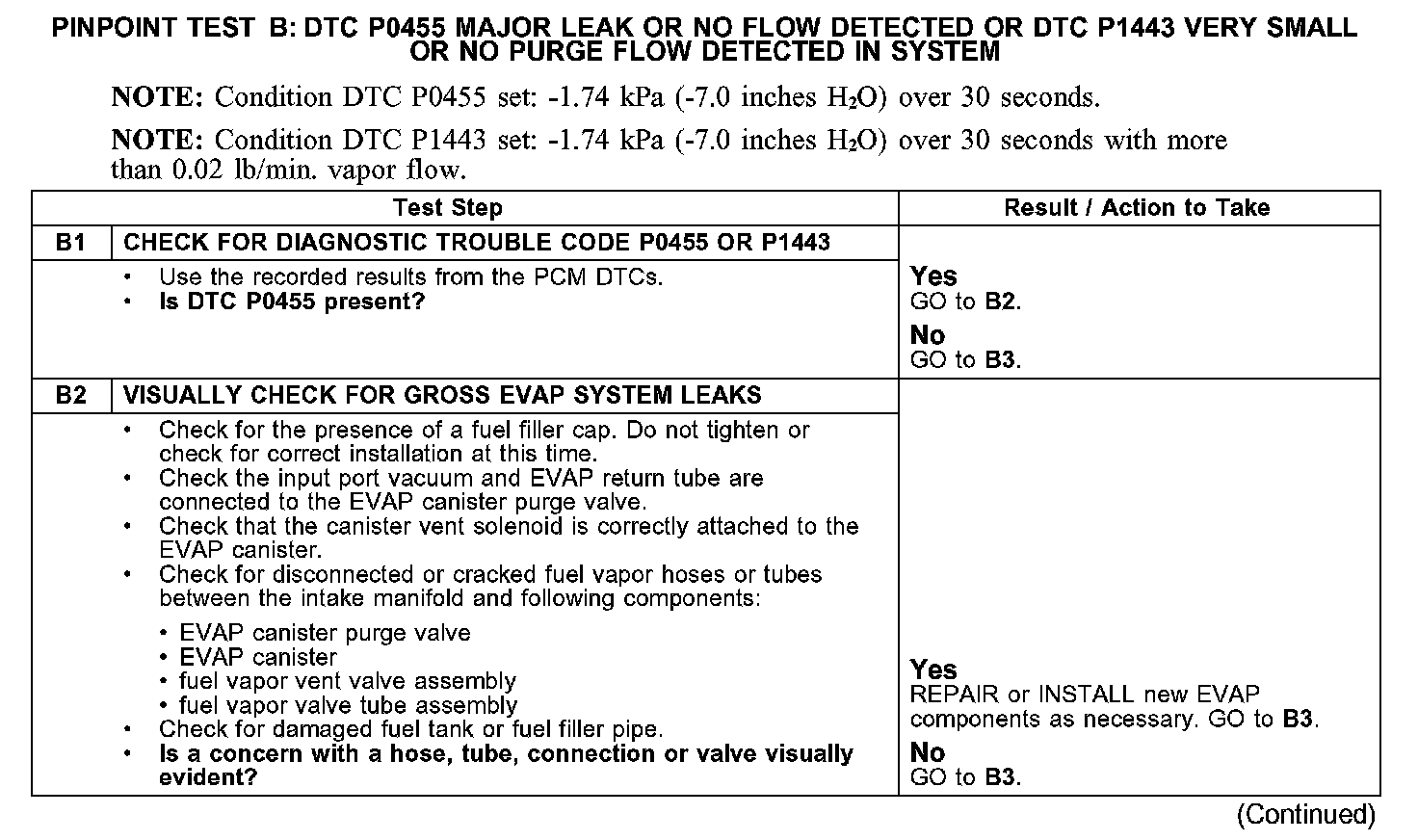

Test B1-B2:

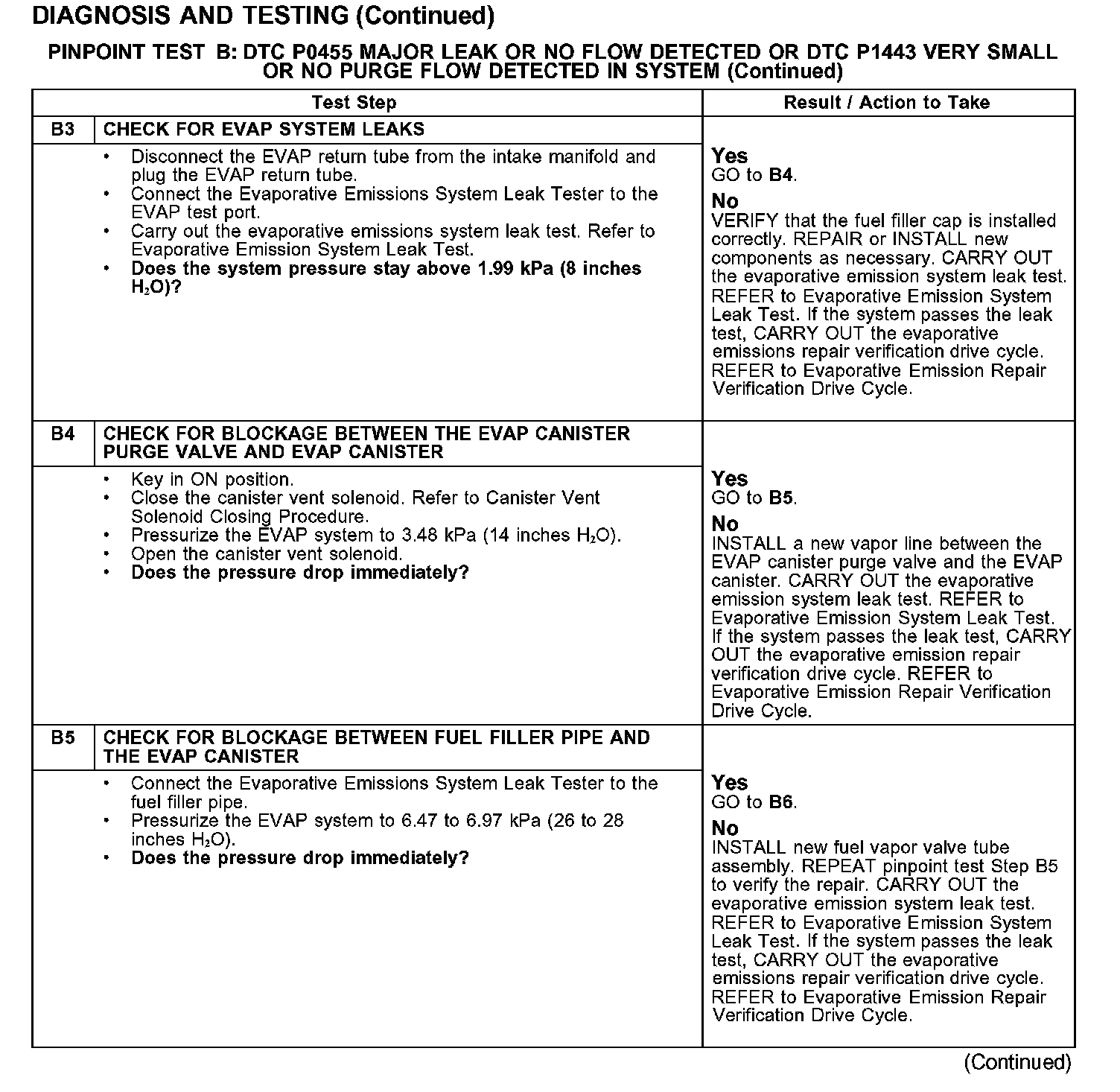

Test B3-B5:

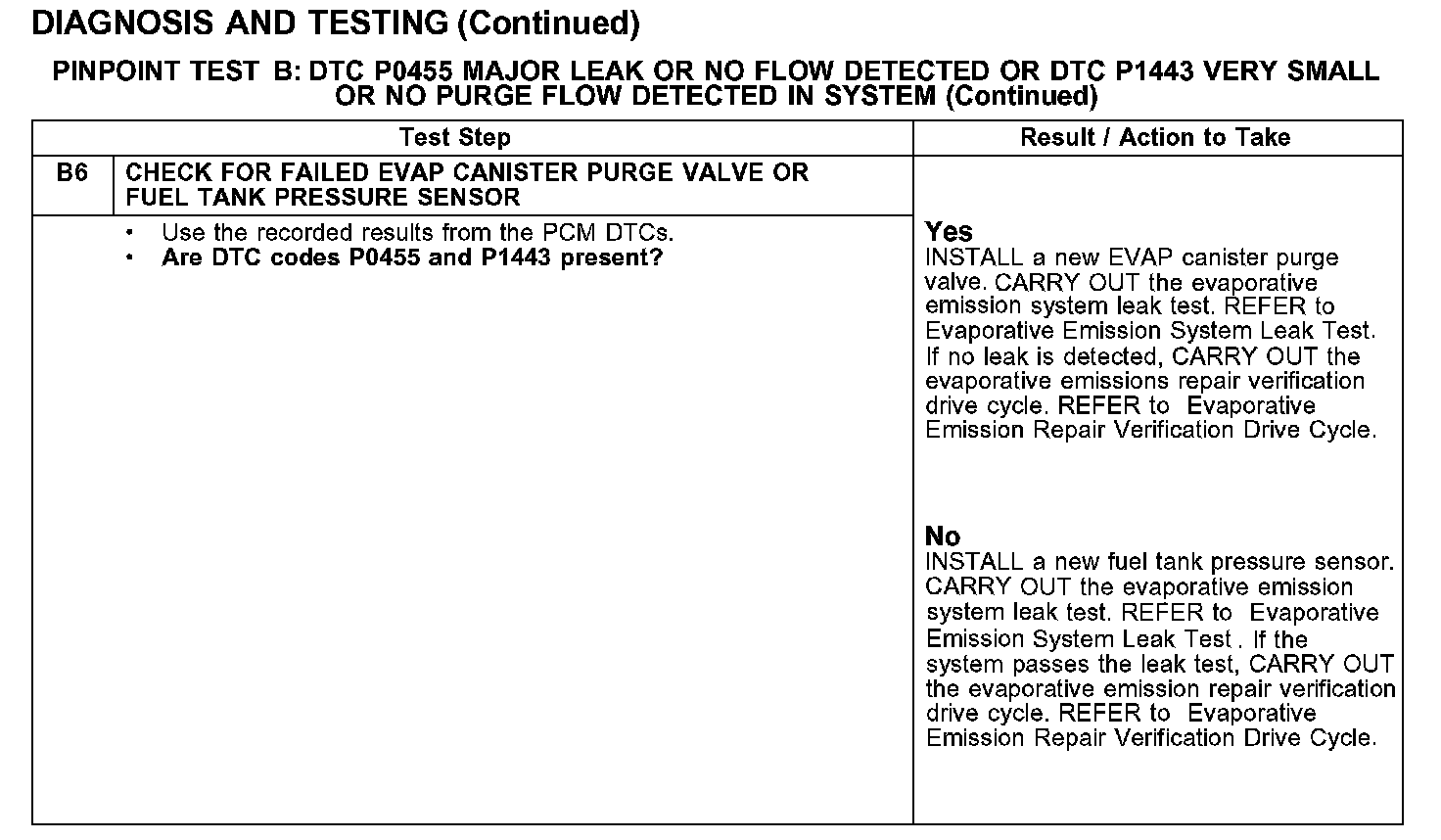

Test B6:
