Tests TJ: Output Shaft Speed (OSS) Sensor
Tests TJ: Output Shaft Speed (OSS) Sensor
PINPOINT TEST TJ: OUTPUT SHAFT SPEED OSS SENSOR

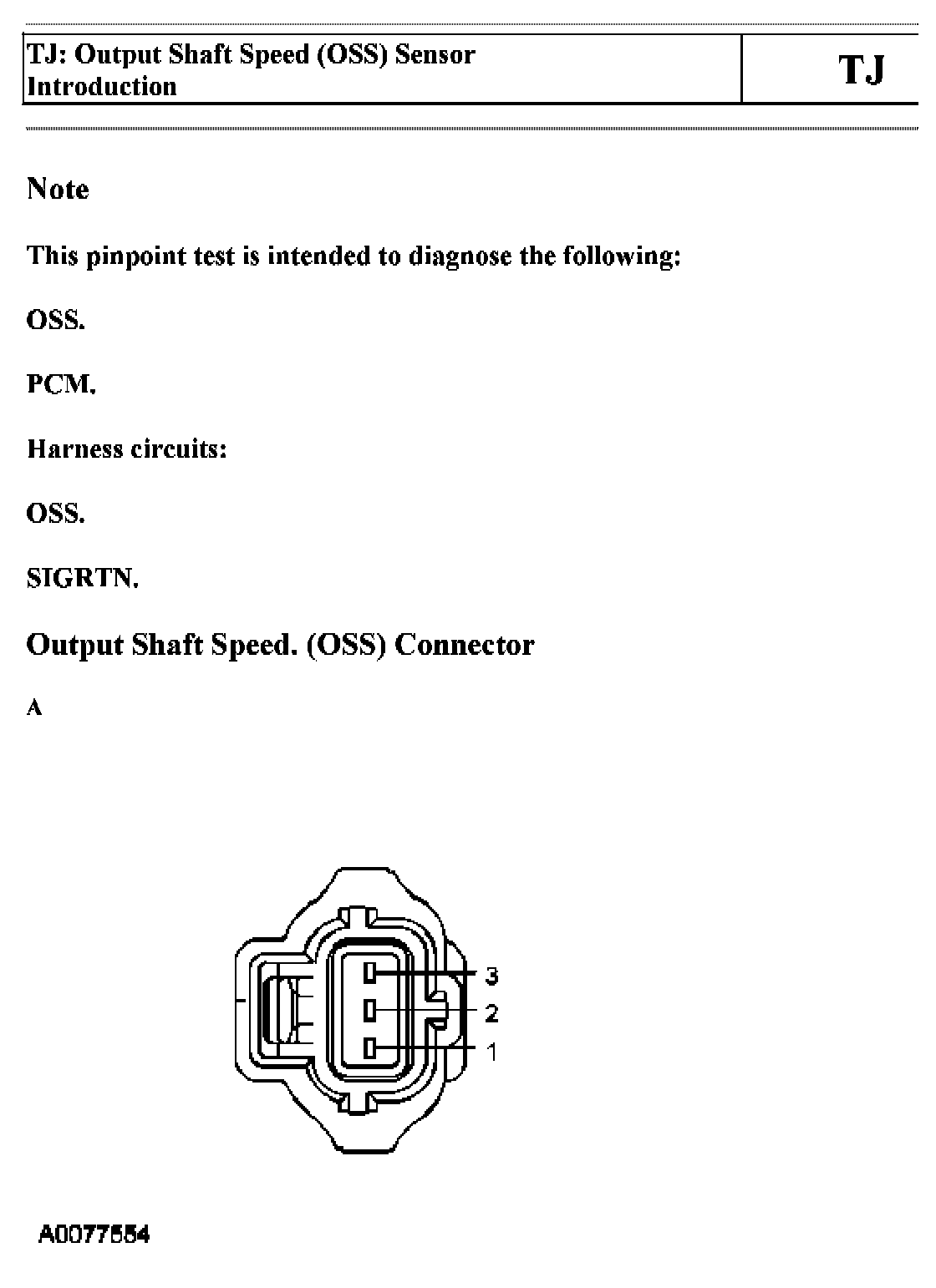

TJ Introduction 1 Of 2:

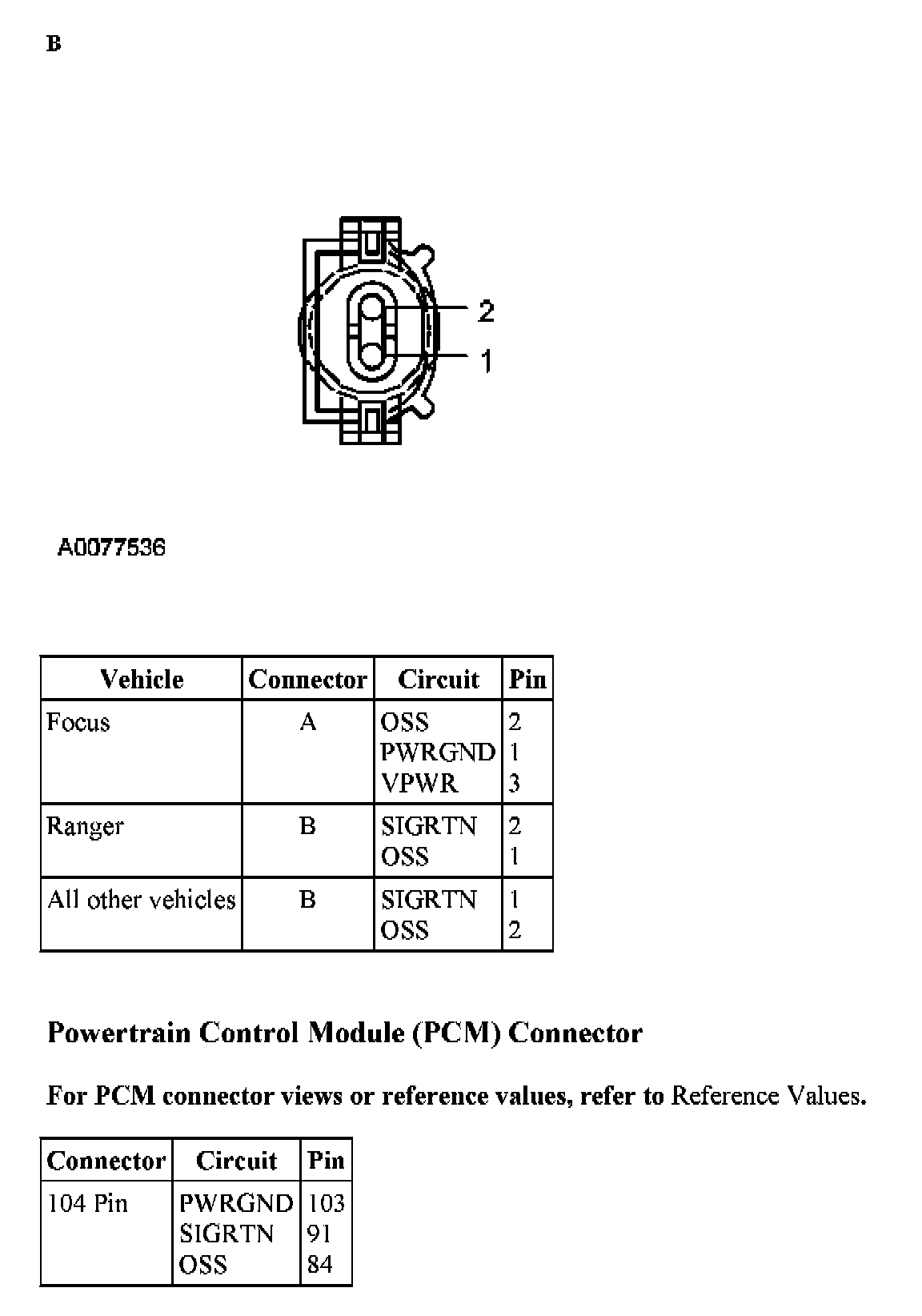

TJ Introduction 2 Of 2:

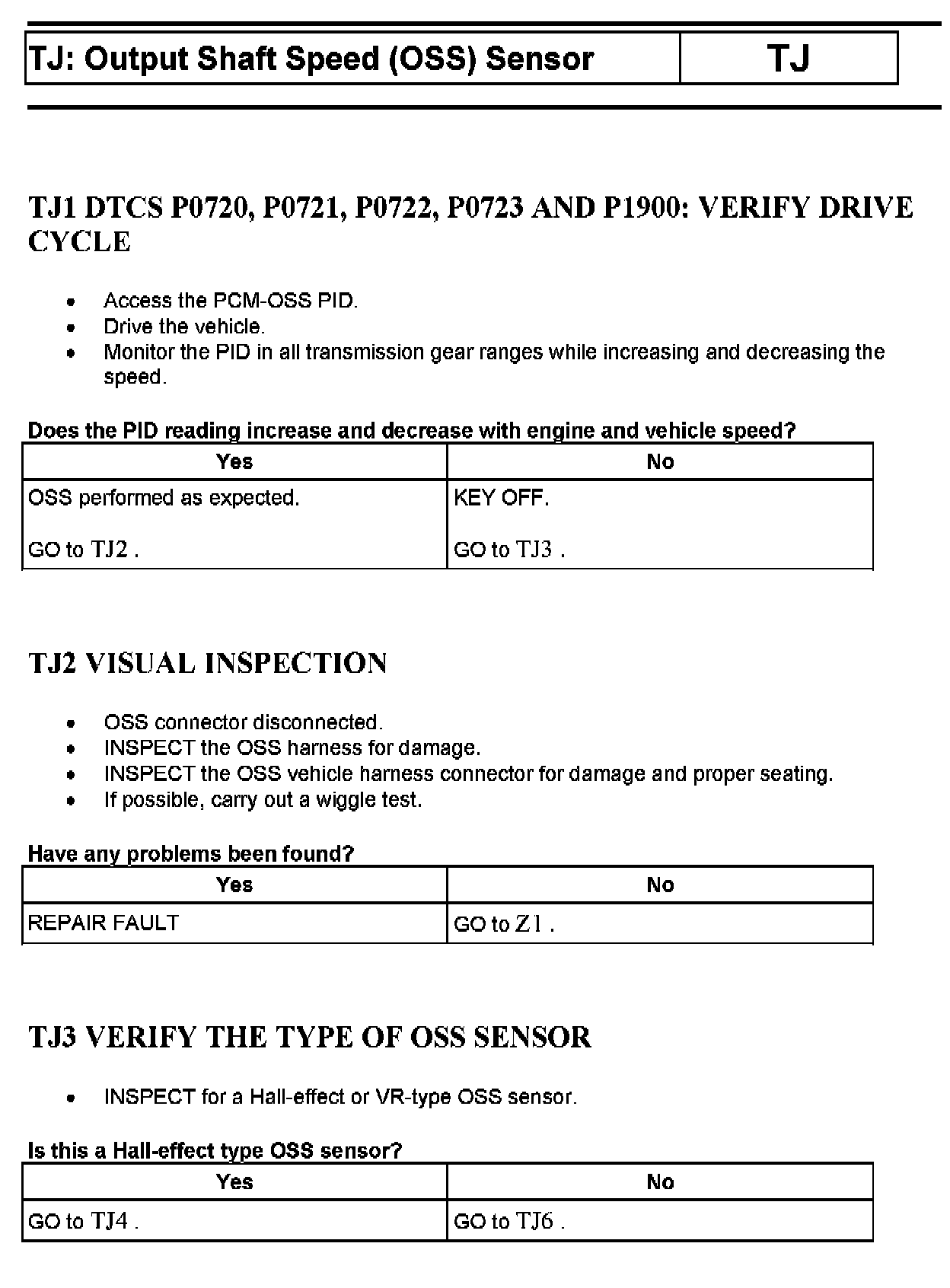

TJ1 - TJ3:

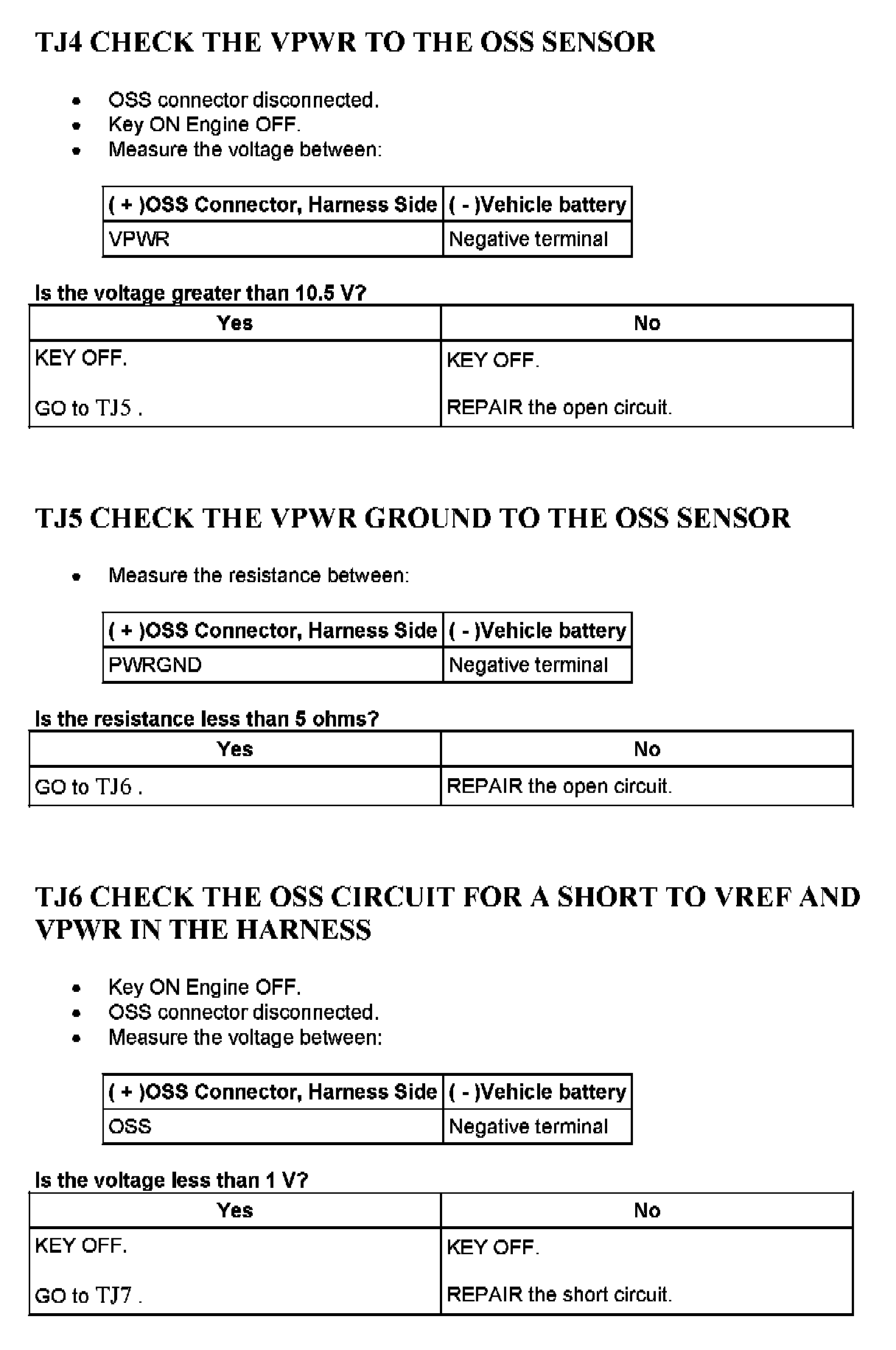

TJ4 - TJ6:

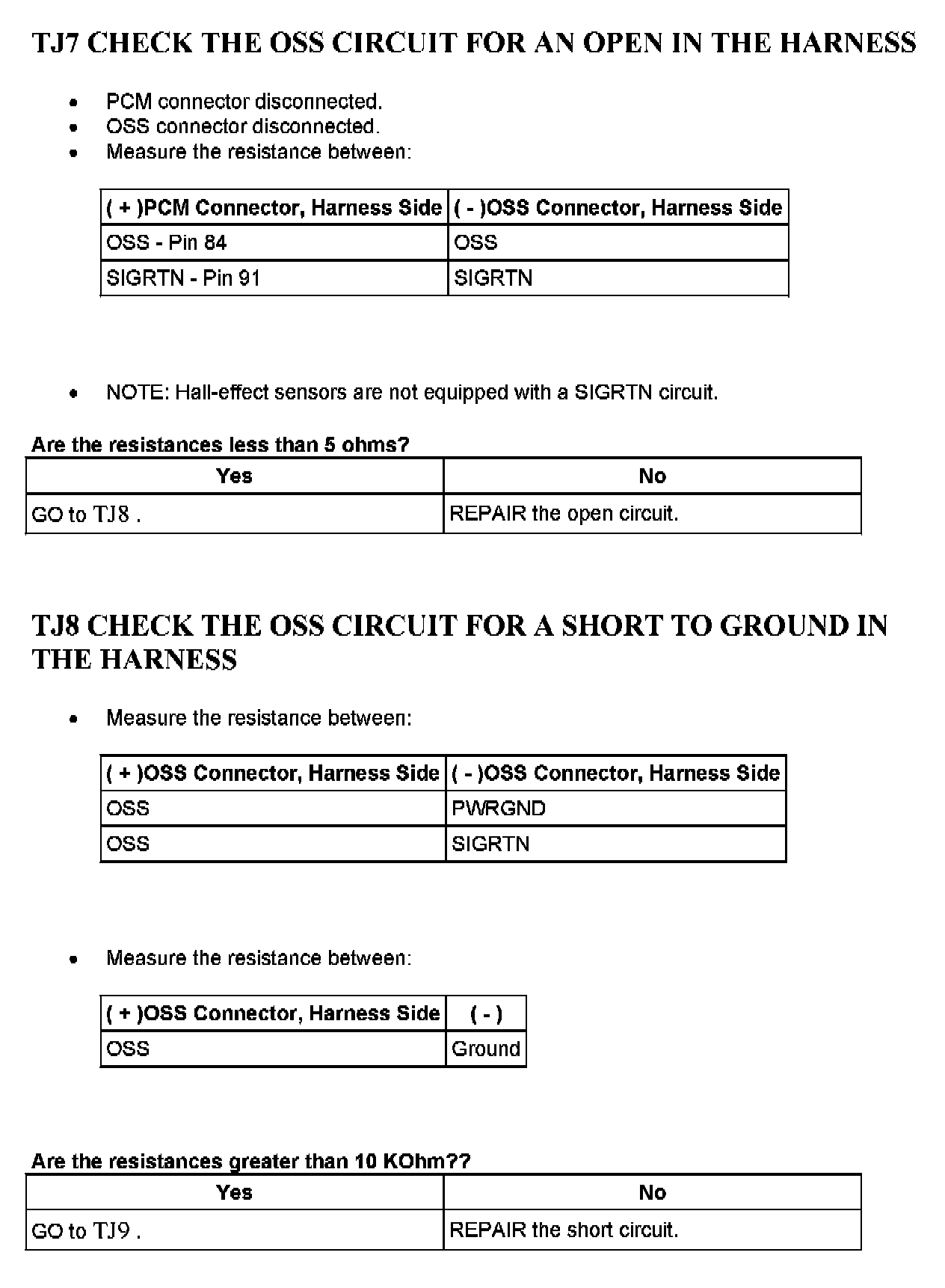

TJ7 - TJ8:

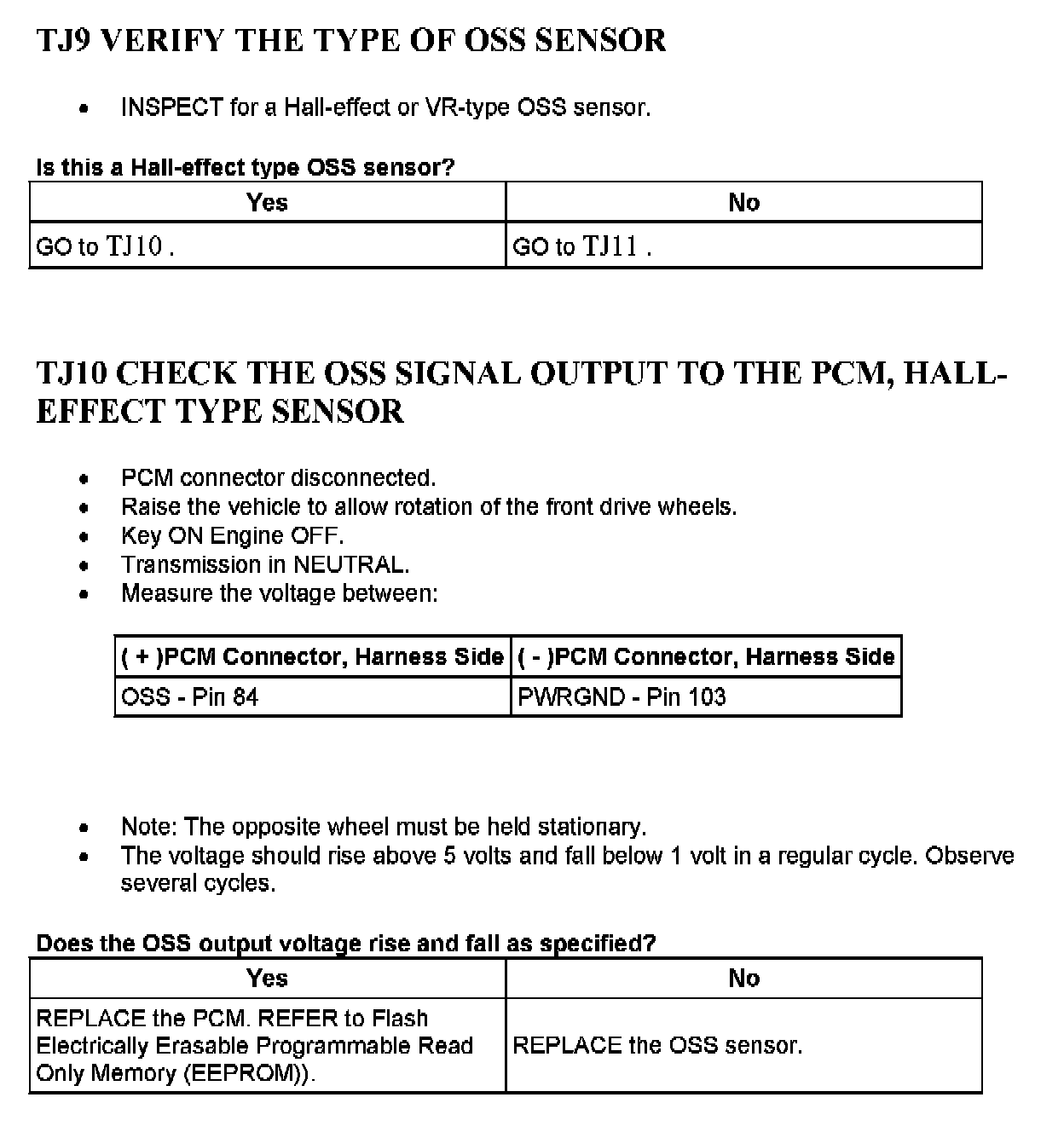

TJ9 - TJ10:

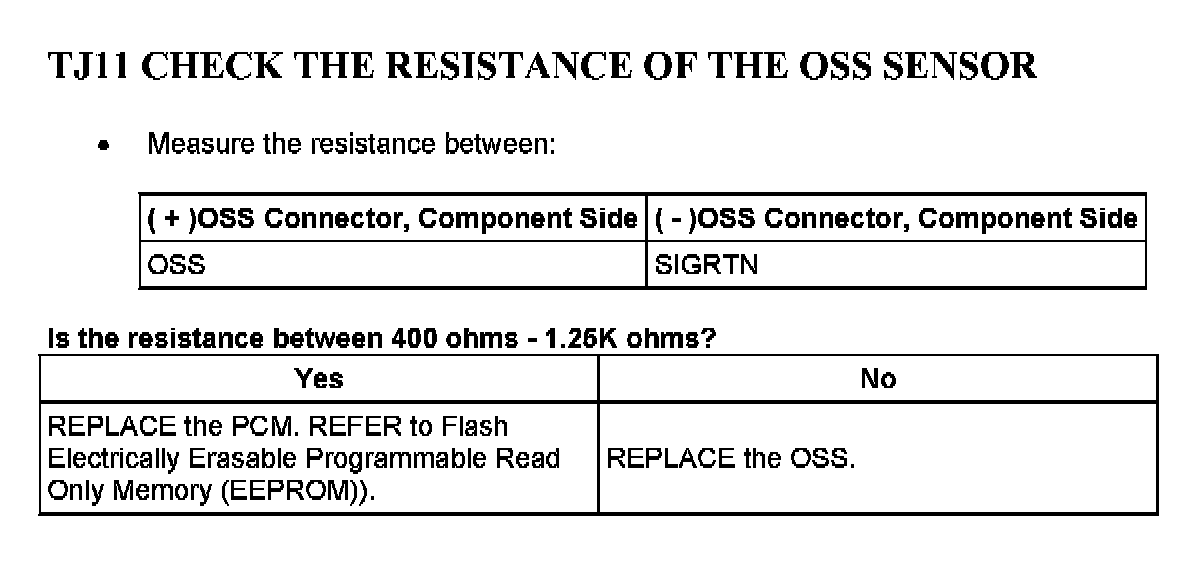

TJ11:
