Tests QB: DTCs P0603 or P1633: Keep Alive Power
Tests QB: DTCs P0603 or P1633: Keep Alive Power
PINPOINT TEST QB: DTCs P0603 OR P1633: KEEP ALIVE POWER

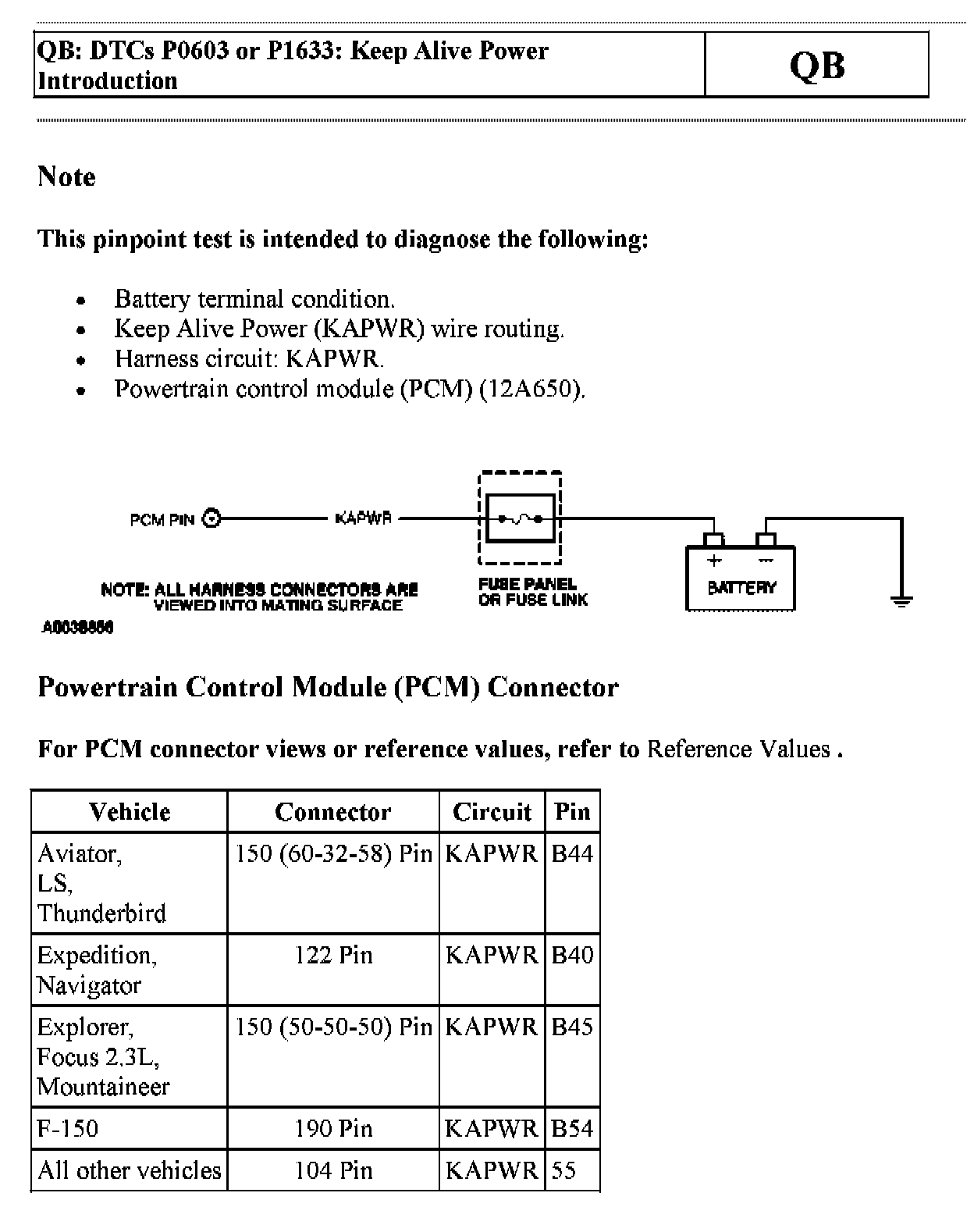

QB Introduction:

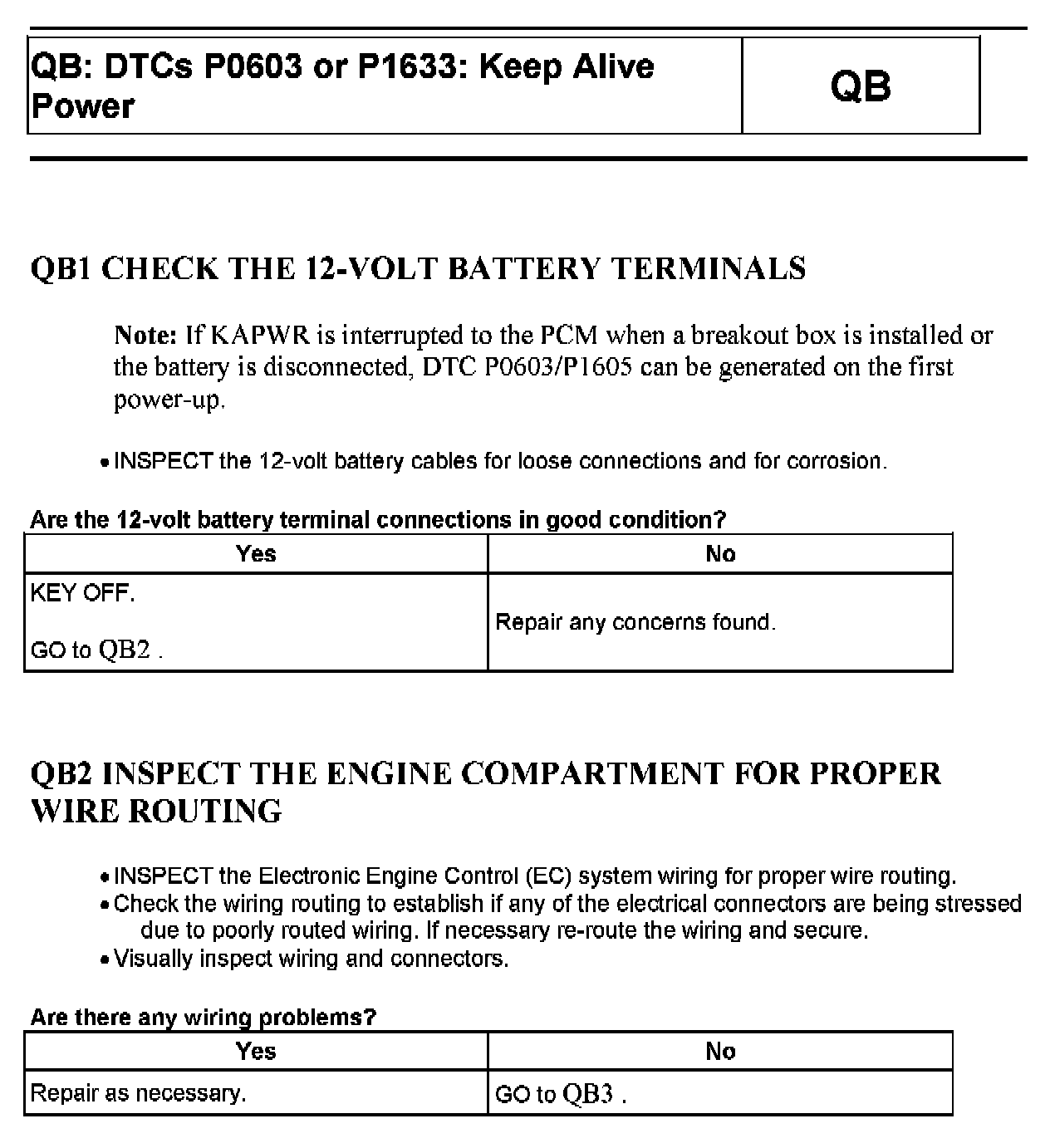

QB1 - QB2:

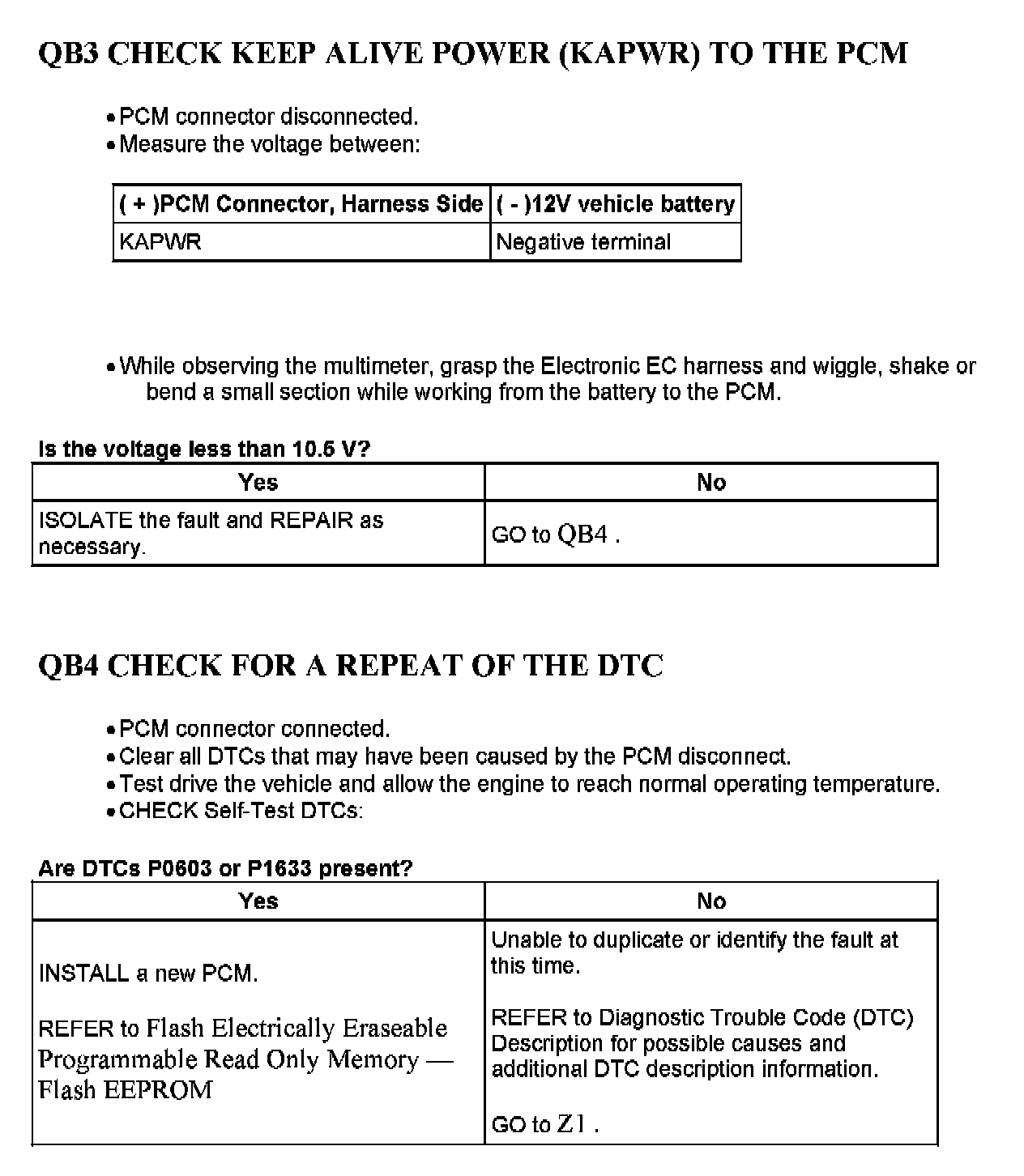

QB3 - QB4:
