Tests JE: Integrated Ignition Coil Pack A, B or C Failure



PINPOINT TEST JE: INTEGRATED IGNITION COIL PACK A, B OR C FAILURE

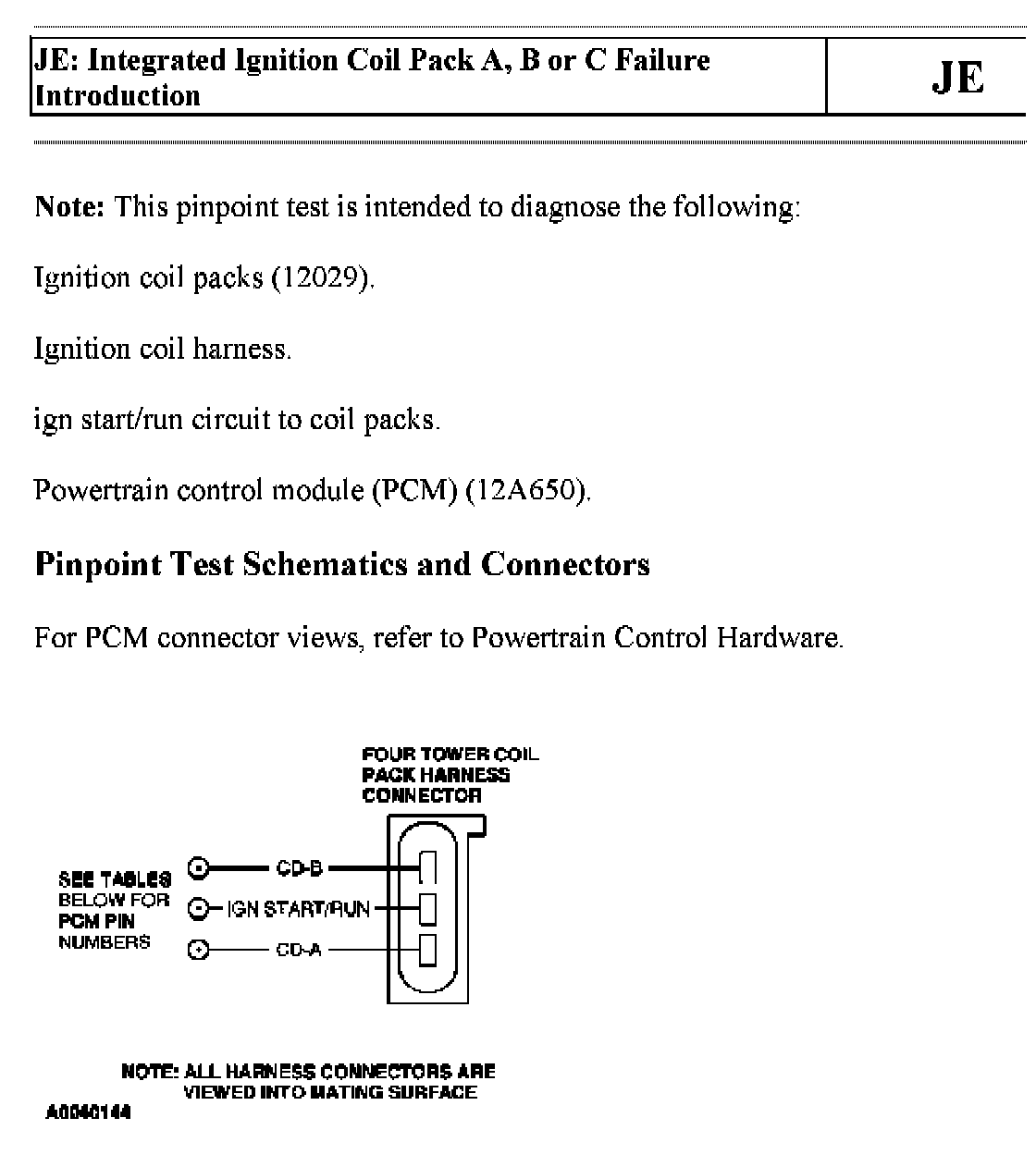

JE Introduction 1 Of 3:

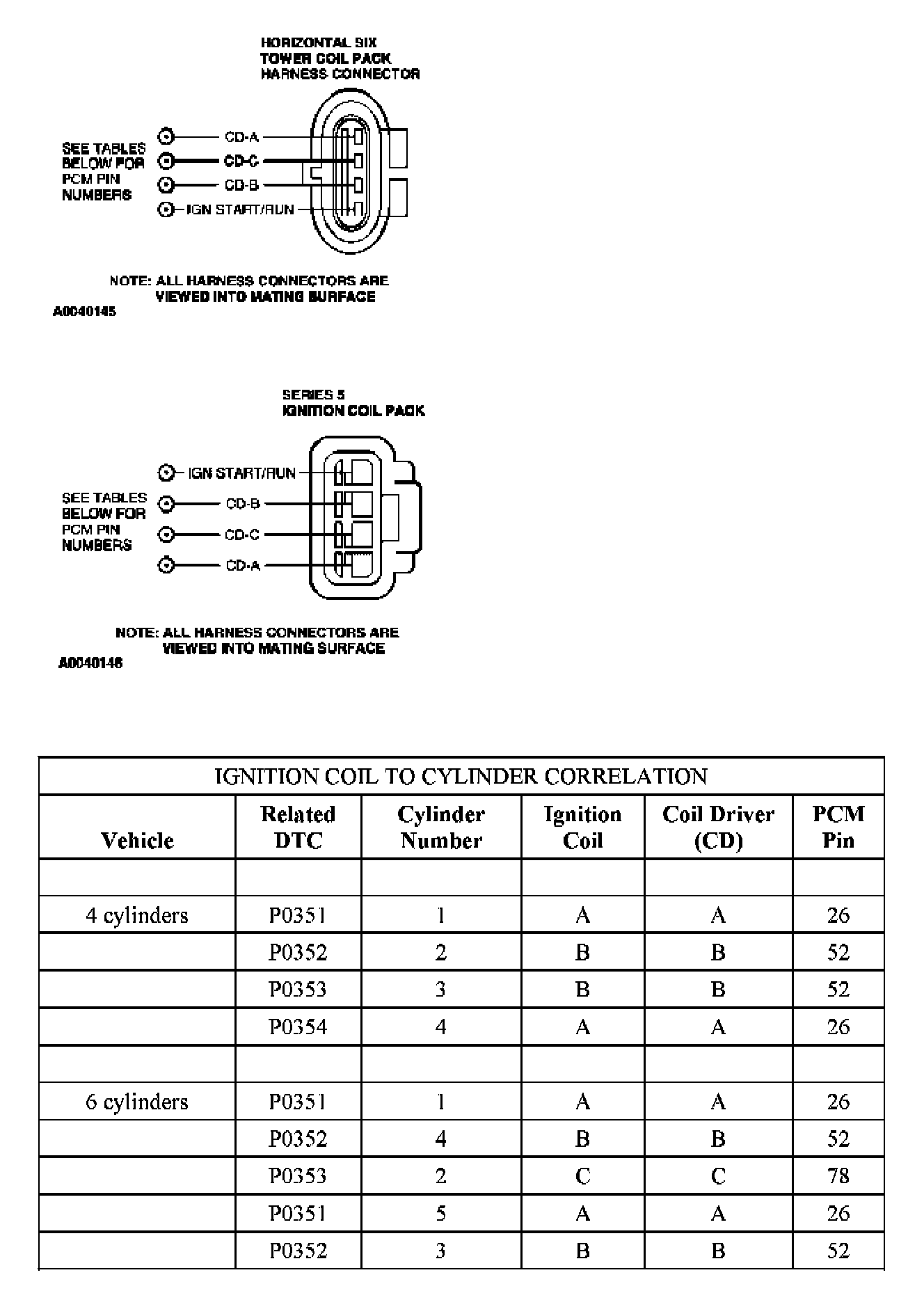

JE Introduction 2 Of 3:

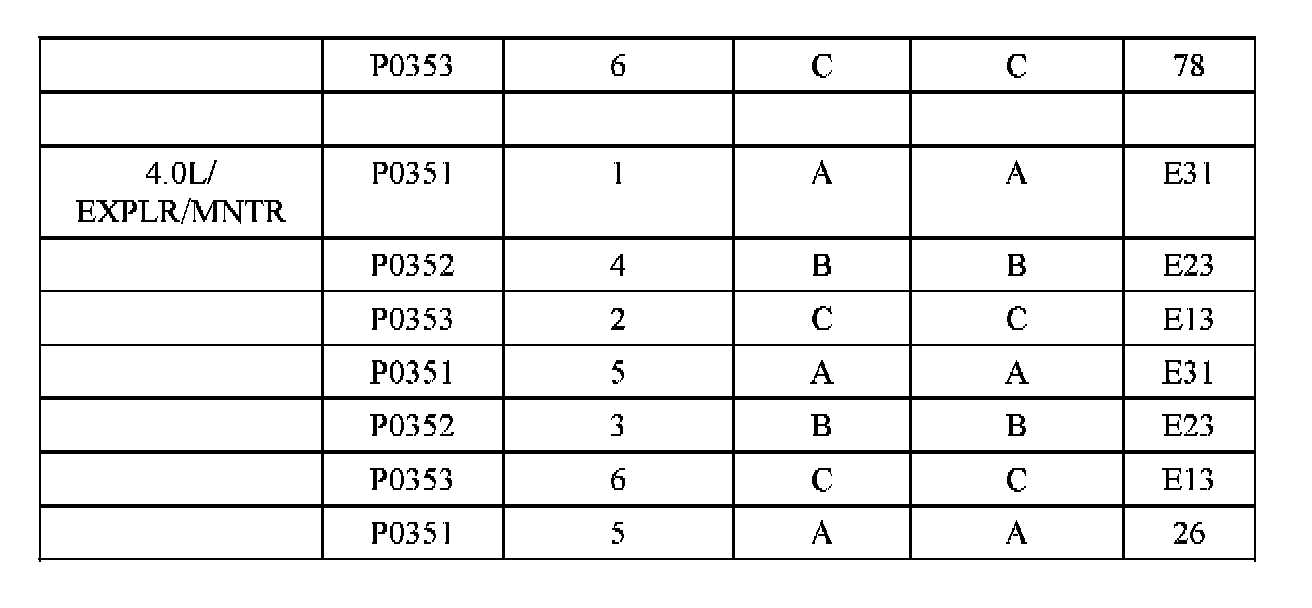

JE Introduction 3 Of 3:

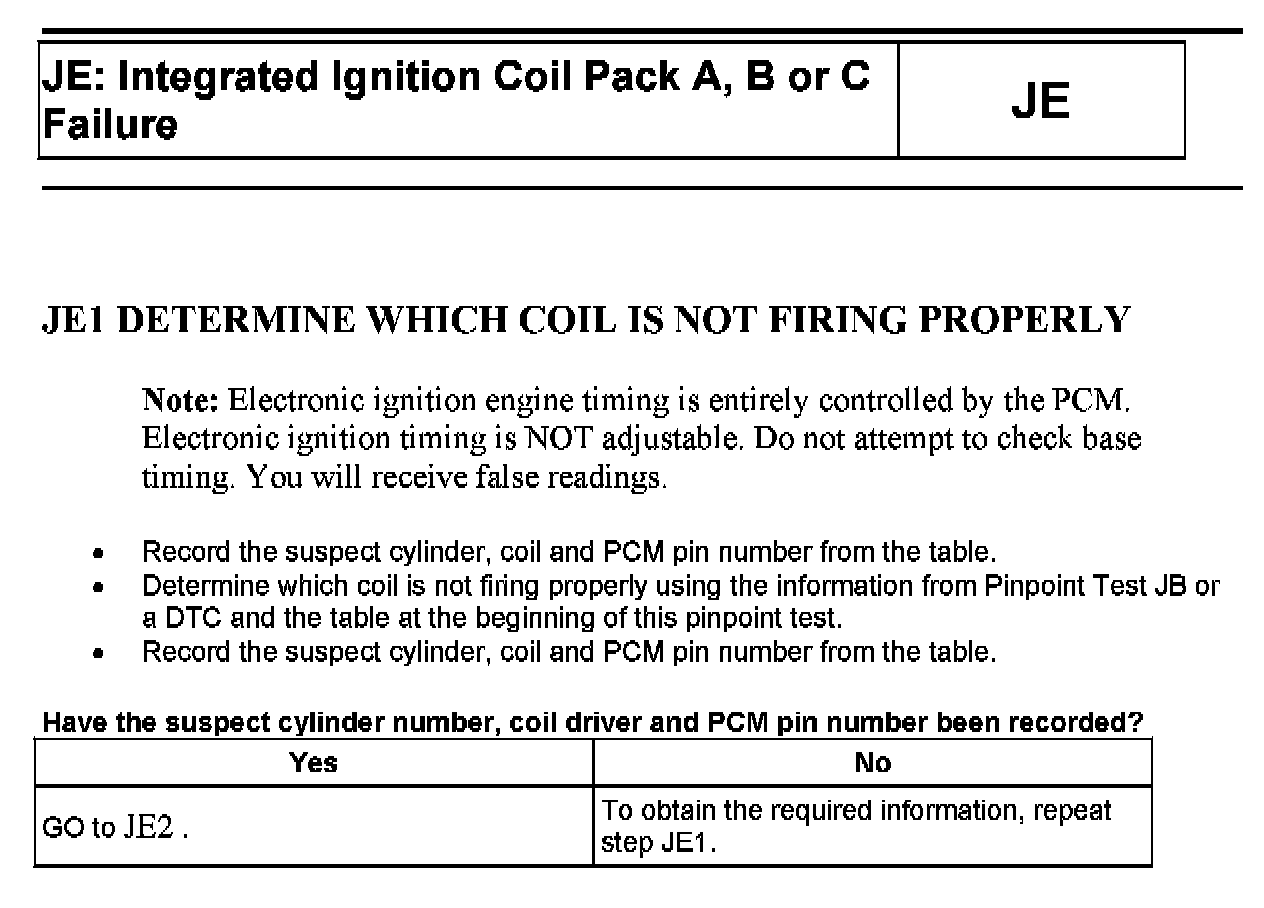

JE1:

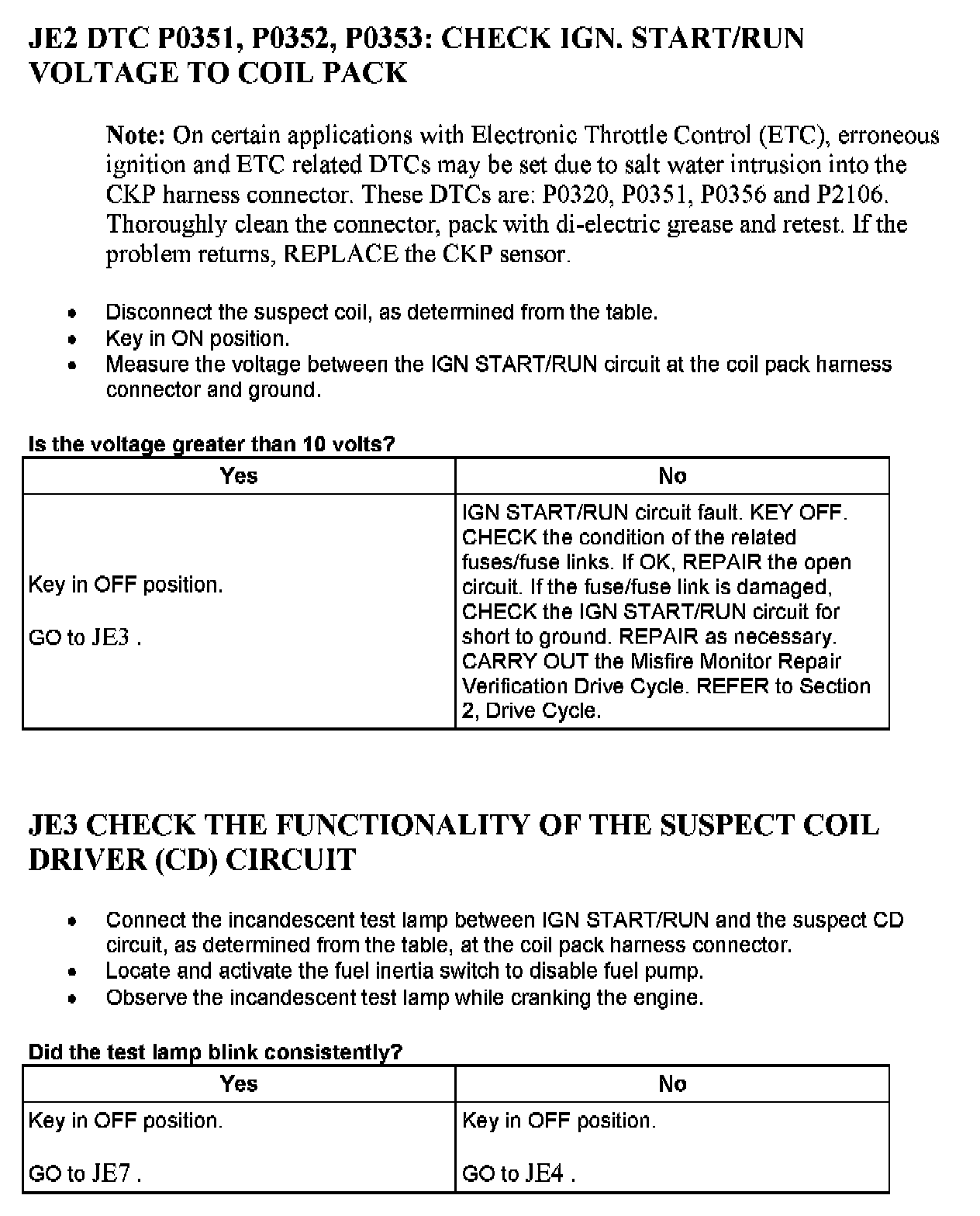

JE2 - JE3:

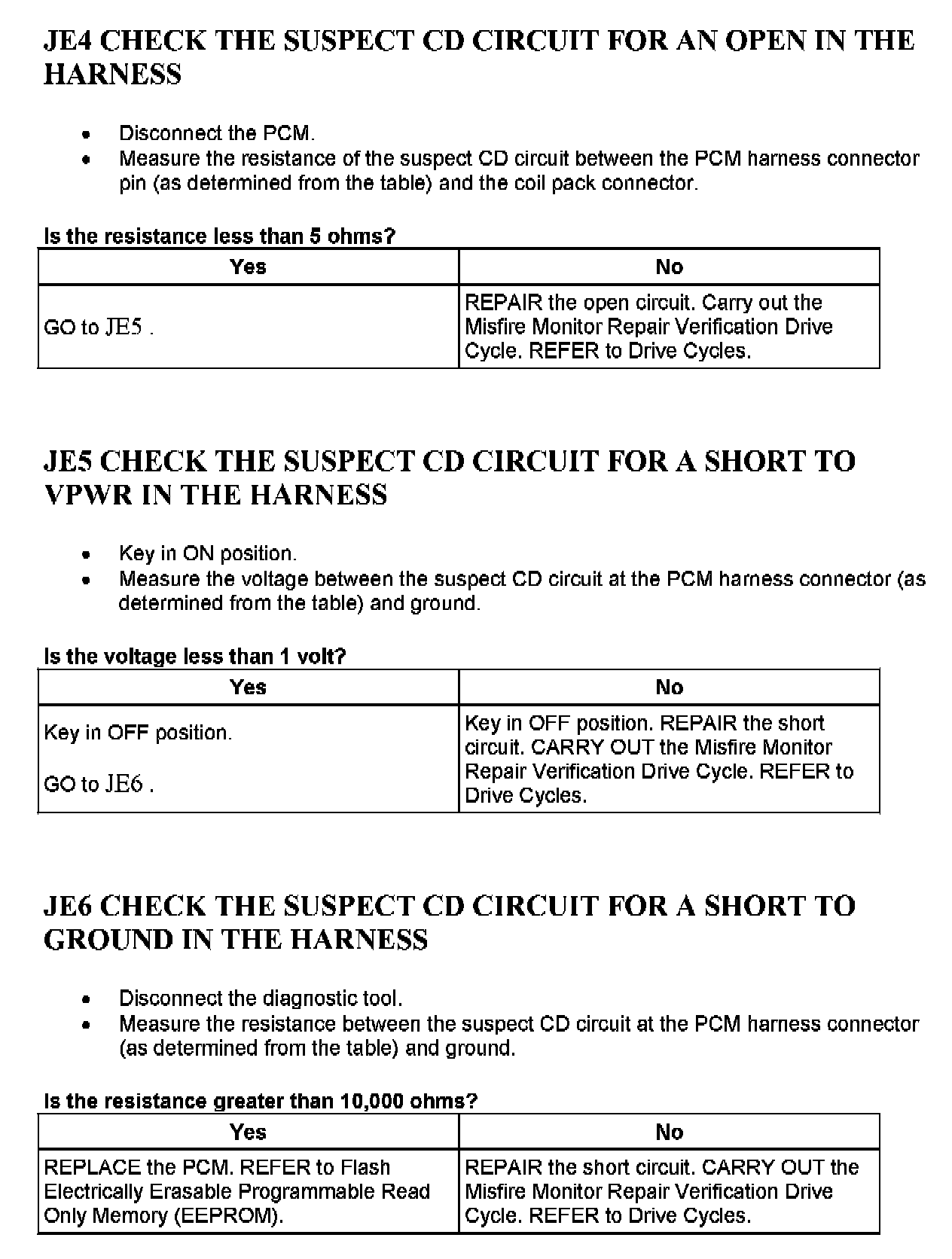

JE4 - JE6:

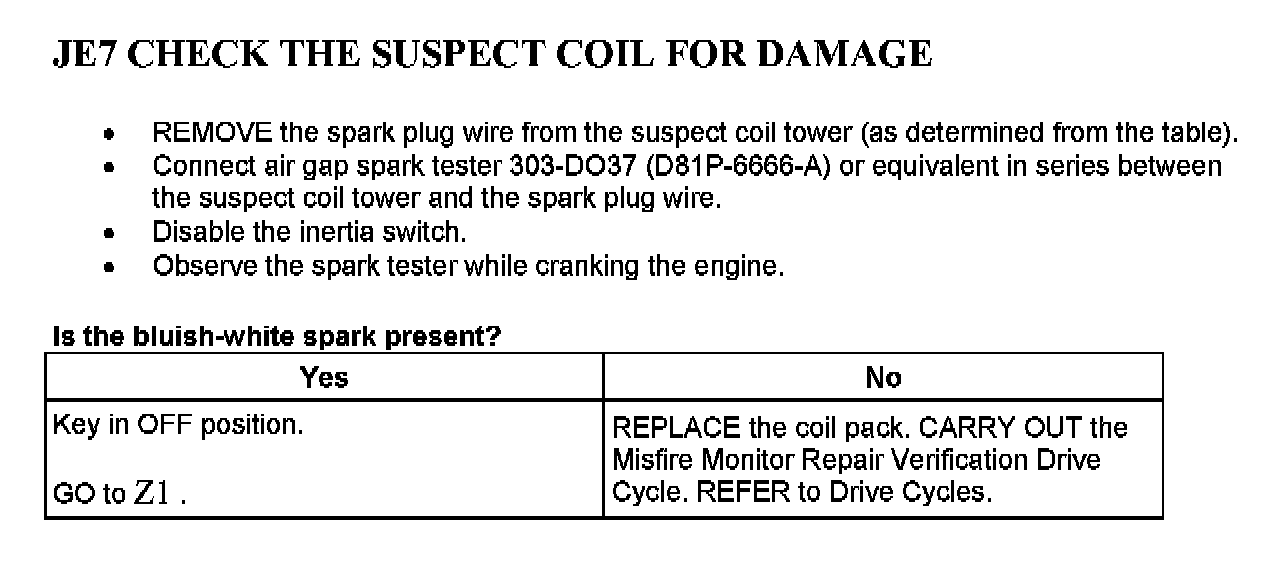

JE7:
