Tests FF: Power Steering Pressure (PSP) Switch
Tests FF: Power Steering Pressure (PSP) Switch
PINPOINT TEST
FF
:
POWER STEERING PRESSURE SWITCH

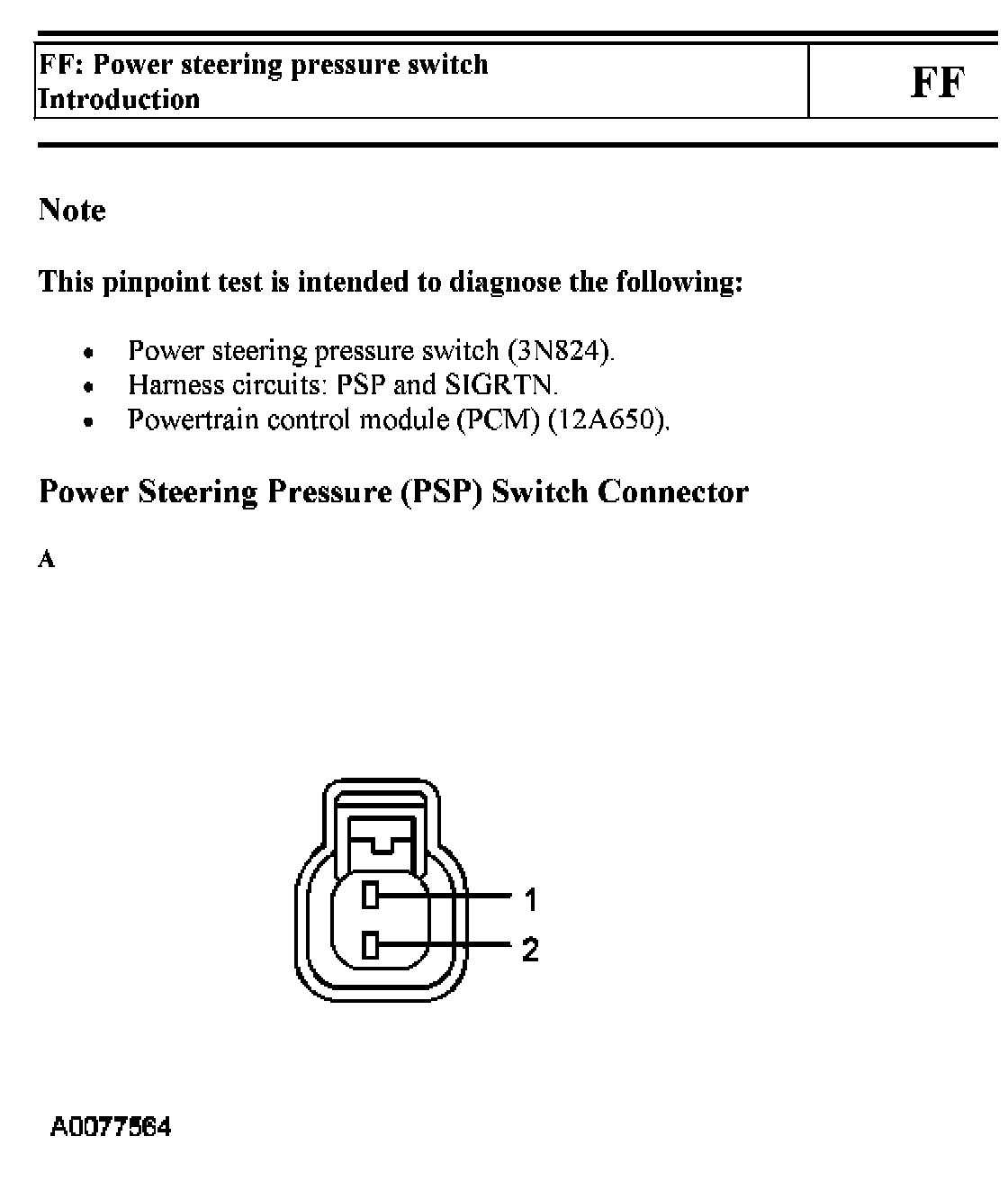

FF Introduction 1 Of 2:

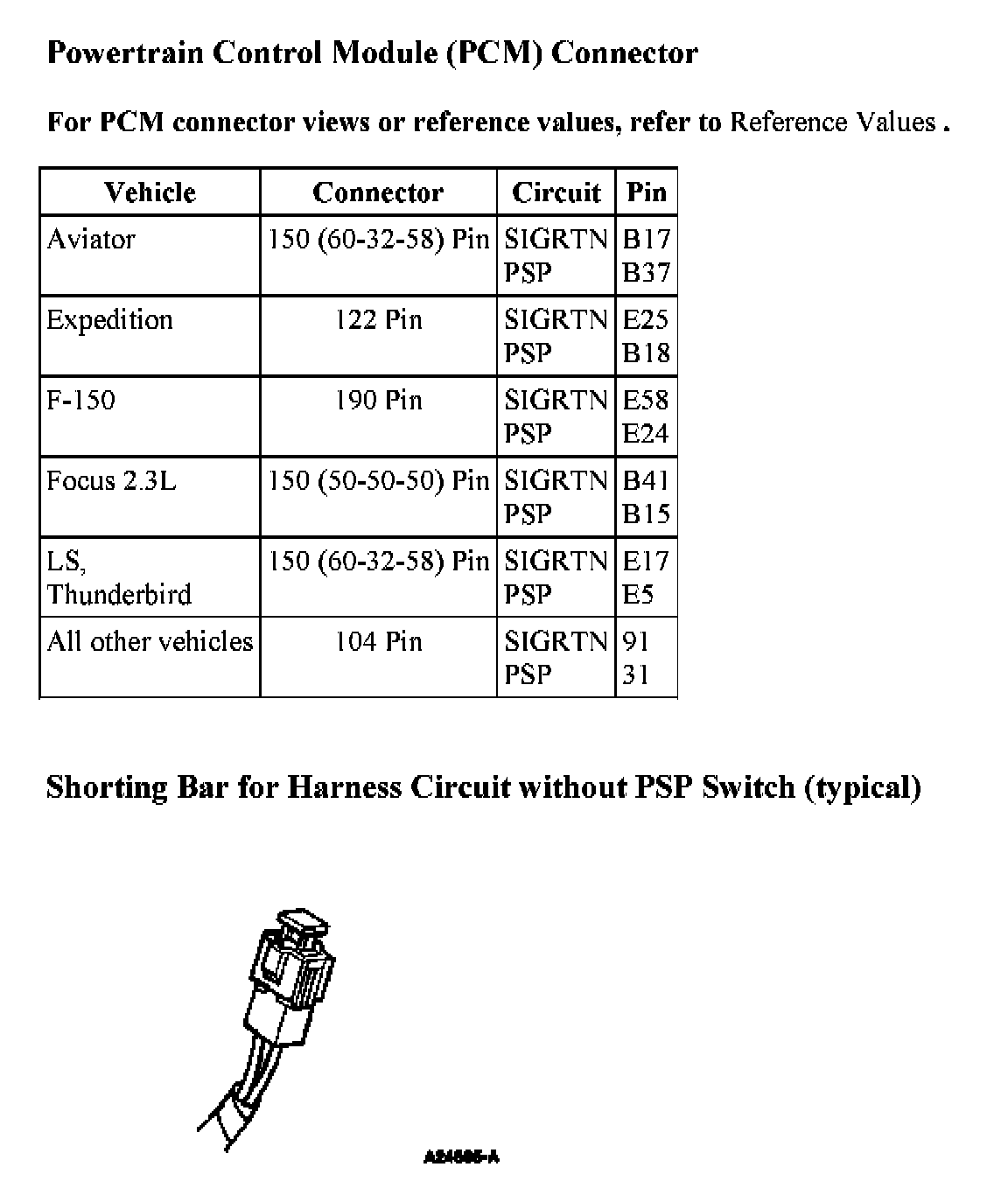

FF Introduction 2 Of 2:

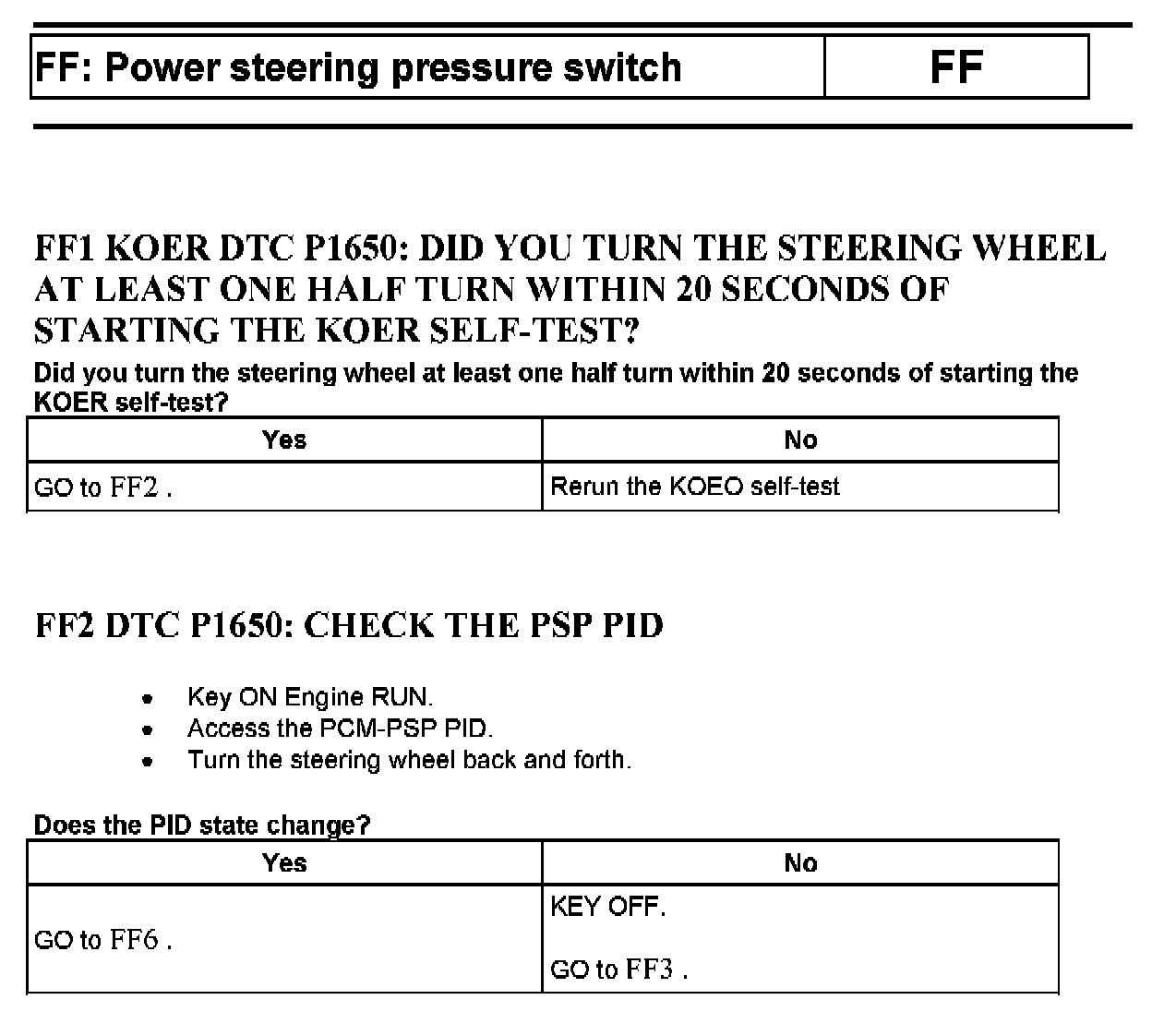

FF1 - FF2:

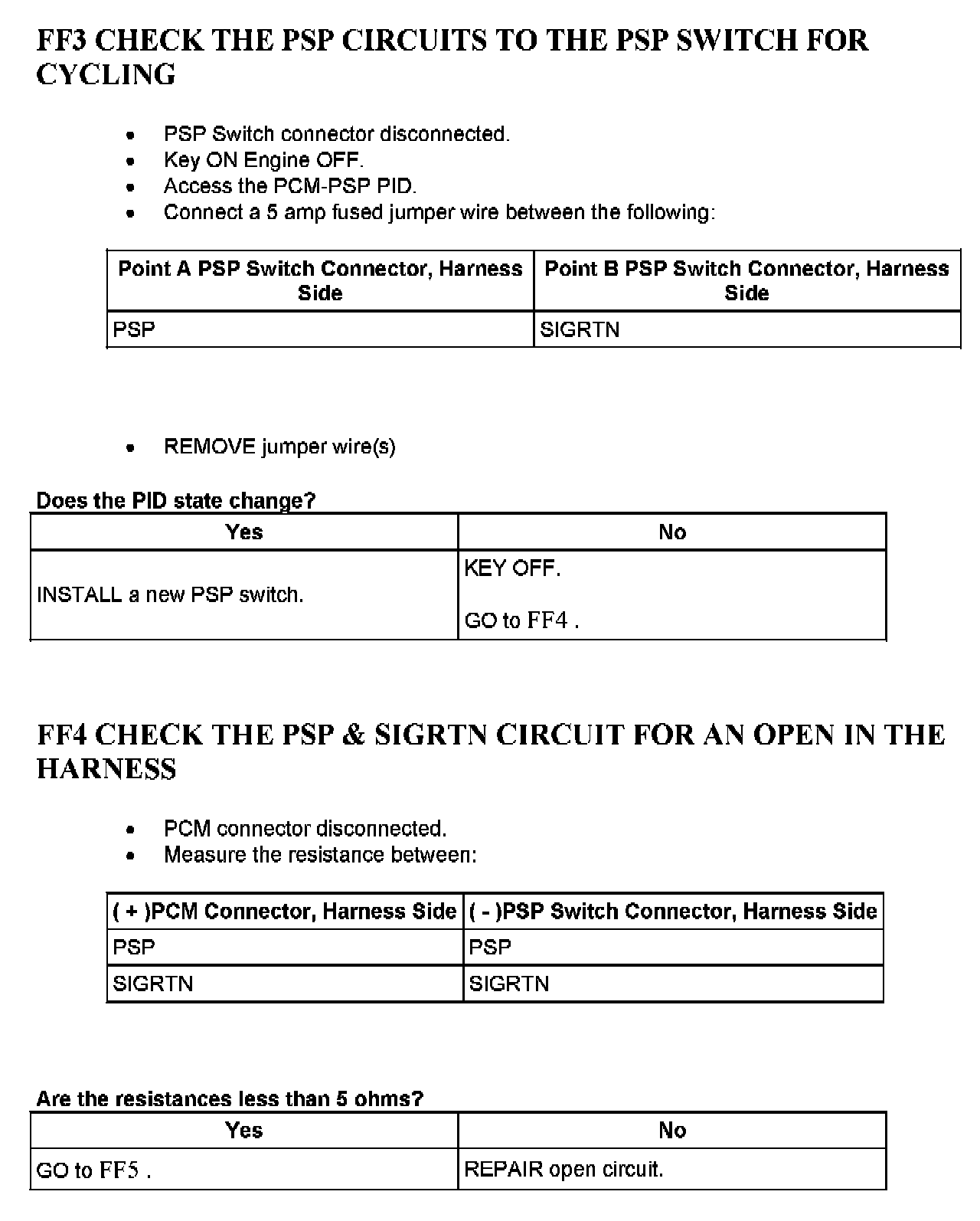

FF3 - FF4:

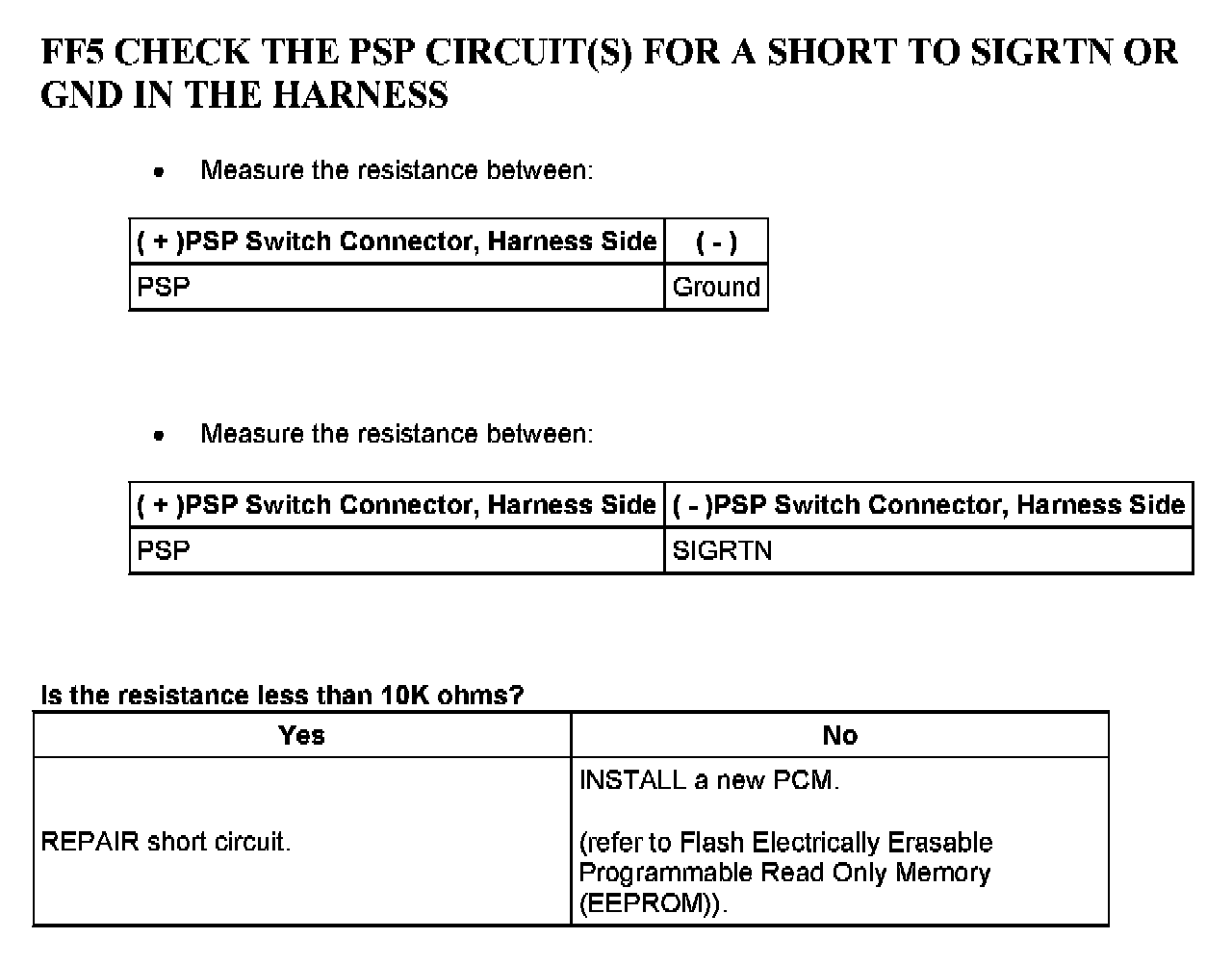

FF5:

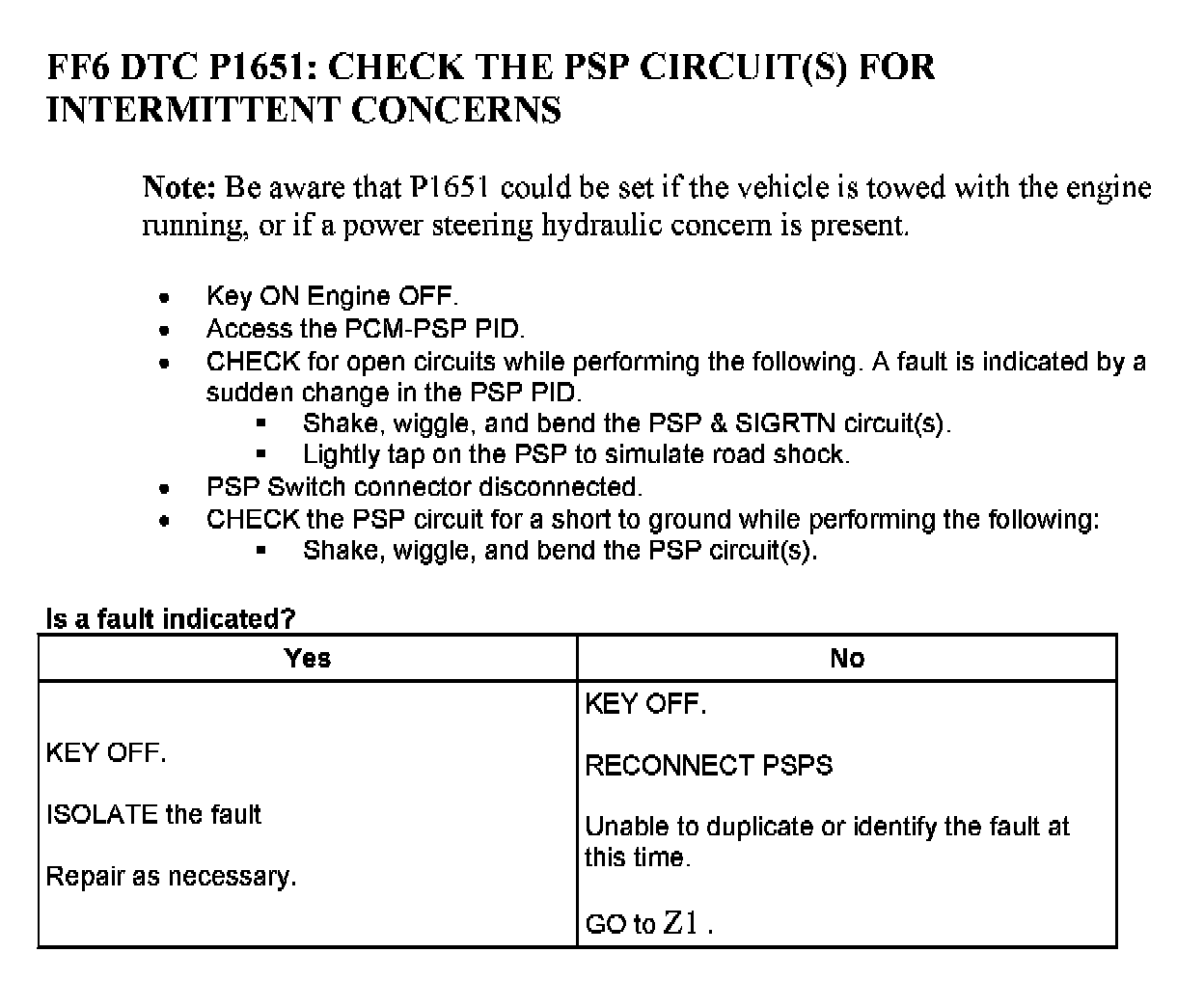

FF6:
