Tests DT: Power Steering Pressure Sensor
Tests DT: Power Steering Pressure Sensor
PINPOINT TEST DT: POWER STEERING PRESSURE SENSOR

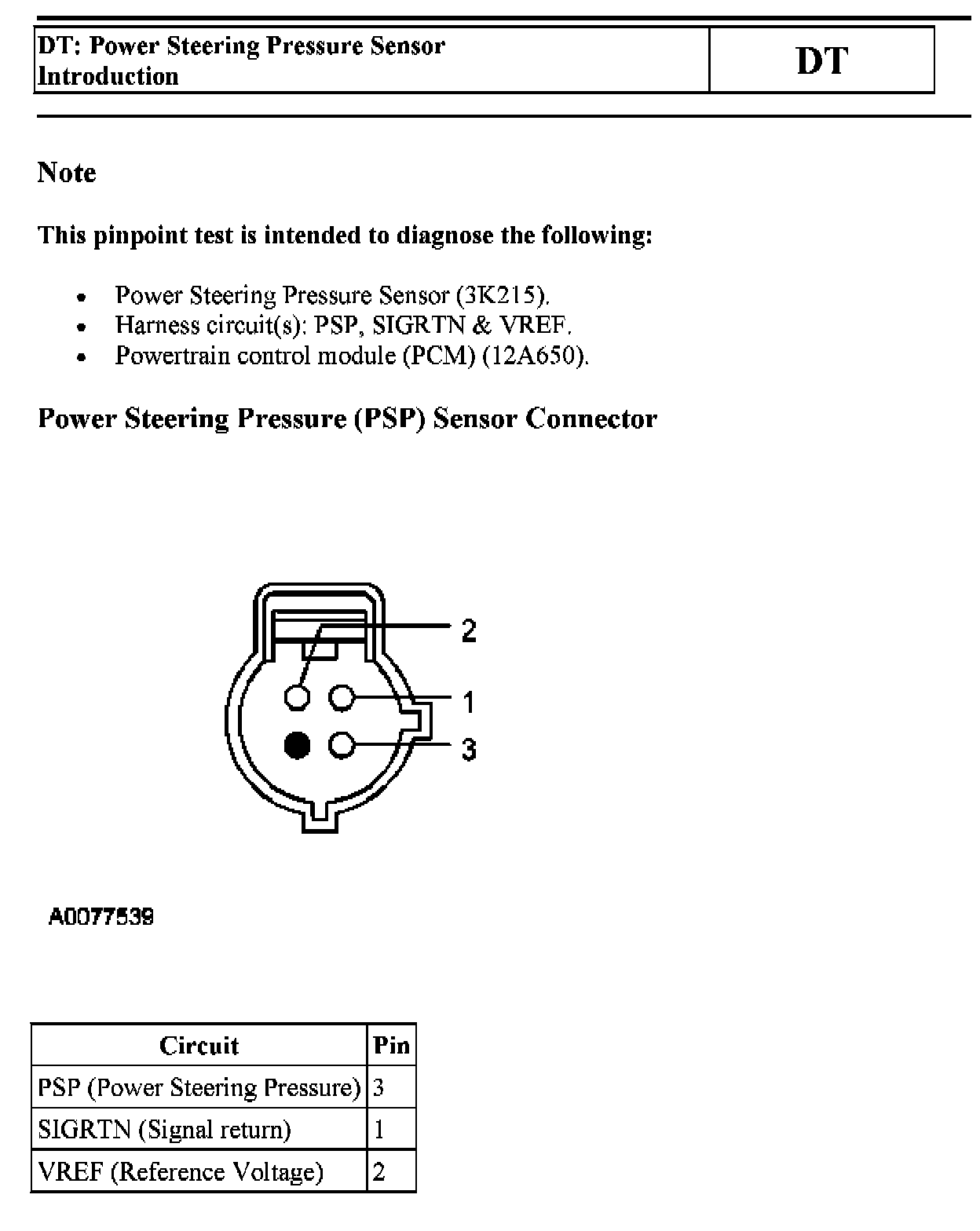

DT Introduction 1 Of 2:

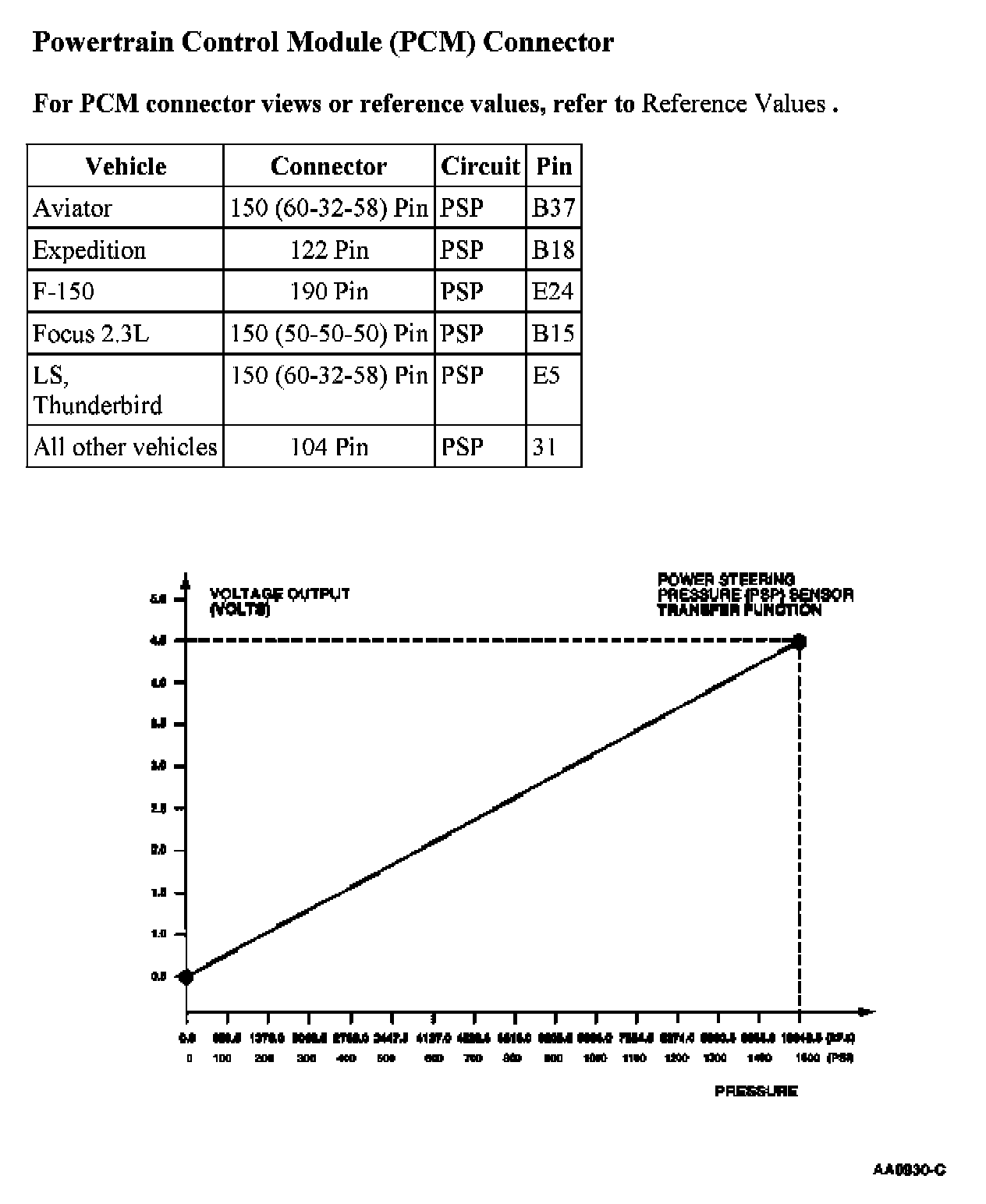

DT Introduction 2 Of 2:

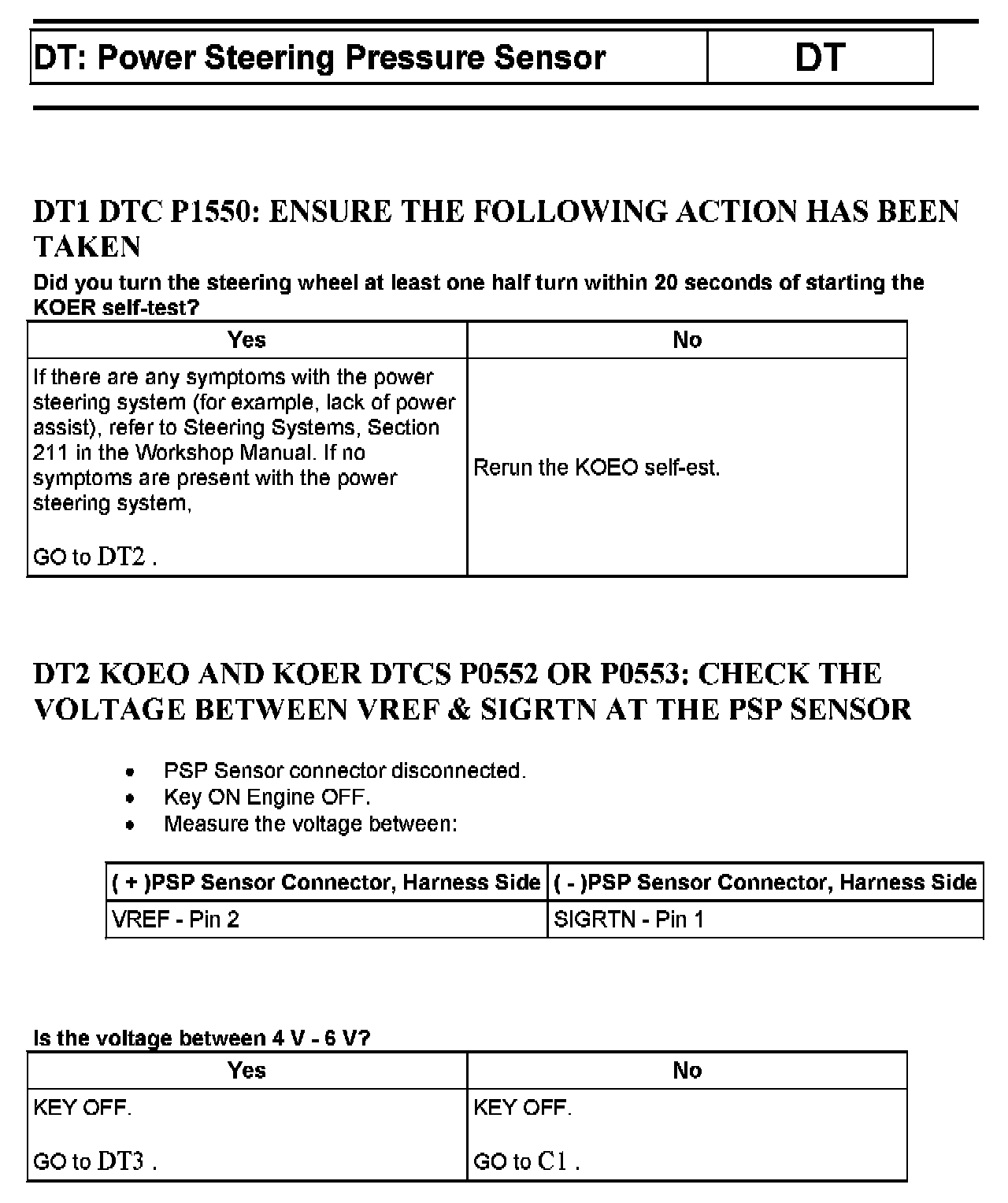

DT1 - DT2:

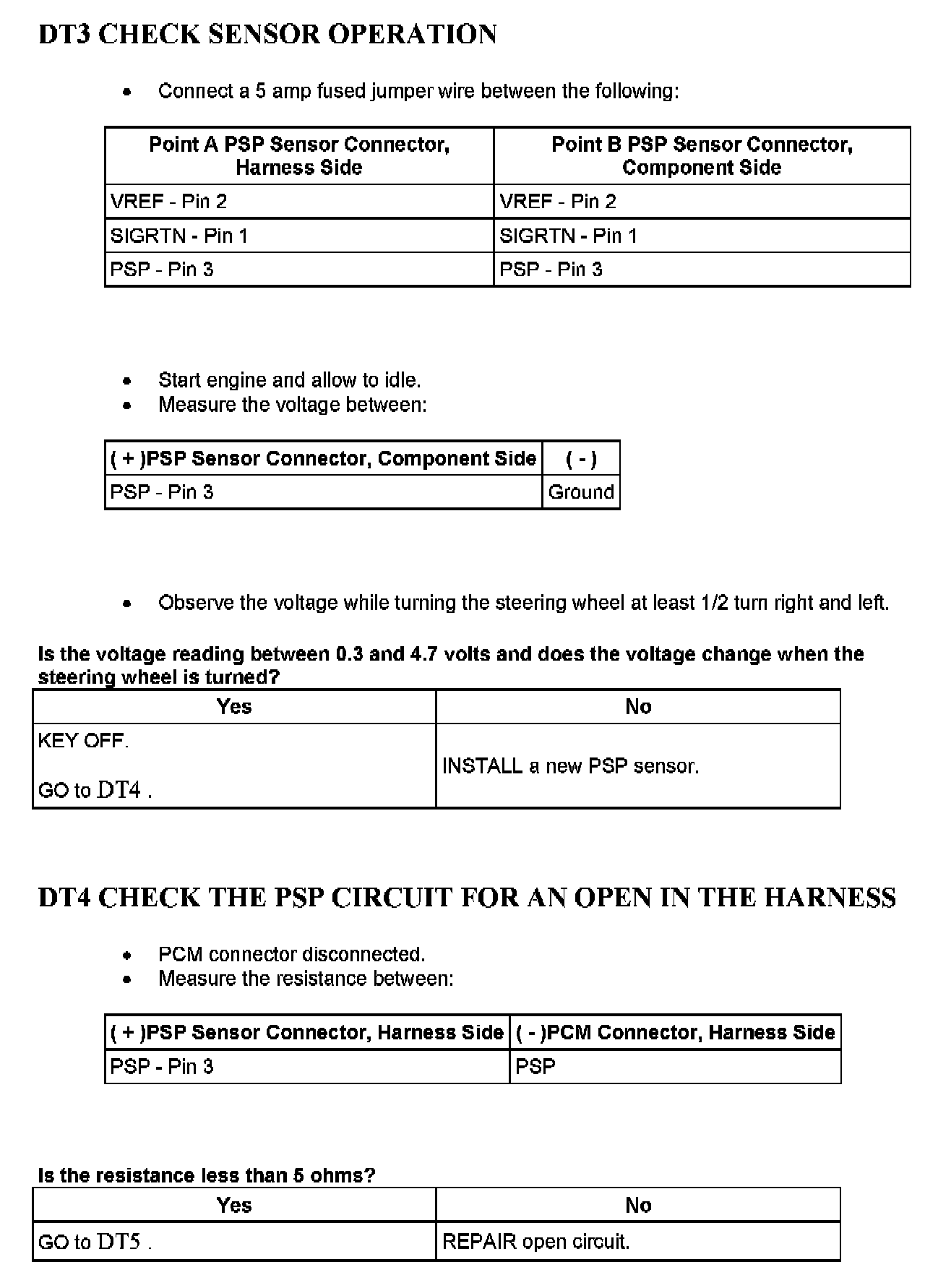

DT3 - DT4:

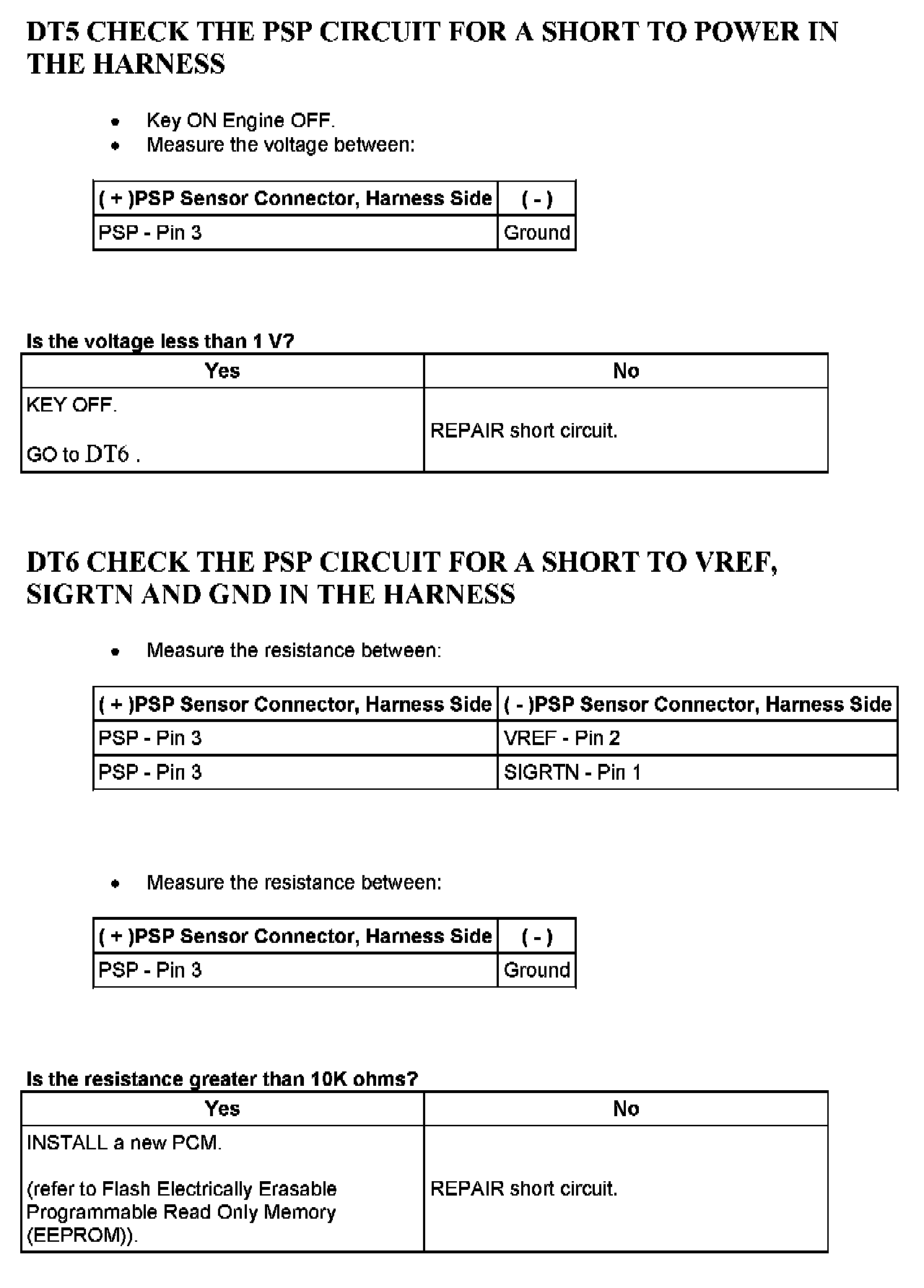

DT5 - DT6:

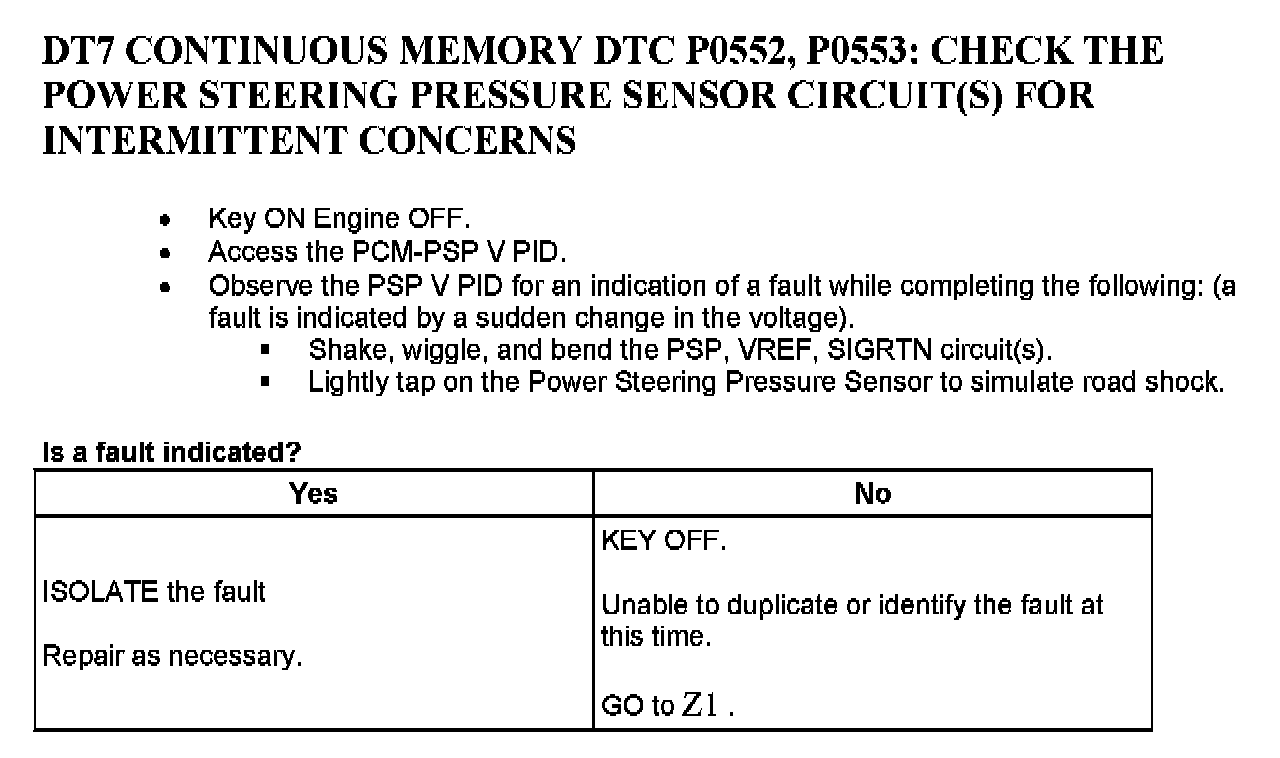

DT7:
