FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Mercury >> 2004 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests DJ: Air Conditioner Evaporator Temperature Sensor

Tests DJ: Air Conditioner Evaporator Temperature Sensor



PINPOINT TEST DJ: AIR CONDITIONER EVAPORATOR TEMPERATURE SENSOR

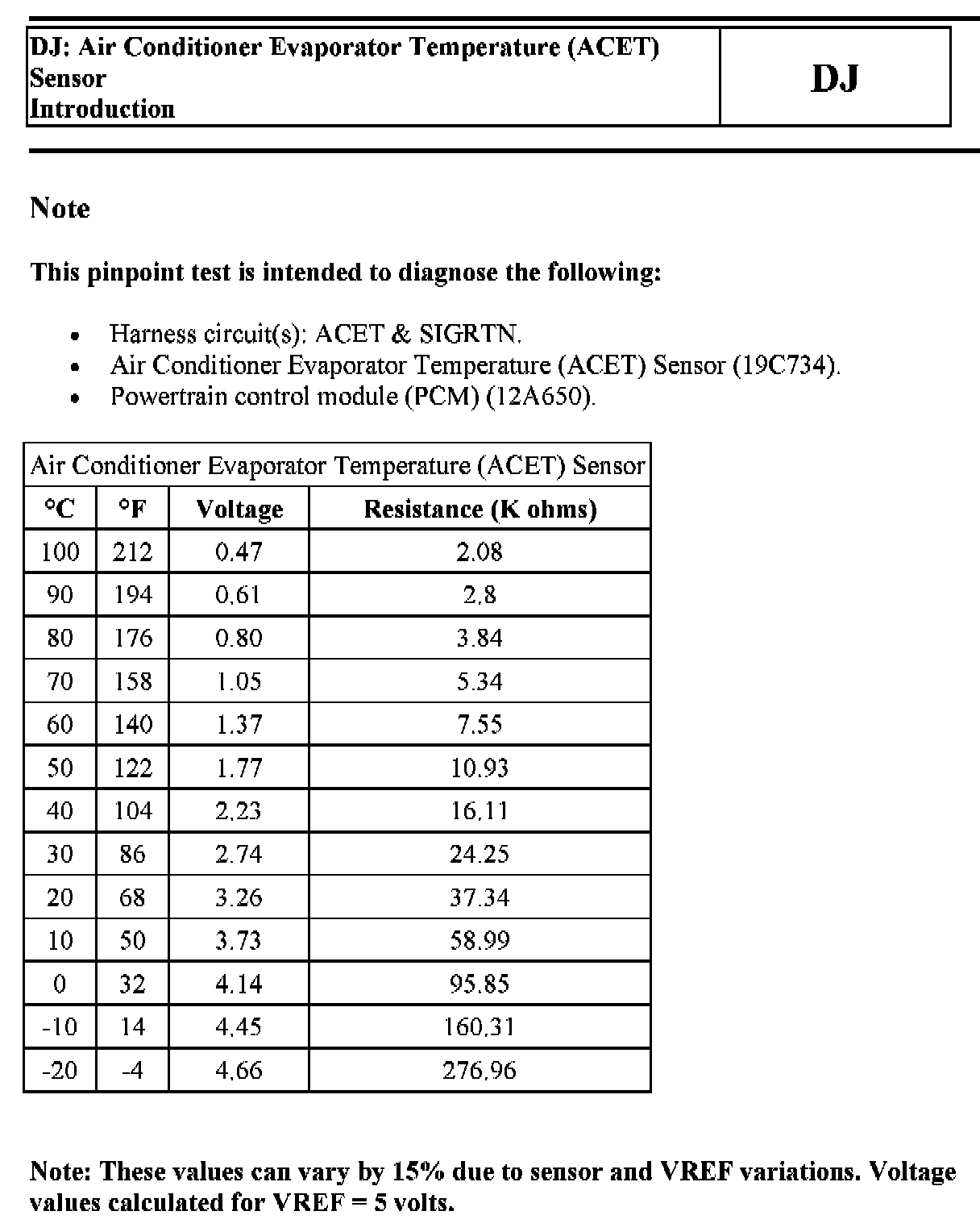

DJ Introduction 1 Of 2:

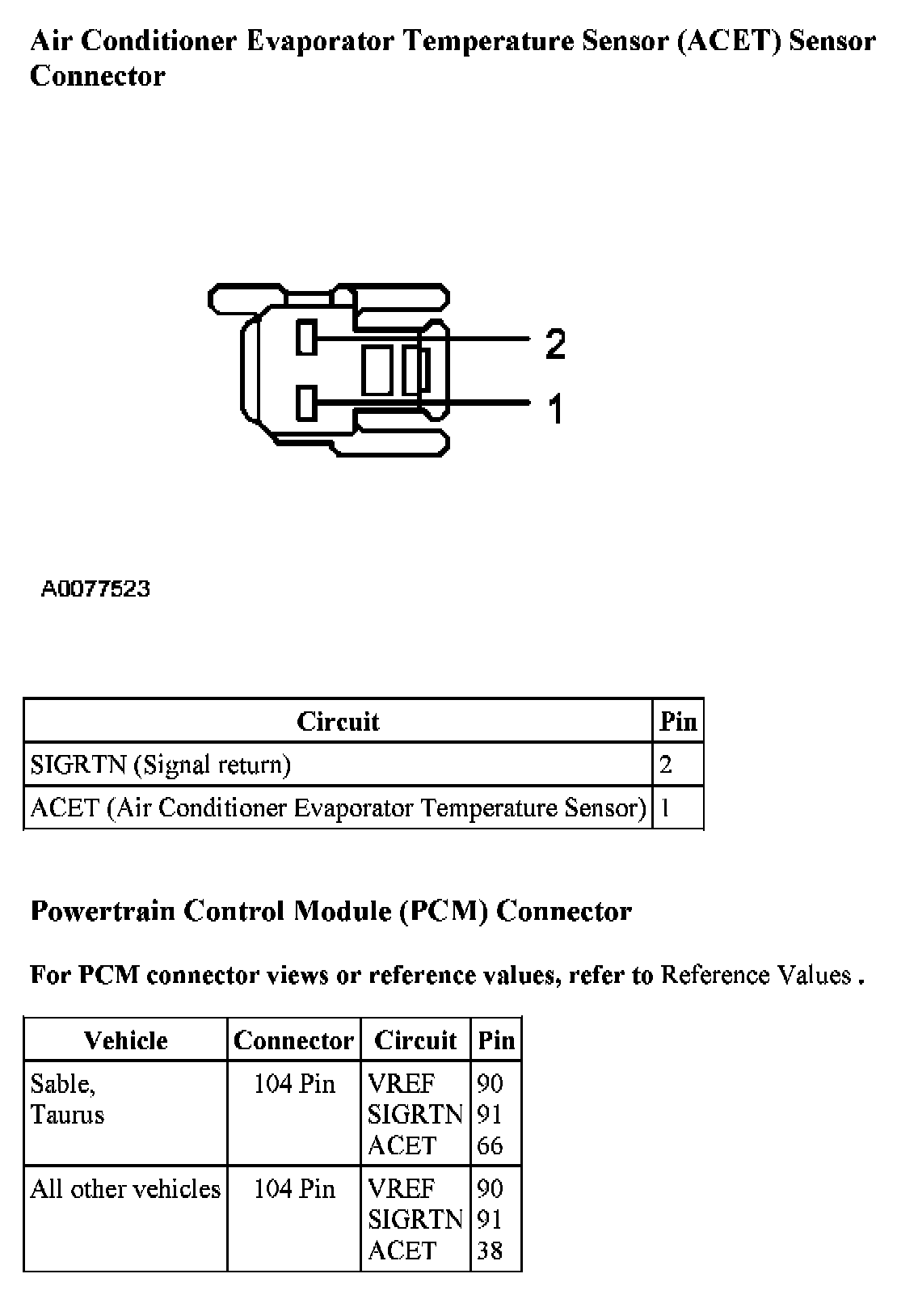

DJ Introduction 2 Of 2:

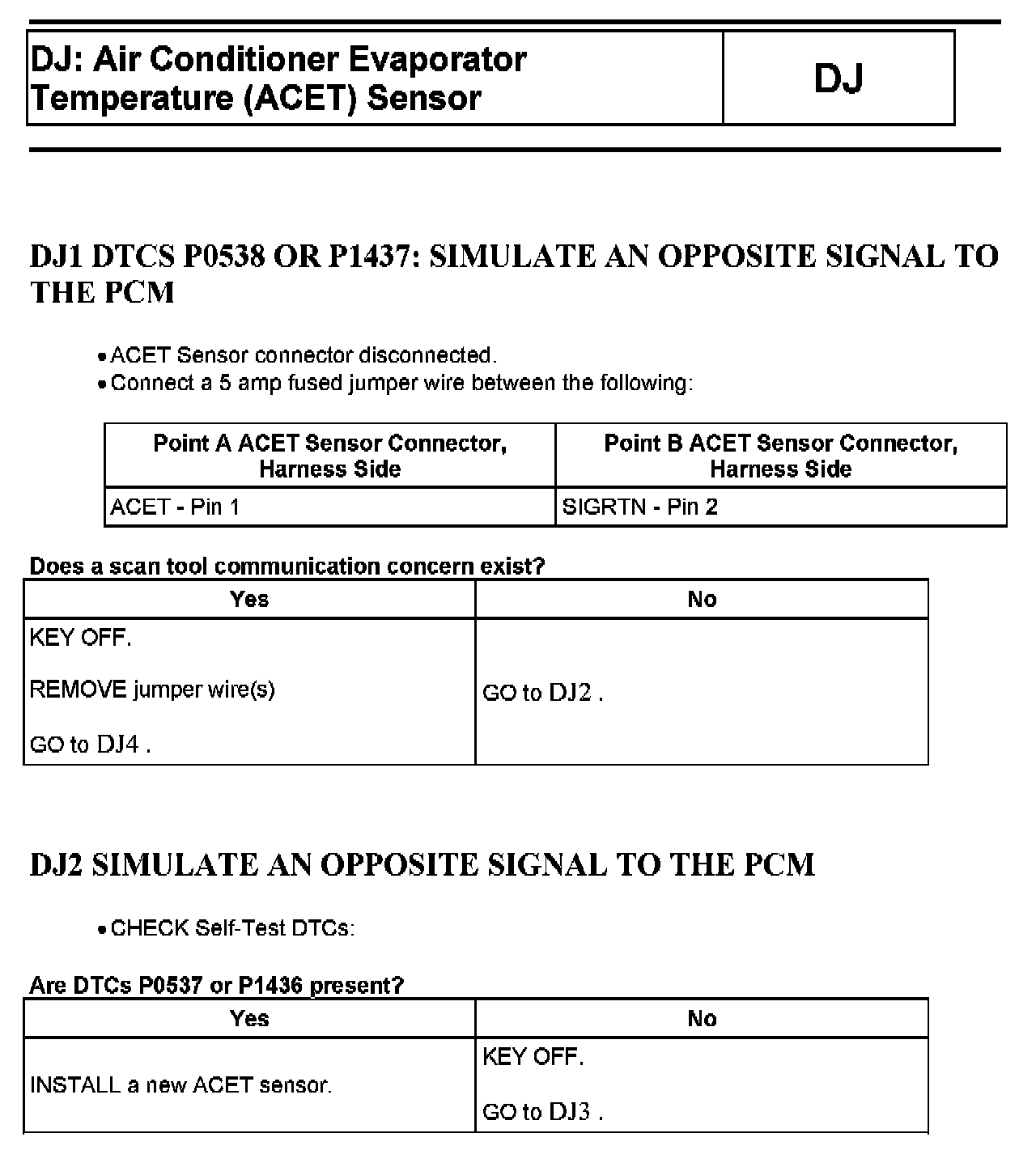

DJ1 - DJ2:

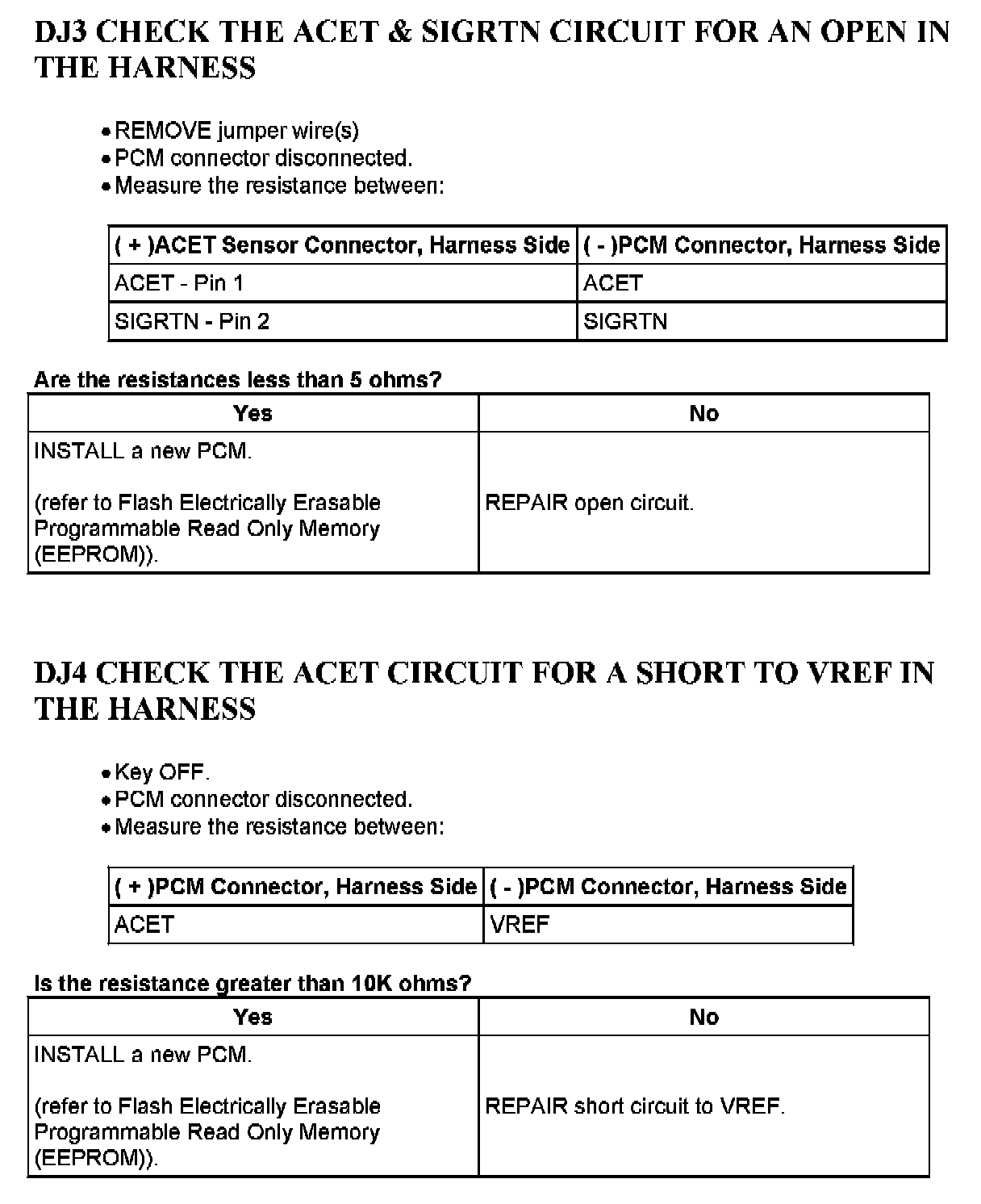

DJ3 - DJ4:

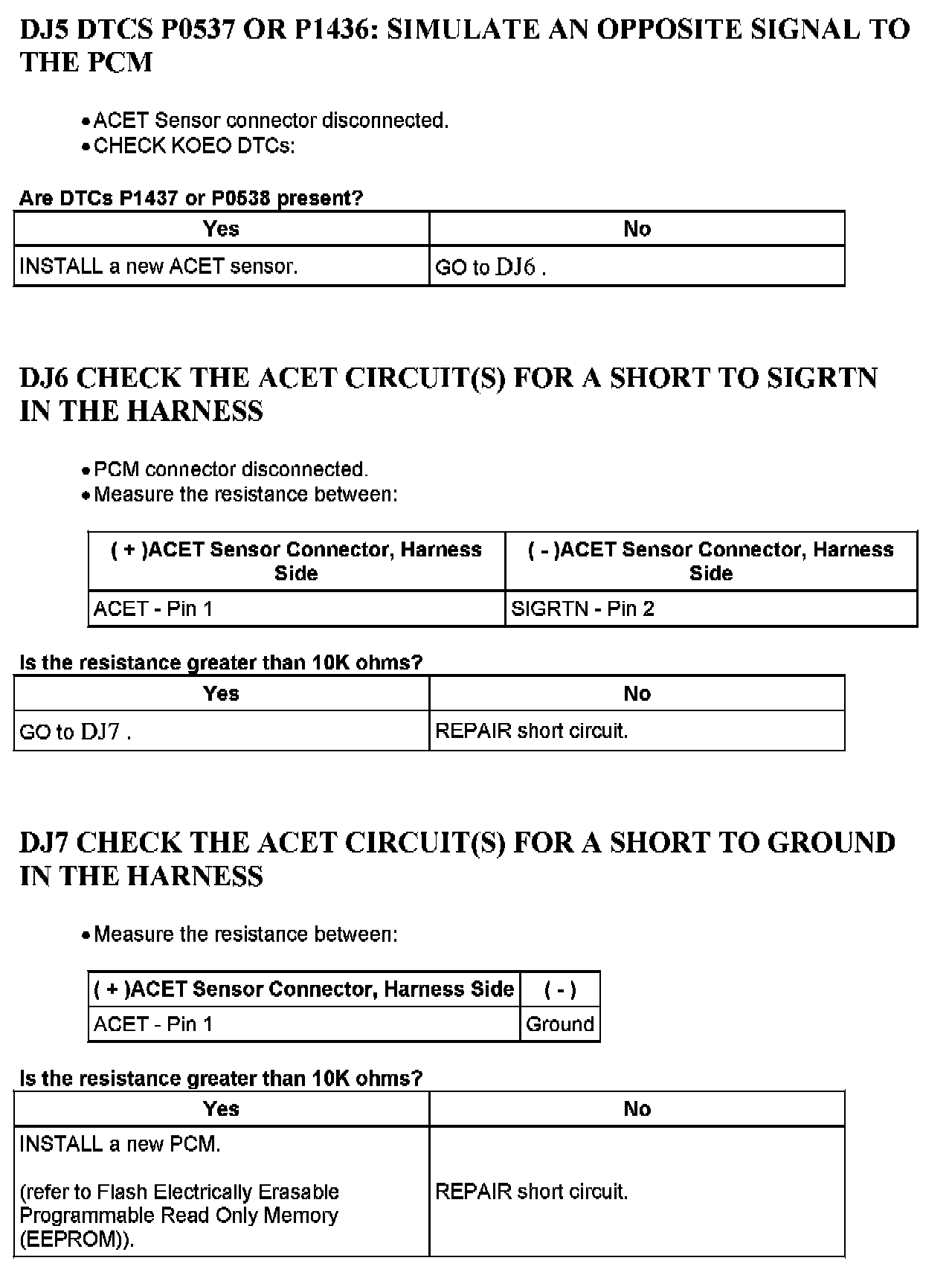

DJ5 - DJ7:

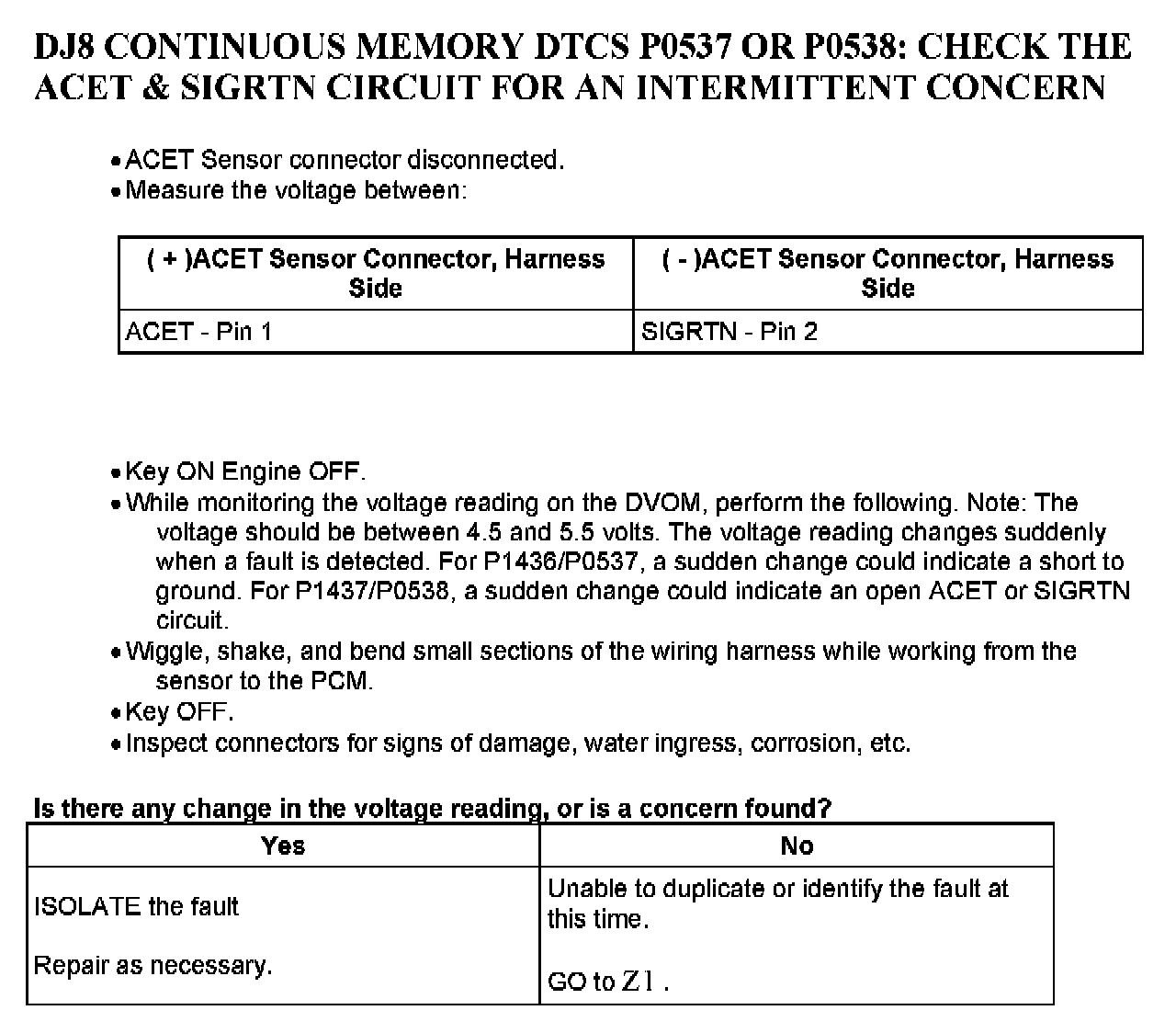

DJ8:
