Drive Belt: Description and Operation

Accessory Drive

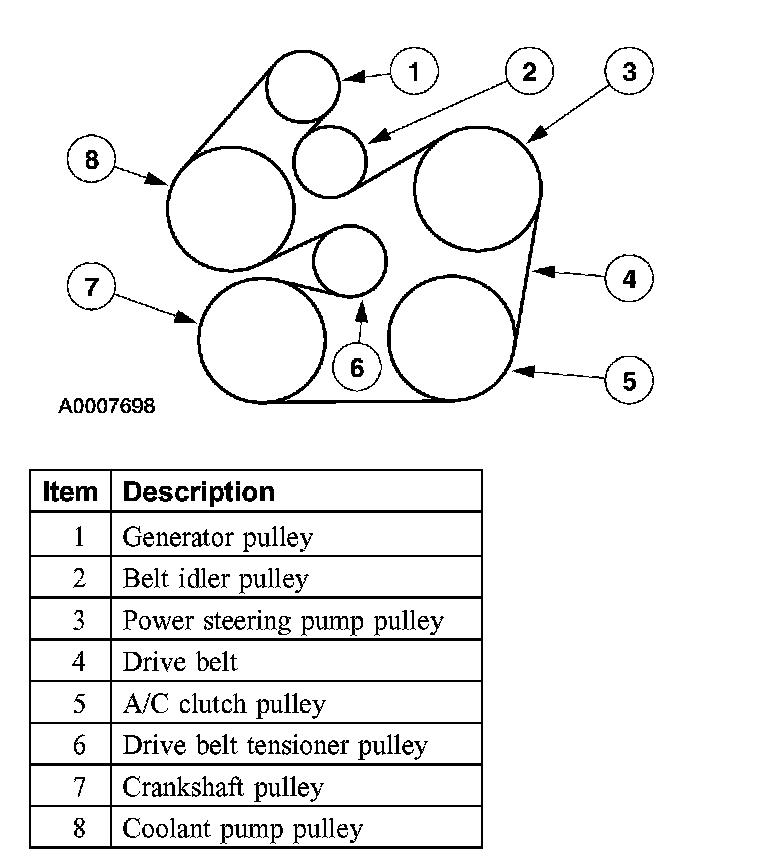

Component Locations 3.0L (2V)

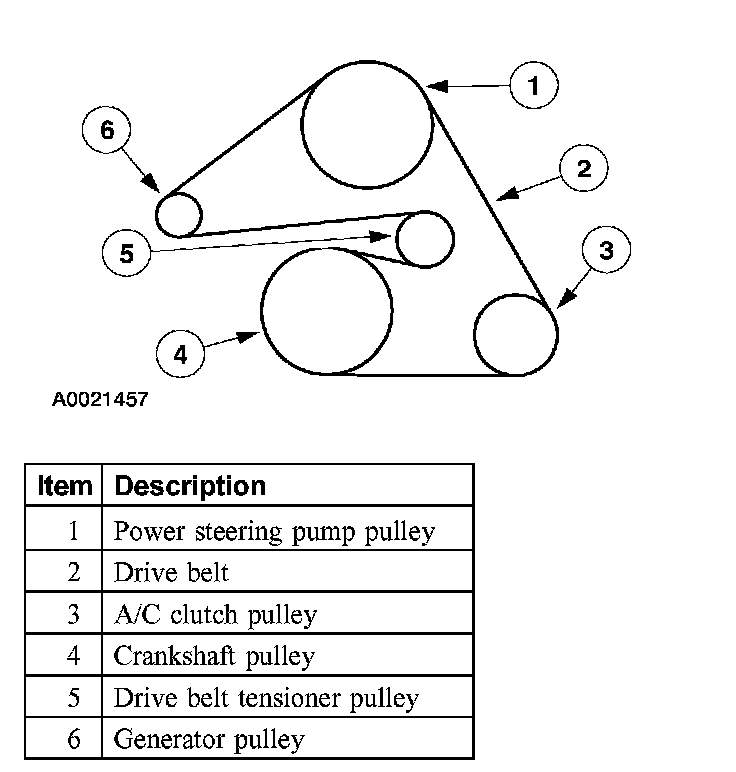

Component Locations 3.0L (4V)

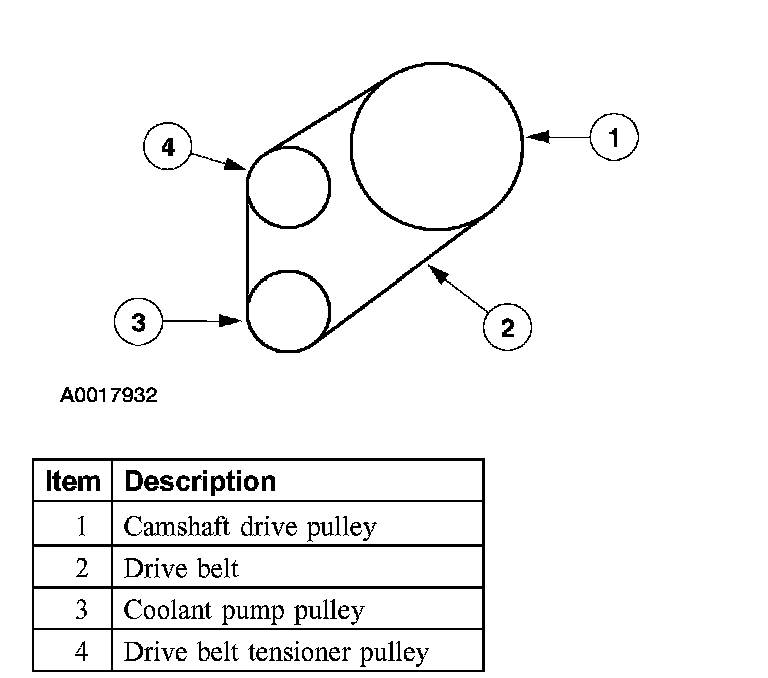

Water Pump Drive Belt - 3.0L (4V) with Tensioner

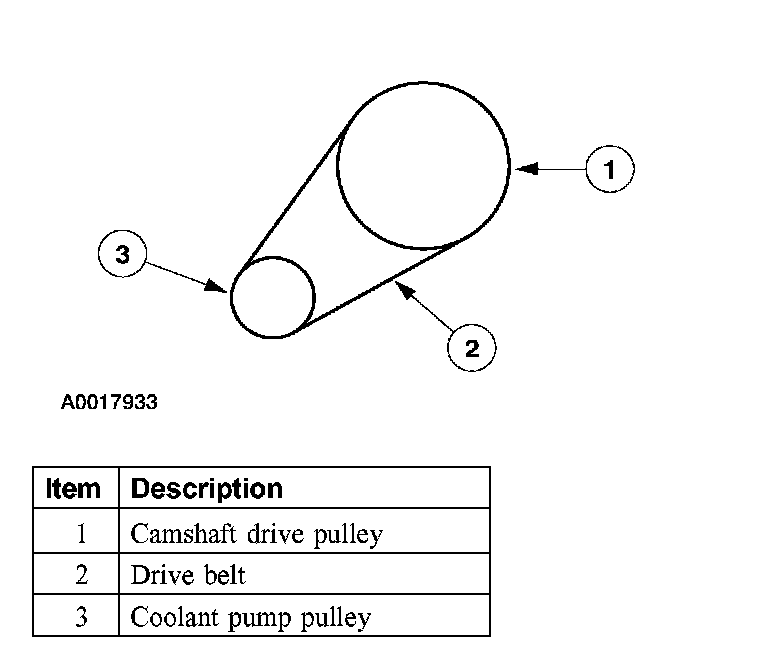

Water Pump Drive Belt - 3.0L (4V) without Tensioner

This vehicle is equipped with:
- a V-ribbed serpentine accessory drive belt(s).
- automatic drive belt tensioner(s).
- a V-ribbed coolant pump belt.

New drive belts should be of the same type as originally installed.
Drive belt chirp is a regularly occurring chirping noise that occurs due to:
- pulley misalignment.
- excessive pulley runout.
- worn out belt.
- incorrect tension.

It can be a result of a damaged pulley or an incorrectly installed pulley that was not correctly aligned. To correct drive belt chirp:
- determine the area from where the noise comes.
- check each of the pulleys in that area with a straightedge to the crankshaft pulley for front accessory drive.
- look for the accessory pulley to be out of position in the fore/aft direction or at an angle to the straightedge.
- inspect the drive belt.
- inspect the belt tensioner. Drive belt squeal is an intermittent noise that occurs when the drive belt slips on a pulley during certain conditions such as:
- engine start-up.
- rapid engine acceleration.
- A/C clutch engagement.
