Home >> Mercury >> 2004 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Testing and Inspection >> Pinpoint Tests >> Test N

Test N

PINPOINT TEST N: THE HAZARD LAMPS ARE INOPERATIVE

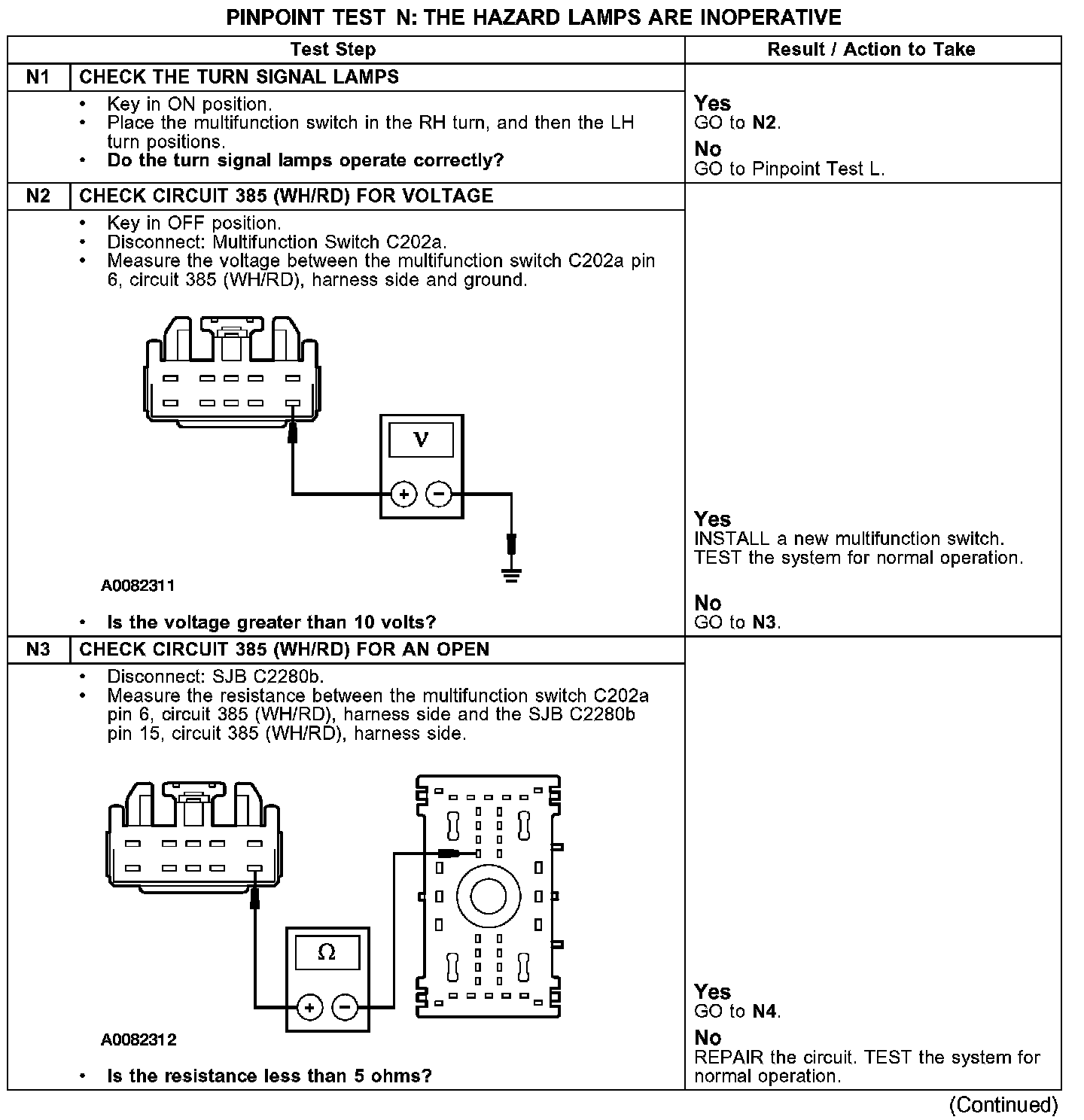

Test N1-N3:

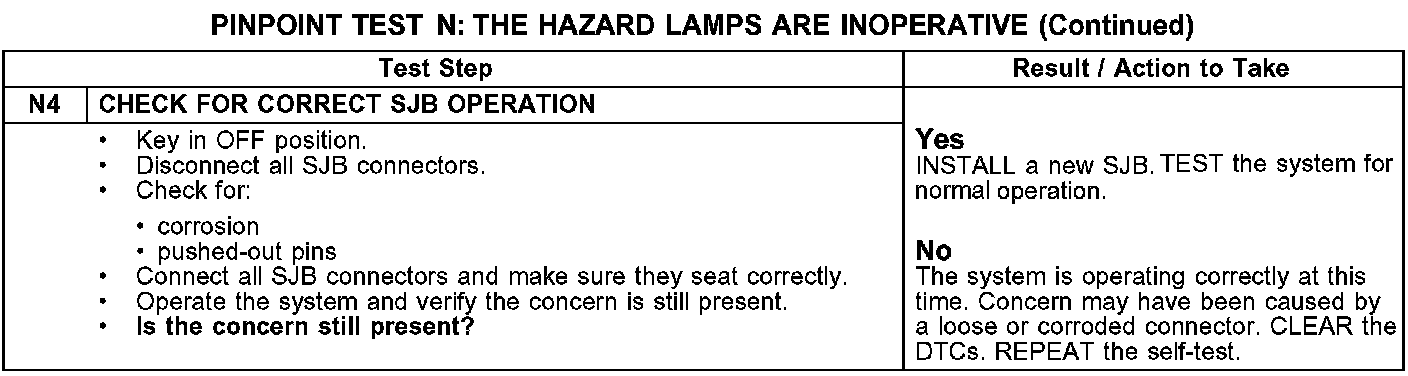

Test N4:
