Horn: Service and Repair

HORN

REMOVAL

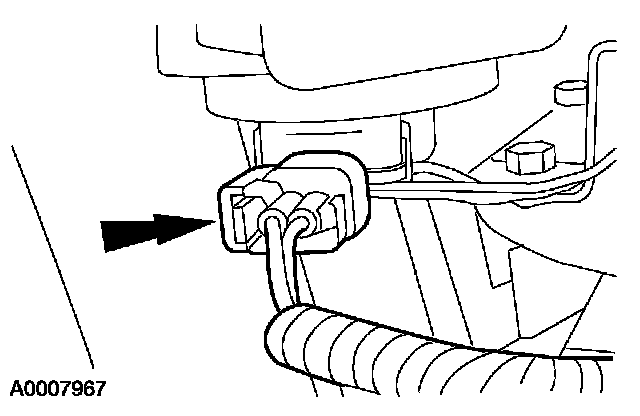

1. Disconnect the electrical connector.







2. NOTE: The new horns are installed as an assembly.

Remove the horn assembly.

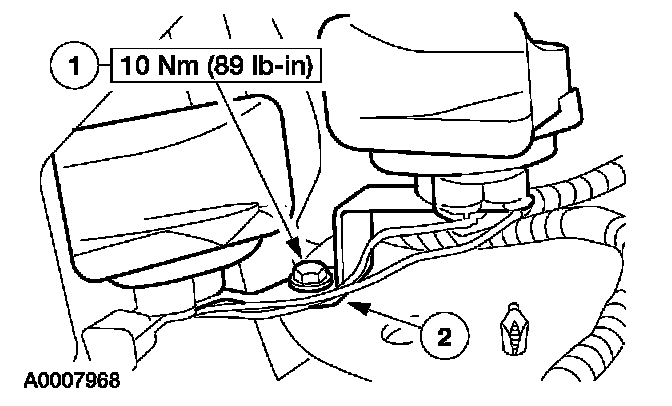

1 Remove the bolt.
2 Remove the horn assembly.

INSTALLATION
1. To install, reverse the removal procedure.
