Home >> Mercury >> 2004 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Lighting and Horns >> Brake Lamp >> Testing and Inspection >> Pinpoint Tests >> Test J

Test J

PINPOINT TEST J: ONE OR MORE STOPLAMPS ARE INOPERATIVE

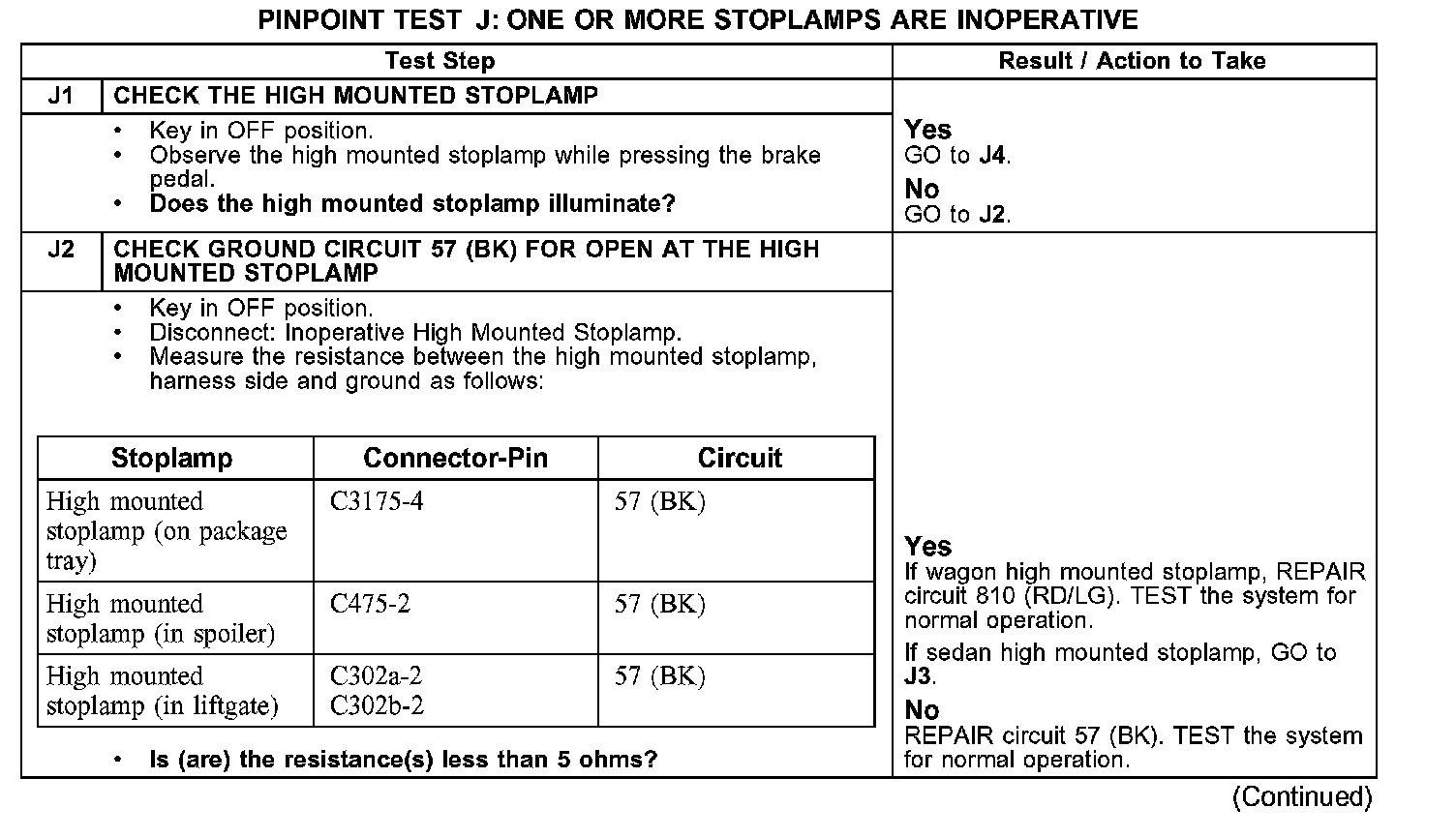

Test J1-J2:

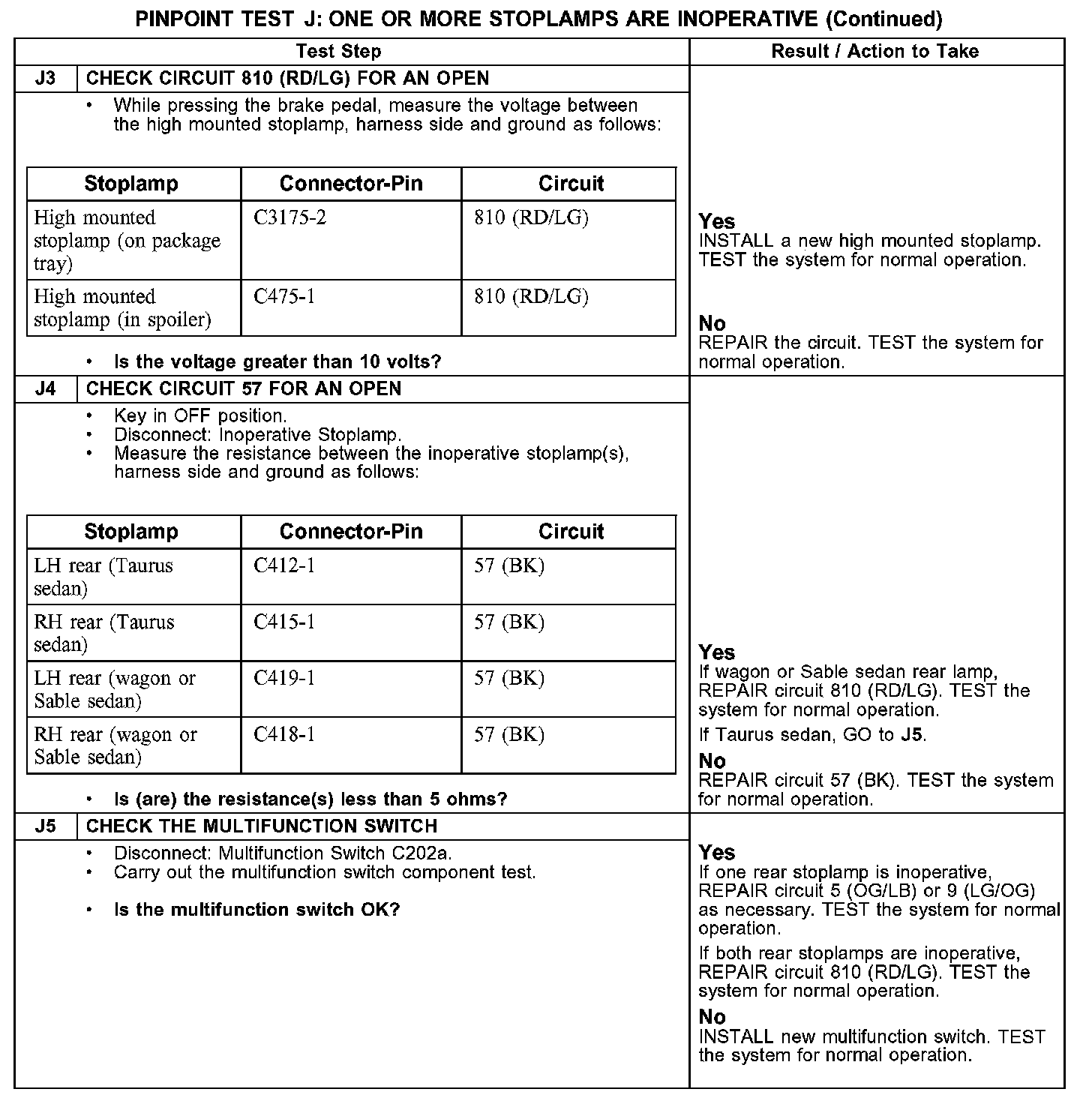

Test J3-J5:
