PINPOINT TEST E: THE CHIME SOUNDS WHEN THE DRIVER DOOR IS AJAR (NO KEY IN THE IGNITION AND HEADLIGHTS OFF)

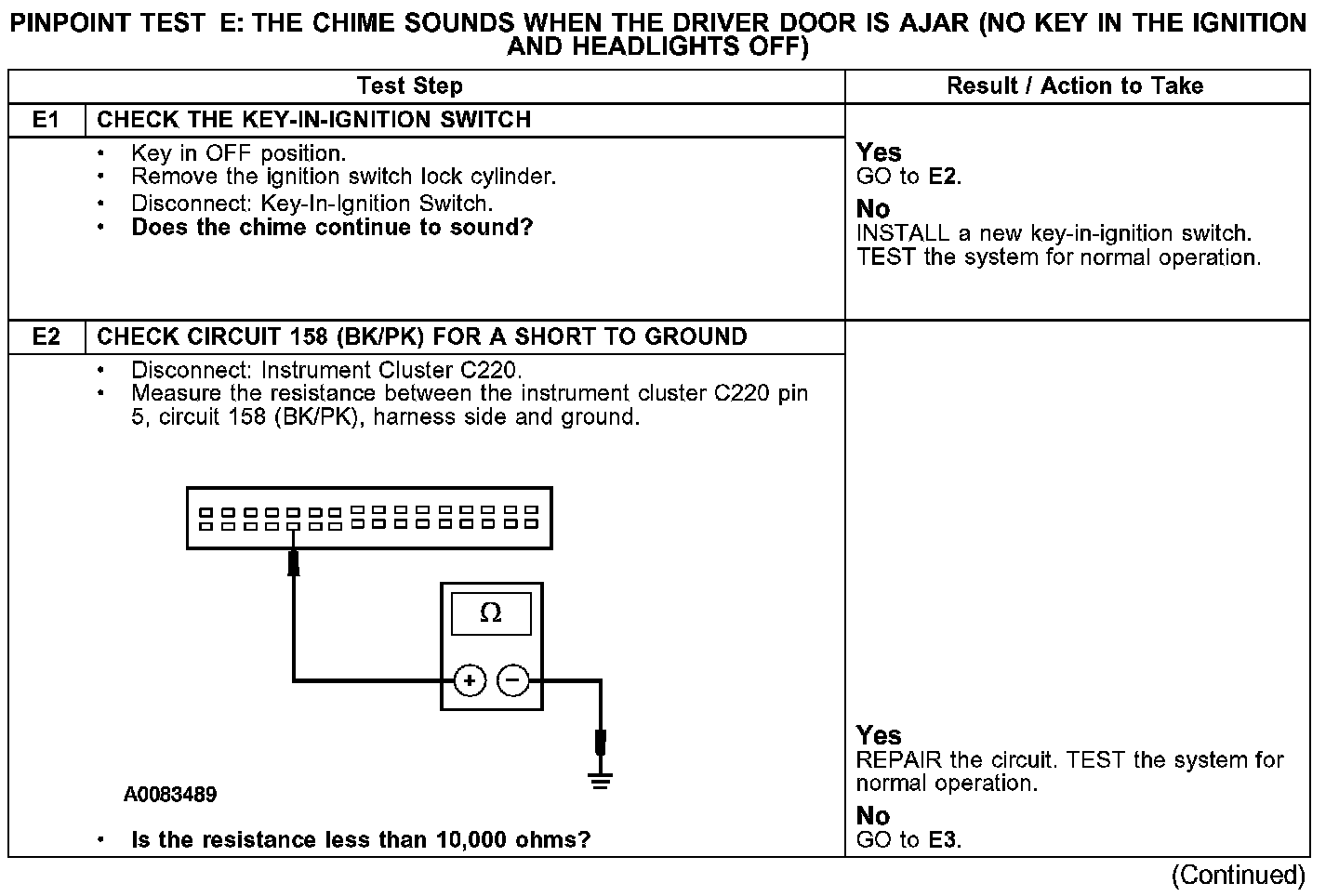

Test E1-E2:

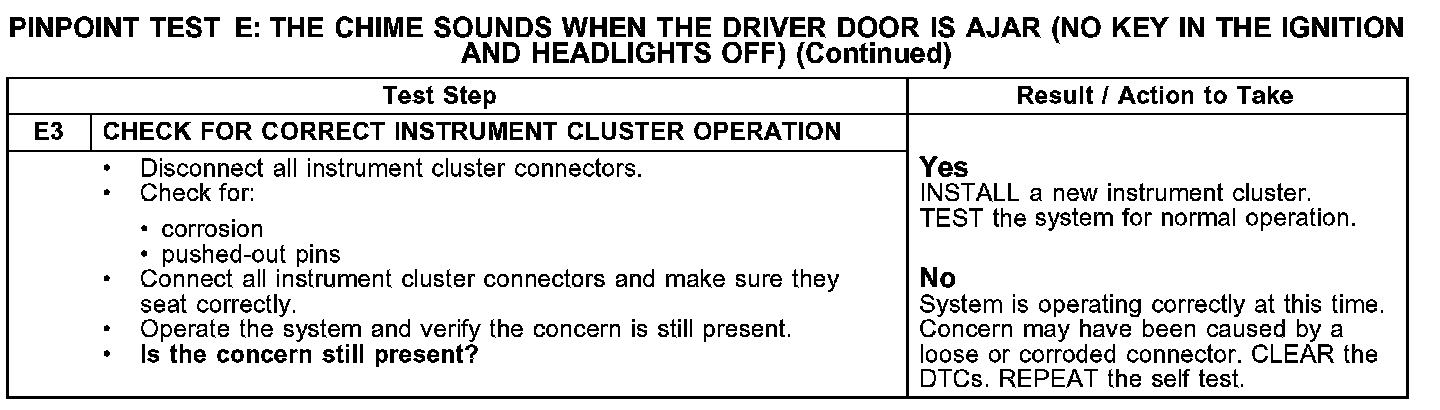

Test E3:
