Home >> Mercury >> 2004 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test F

Test F

PINPOINT TEST F: THE SPEEDOMETER/ODOMETER IS INOPERATIVE

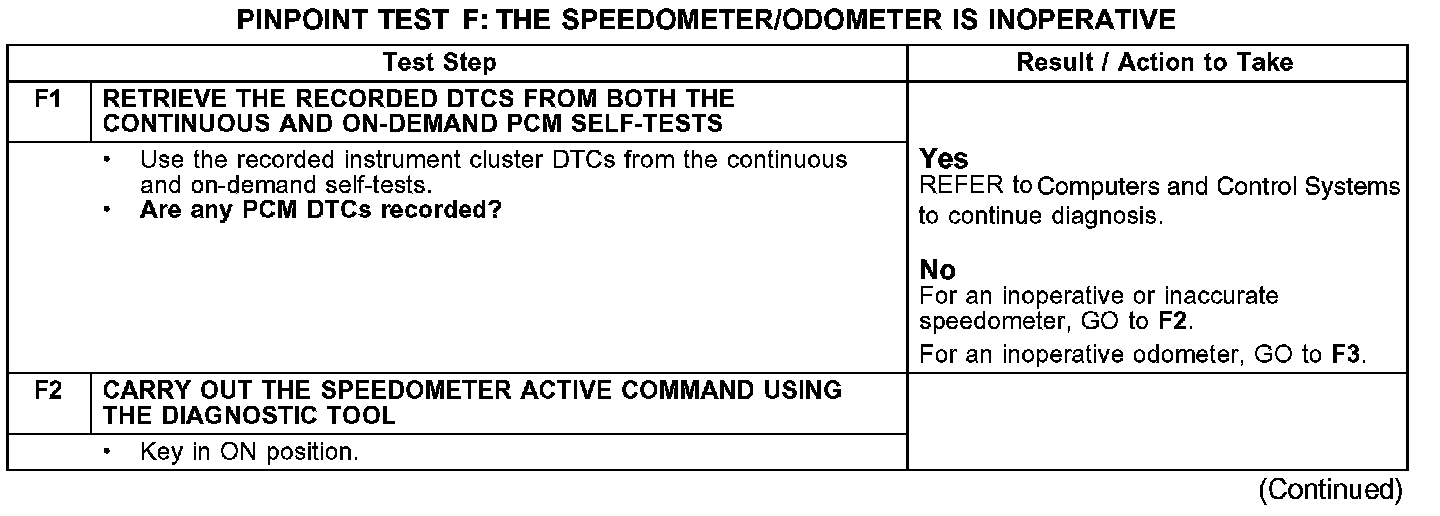

Test F1-F2:

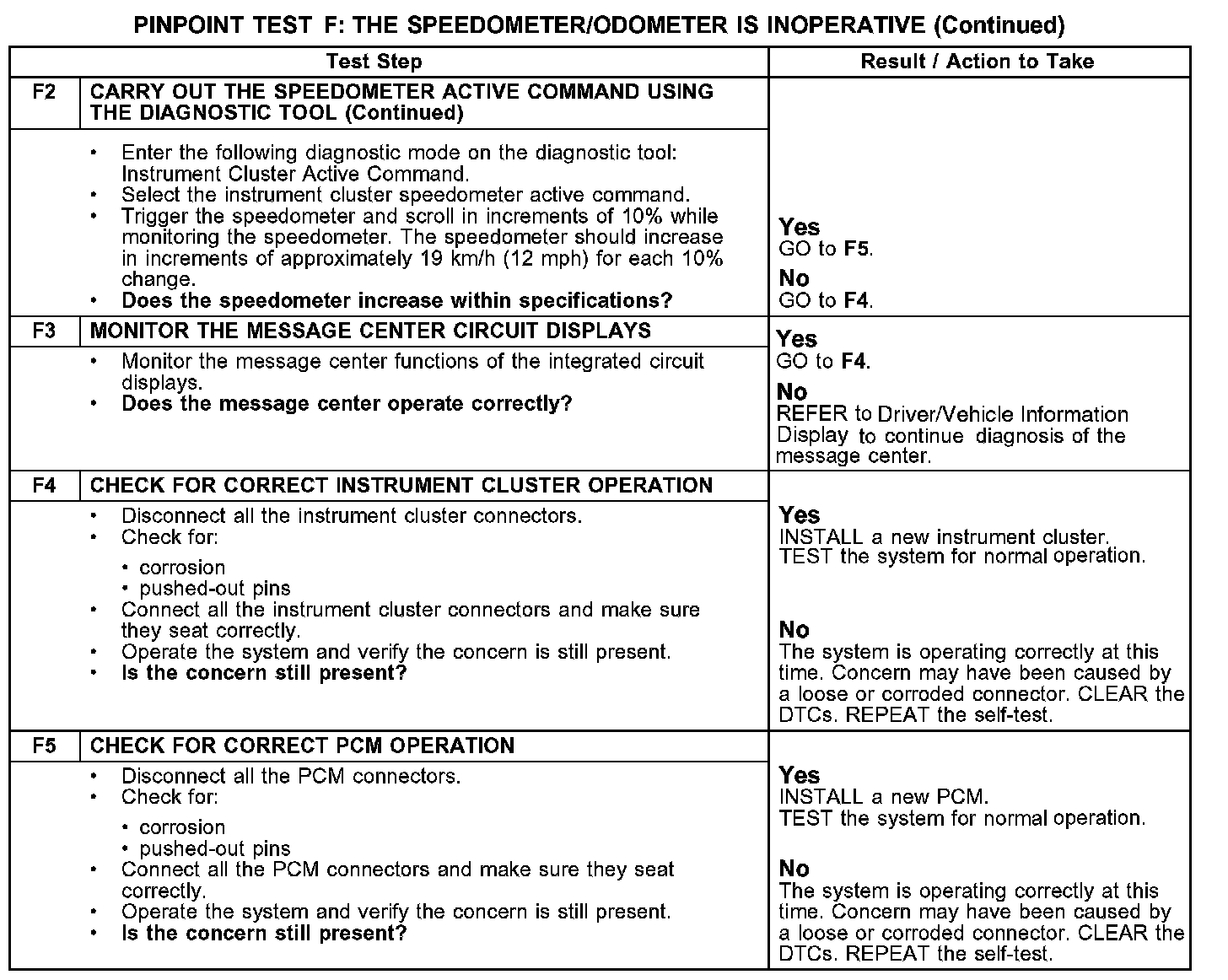

Test F2-F5:
