Test B
Test B
PINPOINT TEST B: INCORRECT
FUEL GAUGE
INDICATION - WITHOUT FLEX-FUEL

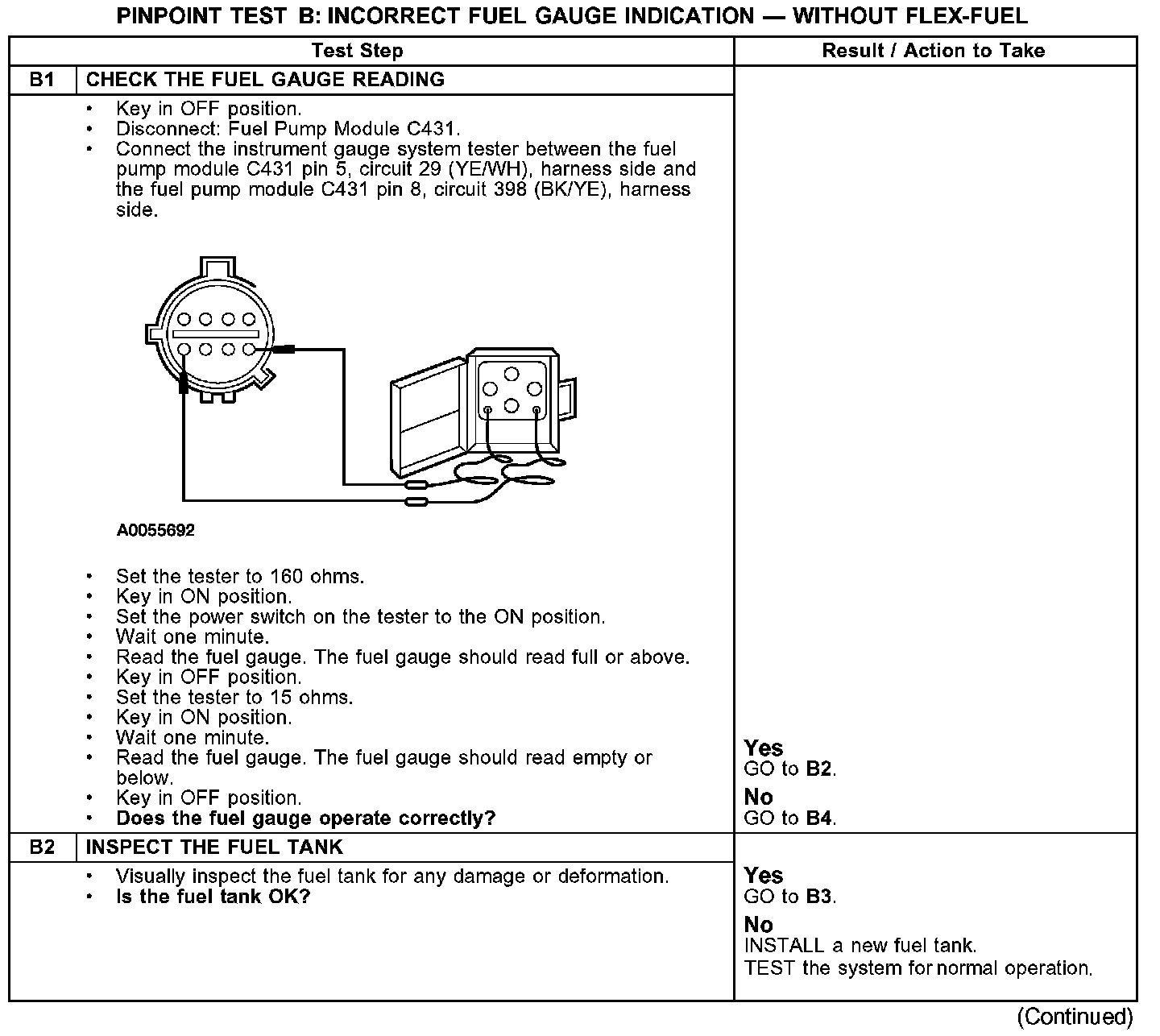

Test B1-B2:

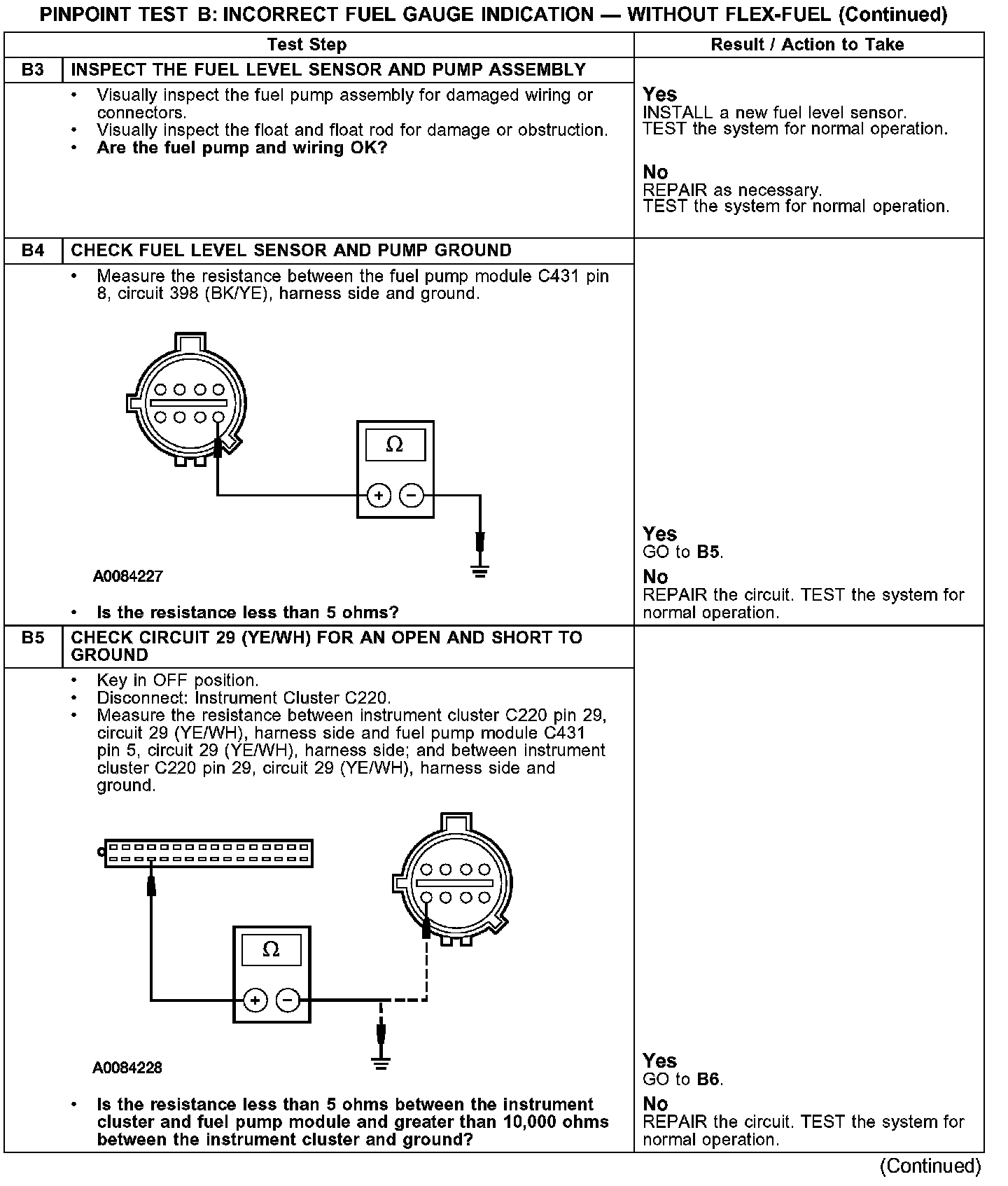

Test B3-B5:

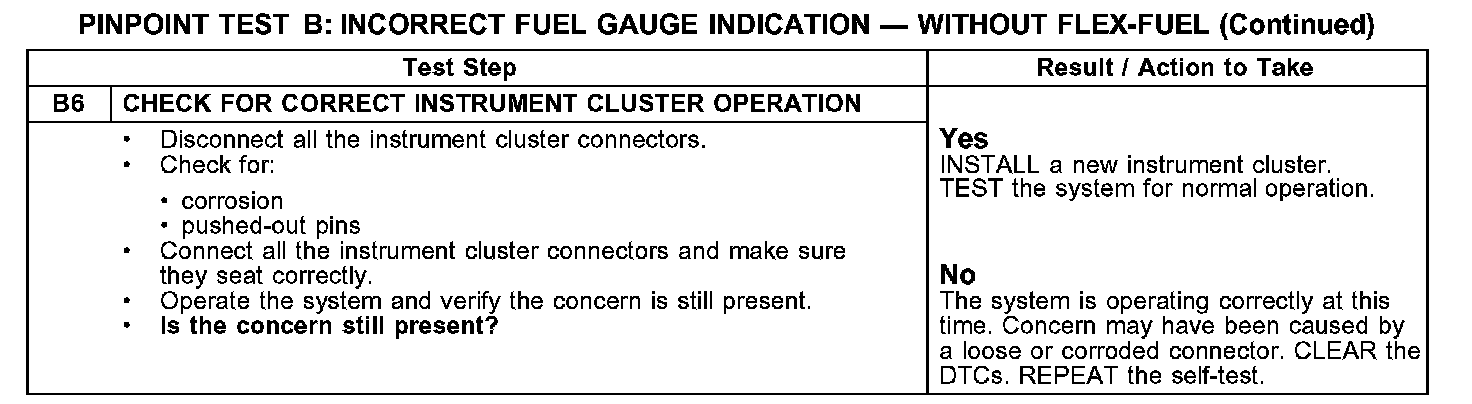

Test B6:
