FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2004
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test N
Test N
PINPOINT TEST N: THE
BLOWER MOTOR
IS INOPERATIVE - EATC

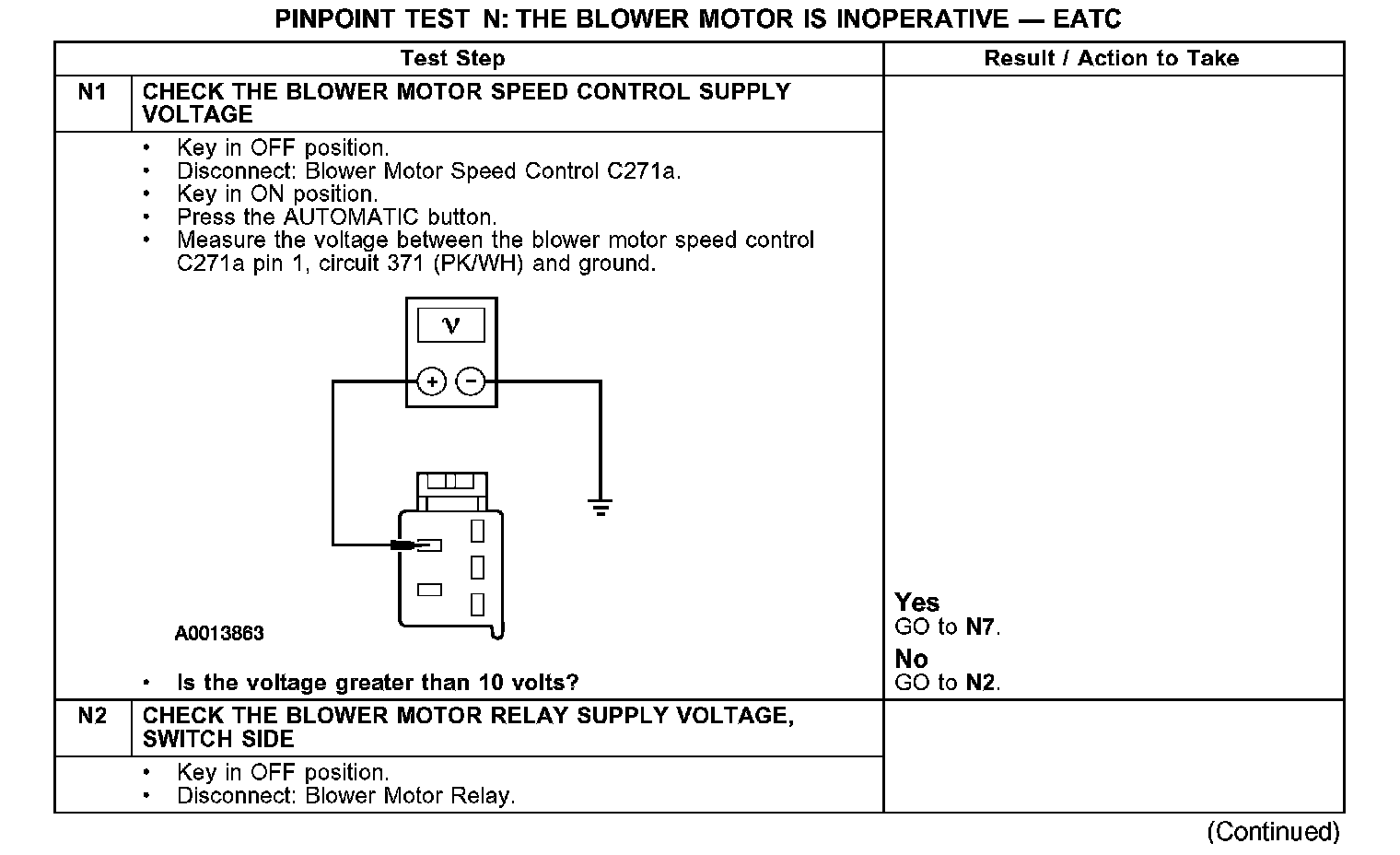

Test N1-N2:

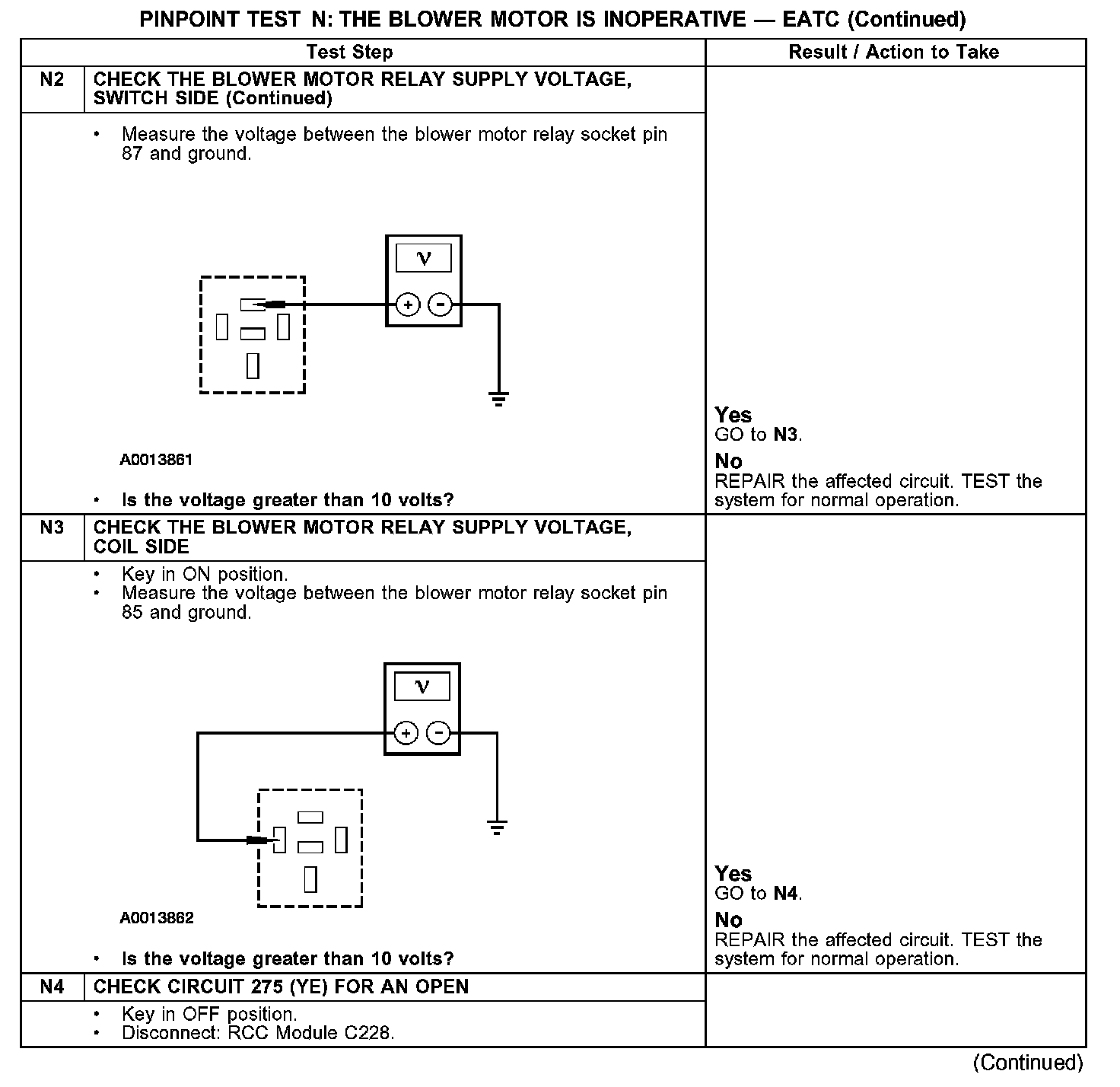

Test N2-N4:

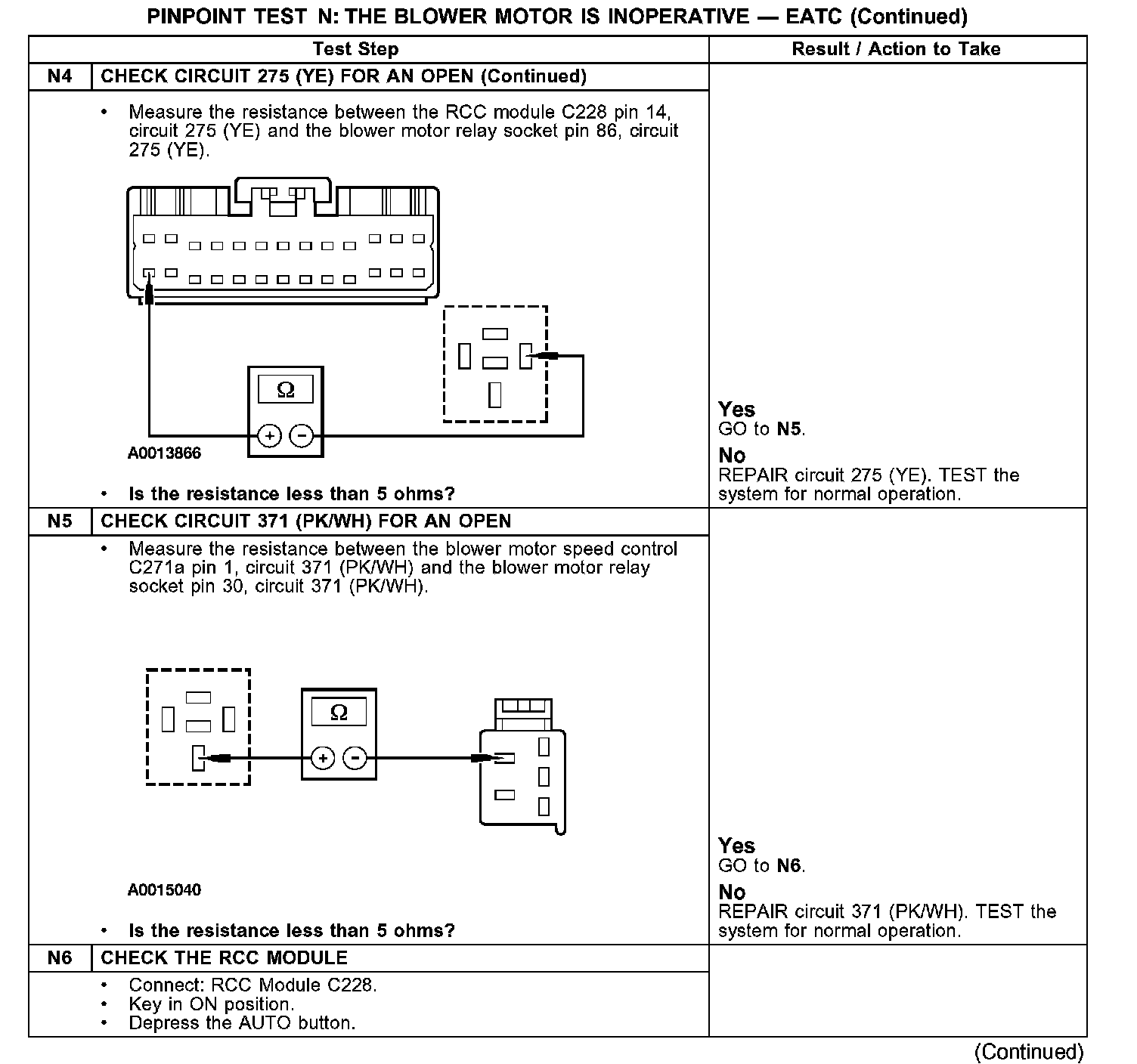

Test N4-N6:

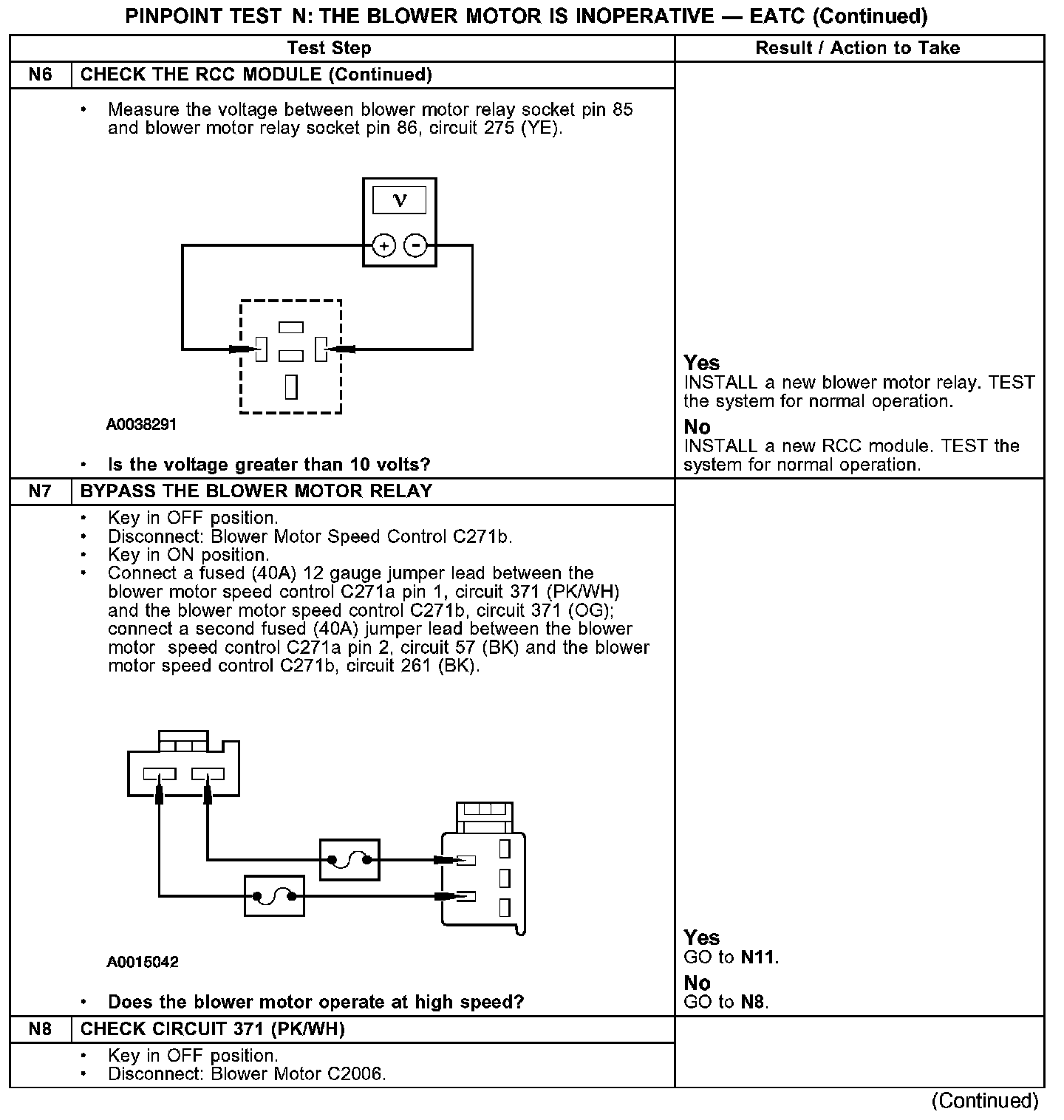

Test N6-N8:

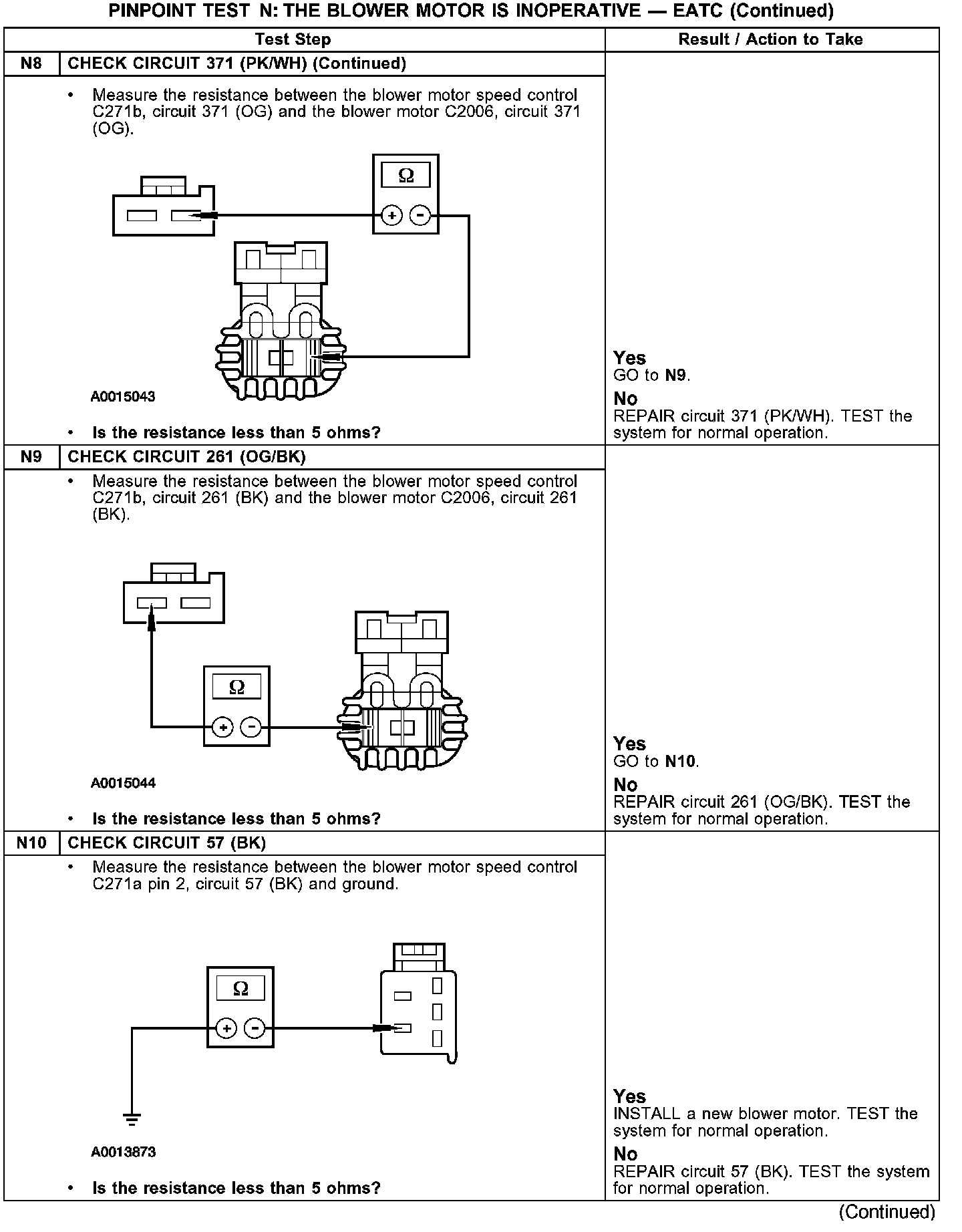

Test N8-N10:

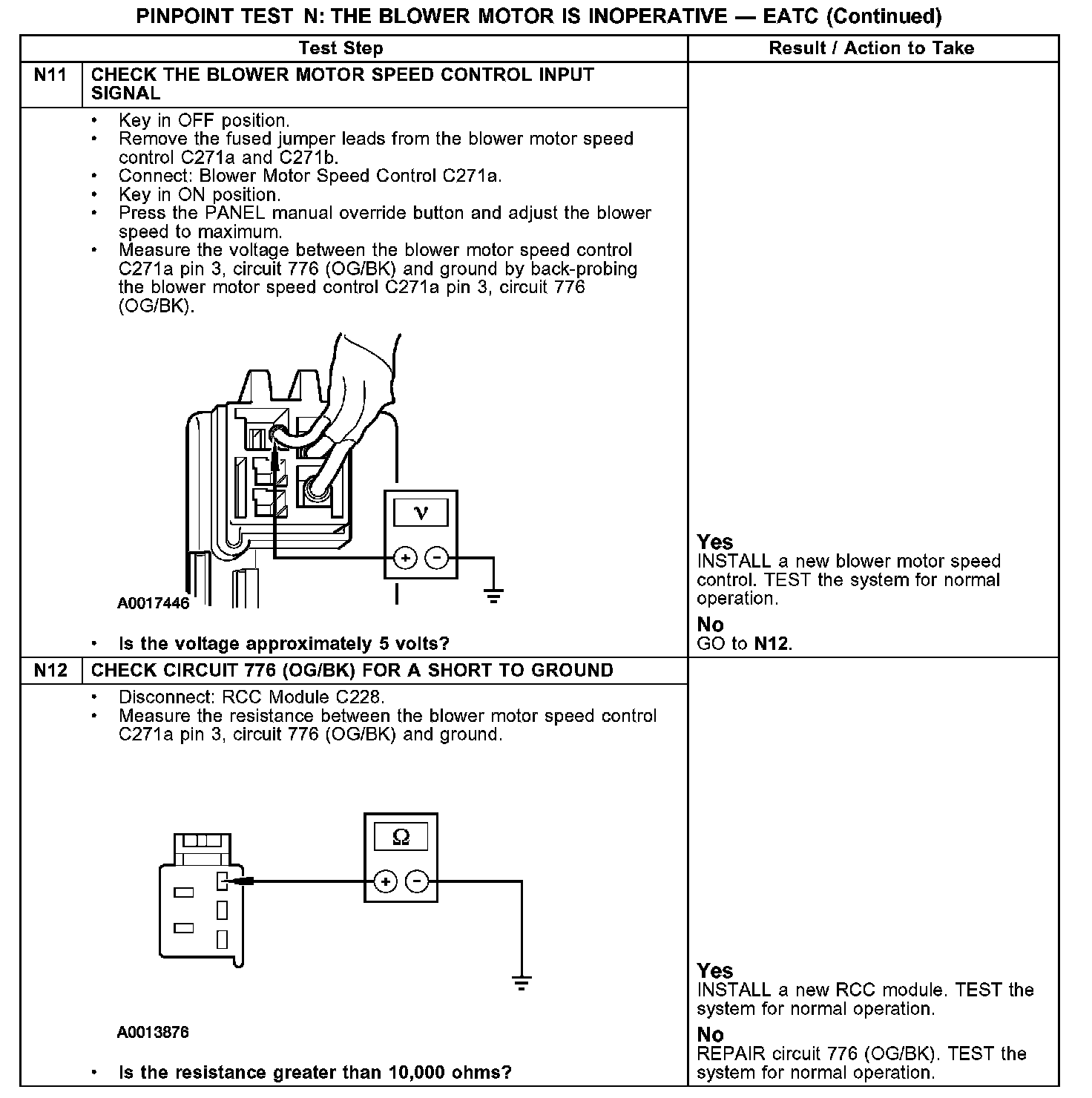

Test N11-N12:
