Blower Motor: Service and Repair

BLOWER MOTOR

REMOVAL







1. Remove pin-type retainers and the right instrument panel insulator.

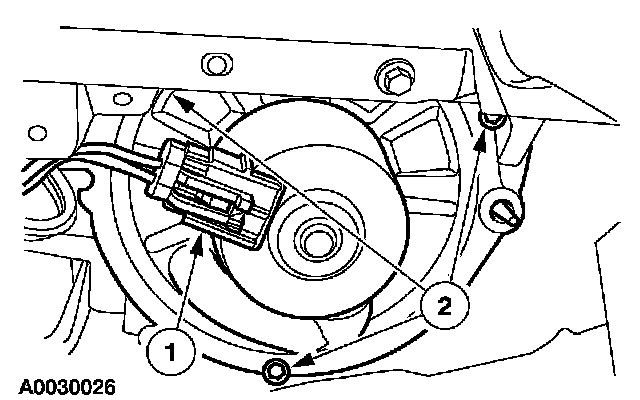

2. Remove the blower motor.
1 Disconnect the electrical connector
2 Remove the screws and remove the blower motor.







3. CAUTION: Prior to removing a wheel that is to be reused, clean any corrosion from the blower motor shaft to prevent damage to the wheel mounting shaft.

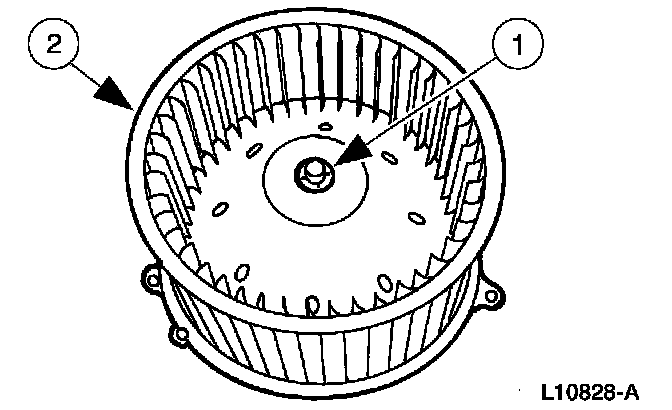

Remove the wheel from the blower motor.
1 Remove the push clip.
2 Remove the wheel from the blower motor.

INSTALLATION
1. To install, reverse the removal procedure.
