Valve Spring Strength

Valve Spring Strength

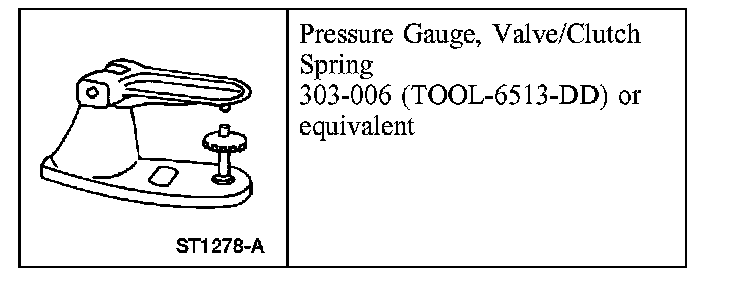

Special Tool(s)

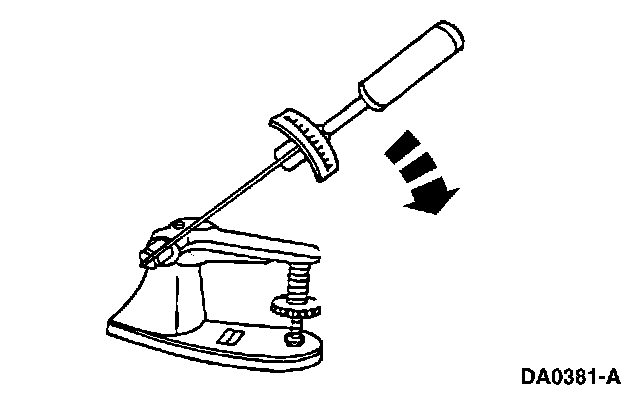

1. Use a Valve/Clutch Spring Pressure Gauge to check the valve spring for correct strength at the specified valve spring length.
- If out of specification, install new components as necessary.
