Valve - Seat Inspection

Valve - Seat Inspection
Valve and Seat Refacing Measurements

CAUTION: After grinding valves or valve seats, check valve clearance.

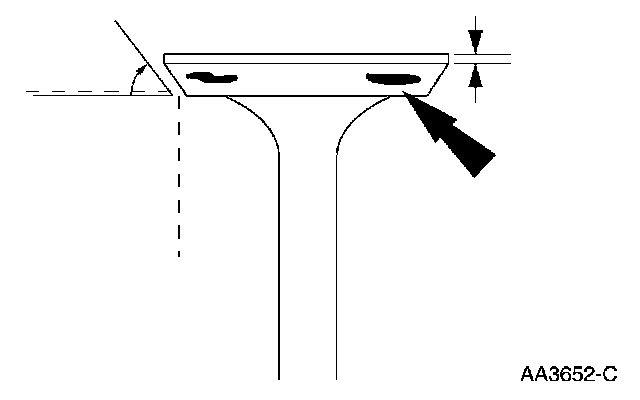

1. Check the valve head and seat.
- Check valve angles.
- Check margin width.
- Be sure margin width is within specification.

2. Inspect for abnormalities on the valve face and seat.
