Connecting Rod - Cleaning

Connecting Rod - Cleaning

CAUTION: Do not use a caustic cleaning solution or damage to connecting rods can occur.

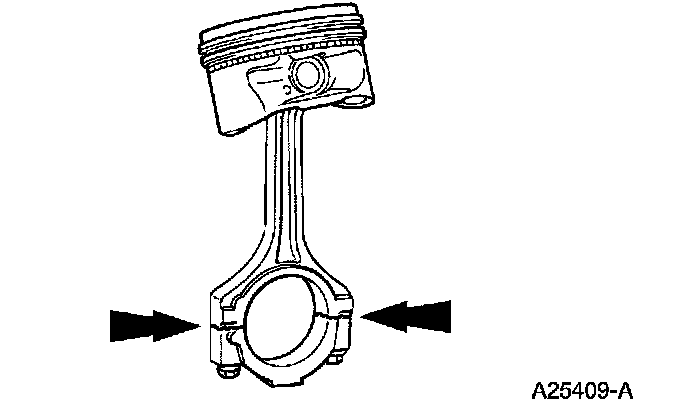

1. NOTE: The connecting rod large end is a matched set. The connecting rod cap must be installed on the original connecting rod in the original position. Do not reverse the cap. Parts are not interchangeable.
- Mark and separate the parts and clean with solvent. Clean the oil passages.
