Camshaft Journal - Diameter

Camshaft Journal - Diameter

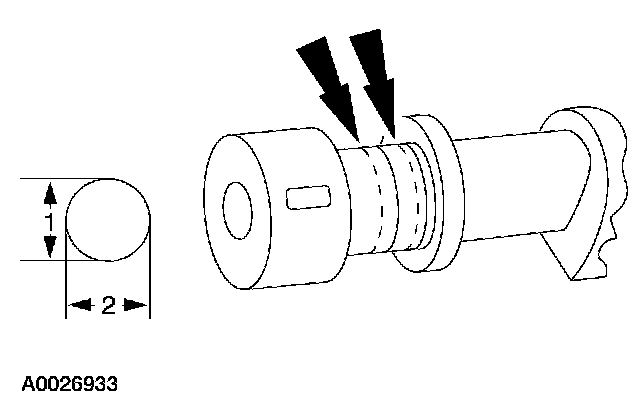

1. Measure each camshaft journal diameter in two directions.
- If out of specification, install new components as necessary.
