Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil Level Indicator and Tube

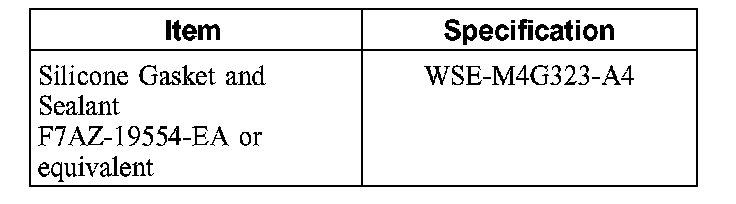

Material

Removal

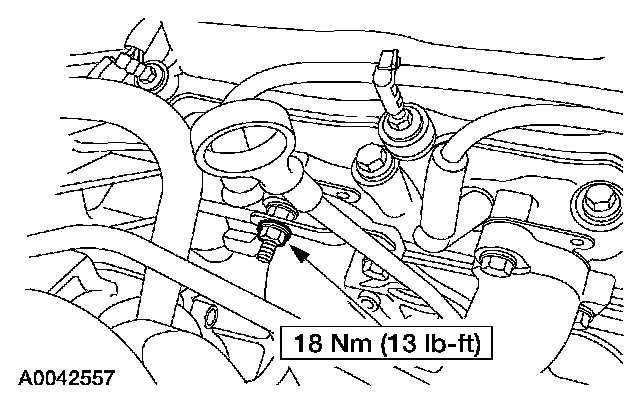

1. Remove the oil level indicator and tube.
- Remove the nut.
- Remove the tube.

Installation

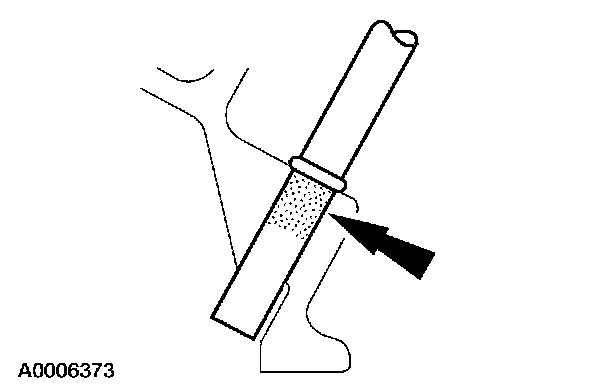

1. Coat the sealing surface of the oil level indicator tube with silicone gasket and sealant.





2. Install the oil level indicator tube.
- Install the tube.
- Install the nut.
