FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2004
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test D
Test D

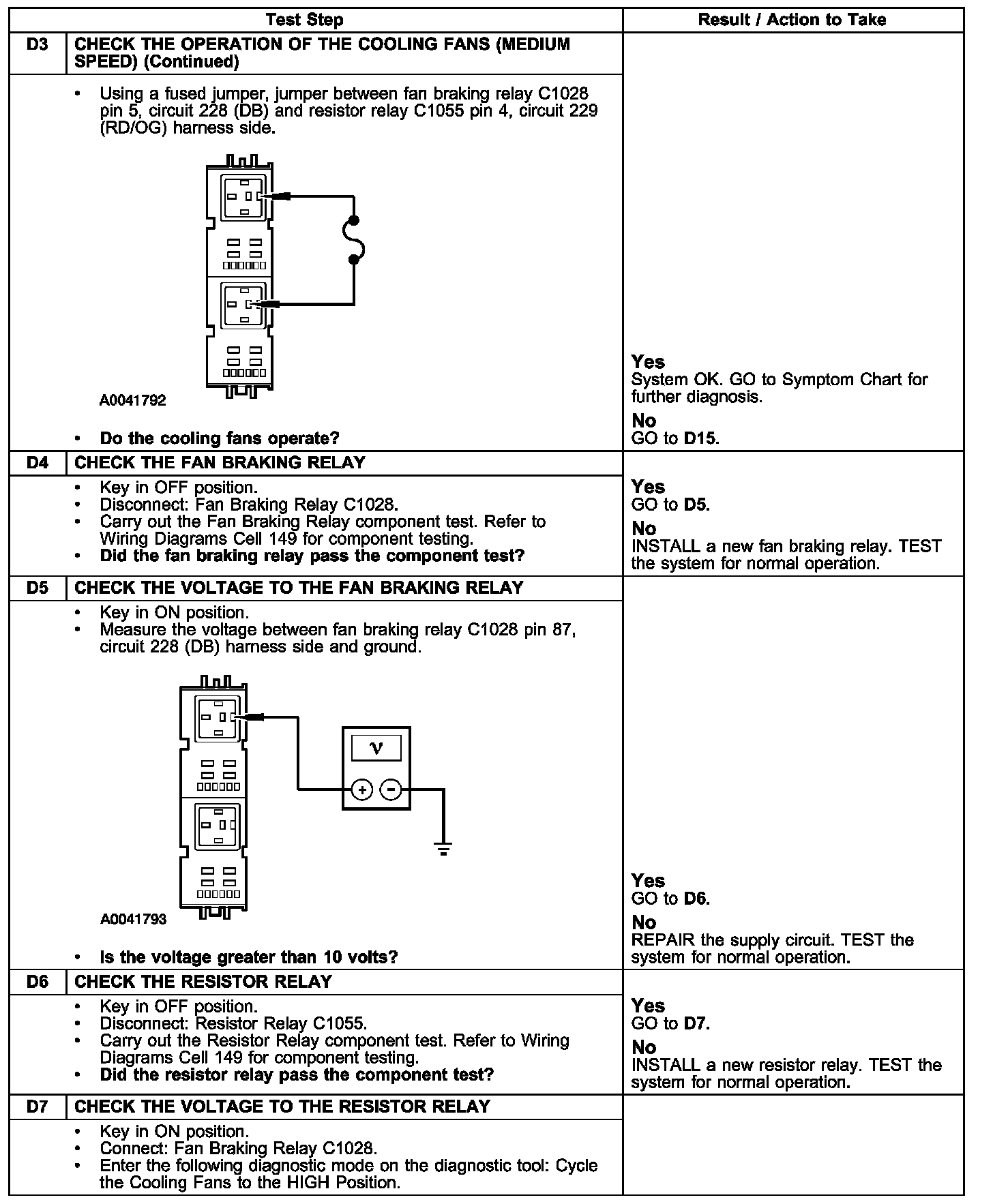

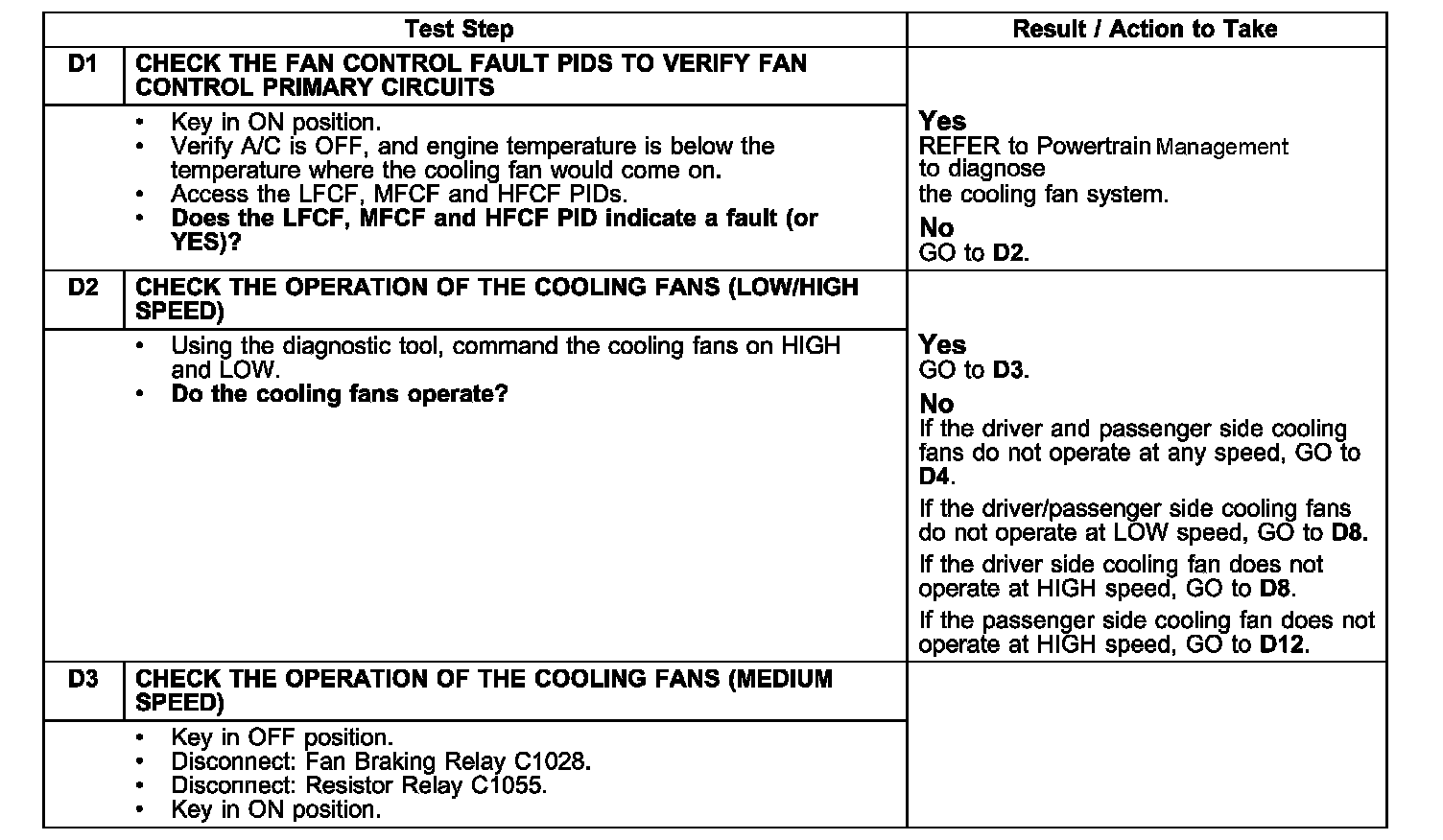

Test D1-D3:
Test D3-D7:

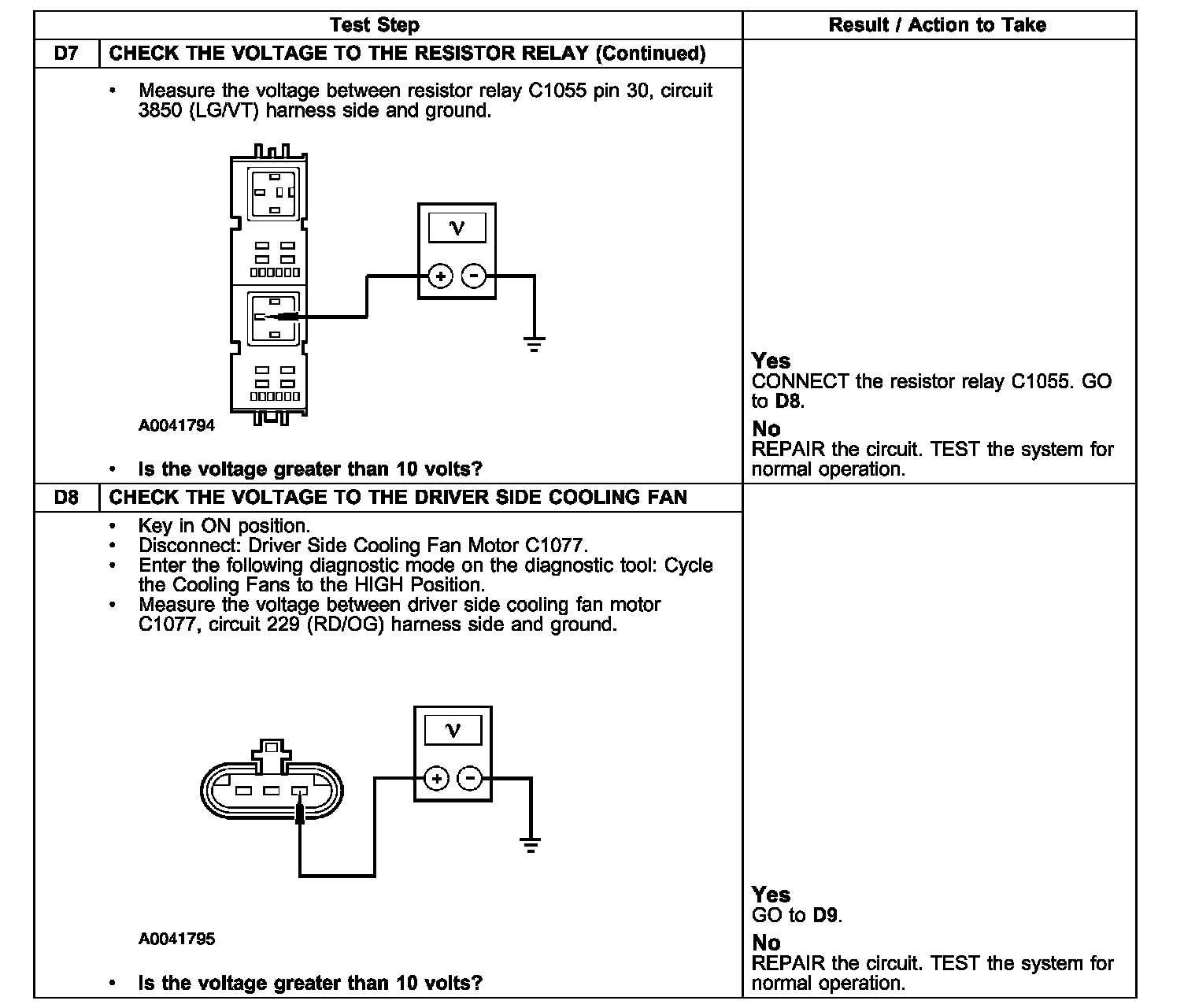

Test D7-D8:

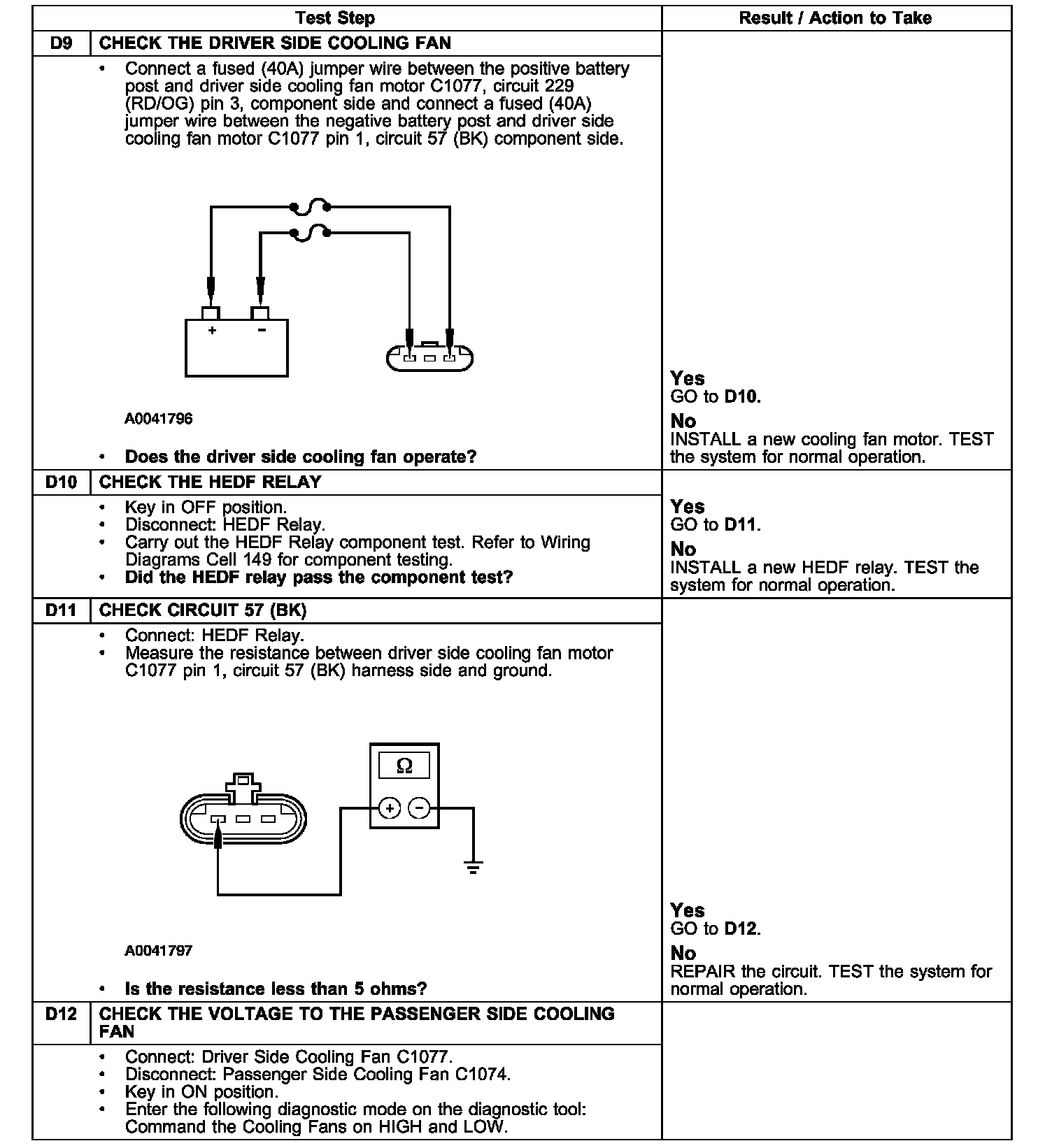

Test D9-D12:

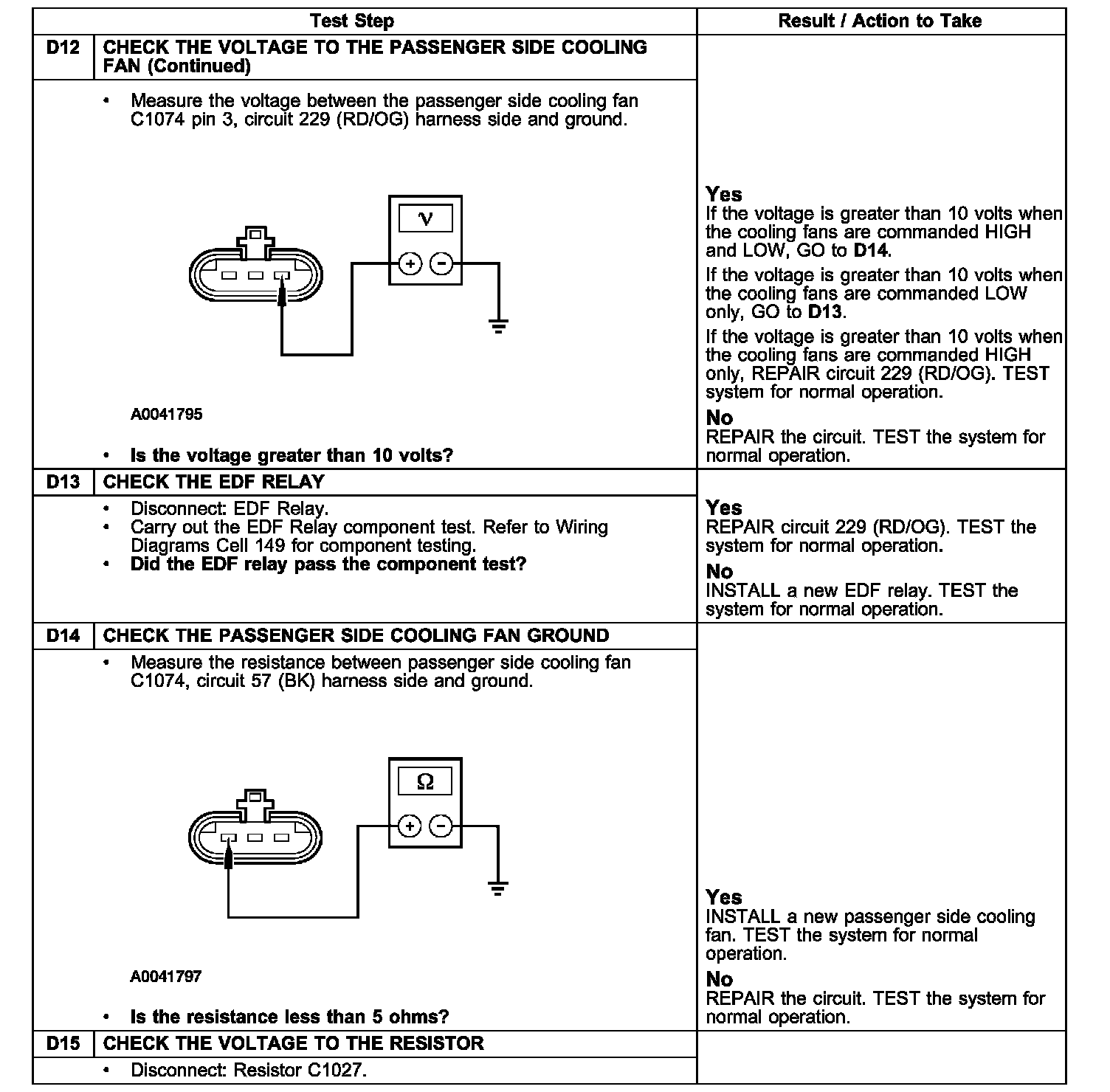

Test D12-D15:

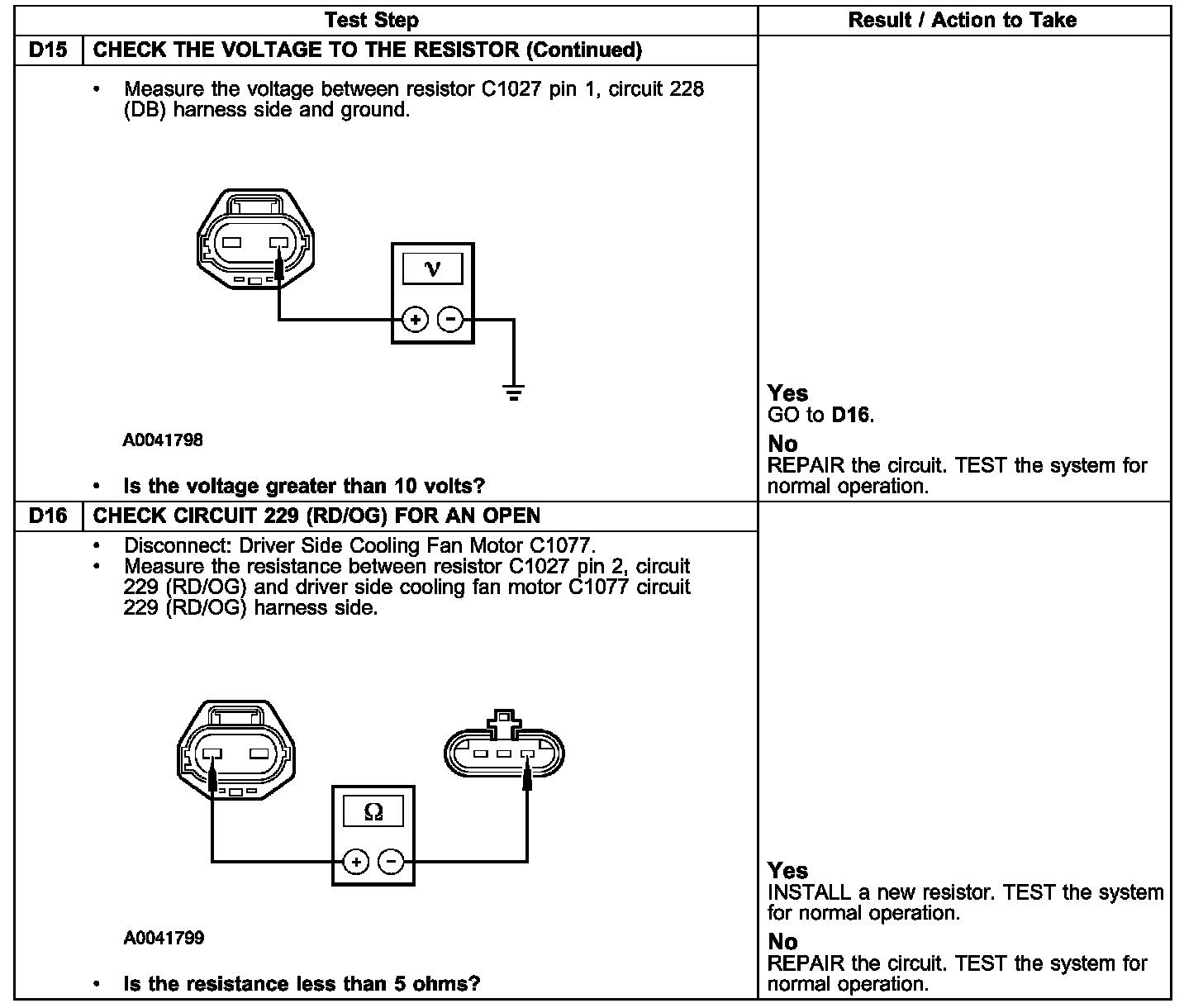

Test D15-D16:
PINPOINT TEST D: THE COOLING FANS ARE INOPERATIVE
