Home >> Mercury >> 2004 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A

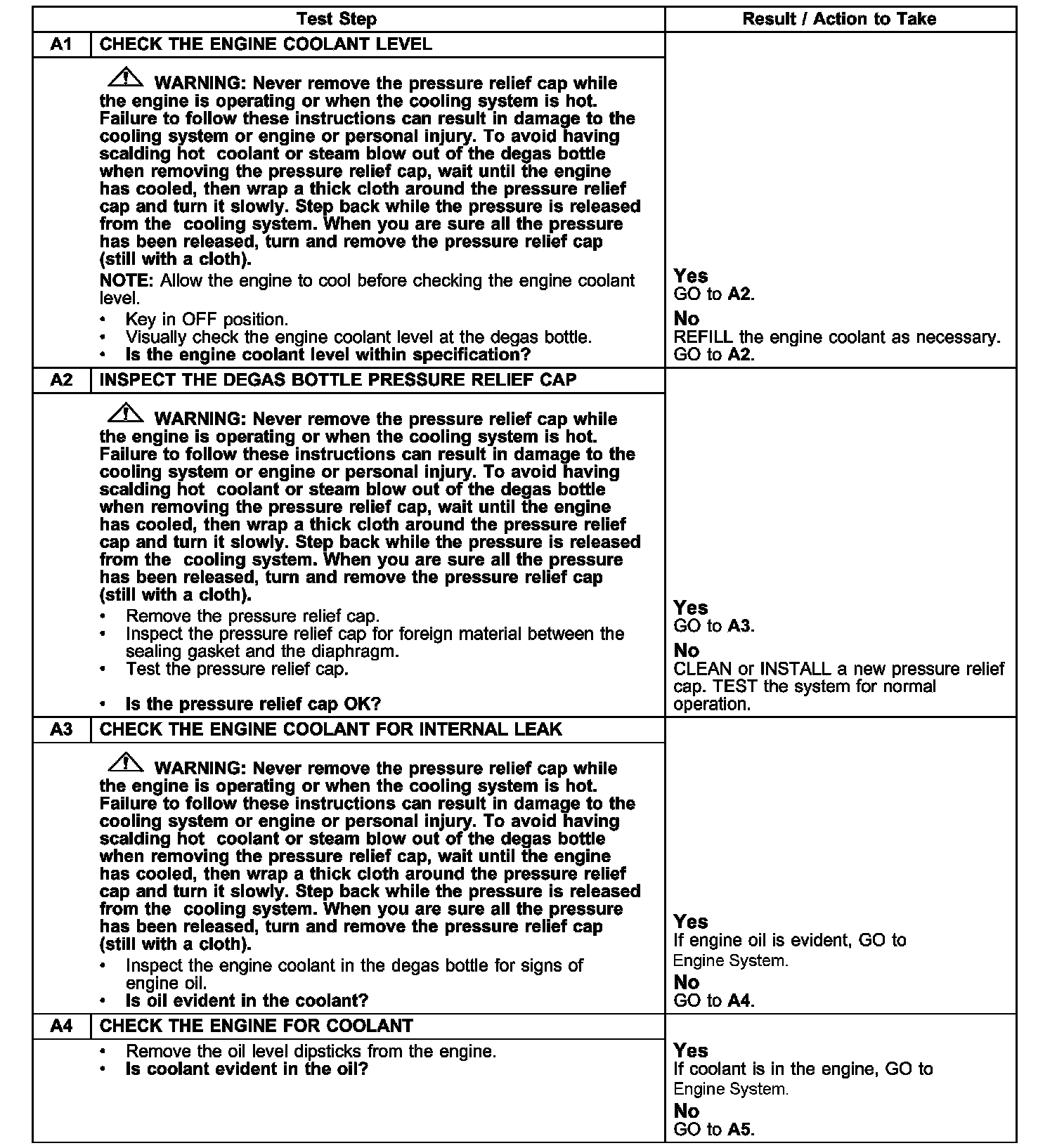

Test A1-A4:

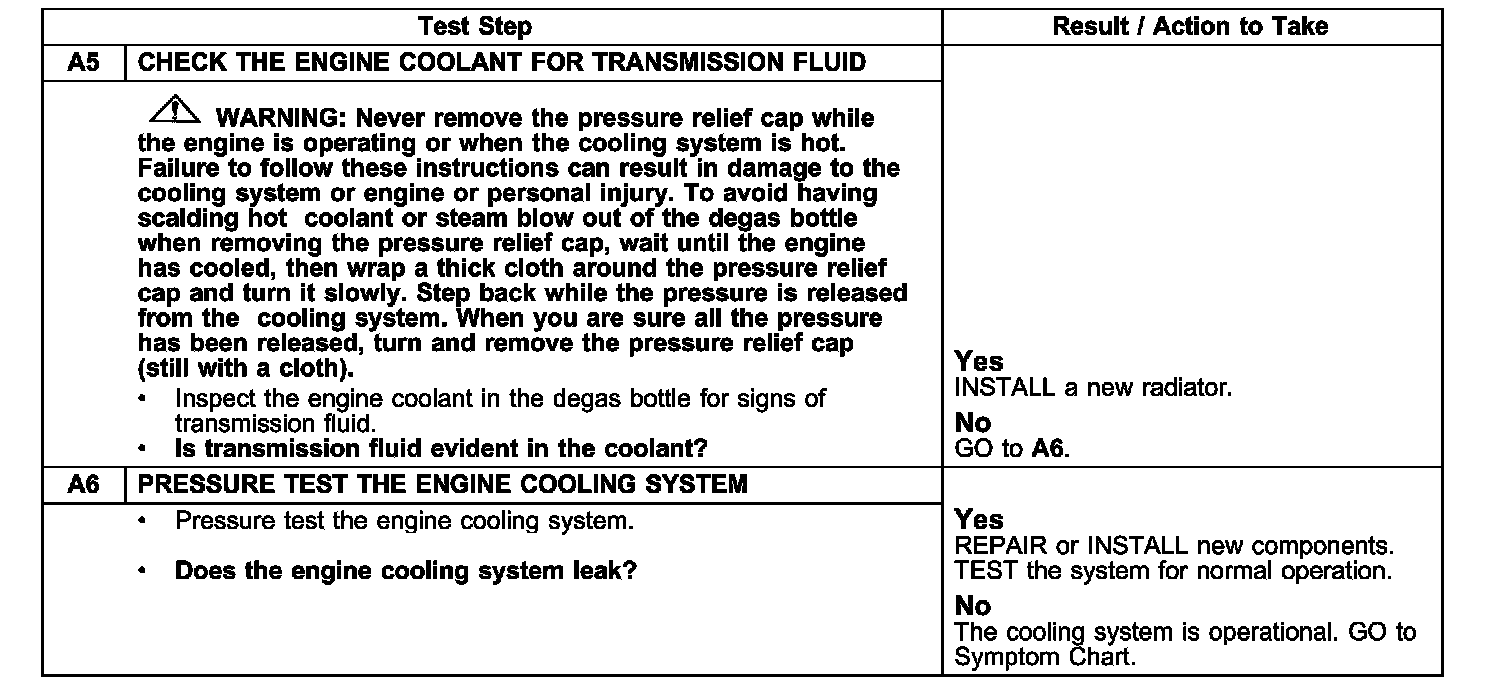

Test A5-A6:





PINPOINT TEST A: LOSS OF ENGINE COOLANT
