Home >> Mercury >> 2004 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Bearing and Thrust Washer Locator

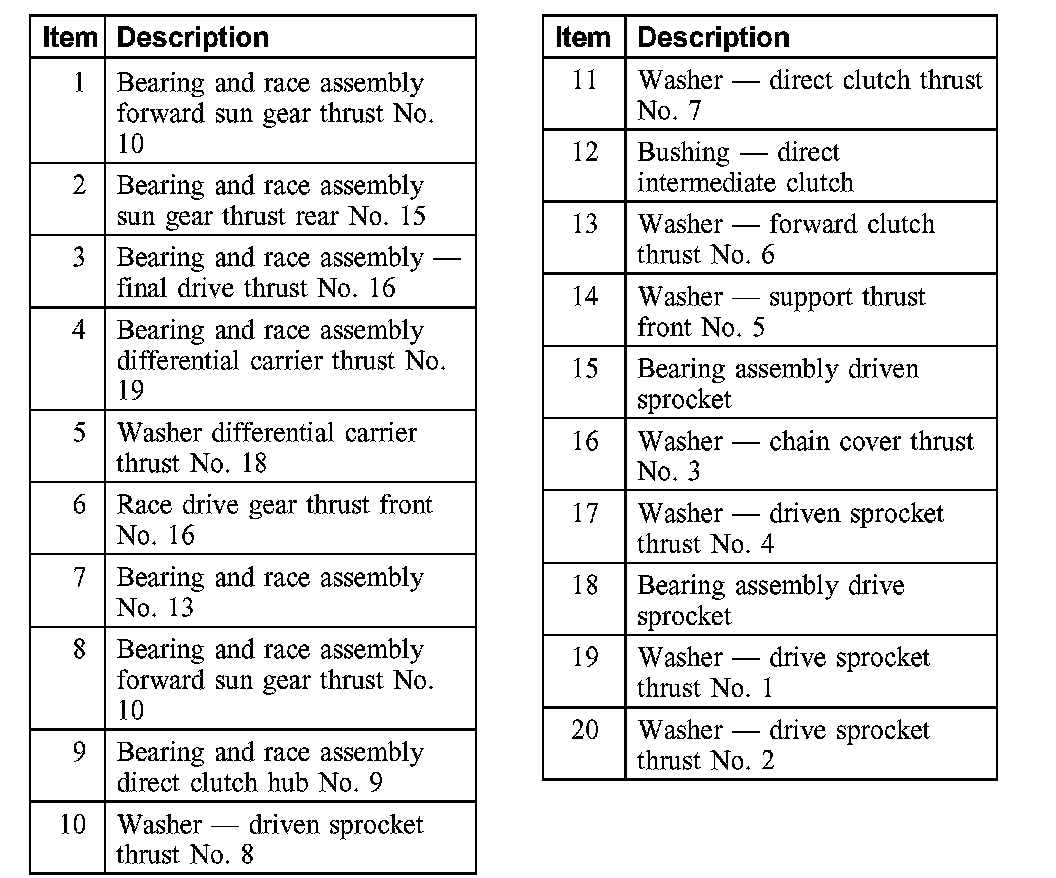

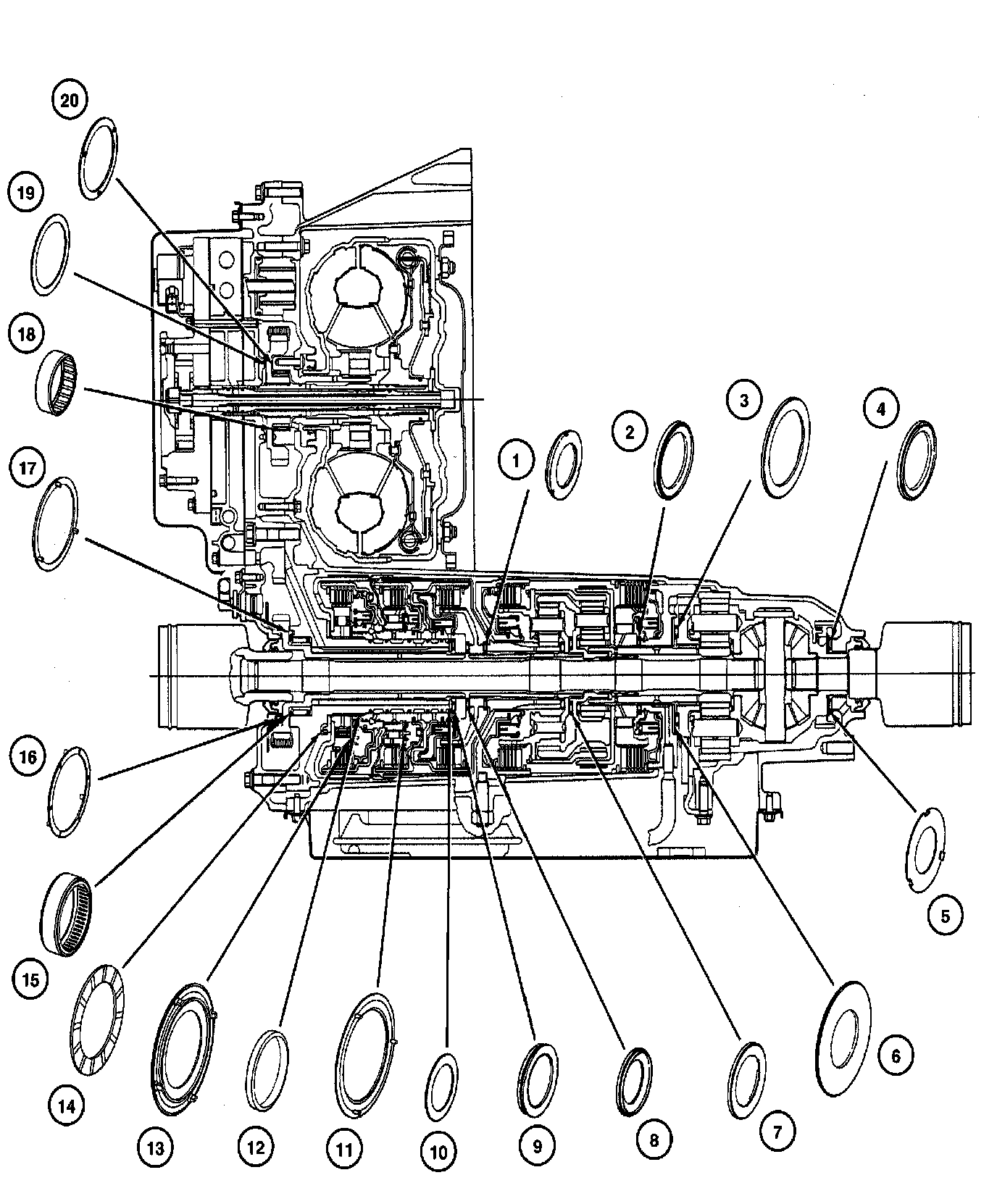

Bearing and Thrust Washer Locator

Bearing and Thrust Washer Locator
