Home >> Mercury >> 2004 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 23 >> 23-1 to 23-5

23-1 to 23-5

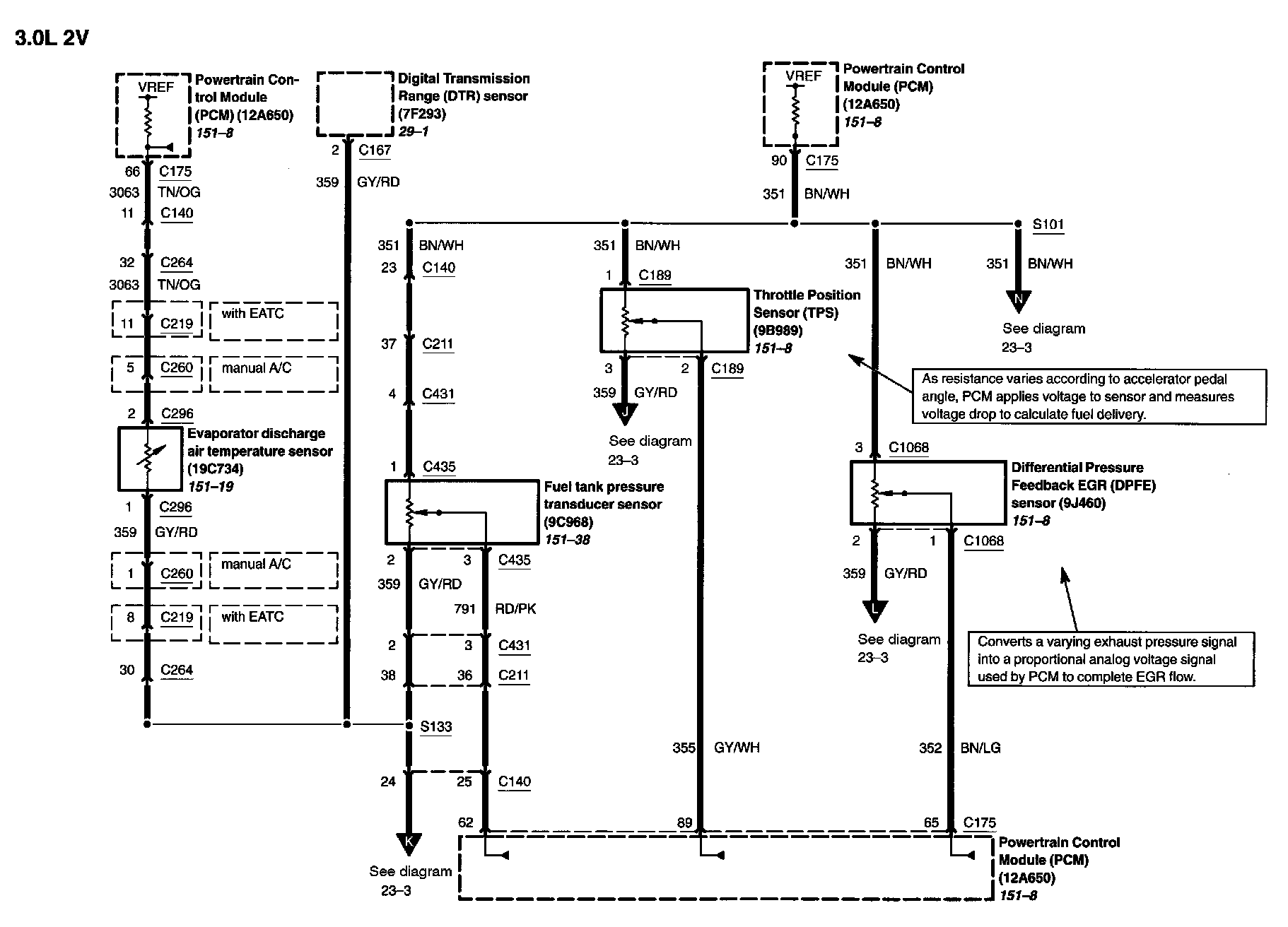

23-1:

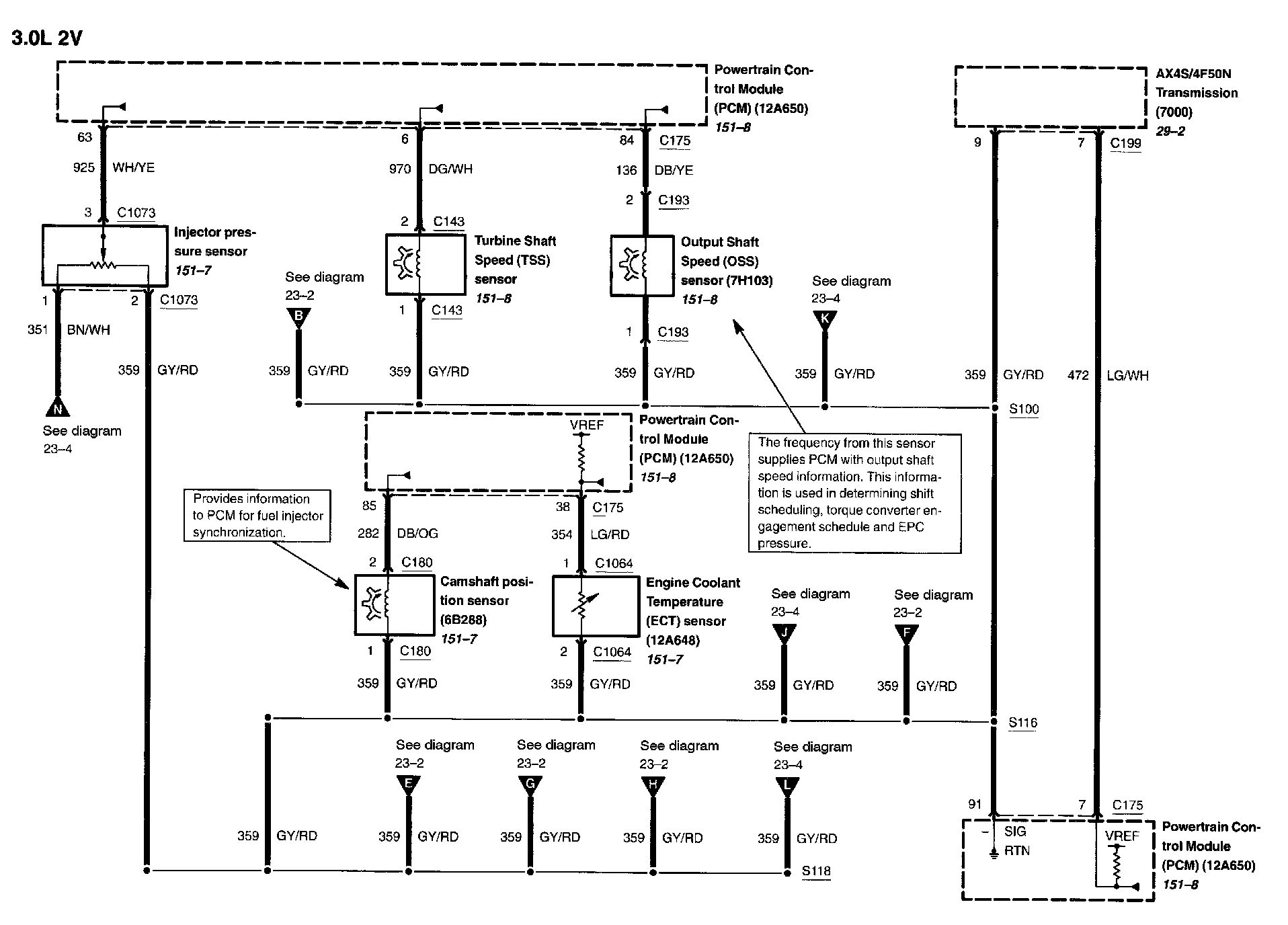

23-2:



23-3:



23-4:



23-5:
