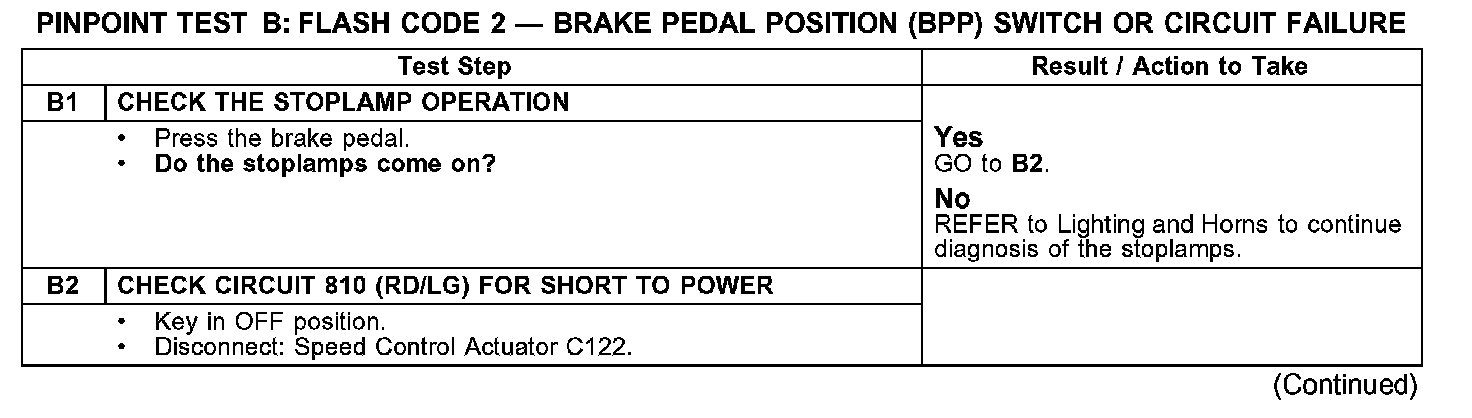

PINPOINT TEST B: FLASH CODE 2 - BRAKE PEDAL POSITION SWITCH OR CIRCUIT FAILURE
Test B1-B2:

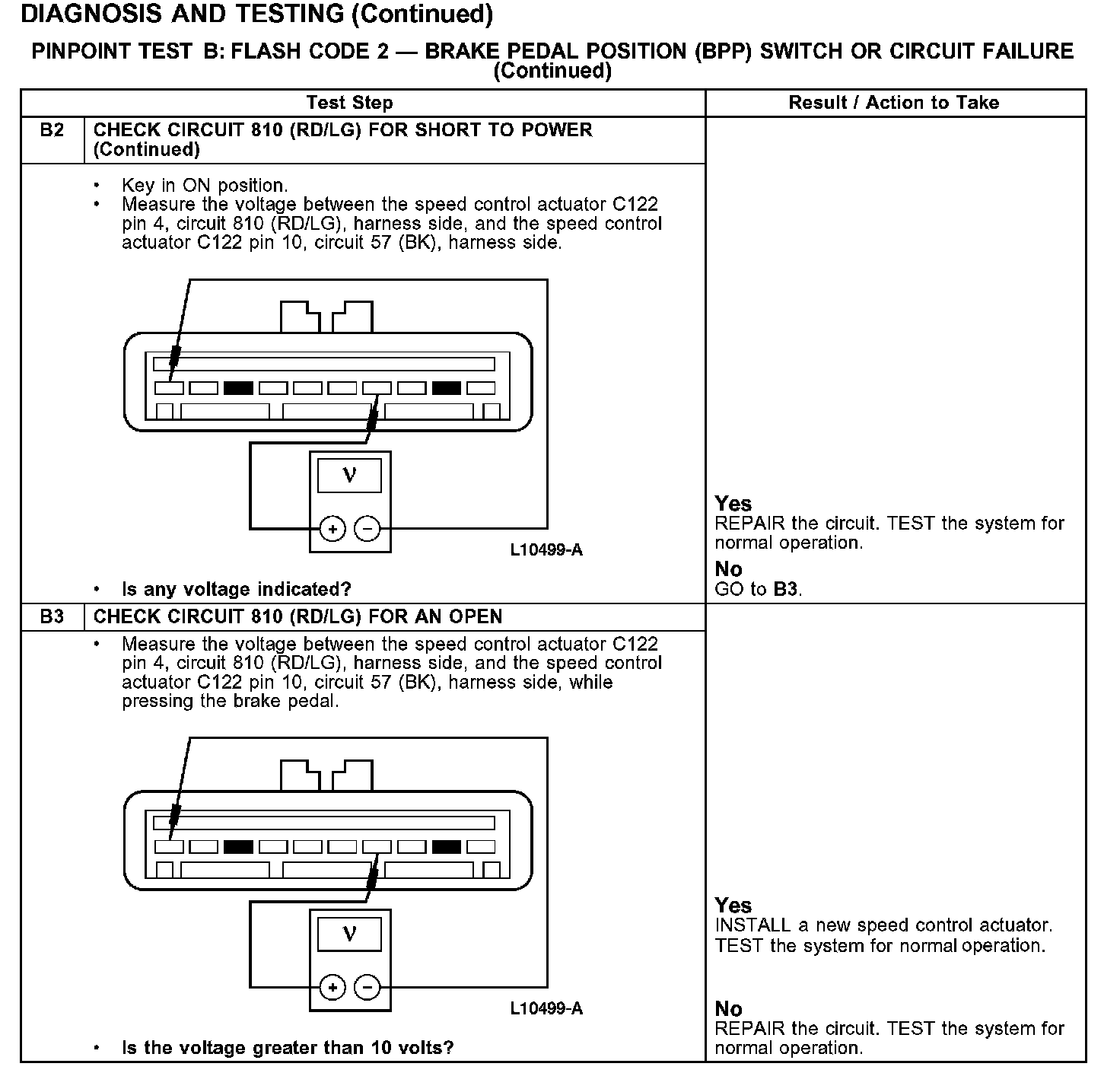

Test B2-B3:
