PINPOINT TEST C: ADJUSTABLE BRAKE PEDAL IS INOPERATIVE/DOES NOT OPERATE CORRECTLY
Test C1 (Continues):

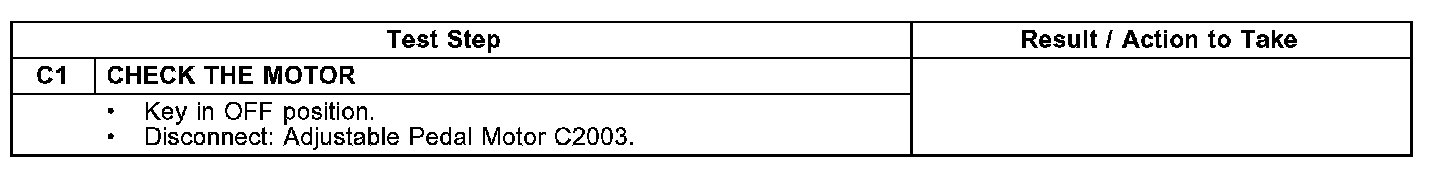

Tests C1 - C2:

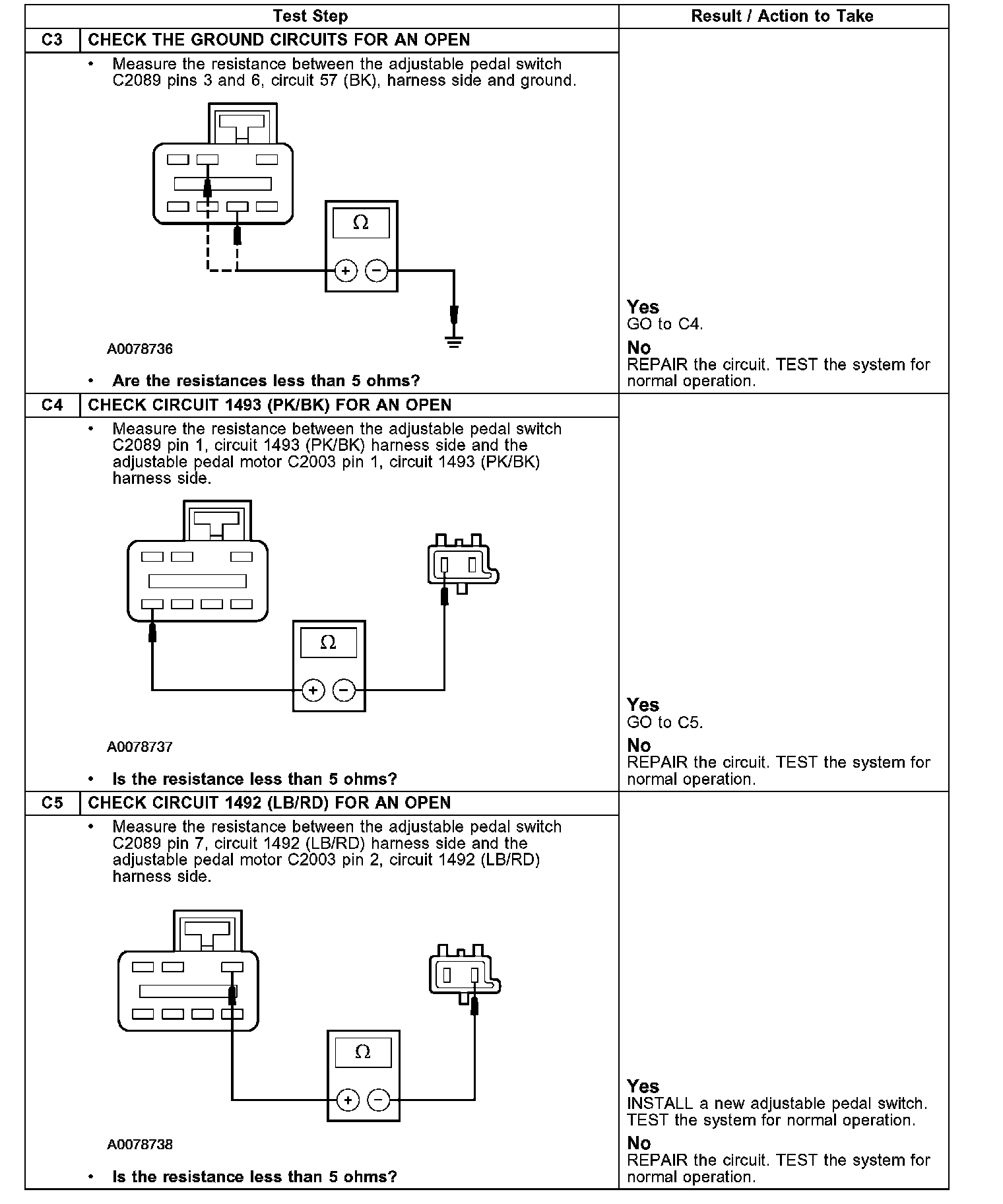

Tests C3 - C5:
