FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2004
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test A
Test A
PINPOINT TEST A: THE RED
BRAKE WARNING INDICATOR
IS ALWAYS ON

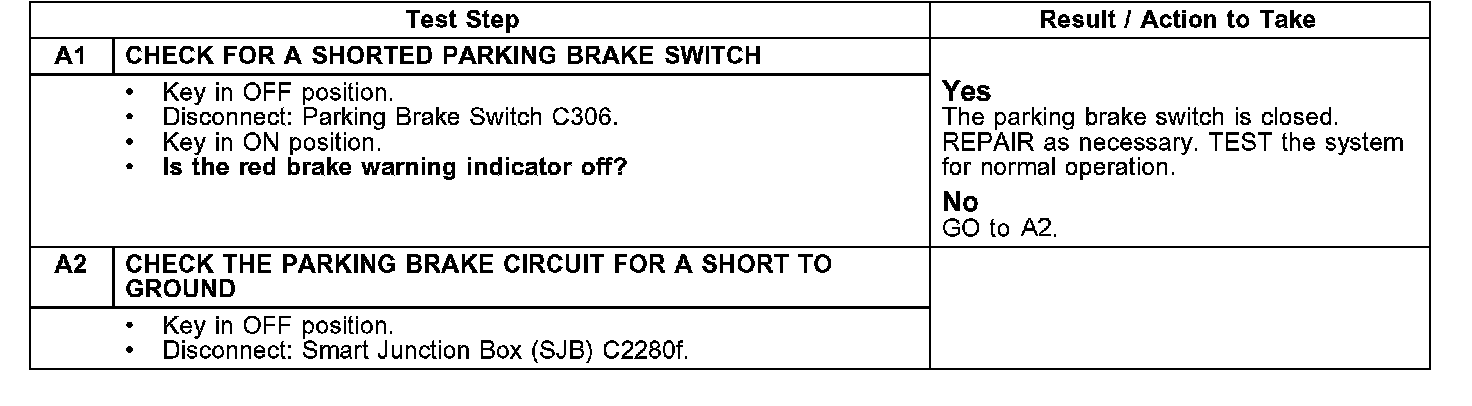

Tests A1 - A2 (continues):

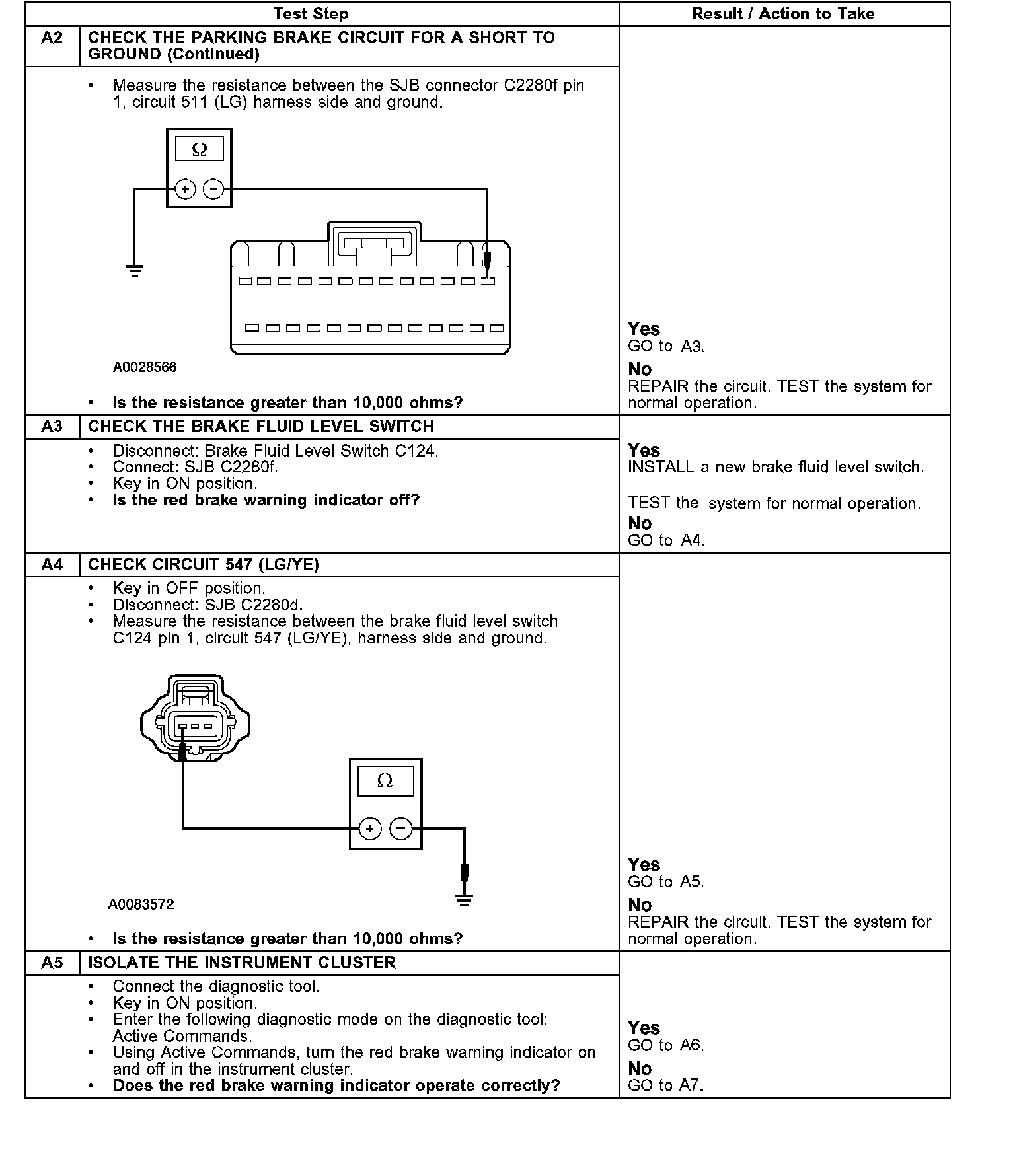

Tests A2 - A5:

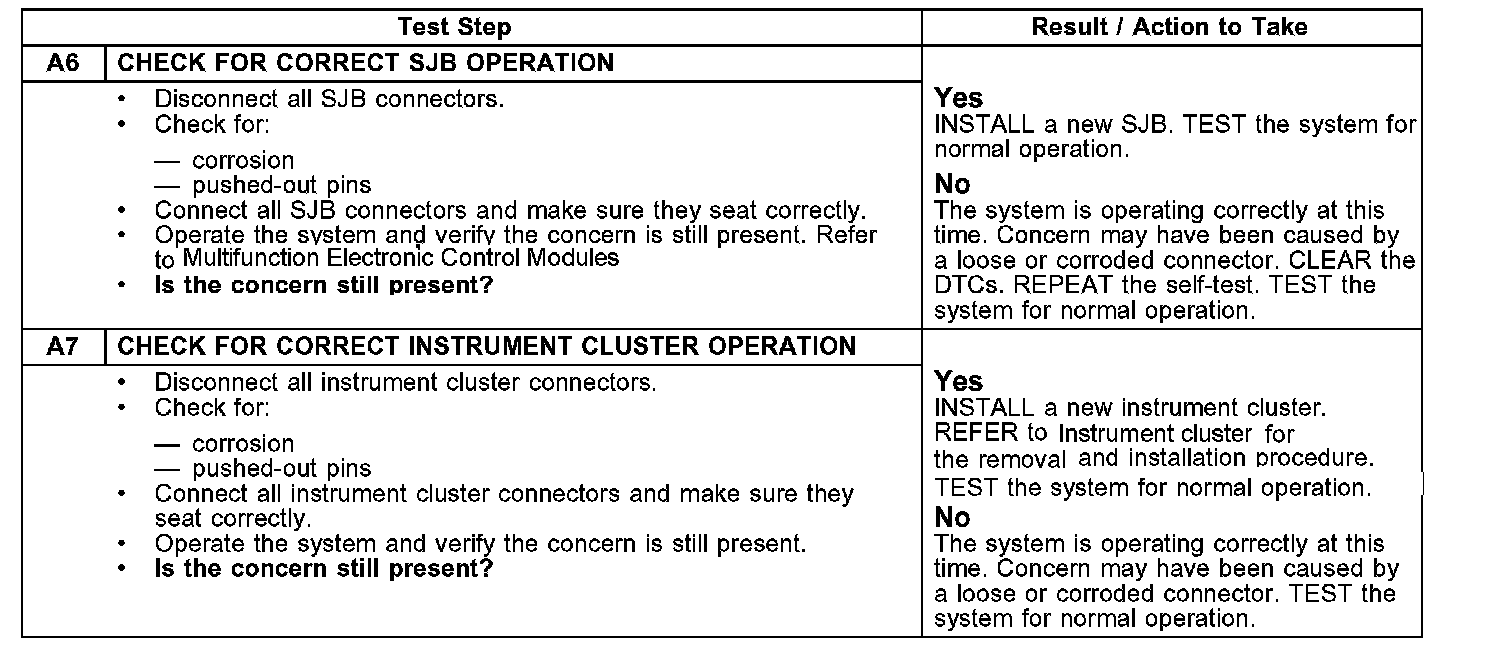

Tests A6 - A7:
