Home >> Mercury >> 2004 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A

PINPOINT TEST A: THE POWER SEAT IS INOPERATIVE - DRIVERS SEAT

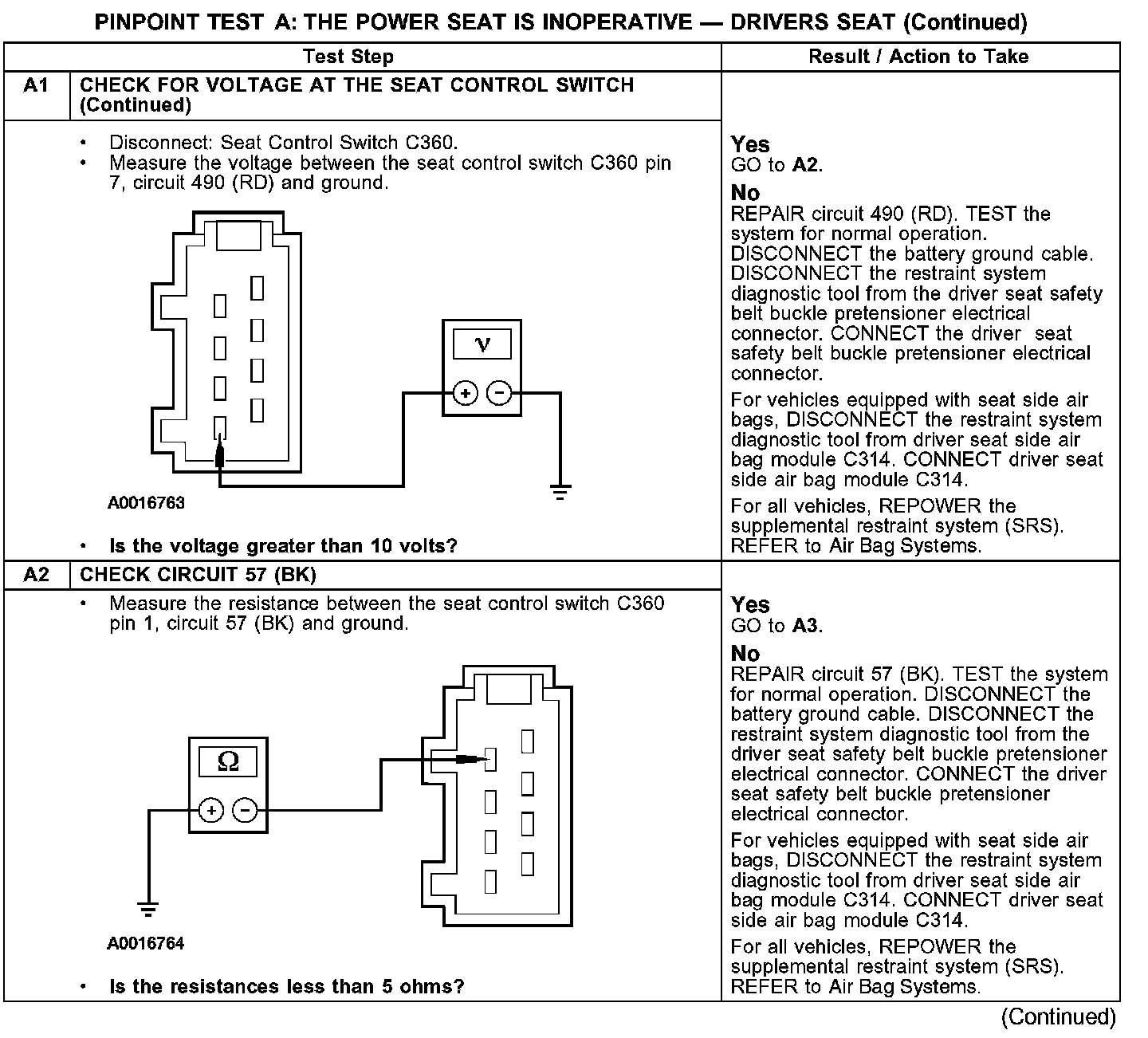

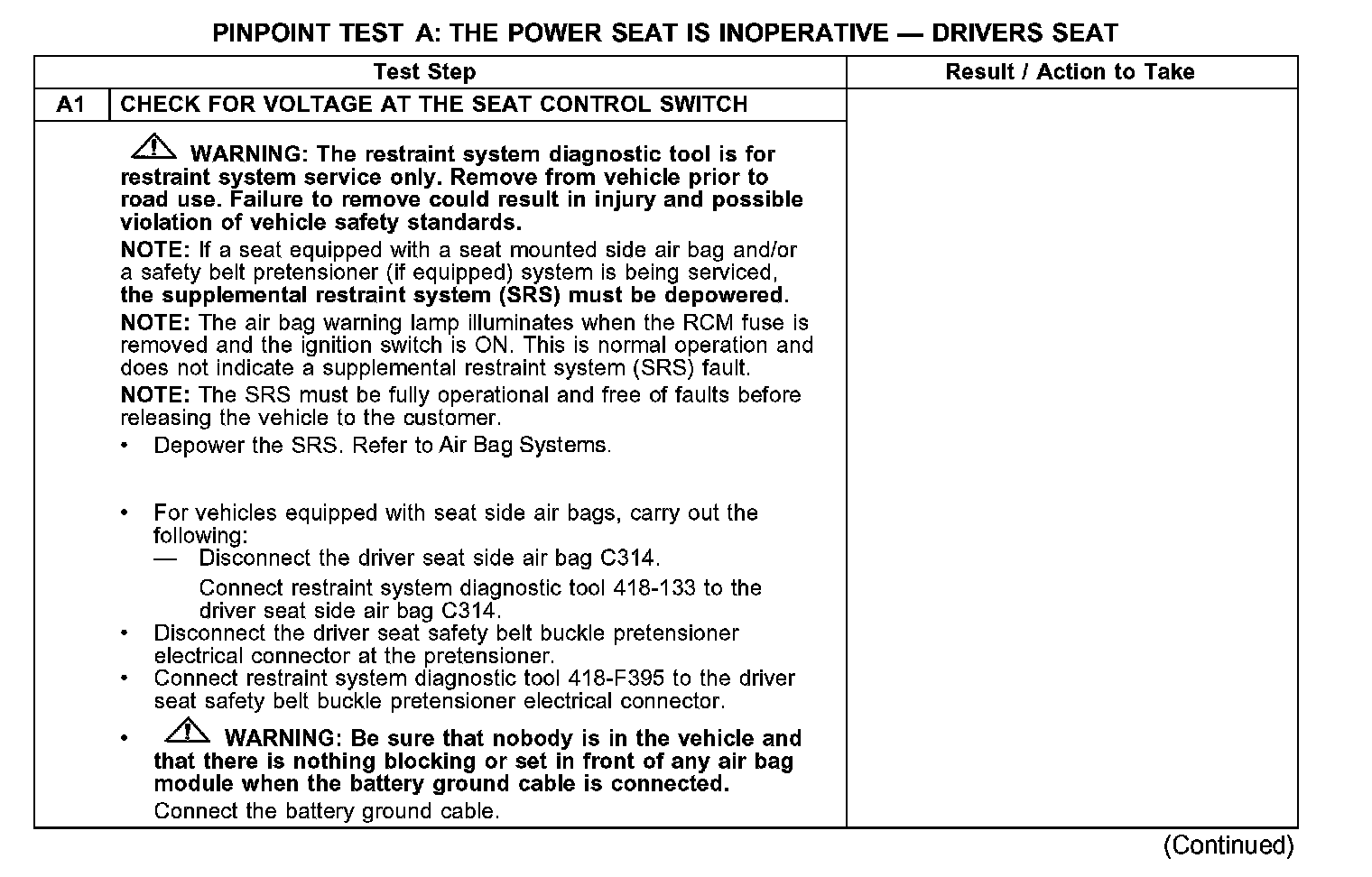

Test A1:






Test A1-A2:

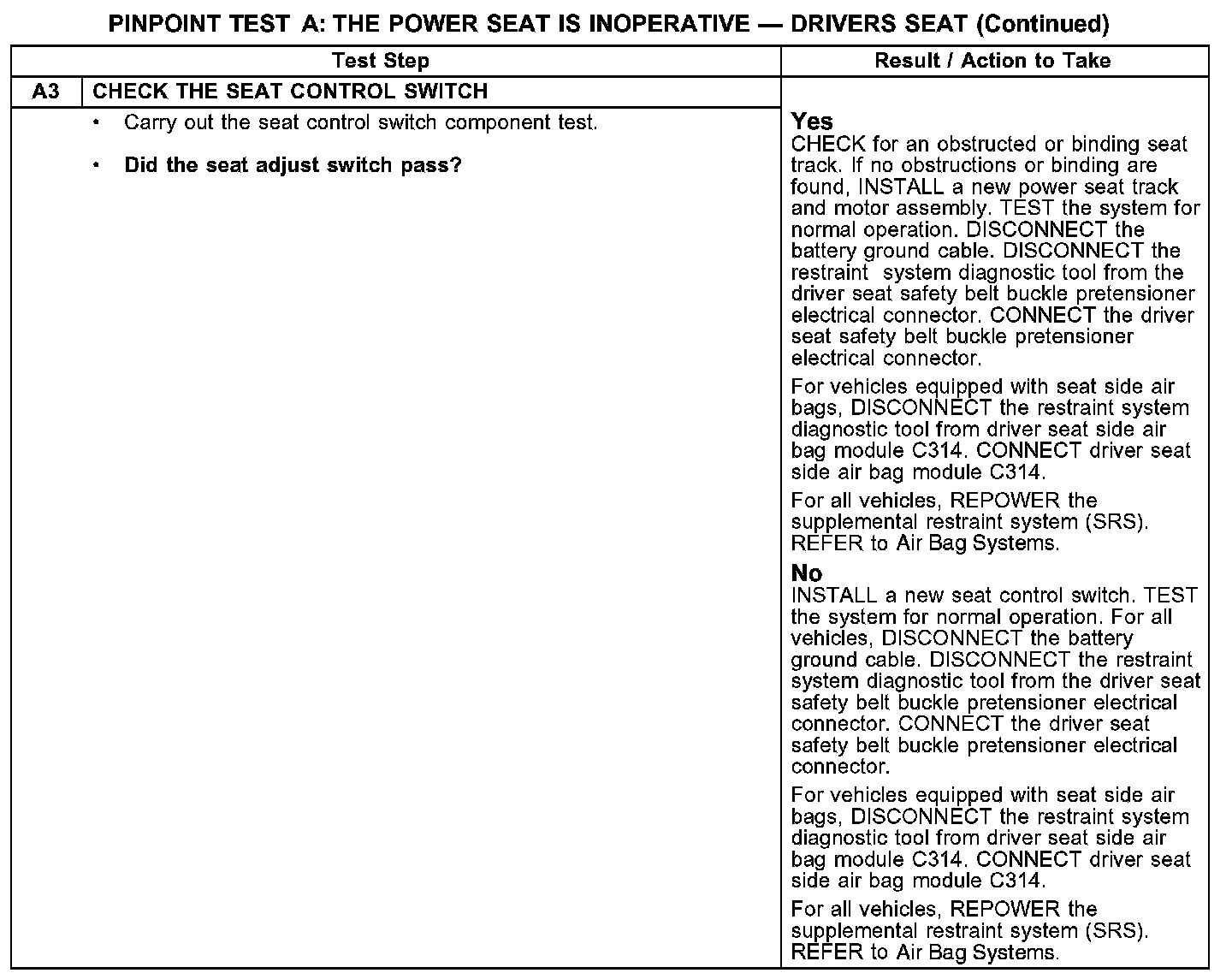

Test A3:
