Passenger Seat - Center

PASSENGER SEAT - CENTER

REMOVAL
1. Position the driver and passenger seat forward.

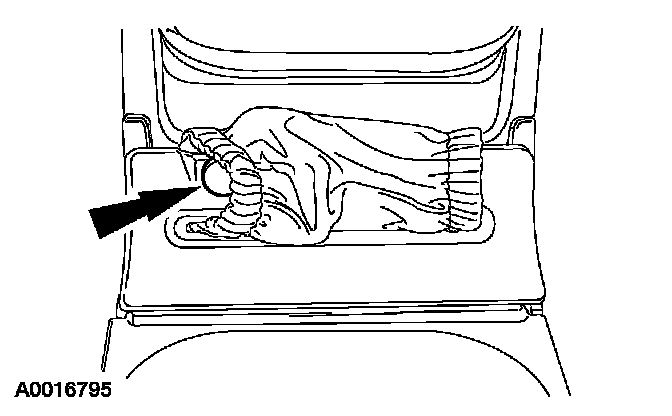

2. Remove the pushpins (one on each side).







3. Remove the console tray.

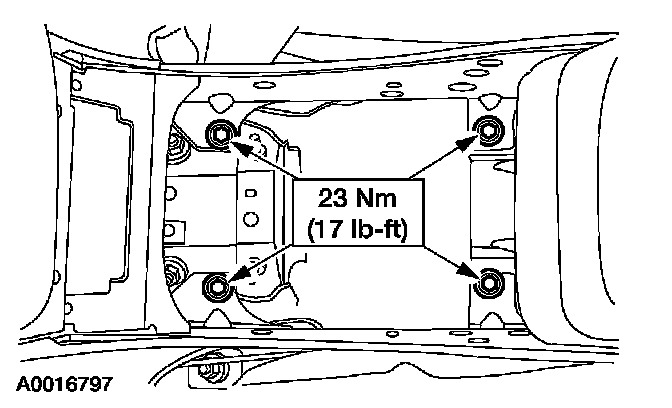

4. Remove the bolts.
5. Remove the console.

INSTALLATION

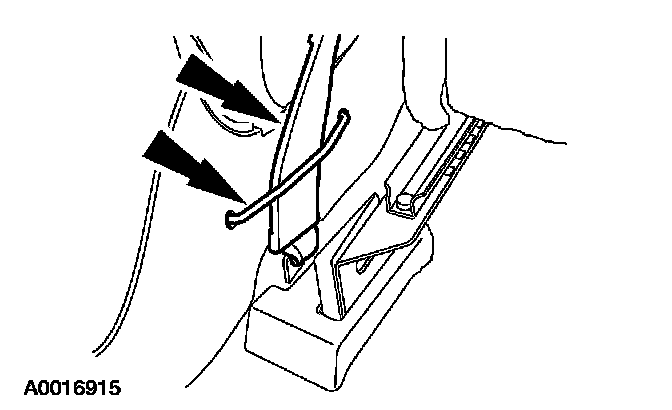

1. NOTE: Make sure to position the safety belt and safety belt buckle correctly through the safety belt retaining strap.

To install, reverse the removal procedure.
