SEAT TRACK - MANUAL

REMOVAL

WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
- The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
- To reduce the risk of personal injury, do not use any memory saver devices.

NOTE:
- If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered.
- The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

1. Remove the seat with the affected seat track and depower the SRS.
2. Remove the seat backrest.

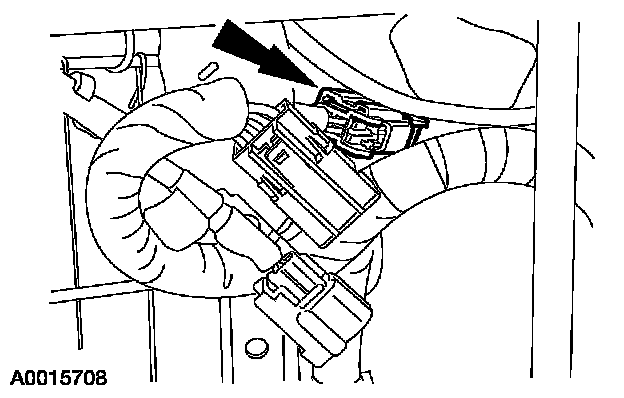

3. Disconnect and route the safety belt buckle and pretensioner electrical connector and wire harness out from under the seat.

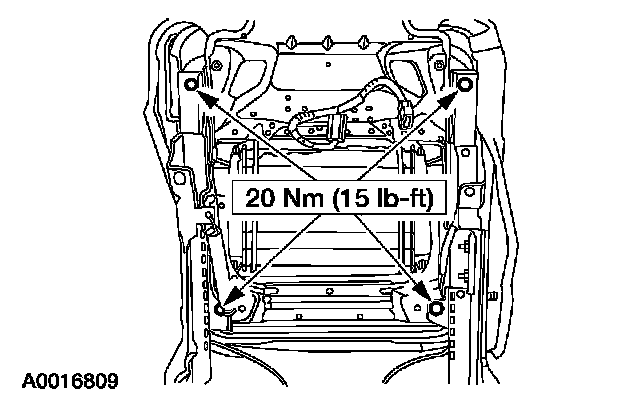

4. Remove the bolts.
5. Remove the seat track.

INSTALLATION

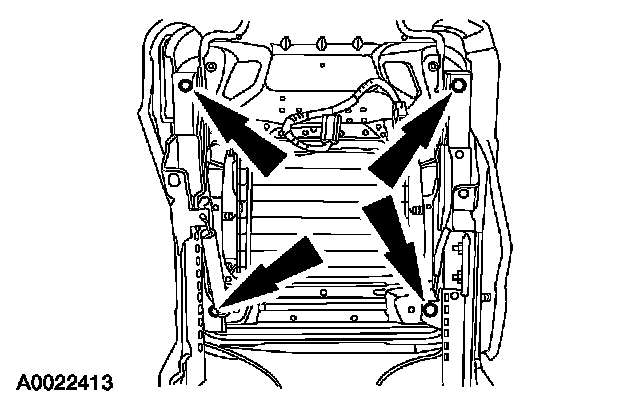

1. Position the seat track and install the bolts.







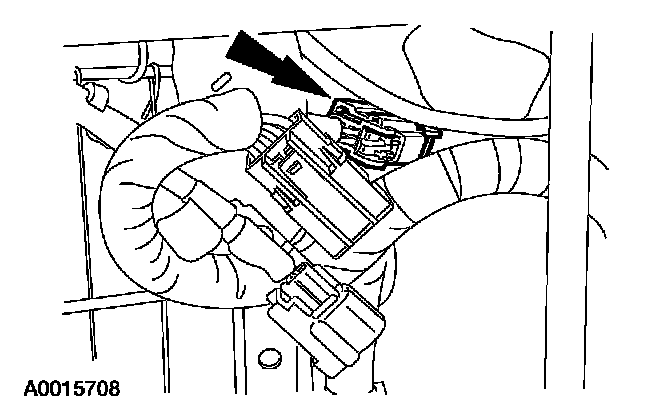

2. Connect the safety belt buckle and pretensioner electrical connector.
3. Install the seat backrest.
4. Install the seat with the affected seat repower the SRS.
5. Check the active restraint system operation.
