Test E

PINPOINT TEST E: THE AUTO-DIMMING MIRROR DOES NOT OPERATE CORRECTLY

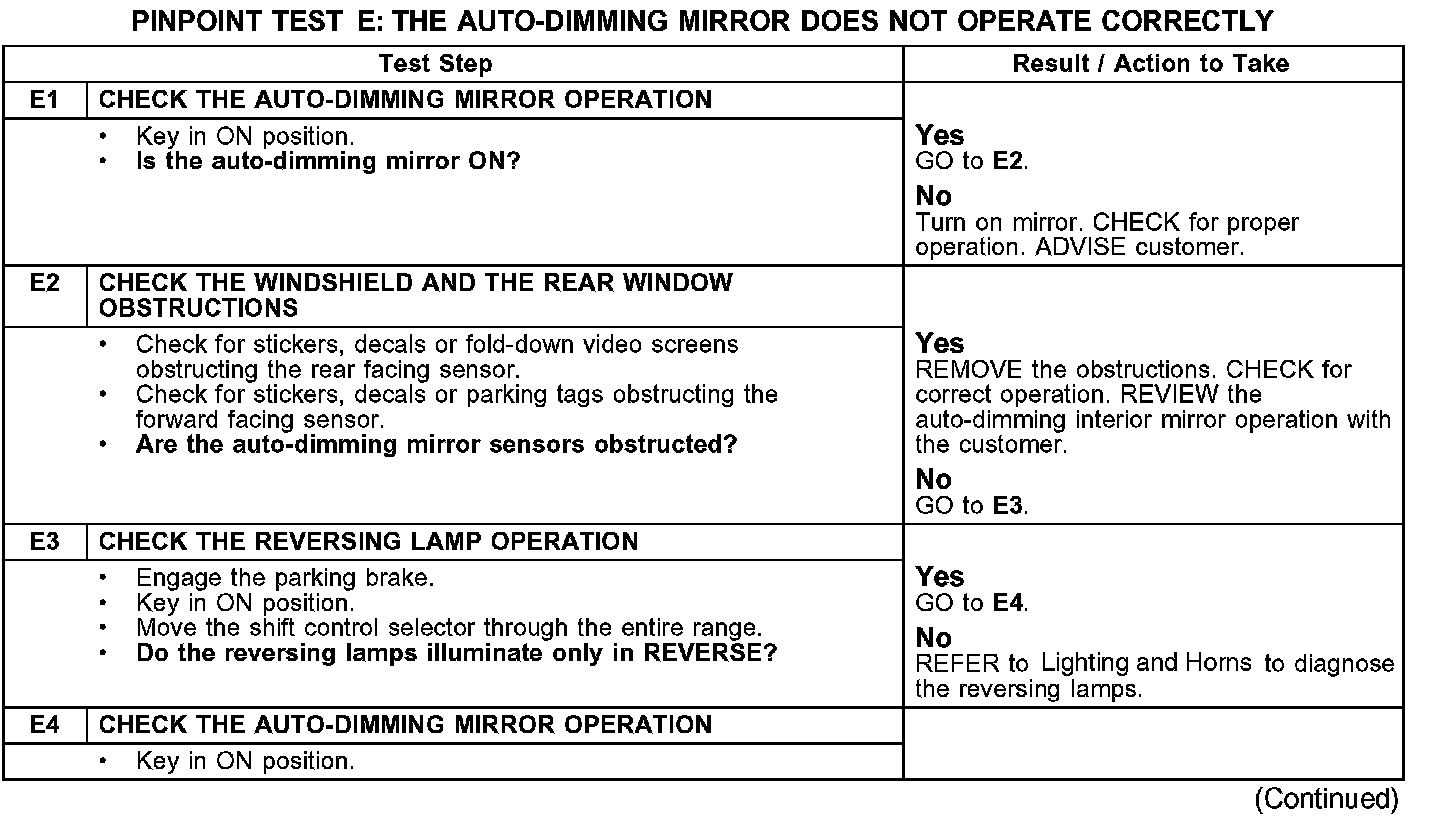

Test E1-E4:

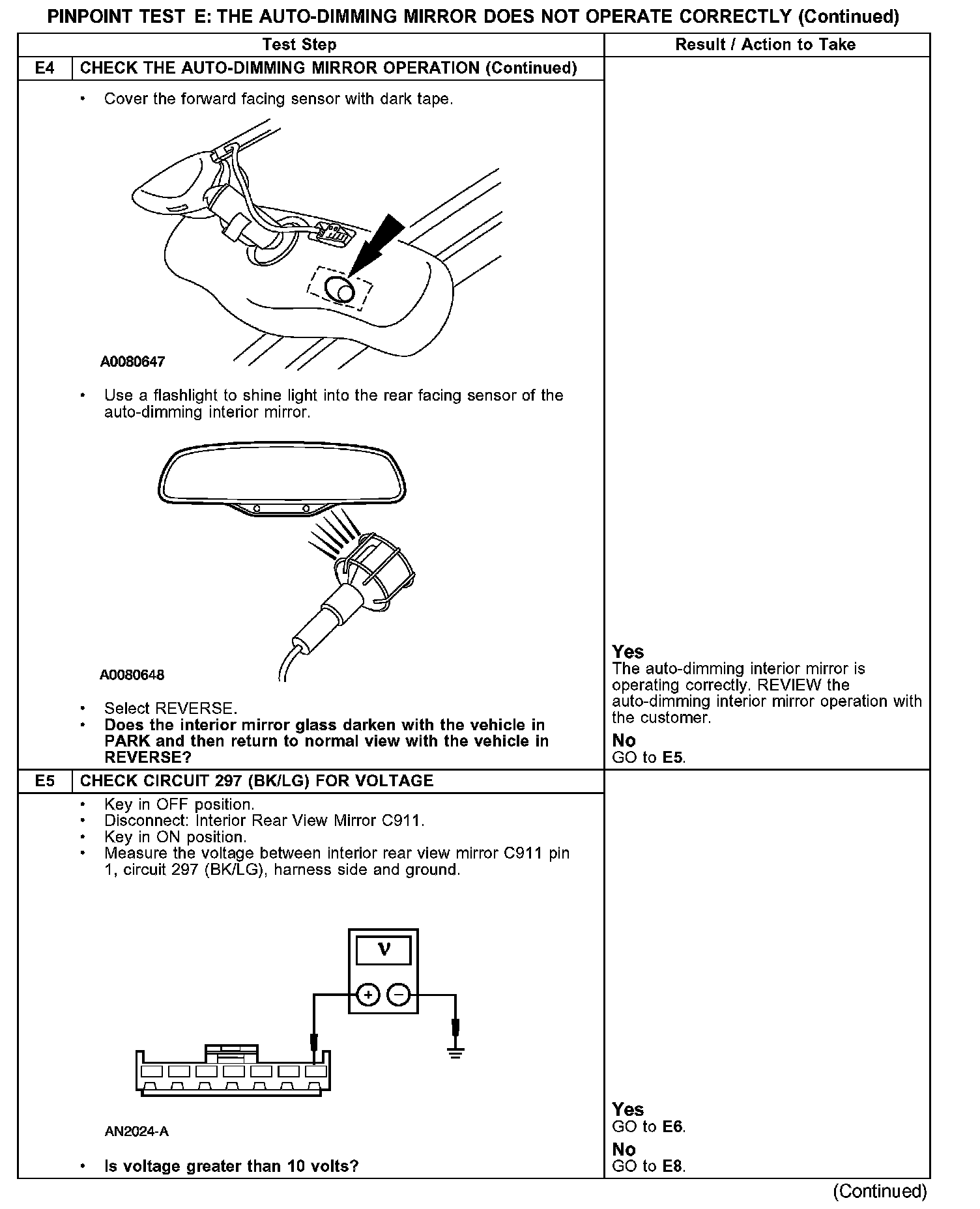

Test E4-E5:

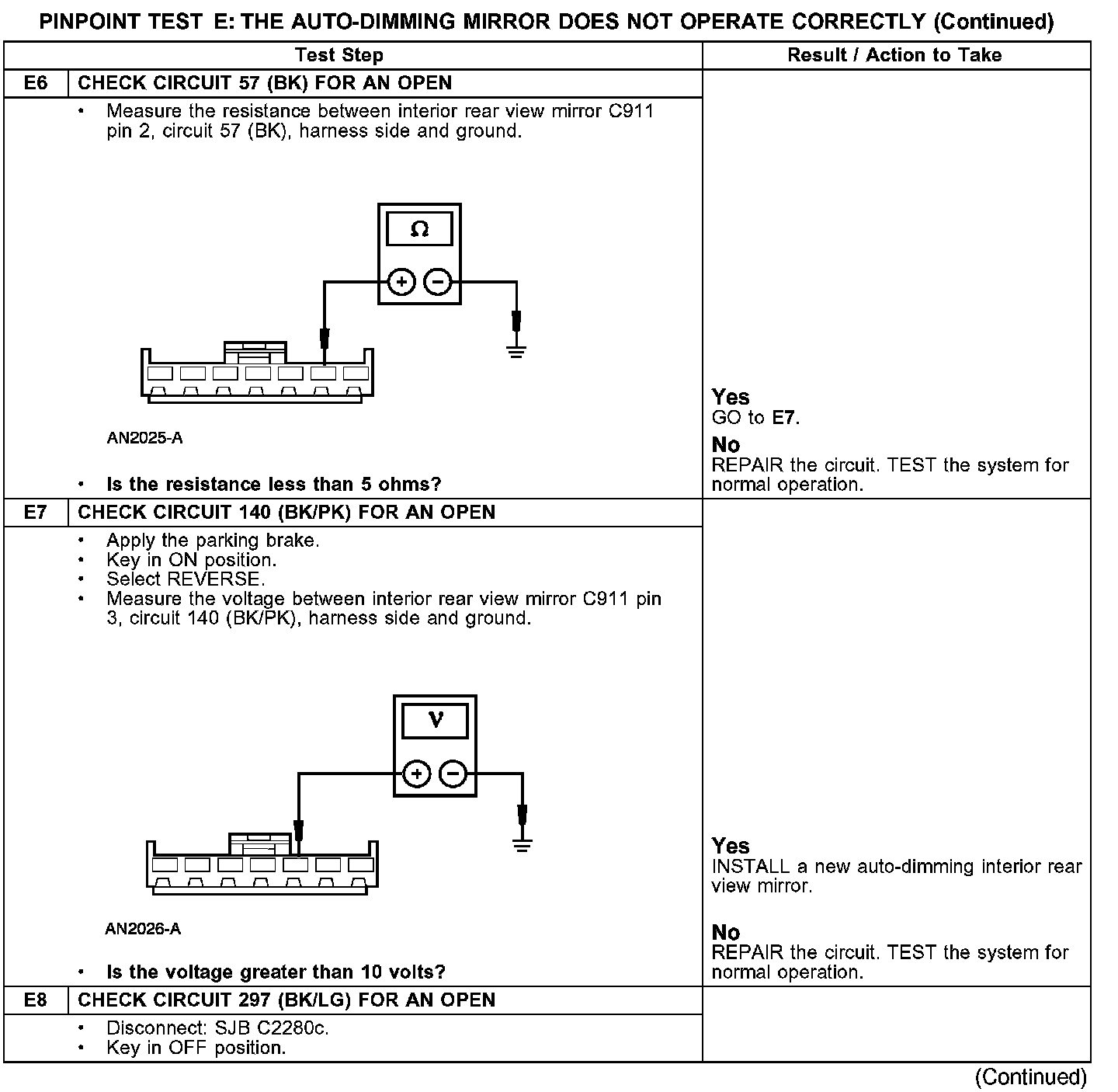

Test E6-E8:

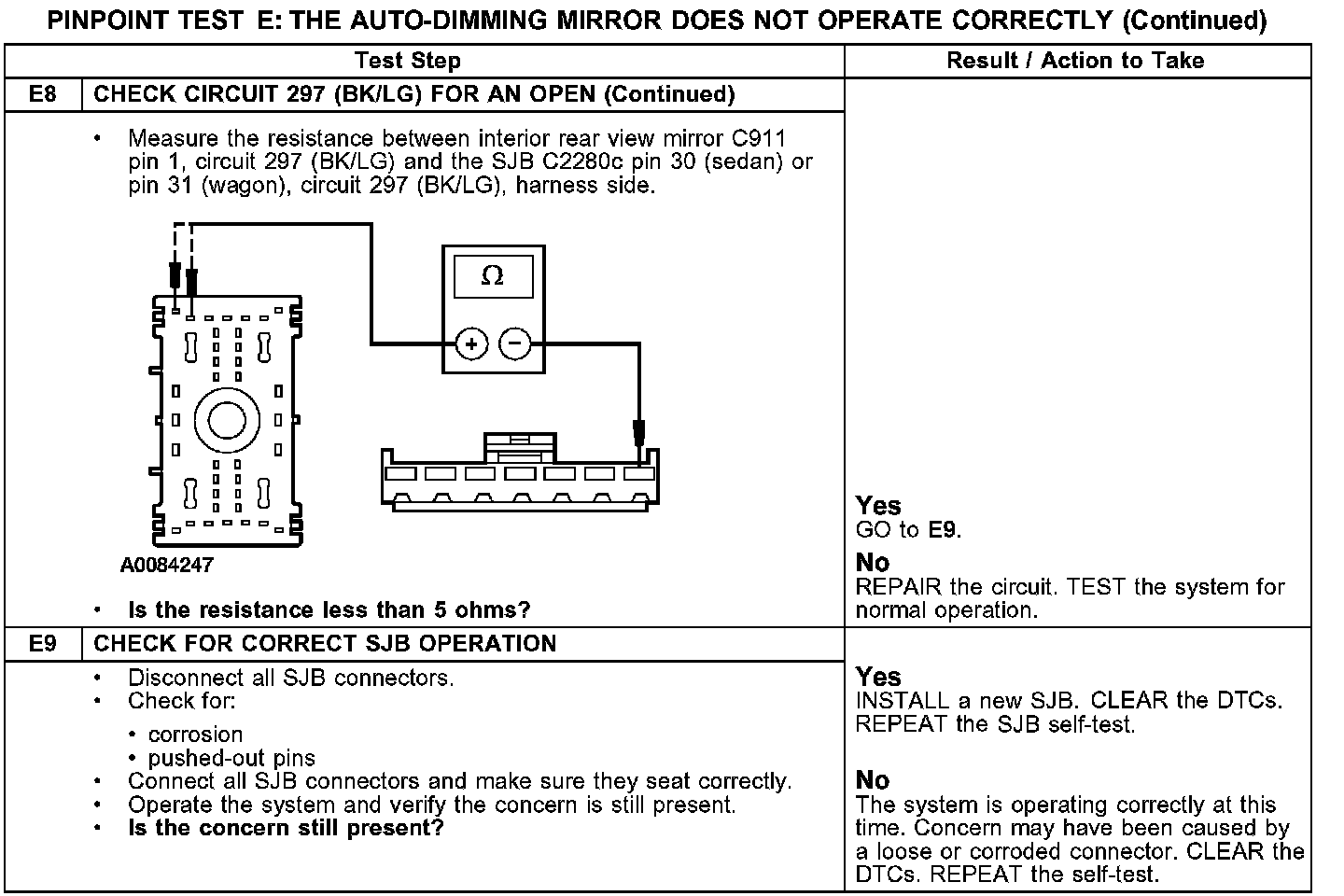

Test E8-E9:
