PINPOINT TEST E: THE DOORS DO NOT LOCK/UNLOCK USING THE
KEYLESS ENTRY
KEYPAD

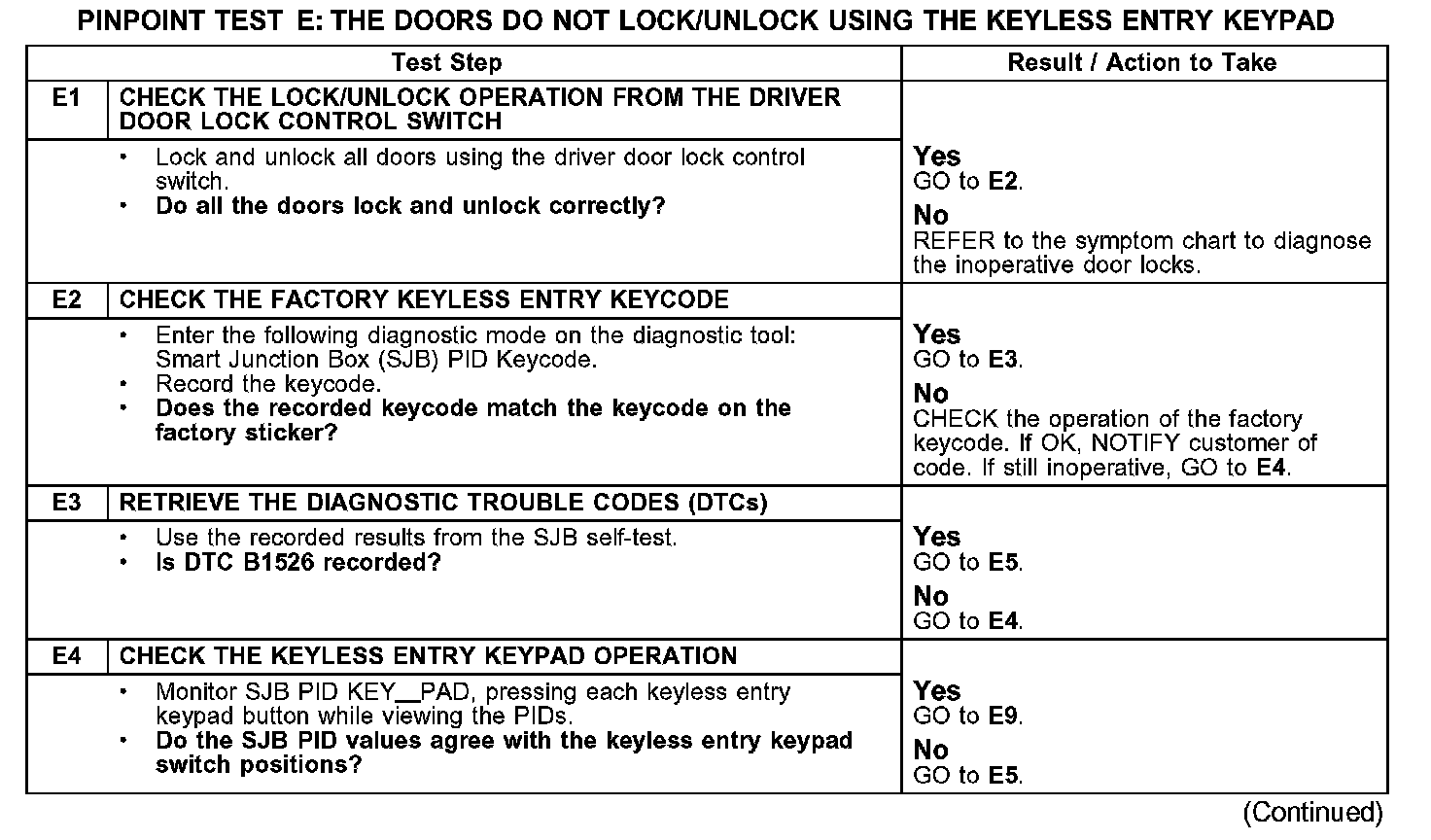

Test E1-E4:

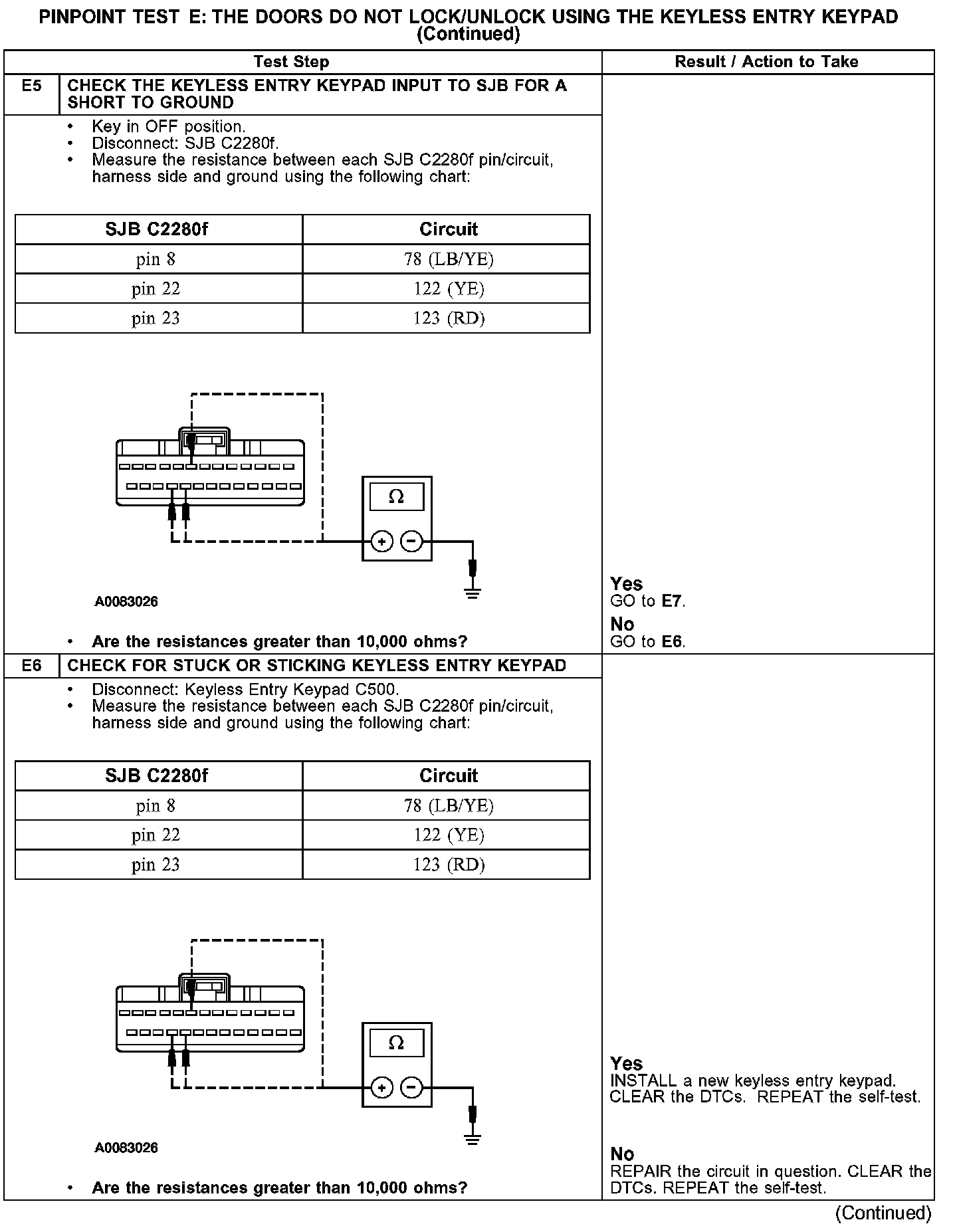

Test E5-E6:

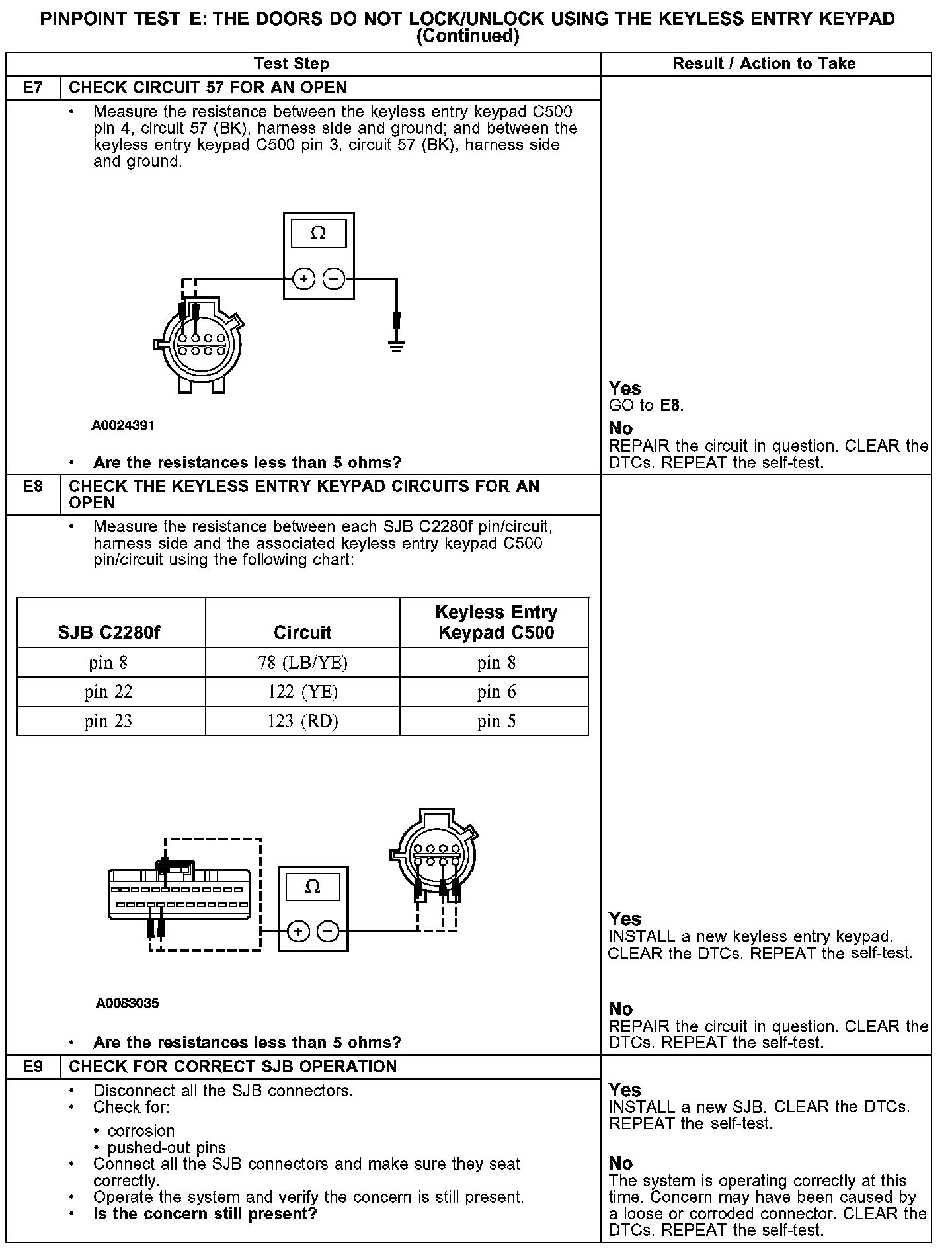

Test E7-E9:
