Power Door Lock Actuator: Service and Repair
DOOR LOCK ACTUATORREMOVAL
1. Remove the door ajar switch.
2. NOTE: When installing the door lock actuator, the actuating lever must engage the actuating pin.

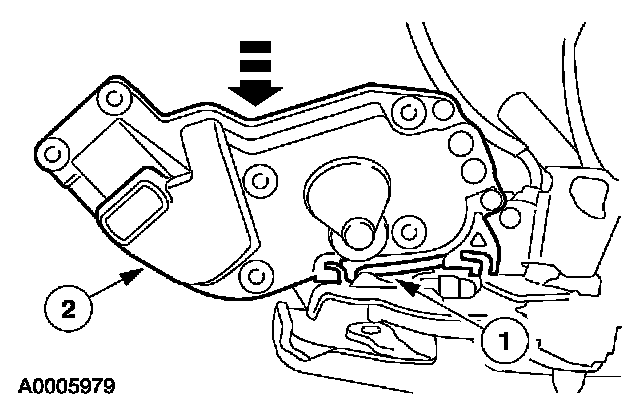

Remove the door lock actuator.
1 Lift the locking tab.
2 Slide the actuator off the latch assembly.
INSTALLATION
1. To install, reverse the removal procedure.
