B-Pillar Trim Panel

B-PILLAR TRIM PANEL

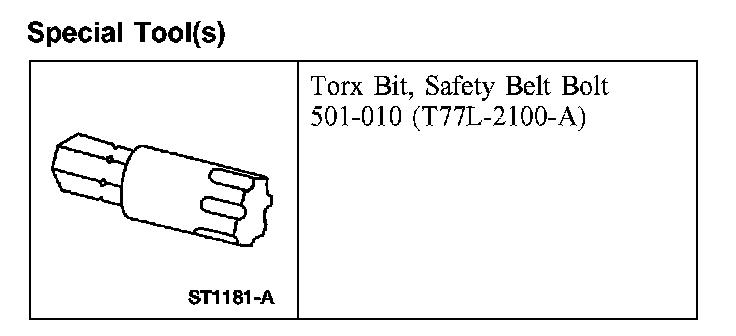

Torx Bit, Safety Belt Bolt:

SPECIAL TOOL(S)

REMOVAL

NOTE: If the side air bag has been deployed, inspect the front and back side of the upper and lower B-pillar trim panel and foam for damage and install a new panel if necessary.

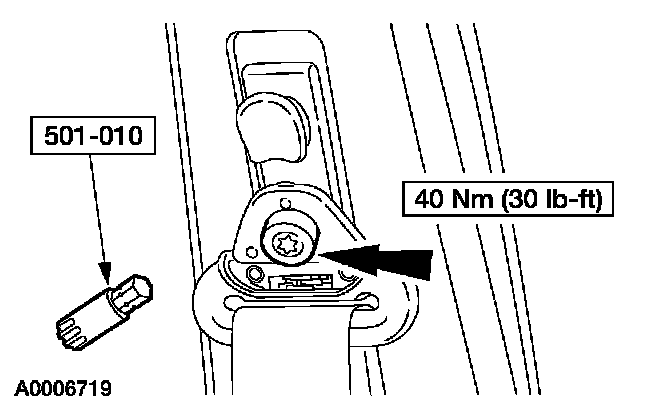

1. NOTE: Inspect the D-ring cover for damage. If the cover is damaged or will not remain closed, install a new cover.

Using the special tool, remove the safety belt D-ring cover and the D-ring bolt.

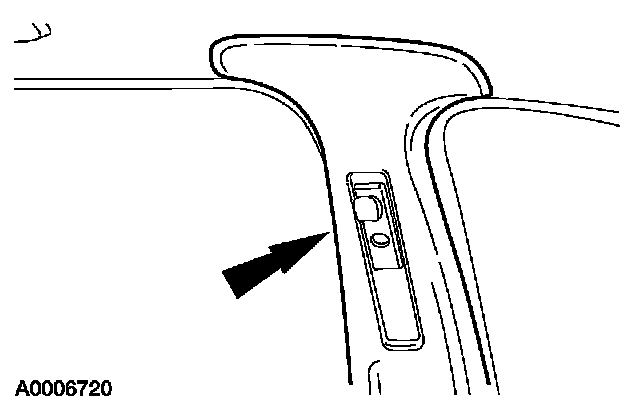

2. Remove the upper B-pillar trim panel.

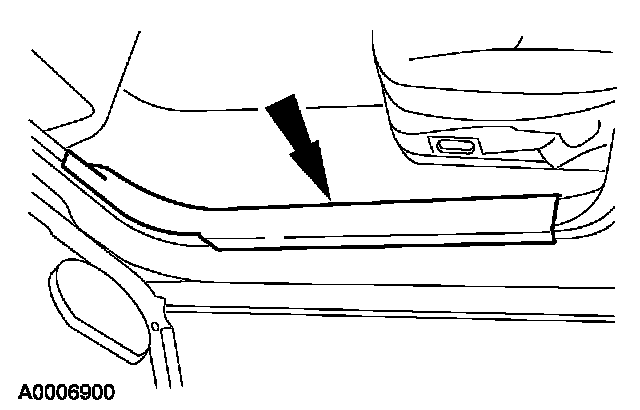

3. Remove the front scuff plate.

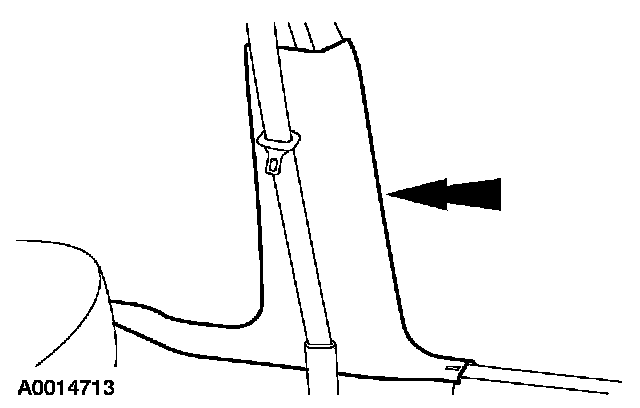

4. Remove the lower B-pillar trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
